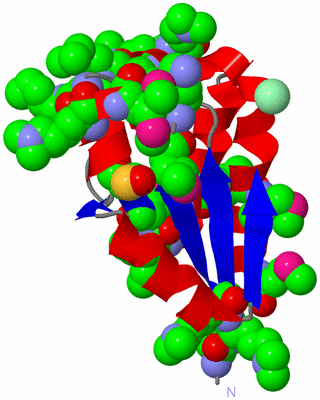

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

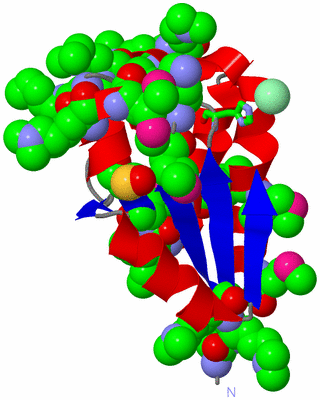

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF DSRE/DSRF-LIKE FAMILY PROTEIN (NP_342589.1) FROM SULFOLOBUS SOLFATARICUS AT 1.49 A RESOLUTION

Authors :  Joint Center For Structural Genomics (Jcsg)
Date :  26 Mar 10  (Deposition) - 19 May 10  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.49
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (3x)
Keywords :  Structural Genomics, Joint Center For Structural Genomics, Jcsg, Protein Structure Initiative, Psi-2, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Joint Center For Structural Genomics (Jcsg)
Crystal Structure Of Dsre/Dsrf-Like Family Protein (Np_342589. 1) From Sulfolobus Solfataricus At 1. 49 A Resolution
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - DSRE/DSRF-LIKE FAMILY PROTEIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: SPEEDET
    Expression System Strain: HK100
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: SSO1125
    Organism Common: ARCHAEA
    Organism Scientific: SULFOLOBUS SOLFATARICUS
    Organism Taxid: 2287

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (3x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (4, 22)

Asymmetric Unit (4, 22)
No.NameCountTypeFull Name
1CL1Ligand/IonCHLORIDE ION
2CSX1Mod. Amino AcidS-OXY CYSTEINE
3MLY13Mod. Amino AcidN-DIMETHYL-LYSINE
4MSE7Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (3, 63)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2CSX3Mod. Amino AcidS-OXY CYSTEINE
3MLY39Mod. Amino AcidN-DIMETHYL-LYSINE
4MSE21Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHIS A:23BINDING SITE FOR RESIDUE CL A 134

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3MC3)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3MC3)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3MC3)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3MC3)

(-) Exons   (0, 0)

(no "Exon" information available for 3MC3)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:121
 aligned with Q97Z18_SULSO | Q97Z18 from UniProtKB/TrEMBL  Length:133

    Alignment length:121
                                    22        32        42        52        62        72        82        92       102       112       122       132
         Q97Z18_SULSO    13 QKKKILIVVTHGPEDLDRTYAPLFMASISASMEYETSVFFMIKGPKLLDKKWQEEERKKGGNPFIHFFDMAKENGVKMYVCVQSLKDMCHMKEDDVVEGIELVGGSTLIDLTLEADRTLFF 133
               SCOP domains ------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --DrsE-3mc3A01 A:15-133                                                                                                   Pfam domains
         Sec.struct. author ...eeeeee..hhhhhhhhhhhhhhhhhhhhh..eeeeee..hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhh..eeeeehhhhhhh...hhhhh....eee.hhhhhhhhhhh.eeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mc3 A  13 QkkkILIVVTHGPEDLDRTYAPLFmASISASmEYETSVFFmIkGPkLLDkkWQEEERkkGGNPFIHFFDmAkENGVkmYVcVQSLkDmCHmkEDDVVEGIELVGGSTLIDLTLEADRTLFF 133
                             |||    22        32    |   42 |      52| |  |  62|      |72        82 |    ||92|    | 102||     112       122       132
                             |||                   37-MSE 44-MSE   53-MSE|   ||     70-MLY      82-MSE  ||  |    | |  ||
                            14-MLY                                   55-MLY  ||      71-MLY       84-MLY||  |    | |  ||
                             15-MLY                                     58-MLY|                        89-MLY    | |  ||
                              16-MLY                                        62-MLY                      90-MSE   | |  ||
                                                                             63-MLY                        93-CSX| |  ||
                                                                                                                98-MLY||
                                                                                                                 100-MSE
                                                                                                                    103-MSE
                                                                                                                     104-MLY
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3MC3)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3MC3)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: DsrEFH-like (7)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 3MC3)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    CSX  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MLY  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3mc3)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

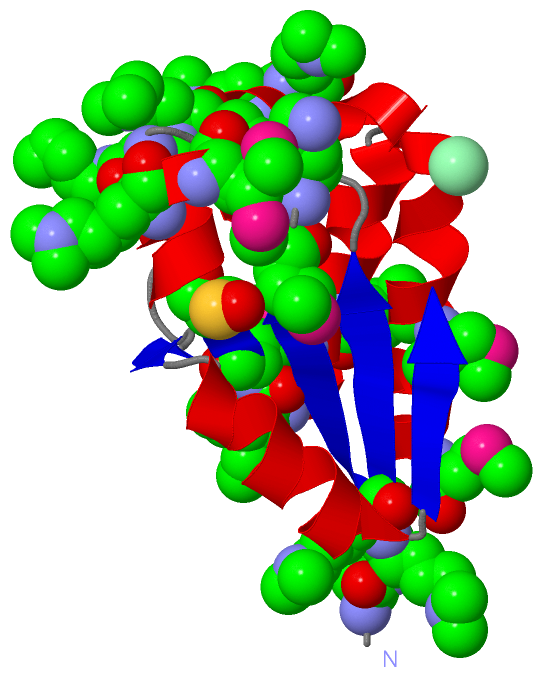

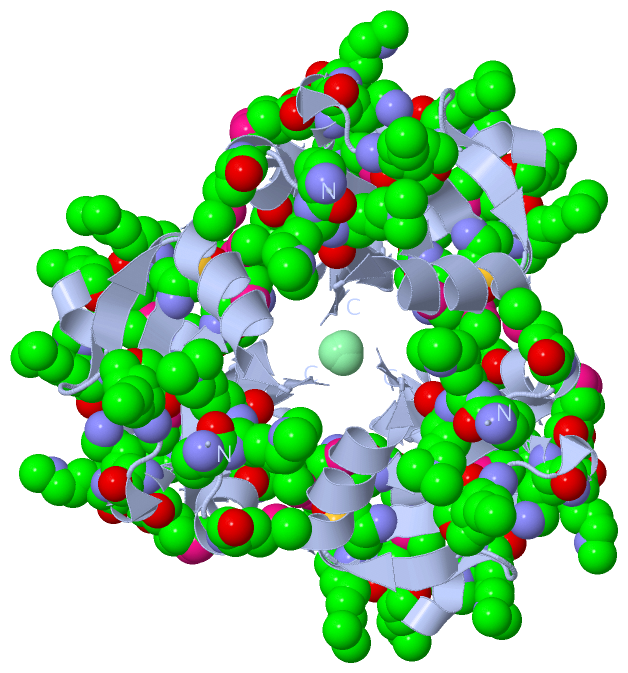

[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3mc3
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q97Z18_SULSO | Q97Z18
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q97Z18_SULSO | Q97Z18
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 3MC3)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 3MC3)
