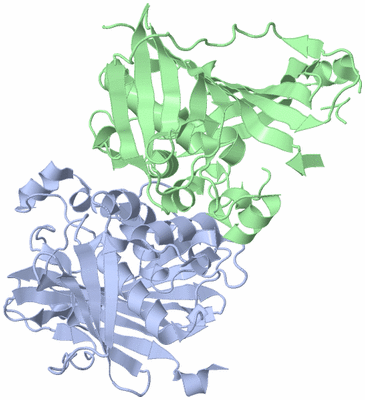

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF MAOC-LIKE DEHYDRATASE FROM PHYTOPHTHORA CAPSICI

Authors :  H. Wang, K. Zhang, J. Guo, Q. Zhou, X. Zheng, F. Sun, H. Pang, X. Zhang
Date :  30 Oct 09  (Deposition) - 10 Nov 10  (Release) - 10 Nov 10  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Hot Dog Domain, Lyase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. Wang, K. Zhang, J. Guo, Q. Zhou, X. Zheng, F. Sun, H. Pang, X. Zhang
Crystal Structure Of Maoc-Like Dehydratase From Phytophthor Capsici
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - MAOC-LIKE DEHYDRATASE
    Chains: A, B
    EC Number: 4.2.1.-
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET-28A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Scientific: PHYTOPHTHORA CAPSICI
    Organism Taxid: 4784

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3KH8)

(-) Sites  (0, 0)

(no "Site" information available for 3KH8)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3KH8)

(-) Cis Peptide Bonds  (3, 3)

Asymmetric/Biological Unit
No.Residues
1Phe A:69 -Pro A:70
2Asp A:79 -Gly A:80
3Phe B:69 -Pro B:70

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3KH8)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3KH8)

(-) Exons   (0, 0)

(no "Exon" information available for 3KH8)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:295
 aligned with E3T2G3_PHYCP | E3T2G3 from UniProtKB/TrEMBL  Length:298

    Alignment length:295
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292
         E3T2G3_PHYCP     3 VNVDKILNSPEATYTATYNQRDLLMYAVGIGESDLQFTYEFDEKFSAFPLYPVCLPFKGQSQDVVPFPPETISAAPDGMPSFNPAMILHGEQSVEILRPLDPSGGTLTGKTKVISFYDKGKGTLMETQTQFEDGNGPVAKLISGSFIRGLTGYEGKGRKLPARVQIPKRQPDFNDEFKTSPHQAQVYRLSGDYNSLHIDPEIAKSVGFKQPILHGLCSMGVASRALFKQFCGGDVARFKSIRVRFSSPCFPGETIQTRMWQEGSGKVLFQAVVKERGAVIVDGGEFVYTQDASAR 297
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhh..eeeeeeehhhhhhhhhhhh...hhhhhh..........hhhhhhhhhh.........hhhhhh............eeeeeeeeee........eeeeeeeeeeeeee...eeeeeeeeeeee..eeeeeeeeeeeee.......ee...............eeeeee...hhhhhhhhhh..hhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhh..hhh.eeeeeeee........eeeeeeee....eeeeeeee....eeeeeeeeeee.hhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3kh8 A   3 VNVDKILNSPEATYTATYNQRDLLMYAVGIGESDLQFTYEFDEKFSAFPLYPVCLPFKGQSQDVVPFPPETISAAPDGMPSFNPAMILHGEQSVEILRPLDPSGGTLTGKTKVISFYDKGKGTLMETQTQFEDGNGPVAKLISGSFIRGLTGYEGKGRKLPARVQIPKRQPDFNDEFKTSPHQAQVYRLSGDYNSLHIDPEIAKSVGFKQPILHGLCSMGVASRALFKQFCGGDVARFKSIRVRFSSPCFPGETIQTRMWQEGSGKVLFQAVVKERGAVIVDGGEFVYTQDASAR 297
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292


Chain B from PDB  Type:PROTEIN  Length:284
 aligned with E3T2G3_PHYCP | E3T2G3 from UniProtKB/TrEMBL  Length:298

    Alignment length:292
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292
         E3T2G3_PHYCP     3 VNVDKILNSPEATYTATYNQRDLLMYAVGIGESDLQFTYEFDEKFSAFPLYPVCLPFKGQSQDVVPFPPETISAAPDGMPSFNPAMILHGEQSVEILRPLDPSGGTLTGKTKVISFYDKGKGTLMETQTQFEDGNGPVAKLISGSFIRGLTGYEGKGRKLPARVQIPKRQPDFNDEFKTSPHQAQVYRLSGDYNSLHIDPEIAKSVGFKQPILHGLCSMGVASRALFKQFCGGDVARFKSIRVRFSSPCFPGETIQTRMWQEGSGKVLFQAVVKERGAVIVDGGEFVYTQDA 294
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhh..eeeeeeehhhhhhhhhhhh...hhhhhh..........hhhhhhhhhh..........------.....--hhh.eeeeeeeeee........eeeeeeeeeeeeee...eeeeeeeeeee....eeeeeeeeeeee.......ee...............eeeeee...hhhhhhhhhh..hhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhh..hhh.eeeeeeee........eeeeeeeeee..eeeeeeee....eeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3kh8 B   3 VNVDKILNSPEATYTATYNQRDLLMYAVGIGESDLQFTYEFDEKFSAFPLYPVCLPFKGQSQDVVPFPP------PDGMP--NPAMILHGEQSVEILRPLDPSGGTLTGKTKVISFYDKGKGTLMETQTQFEDGNGPVAKLISGSFIRGLTGYEGKGRKLPARVQIPKRQPDFNDEFKTSPHQAQVYRLSGDYNSLHIDPEIAKSVGFKQPILHGLCSMGVASRALFKQFCGGDVARFKSIRVRFSSPCFPGETIQTRMWQEGSGKVLFQAVVKERGAVIVDGGEFVYTQDA 294
                                    12        22        32        42        52        62        |-     |  82  |     92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292
                                                                                               71     78  82 85
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3KH8)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3KH8)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3KH8)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 3KH8)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3kh8)

  Sites
(no "Sites" information available for 3kh8)

  Cis Peptide Bonds
    Asp A:79 - Gly A:80   [ RasMol ]
    Phe A:69 - Pro A:70   [ RasMol ]
    Phe B:69 - Pro B:70   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
