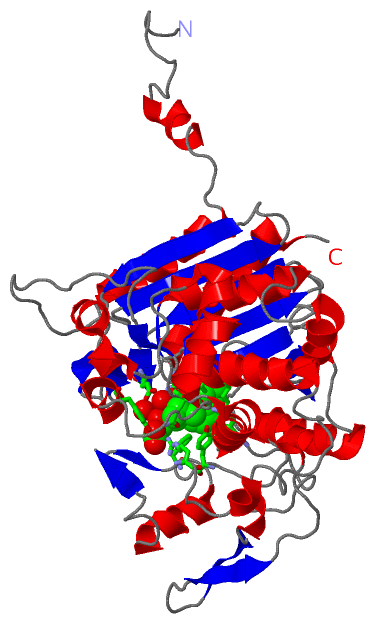

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  SIMVASTATIN SYNTHASE (LOVD), FROM ASPERGILLUS TERREUS, S5 MUTANT, S76A MUTANT, COMPLEX WITH LOVASTATIN

Authors :  M. R. Sawaya, T. O. Yeates, I. Pashkov, X. Gao, Y. Tang
Date :  27 May 09  (Deposition) - 27 Oct 09  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.01
Chains :  Asym./Biol. Unit :  A
Keywords :  Alpha/Beta Hydrolase Fold, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. Gao, X. Xie, I. Pashkov, M. R. Sawaya, J. Laidman, W. Zhang, R. Cacho, T. O. Yeates, Y. Tang
Directed Evolution And Structural Characterization Of A Simvastatin Synthase
Chem. Biol. V. 16 1064 2009
PubMed-ID: 19875080  |  Reference-DOI: 10.1016/J.CHEMBIOL.2009.09.017

(-) Compounds

Molecule 1 - TRANSESTERASE
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28A
    Expression System Strain: BL21(DE3)WITH BIOH KNOCKOUT
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Mutation: YES
    Organism Scientific: ASPERGILLUS TERREUS
    Organism Taxid: 33178
    Synonym: LOVD

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1LVA1Ligand/Ion(3R,5R)-7-((1R,2R,6S,8R,8AS)-2,6-DIMETHYL-8-{[(2R)-2-METHYLBUTANOYL]OXY}-1,2,6,7,8,8A-HEXAHYDRONAPHTHALEN-1-YL)-3,5-DIHYDROXYHEPTANOIC ACID

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREALA A:75 , ALA A:76 , LYS A:79 , TYR A:146 , PHE A:148 , ARG A:173 , TYR A:188 , TYR A:258 , GLN A:270 , ILE A:325 , GLY A:366 , GLU A:388 , TRP A:390 , HOH A:432 , HOH A:456BINDING SITE FOR RESIDUE LVA A 500

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3HLG)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Glu A:388 -Pro A:389

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3HLG)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3HLG)

(-) Exons   (0, 0)

(no "Exon" information available for 3HLG)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:425
 aligned with LOVD_ASPTE | Q9Y7D1 from UniProtKB/Swiss-Prot  Length:413

    Alignment length:425
                                        1
                                     -  |      8        18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378       388       398       408
           LOVD_ASPTE     - ------------MGSIIDAAAAADPVVLMETAFRKAVKSRQIPGAVIMARDCSGNLNYTRCFGARTVRRDECNQLPPLQVDTPCRLASATKLLTTIMALQCMERGLVDLDETVDRLLPDLSAMPVLEGFDDAGNARLRERRGKITLRHLLTHTSGLSYVFLHPLLREYMAQGHLQSAEKFGIQSRLAPPAVNDPGAEWIYGANLDWAGKLVERATGLDLEQYLQENICAPLGITDMTFKLQQRPDMLARRADQTHRNSADGRLRYDDSVYFRADGEECFGGQGVFSGPGSYMKVLHSLLKRDGLLLQPQTVDLMFQPALEPRLEEQMNQHMDASPHINYGGPMPMVLRRSFGLGGIIALEDLDGENWRRKGSLTFGGGPNIVWQIDPKAGLCTLAFFQLEPWNDPVCRDLTRTFEHAIYAQYQQG 413
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhh.....hhhhhhhhhhhhhhhh....eeeeeeee.....eeeeeee....................ee...hhhhhhhhhhhhhhhh............hhhhhh..eeeee.....eeee......hhhhhhh..........hhhhhhhhhh......ee..ee..................hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh......hhhhhhhhhh....eeee......eeee.hhhhh............eehhhhhhhhhhhhhhh.....hhhhhhhhh....hhhhhhhhhhhhhh...............eee....eee..............eeeee...eeeeee....eeeeee..ee...hhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3hlg A -11 HHSSGLVPRGSHMGSIIDAAAAAGPVVLMETAFRKAVESRQIPGAVIMARDASGNLNYTRCFGARTVRRDENNQLPPLQVDTPCRLAAATKLLTTIMVLQCMERGLVDLDETVDRLLPDLSAMPVLEGFDDAGNARLRERRGKITLRHLLTHTSGLSYVFLHPLLREYMAQGYLQSAEKFGIQSRLAPPAVNDPGAEWIYGTNLDWAGKLVERATGLDLEQYLQENICAPLGITDMTFKLQQRPDMLARRADQTHRNSADGRLRYDDSVYFRADGEECFGGQGVFSSPGSYMKVLHSLLKRDGLLLQPQTVDLMFQPALEPRLEEQMNQHMDASPHINYGGPMPMVLRRSFGLGGIIALEDLDGENWRRKGSLTFGGGPNIVWQIDPKAGLCTLAFFQLEPWNDPVCRDLTRTFEHAIYAQYQQG 413
                                    -2         8        18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378       388       398       408
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3HLG)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3HLG)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3HLG)

(-) Gene Ontology  (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (LOVD_ASPTE | Q9Y7D1)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0016746    transferase activity, transferring acyl groups    Catalysis of the transfer of an acyl group from one compound (donor) to another (acceptor).
biological process
    GO:0017000    antibiotic biosynthetic process    The chemical reactions and pathways resulting in the formation of an antibiotic, a substance produced by or derived from certain fungi, bacteria, and other organisms, that can destroy or inhibit the growth of other microorganisms.
    GO:0050832    defense response to fungus    Reactions triggered in response to the presence of a fungus that act to protect the cell or organism.
    GO:0030639    polyketide biosynthetic process    The chemical reactions and pathways resulting in the formation of polyketides, any of a diverse group of natural products synthesized via linear poly-beta-ketones, which are themselves formed by repetitive head-to-tail addition of acetyl (or substituted acetyl) units indirectly derived from acetate (or a substituted acetate) by a mechanism similar to that for fatty acid biosynthesis but without the intermediate reductive steps.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    LVA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Glu A:388 - Pro A:389   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3hlg
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  LOVD_ASPTE | Q9Y7D1
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  LOVD_ASPTE | Q9Y7D1
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        LOVD_ASPTE | Q9Y7D1: 3hl9 3hlb 3hlc 3hld 3hle 3hlf 4lcl 4lcm

(-) Related Entries Specified in the PDB File

3hlf SAME MUTANT, BUT COMPLEXED WITH SIMVASTATIN INSTEAD OF LOVASTATIN
