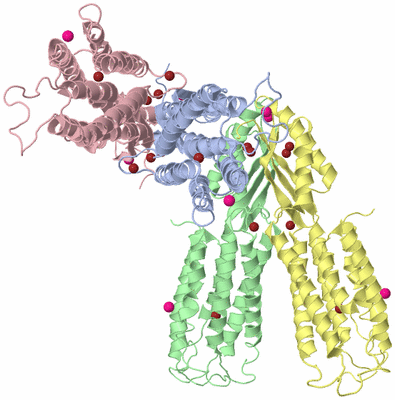

Asymmetric Unit (Jmol Viewer)

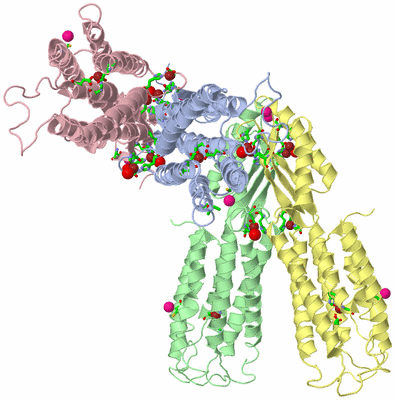

Asym. Unit - sites (Jmol Viewer)

Biological Unit 1 (Jmol Viewer)

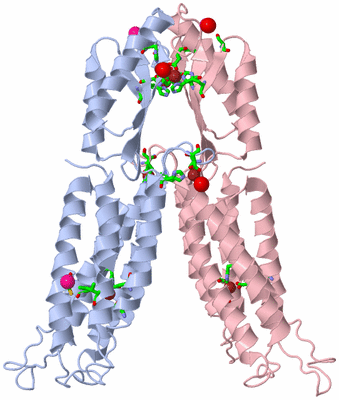

Biol. Unit 1 - sites (Jmol Viewer)

Biological Unit 2 (Jmol Viewer)

Title :   STRUCTURAL BASIS FOR THE AUTOREGULATION OF THE ZINC TRANSPORTER YIIP

Authors :   M. Lu

Date :   29 Apr 09 (Deposition) - 08 Sep 09 (Release) - 20 Oct 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.90

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: A,C  (1x)
Biol. Unit 2: B,D  (1x)

Keywords :   Membrane Protein, Zinc Transporter, Cell Inner Membrane, Cell Membrane, Ion Transport, Iron, Iron Transport, Membrane, Transmembrane, Transport, Transport Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. Lu, J. Chai, D. Fu
Structural Basis For Autoregulation Of The Zinc Transporter Yiip.
Nat. Struct. Mol. Biol. V. 16 1063 2009
PubMed-ID: 19749753 | Reference-DOI: 10.1038/NSMB.1662
(for further references see the PDB file header)

Molecule 1 - FERROUS-IRON EFFLUX PUMP FIEF
	Chains	:	A, B, C, D
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Fragment	:	UNP RESIDUES 8-290
	Gene	:	FIEF, YIIP, B3915, JW3886
	Organism Scientific	:	ESCHERICHIA COLI K-12
	Organism Taxid	:	83333

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A		C
Biological Unit 2 (1x)	:		B		D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (2, 24)

No.	Name	Count	Type	Full Name
1	HG	8	Ligand/Ion	MERCURY (II) ION
2	ZN	16	Ligand/Ion	ZINC ION

Biological Unit 1 (0, 0)

No.	Name	Count	Type	Full Name
1	HG	-1	Ligand/Ion	MERCURY (II) ION
2	ZN	-1	Ligand/Ion	ZINC ION

Biological Unit 2 (0, 0)

No.	Name	Count	Type	Full Name
1	HG	-1	Ligand/Ion	MERCURY (II) ION
2	ZN	-1	Ligand/Ion	ZINC ION

Asymmetric Unit (22, 22)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	ILE A:26 , CYS A:127	BINDING SITE FOR RESIDUE HG A 2
02	AC2	SOFTWARE	CYS B:127	BINDING SITE FOR RESIDUE HG B 4
03	AC3	SOFTWARE	SER C:229 , HOH C:340	BINDING SITE FOR RESIDUE HG C 5
04	AC4	SOFTWARE	CYS C:127	BINDING SITE FOR RESIDUE HG C 6
05	AC5	SOFTWARE	SER D:229	BINDING SITE FOR RESIDUE HG D 7
06	AC6	SOFTWARE	CYS D:127	BINDING SITE FOR RESIDUE HG D 291
07	AC7	SOFTWARE	HIS A:261 , HIS C:283 , ASP C:285 , HOH C:294	BINDING SITE FOR RESIDUE ZN C 1
08	AC8	SOFTWARE	ASP C:68 , HIS C:71 , HIS C:75 , HOH C:293	BINDING SITE FOR RESIDUE ZN C 2
09	AC9	SOFTWARE	HIS C:232 , HIS C:248 , ASP C:285 , HOH C:294 , HOH C:346	BINDING SITE FOR RESIDUE ZN C 3
10	BC1	SOFTWARE	ASP A:45 , ASP A:49 , HIS A:153 , ASP A:157	BINDING SITE FOR RESIDUE ZN A 4
11	BC2	SOFTWARE	HIS B:261 , HOH B:307 , HIS D:283 , ASP D:285 , ZN D:292 , HOH D:335	BINDING SITE FOR RESIDUE ZN D 5
12	BC3	SOFTWARE	ASP D:68 , HIS D:71 , HIS D:75 , HOH D:295	BINDING SITE FOR RESIDUE ZN D 6
13	BC4	SOFTWARE	ZN D:5 , HIS D:232 , HIS D:248 , ASP D:285 , HOH D:294 , HOH D:335	BINDING SITE FOR RESIDUE ZN D 292
14	BC5	SOFTWARE	ASP B:45 , ASP B:49 , HIS B:153 , ASP B:157	BINDING SITE FOR RESIDUE ZN B 291
15	BC6	SOFTWARE	HIS A:283 , ASP A:285 , HOH A:298 , HIS C:261	BINDING SITE FOR RESIDUE ZN A 291
16	BC7	SOFTWARE	ASP A:68 , HIS A:71 , HIS A:75 , HOH A:295	BINDING SITE FOR RESIDUE ZN A 292
17	BC8	SOFTWARE	HIS A:232 , HIS A:248 , ASP A:285 , HOH A:294 , HOH A:298	BINDING SITE FOR RESIDUE ZN A 293
18	BC9	SOFTWARE	ASP C:45 , ASP C:49 , HIS C:153 , ASP C:157	BINDING SITE FOR RESIDUE ZN C 291
19	CC1	SOFTWARE	HIS B:283 , ASP B:285 , HOH B:300 , HIS D:261	BINDING SITE FOR RESIDUE ZN B 292
20	CC2	SOFTWARE	ASP B:68 , HIS B:71 , HIS B:75 , HOH B:296	BINDING SITE FOR RESIDUE ZN B 293
21	CC3	SOFTWARE	HIS B:232 , HIS B:248 , ASP B:285 , HOH B:295 , HOH B:300	BINDING SITE FOR RESIDUE ZN B 294
22	CC4	SOFTWARE	ASP D:45 , ASP D:49 , HIS D:153 , ASP D:157	BINDING SITE FOR RESIDUE ZN D 293

(no "SS Bond" information available for 3H90)

(no "Cis Peptide Bond" information available for 3H90)

(no "SAP(SNP)/Variant" information available for 3H90)

(no "PROSITE Motif" information available for 3H90)

(no "Exon" information available for 3H90)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:283
 aligned with FIEF_ECOLI | P69380 from UniProtKB/Swiss-Prot  Length:300

    Alignment length:283
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287
           FIEF_ECOLI     8 LVSRAAIAATAMASLLLLIKIFAWWYTGSVSILAALVDSLVDIGASLTNLLVVRYSLQPADDNHSFGHGKAESLAALAQSMFISGSALFLFLTGIQHLISPTPMTDPGVGVIVTIVALICTIILVSFQRWVVRRTQSQAVRADMLHYQSDVMMNGAILLALGLSWYGWHRADALFALGIGIYILYSALRMGYEAVQSLLDRALPDEERQEIIDIVTSWPGVSGAHDLRTRQSGPTRFIQIHLEMEDSLPLVQAHMVADQVEQAILRRFPGSDVIIHQDPCSVV 290
               SCOP domains d3h90a1 A:8-208 automated matches                                                                                                                                                                        d3h90a2 A:209-290 automated matches                                                SCOP domains
               CATH domains 3h90A01 A:8-206 Cation efflux protein cytoplasmic domain-like                                                                                                                                          3h90A02 A:207-290 Cation efflux protein cytoplasmic domain-like                      CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh...................hhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhh....eeeeeeeeee..eeeeeeeee.....hhhhhhhhhhhhhhhhhhhh...eeeeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3h90 A   8 LVSRAAIAATAMASLLLLIKIFAWWYTGSVSILAALVDSLVDIGASLTNLLVVRYSLQPADDNHSFGHGKAESLAALAQSMFISGSALFLFLTGIQHLISPTPMTDPGVGVIVTIVALICTIILVSFQRWVVRRTQSQAVRADMLHYQSDVMMNGAILLALGLSWYGWHRADALFALGIGIYILYSALRMGYEAVQSLLDRALPDEERQEIIDIVTSWPGVSGAHDLRTRQSGPTRFIQIHLEMEDSLPLVQAHMVADQVEQAILRRFPGSDVIIHQDPCSVV 290
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287

Chain B from PDB  Type:PROTEIN  Length:283
 aligned with FIEF_ECOLI | P69380 from UniProtKB/Swiss-Prot  Length:300

    Alignment length:283
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287
           FIEF_ECOLI     8 LVSRAAIAATAMASLLLLIKIFAWWYTGSVSILAALVDSLVDIGASLTNLLVVRYSLQPADDNHSFGHGKAESLAALAQSMFISGSALFLFLTGIQHLISPTPMTDPGVGVIVTIVALICTIILVSFQRWVVRRTQSQAVRADMLHYQSDVMMNGAILLALGLSWYGWHRADALFALGIGIYILYSALRMGYEAVQSLLDRALPDEERQEIIDIVTSWPGVSGAHDLRTRQSGPTRFIQIHLEMEDSLPLVQAHMVADQVEQAILRRFPGSDVIIHQDPCSVV 290
               SCOP domains d3h90b1 B:8-208 automated matches                                                                                                                                                                        d3h90b2 B:209-290 automated matches                                                SCOP domains
               CATH domains 3h90B01 B:8-206 Cation efflux protein cytoplasmic domain-like                                                                                                                                          3h90B02 B:207-290 Cation efflux protein cytoplasmic domain-like                      CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhh..............hhhhhhhhhhhhhhhhhhhhhhhhh...........hhhhhhhhhhhhhhhhhhhhhhh..................hhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh....................hhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhh....eeeeeeeeee..eeeeeeeee.....hhhhhhhhhhhhhhhhhhhh...eeeeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3h90 B   8 LVSRAAIAATAMASLLLLIKIFAWWYTGSVSILAALVDSLVDIGASLTNLLVVRYSLQPADDNHSFGHGKAESLAALAQSMFISGSALFLFLTGIQHLISPTPMTDPGVGVIVTIVALICTIILVSFQRWVVRRTQSQAVRADMLHYQSDVMMNGAILLALGLSWYGWHRADALFALGIGIYILYSALRMGYEAVQSLLDRALPDEERQEIIDIVTSWPGVSGAHDLRTRQSGPTRFIQIHLEMEDSLPLVQAHMVADQVEQAILRRFPGSDVIIHQDPCSVV 290
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287

Chain C from PDB  Type:PROTEIN  Length:283
 aligned with FIEF_ECOLI | P69380 from UniProtKB/Swiss-Prot  Length:300

    Alignment length:283
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287
           FIEF_ECOLI     8 LVSRAAIAATAMASLLLLIKIFAWWYTGSVSILAALVDSLVDIGASLTNLLVVRYSLQPADDNHSFGHGKAESLAALAQSMFISGSALFLFLTGIQHLISPTPMTDPGVGVIVTIVALICTIILVSFQRWVVRRTQSQAVRADMLHYQSDVMMNGAILLALGLSWYGWHRADALFALGIGIYILYSALRMGYEAVQSLLDRALPDEERQEIIDIVTSWPGVSGAHDLRTRQSGPTRFIQIHLEMEDSLPLVQAHMVADQVEQAILRRFPGSDVIIHQDPCSVV 290
               SCOP domains d3h90c1 C:8-208 automated matches                                                                                                                                                                        d3h90c2 C:209-290 automated matches                                                SCOP domains
               CATH domains 3h90C01 C:8-206 Cation efflux protein cytoplasmic domain-like                                                                                                                                          3h90C02 C:207-290 Cation efflux protein cytoplasmic domain-like                      CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh...................hhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhh....eeeeeeeeee..eeeeeeeee.....hhhhhhhhhhhhhhhhhhhh...eeeeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3h90 C   8 LVSRAAIAATAMASLLLLIKIFAWWYTGSVSILAALVDSLVDIGASLTNLLVVRYSLQPADDNHSFGHGKAESLAALAQSMFISGSALFLFLTGIQHLISPTPMTDPGVGVIVTIVALICTIILVSFQRWVVRRTQSQAVRADMLHYQSDVMMNGAILLALGLSWYGWHRADALFALGIGIYILYSALRMGYEAVQSLLDRALPDEERQEIIDIVTSWPGVSGAHDLRTRQSGPTRFIQIHLEMEDSLPLVQAHMVADQVEQAILRRFPGSDVIIHQDPCSVV 290
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287

Chain D from PDB  Type:PROTEIN  Length:283
 aligned with FIEF_ECOLI | P69380 from UniProtKB/Swiss-Prot  Length:300

    Alignment length:283
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287
           FIEF_ECOLI     8 LVSRAAIAATAMASLLLLIKIFAWWYTGSVSILAALVDSLVDIGASLTNLLVVRYSLQPADDNHSFGHGKAESLAALAQSMFISGSALFLFLTGIQHLISPTPMTDPGVGVIVTIVALICTIILVSFQRWVVRRTQSQAVRADMLHYQSDVMMNGAILLALGLSWYGWHRADALFALGIGIYILYSALRMGYEAVQSLLDRALPDEERQEIIDIVTSWPGVSGAHDLRTRQSGPTRFIQIHLEMEDSLPLVQAHMVADQVEQAILRRFPGSDVIIHQDPCSVV 290
               SCOP domains d3h90d1 D:8-208 automated matches                                                                                                                                                                        d3h90d2 D:209-290 automated matches                                                SCOP domains
               CATH domains 3h90D01 D:8-206 Cation efflux protein cytoplasmic domain-like                                                                                                                                          3h90D02 D:207-290 Cation efflux protein cytoplasmic domain-like                      CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhh..............hhhhhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhhhhhhh...............hhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh....................hhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhh....eeeeeeeeee..eeeeeeeee.....hhhhhhhhhhhhhhhhhhhh...eeeeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3h90 D   8 LVSRAAIAATAMASLLLLIKIFAWWYTGSVSILAALVDSLVDIGASLTNLLVVRYSLQPADDNHSFGHGKAESLAALAQSMFISGSALFLFLTGIQHLISPTPMTDPGVGVIVTIVALICTIILVSFQRWVVRRTQSQAVRADMLHYQSDVMMNGAILLALGLSWYGWHRADALFALGIGIYILYSALRMGYEAVQSLLDRALPDEERQEIIDIVTSWPGVSGAHDLRTRQSGPTRFIQIHLEMEDSLPLVQAHMVADQVEQAILRRFPGSDVIIHQDPCSVV 290
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 2-Layer Sandwich (8480)

Topology: Alpha-Beta Plaits (1688)

Homologous Superfamily: Cation efflux protein cytoplasmic domain-like (2)

Escherichia coli k-12. Organism_taxid: 83333. (1)

1a	3h90A02	A:207-290
1b	3h90B02	B:207-290
1c	3h90C02	C:207-290
1d	3h90D02	D:207-290

Class: Mainly Alpha (13335)

Architecture: Up-down Bundle (3216)

Topology: Alpha-lytic protease prodomain-like (2)

Homologous Superfamily: Cation efflux protein cytoplasmic domain-like (2)

Escherichia coli k-12. Organism_taxid: 83333. (1)

2a	3h90A01	A:8-206
2b	3h90B01	B:8-206
2c	3h90C01	C:8-206
2d	3h90D01	D:8-206

(no "Pfam Domain" information available for 3H90)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D (FIEF_ECOLI | P69380)

molecular function
	GO:0015086	cadmium ion transmembrane transporter activity	Enables the transfer of cadmium (Cd) ions from one side of a membrane to the other.
	GO:0008324	cation transmembrane transporter activity	Enables the transfer of cation from one side of the membrane to the other.
	GO:0015093	ferrous iron transmembrane transporter activity	Enables the transfer of ferrous iron (Fe(II) or Fe2+) ions from one side of a membrane to the other.
	GO:0046873	metal ion transmembrane transporter activity	Enables the transfer of metal ions from one side of a membrane to the other.
	GO:0005215	transporter activity	Enables the directed movement of substances (such as macromolecules, small molecules, ions) into, out of or within a cell, or between cells.
	GO:0015341	zinc efflux active transmembrane transporter activity	Catalysis of the transfer of a zinc ion or zinc ions from the inside of the cell to the outside of the cell across a membrane: Zn2+(out) = Zn2+(in). The activity is driven by proton motive force.
biological process
	GO:0070574	cadmium ion transmembrane transport	A process in which a cadmium ion is transported from one side of a membrane to the other by means of some agent such as a transporter or pore.
	GO:0015691	cadmium ion transport	The directed movement of cadmium (Cd) ions into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0098655	cation transmembrane transport	A process in which a cation is transported from one side of a membrane to the other by means of some agent such as a transporter or pore.
	GO:0006812	cation transport	The directed movement of cations, atoms or small molecules with a net positive charge, into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0006876	cellular cadmium ion homeostasis	Any process involved in the maintenance of an internal steady state of cadmium ions at the level of a cell.
	GO:0006882	cellular zinc ion homeostasis	Any process involved in the maintenance of an internal steady state of zinc ions at the level of a cell.
	GO:1903874	ferrous iron transmembrane transport	The directed movement of ferrous iron (iron(2+)) across a membrane.
	GO:0015684	ferrous iron transport	The directed movement of ferrous iron (Fe(II) or Fe2+) ions into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0006811	ion transport	The directed movement of charged atoms or small charged molecules into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0055072	iron ion homeostasis	Any process involved in the maintenance of an internal steady state of iron ions within an organism or cell.
	GO:0061088	regulation of sequestering of zinc ion	Any process that modulates the rate, frequency, or extent of sequestering of zinc ion. Sequestering of zinc ion is the process of binding or confining zinc ions such that they are separated from other components of a biological system.
	GO:0010043	response to zinc ion	Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a zinc ion stimulus.
	GO:0055085	transmembrane transport	The process in which a solute is transported across a lipid bilayer, from one side of a membrane to the other
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
	GO:0071577	zinc II ion transmembrane transport	A process in which a zinc II ion is transported from one side of a membrane to the other by means of some agent such as a transporter or pore.
	GO:0006829	zinc II ion transport	The directed movement of zinc (Zn II) ions into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
cellular component
	GO:0016021	integral component of membrane	The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
	GO:0005886	plasma membrane	The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		HG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		ZN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]
		BC6	[ RasMol ]	+environment [ RasMol ]
		BC7	[ RasMol ]	+environment [ RasMol ]
		BC8	[ RasMol ]	+environment [ RasMol ]
		BC9	[ RasMol ]	+environment [ RasMol ]
		CC1	[ RasMol ]	+environment [ RasMol ]
		CC2	[ RasMol ]	+environment [ RasMol ]
		CC3	[ RasMol ]	+environment [ RasMol ]
		CC4	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3h90)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	3h90
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	FIEF_ECOLI \| P69380
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	FIEF_ECOLI \| P69380
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	FIEF_ECOLI \| P69380	:	2qfi

(no "Related Entries Specified in the PDB File" available for 3H90)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 24)

Sites (22, 22)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (2, 8)

CATH Domains (2, 8)

Pfam Domains (0, 0)

Gene Ontology (25, 25)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
