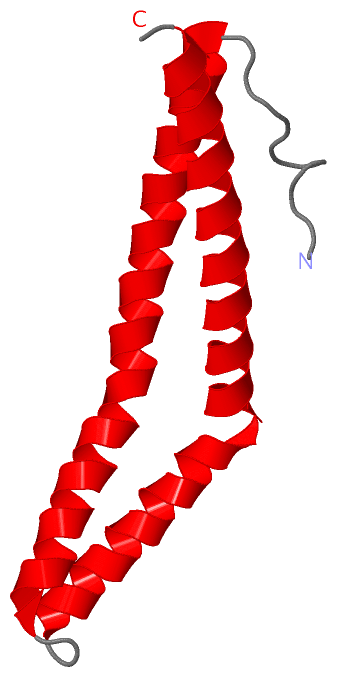

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE PHOSPHORYLATION MIMETIC OF OCCLUDIN C-TERM TAIL

Authors :  B. R. Tash, J. M. Sundstrom, T. Murakami, J. M. Flanagan, M. C. Bewley, D. A. Antonetii
Date :  09 Feb 09  (Deposition) - 12 May 09  (Release) - 12 May 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A
Keywords :  Occludin, Diabetic Retinopathy, Zo-1, Tight Junction, Adhesion, Cell Junction, Coiled Coil, Membrane, Phosphoprotein, Transmembrane, Cell Adhesion (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  J. M. Sundstrom, B. R. Tash, T. Murakami, J. M. Flanagan, M. C. Bewley, B. A. Stanley, K. B. Gonsar, D. A. Antonetti
Identification And Analysis Of Occludin Phosphosites: A Combined Mass Spectrometry And Bioinformatics Approach.
J. Proteome Res. V. 8 808 2009
PubMed-ID: 19125584  |  Reference-DOI: 10.1021/PR7007913
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - OCCLUDIN
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPET28ATEV
    Expression System StrainBL21GOLD(DE3)
    Expression System Taxid562
    Expression System Vector TypePLASMID
    GeneOCLN
    MutationYES
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3G7C)

(-) Sites  (0, 0)

(no "Site" information available for 3G7C)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3G7C)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3G7C)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3G7C)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3G7C)

(-) Exons   (4, 4)

Asymmetric/Biological Unit (4, 4)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.2aENST000003964422aENSE00002074220chr5:68788617-68788727111OCLN_HUMAN-00--
1.3ENST000003964423ENSE00001007952chr5:68800004-68800121118OCLN_HUMAN1-17170--
1.4ENST000003964424ENSE00001486184chr5:68804968-68805646679OCLN_HUMAN17-2432270--
1.5ENST000003964425ENSE00001486183chr5:68809775-68809936162OCLN_HUMAN244-297540--
1.6ENST000003964426ENSE00001740502chr5:68830521-68830666146OCLN_HUMAN298-346490--
1.7cENST000003964427cENSE00001600578chr5:68840731-68840946216OCLN_HUMAN346-418731A:414-4185
1.8ENST000003964428ENSE00001660075chr5:68843757-68843928172OCLN_HUMAN418-475581A:418-47558
1.9ENST000003964429ENSE00001667294chr5:68847371-6884741242OCLN_HUMAN476-489141A:476-48914
1.10aENST0000039644210aENSE00002050990chr5:68849397-68849498102OCLN_HUMAN490-522331A:490-52233

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:109
 aligned with OCLN_HUMAN | Q16625 from UniProtKB/Swiss-Prot  Length:522

    Alignment length:109
                                   423       433       443       453       463       473       483       493       503       513
           OCLN_HUMAN   414 EDWIREYPPITSDQQRQLYKRNFDTGLQEYKSLQSELDEINKELSRLDKELDDYREESEEYMAAADEYNRLKQVKGSADYKSKKNHCKQLKSKLSHIKKMVGDYDRQKT 522
               SCOP domains d3g7ca_ A: Occludin                                                                                           SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) 1.7c ---------------------------------------------------------Exon 1.9      Exon 1.10a  PDB: A:490-522        Transcript 1 (1)
           Transcript 1 (2) ----Exon 1.8  PDB: A:418-475 UniProt: 418-475                 ----------------------------------------------- Transcript 1 (2)
                 3g7c A 414 EEWIREYPPITSDQQRQLYKRNFDTGLQEYKSLQSELDEINKELSRLDKELDDYREESEEYMAAADEYNRLKQVKGDADYKSKKNHCKQLKSKLSHIKKMVGDYDRQKT 522
                                   423       433       443       453       463       473       483       493       503       513

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3G7C)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3G7C)

(-) Gene Ontology  (21, 21)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (OCLN_HUMAN | Q16625)
molecular function
    GO:0008757    S-adenosylmethionine-dependent methyltransferase activity    Catalysis of the transfer of a methyl group from S-adenosyl-L-methionine to a substrate.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0019904    protein domain specific binding    Interacting selectively and non-covalently with a specific domain of a protein.
    GO:0008119    thiopurine S-methyltransferase activity    Catalysis of the reaction: S-adenosyl-L-methionine + a thiopurine = S-adenosyl-L-homocysteine + a thiopurine S-methylether.
biological process
    GO:0046498    S-adenosylhomocysteine metabolic process    The chemical reactions and pathways involving S-adenosylhomocysteine; the L-enantiomer is formed from S-adenosylmethionine and is a strong inhibitor of S-adenosylmethionine-mediated methylation reactions. It can be cleaved to form adenosine and homocysteine.
    GO:0046500    S-adenosylmethionine metabolic process    The chemical reactions and pathways involving S-adenosylmethionine, S-(5'-adenosyl)-L-methionine, an important intermediate in one-carbon metabolism.
    GO:0070830    bicellular tight junction assembly    The aggregation, arrangement and bonding together of a set of components to form a tight junction, an occluding cell-cell junction that is composed of a branching network of sealing strands that completely encircles the apical end of each cell in an epithelial sheet.
    GO:0045216    cell-cell junction organization    A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of a cell-cell junction. A cell-cell junction is a specialized region of connection between two cells.
    GO:0032259    methylation    The process in which a methyl group is covalently attached to a molecule.
    GO:0006461    protein complex assembly    The aggregation, arrangement and bonding together of a set of components to form a protein complex.
cellular component
    GO:0016324    apical plasma membrane    The region of the plasma membrane located at the apical end of the cell.
    GO:0016327    apicolateral plasma membrane    The apical end of the lateral plasma membrane of epithelial cells.
    GO:0005923    bicellular tight junction    An occluding cell-cell junction that is composed of a branching network of sealing strands that completely encircles the apical end of each cell in an epithelial sheet; the outer leaflets of the two interacting plasma membranes are seen to be tightly apposed where sealing strands are present. Each sealing strand is composed of a long row of transmembrane adhesion proteins embedded in each of the two interacting plasma membranes.
    GO:0030054    cell junction    A cellular component that forms a specialized region of connection between two or more cells or between a cell and the extracellular matrix. At a cell junction, anchoring proteins extend through the plasma membrane to link cytoskeletal proteins in one cell to cytoskeletal proteins in neighboring cells or to proteins in the extracellular matrix.
    GO:0005911    cell-cell junction    A cell junction that forms a connection between two or more cells in a multicellular organism; excludes direct cytoplasmic junctions such as ring canals.
    GO:0031410    cytoplasmic vesicle    A vesicle found in the cytoplasm of a cell.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0030139    endocytic vesicle    A membrane-bounded intracellular vesicle formed by invagination of the plasma membrane around an extracellular substance. Endocytic vesicles fuse with early endosomes to deliver the cargo for further sorting.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3g7c)

  Sites
(no "Sites" information available for 3g7c)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3g7c)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3g7c
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  OCLN_HUMAN | Q16625
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  OCLN_HUMAN | Q16625
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        OCLN_HUMAN | Q166251wpa 1xaw

(-) Related Entries Specified in the PDB File

1wpa 1xaw
