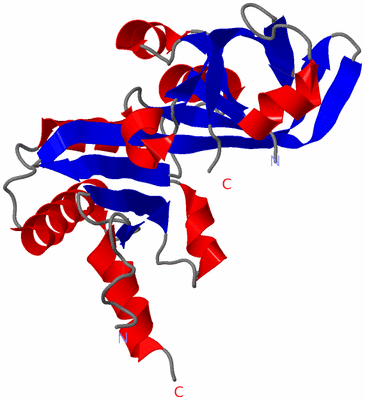

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE PERIPLASMIC REGION OF MACB FROM ACTINOBACILLUS ACTINOMYCETEMCOMITANS

Authors :  Y. Xu, N. C. Ha
Date :  13 Jan 09  (Deposition) - 26 May 09  (Release) - 16 Jun 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A
Keywords :  Macrolide-Specific Pump, Abc-Type Transporter, Heat Stable Exotoxin Ii, Membrane Protein, Periplasmic Region, Antibiotic Resistance, Atp-Binding, Cell Inner Membrane, Cell Membrane, Hydrolase, Membrane, Nucleotide-Binding, Transmembrane, Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  Y. Xu, S. -H. Sim, K. H. Nam, X. L. Jin, H. -M. Kim, K. Y. Hwang, K. Lee, N. -C. Ha
Crystal Structure Of The Periplasmic Region Of Macb, A Noncanonic Abc Transporter
Biochemistry V. 48 5218 2009
PubMed-ID: 19432486  |  Reference-DOI: 10.1021/BI900415T
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - MACROLIDE EXPORT ATP-BINDING/PERMEASE PROTEIN MACB
    ChainsA
    EC Number3.6.3.-
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPPROEX-HTA
    Expression System StrainBL21 (DE3)
    Expression System Taxid469008
    Expression System Vector TypePLASMID
    FragmentPERIPLASMIC REGION, UNP RESIDUES 293-518
    GeneMACB, MACB_ACTAC
    Organism CommonHAEMOPHILUS ACTINOMYCETEMCOMITANS
    Organism ScientificACTINOBACILLUS ACTINOMYCETEMCOMITANS
    Organism Taxid714
    SynonymMACB

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3FTJ)

(-) Sites  (0, 0)

(no "Site" information available for 3FTJ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3FTJ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3FTJ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3FTJ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3FTJ)

(-) Exons   (0, 0)

(no "Exon" information available for 3FTJ)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:214
 aligned with MACB_AGGAC | Q2EHL8 from UniProtKB/Swiss-Prot  Length:644

    Alignment length:222
                                   303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463       473       483       493       503       513
           MACB_AGGAC   294 QKILENIRGIGTNTMTIFNGNGFGDRRSRHIQNLKISDANTLSKQSYIQSVTPNTSSSGILVVGNKSFTSANLYGIGEQYFDVEGLKLKQGRLLTEDDVDQSNQVVVLDESAKKAIFANENPLGKTVIFNKRPFRVIGVVSDQQLGGFPGNSLNLYSPYSTVLNKITGGSRIGSITVKISDDVNSTVAEKSLTELLKSLHGKKDFFIMNSDTIKQTIENTTG 515
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .............eeeeee.....hhhhhhh...hhhhhhhhhh...eeeeeeeeeeeeeeee..eeeeeeeeeee..hhhhhhh..eeee...hhhhhhhh..eeeeehhhhhhhhh.......eeee..eeeeeeeee...--------..eeeeehhhhhhhh.......eeeeee....hhhhhhhhhhhhhhhhhh...eeeehhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3ftj A 307 QKILENIRGIGTNTMTIFNGNGFGDRRSRHIQNLKISDANTLSKQSYIQSVTPNTSSSGILVVGNKSFTSANLYGIGEQYFDVEGLKLKQGRLLTEDDVDQSNQVVVLDESAKKAIFANENPLGKTVIFNKRPFRVIGVVSDQ--------SLNLYSPYSTVLNKITGGSRIGSITVKISDDVNSTVAEKSLTELLKSLHGKKDFFIMNSDTIKQTIENTTG 528
                                   316       326       336       346       356       366       376       386       396       406       416       426       436       446  |      - |     466       476       486       496       506       516       526
                                                                                                                                                                        449      458

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3FTJ)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3FTJ)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3FTJ)

(-) Gene Ontology  (14, 14)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (MACB_AGGAC | Q2EHL8)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0016887    ATPase activity    Catalysis of the reaction: ATP + H2O = ADP + phosphate + 2 H+. May or may not be coupled to another reaction.
    GO:0042895    antibiotic transporter activity    Enables the directed movement of an antibiotic, a substance produced by or derived from certain fungi, bacteria, and other organisms, that can destroy or inhibit the growth of other microorganisms, into, out of or within a cell, or between cells.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016820    hydrolase activity, acting on acid anhydrides, catalyzing transmembrane movement of substances    Catalysis of the hydrolysis of an acid anhydride to directly drive the transport of a substance across a membrane.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
biological process
    GO:0042891    antibiotic transport    The directed movement of an antibiotic, a substance produced by or derived from certain fungi, bacteria, and other organisms, that can destroy or inhibit the growth of other microorganisms, into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0046677    response to antibiotic    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an antibiotic stimulus. An antibiotic is a chemical substance produced by a microorganism which has the capacity to inhibit the growth of or to kill other microorganisms.
    GO:0055085    transmembrane transport    The process in which a solute is transported across a lipid bilayer, from one side of a membrane to the other
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0043190    ATP-binding cassette (ABC) transporter complex    A complex for the transport of metabolites into and out of the cell, typically comprised of four domains; two membrane-associated domains and two ATP-binding domains at the intracellular face of the membrane, that form a central pore through the plasma membrane. Each of the four core domains may be encoded as a separate polypeptide or the domains can be fused in any one of a number of ways into multidomain polypeptides. In Bacteria and Archaebacteria, ABC transporters also include substrate binding proteins to bind substrate external to the cytoplasm and deliver it to the transporter.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
