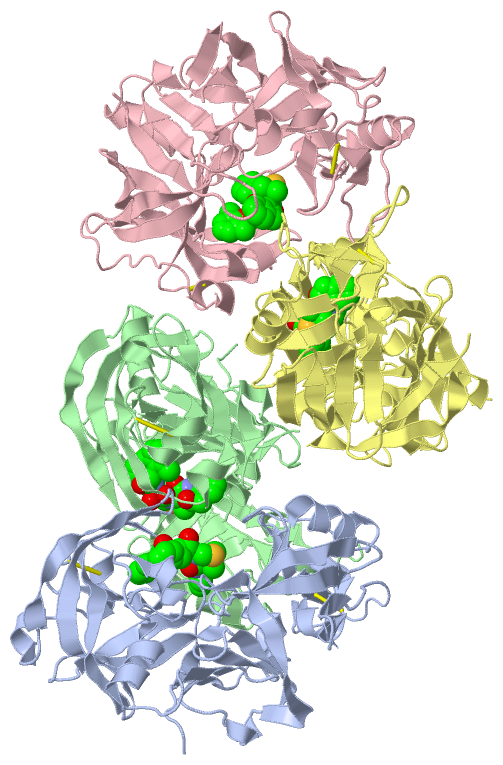

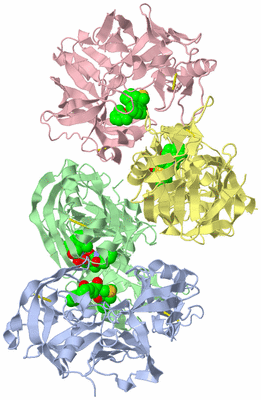

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

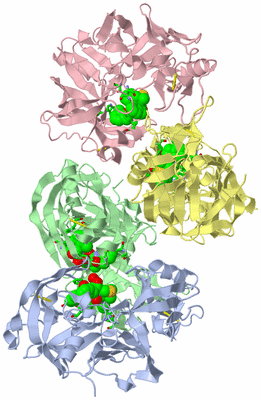

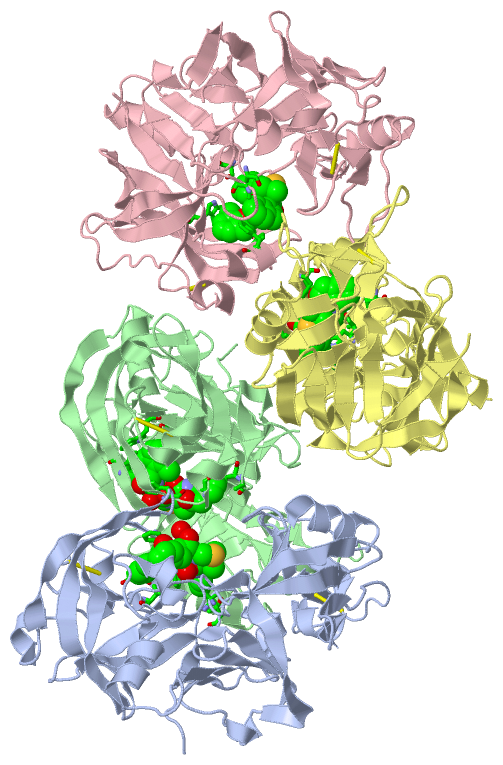

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

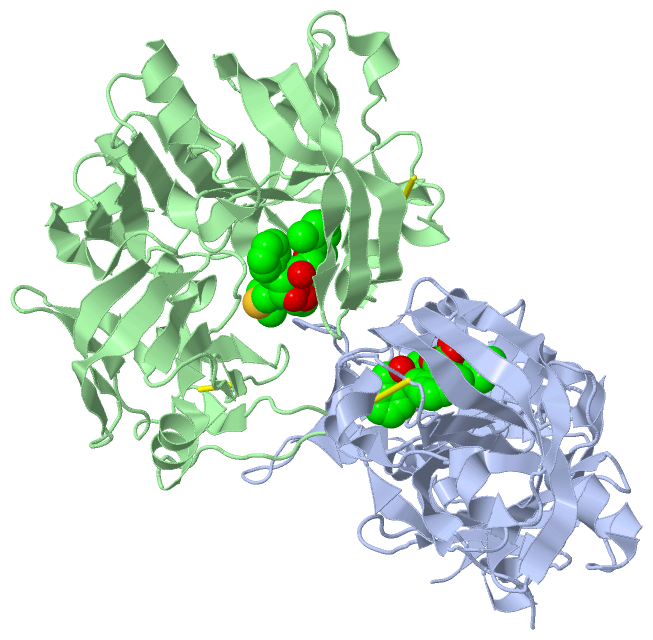

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

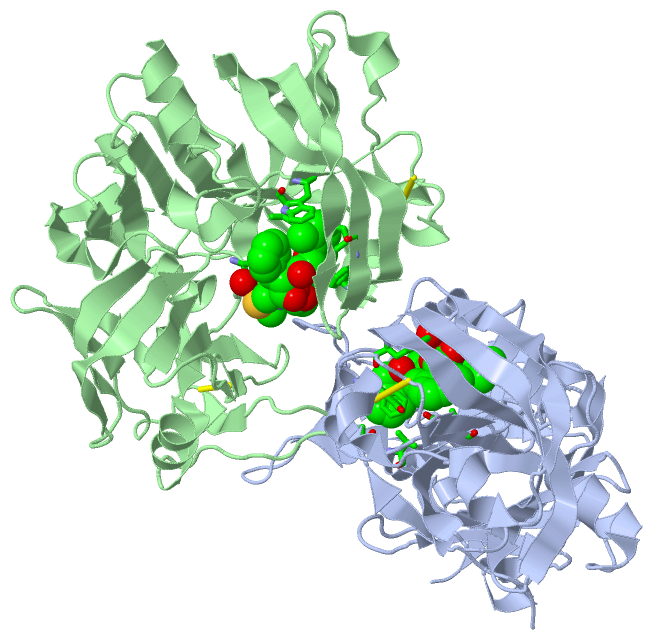

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

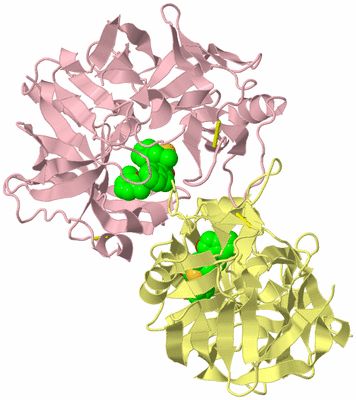

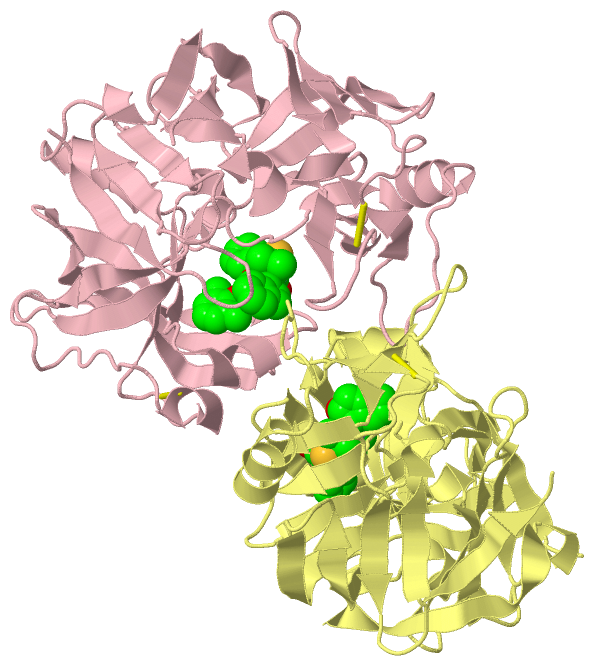

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF KNI-10006 BOUND HISTO-ASPARTIC PROTEASE (HAP) FROM PLASMODIUM FALCIPARUM

Authors :  P. Bhaumik, A. Gustchina, A. Wlodawer
Date :  26 Dec 08  (Deposition) - 12 May 09  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.00
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Keywords :  Histo-Aspartic Protease, Hydrolase, Plasmepsin, Aspartic Protease, Kni, Kni-10006, Hydrolase-Hydrolase Inhibitor Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  P. Bhaumik, H. Xiao, C. L. Parr, Y. Kiso, A. Gustchina, R. Y. Yada, A. Wlodawer
Crystal Structures Of The Histo-Aspartic Protease (Hap) Fro Plasmodium Falciparum.
J. Mol. Biol. V. 388 520 2009
PubMed-ID: 19285084  |  Reference-DOI: 10.1016/J.JMB.2009.03.011

(-) Compounds

Molecule 1 - HAP PROTEIN
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET32B(+)
    Expression System Strain: ROSETTA-GAMI B (DE3)PLYSS
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: HISTO-ASPARTIC PROTEASE
    Gene: HAP, PF14_0078
    Organism Scientific: PLASMODIUM FALCIPARUM
    Organism Taxid: 36329
    Strain: 3D7

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 4)

Asymmetric Unit (1, 4)
No.NameCountTypeFull Name
10064Ligand/Ion(4R)-3-[(2S,3S)-3-{[(2,6-DIMETHYLPHENOXY)ACETYL]AMINO}-2-HYDROXY-4-PHENYLBUTANOYL]-N-[(1S,2R)-2-HYDROXY-2,3-DIHYDRO-1H-INDEN-1-YL]-5,5-DIMETHYL-1,3-THIAZOLIDINE-4-CARBOXAMIDE
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
10062Ligand/Ion(4R)-3-[(2S,3S)-3-{[(2,6-DIMETHYLPHENOXY)ACETYL]AMINO}-2-HYDROXY-4-PHENYLBUTANOYL]-N-[(1S,2R)-2-HYDROXY-2,3-DIHYDRO-1H-INDEN-1-YL]-5,5-DIMETHYL-1,3-THIAZOLIDINE-4-CARBOXAMIDE
Biological Unit 2 (1, 2)
No.NameCountTypeFull Name
10062Ligand/Ion(4R)-3-[(2S,3S)-3-{[(2,6-DIMETHYLPHENOXY)ACETYL]AMINO}-2-HYDROXY-4-PHENYLBUTANOYL]-N-[(1S,2R)-2-HYDROXY-2,3-DIHYDRO-1H-INDEN-1-YL]-5,5-DIMETHYL-1,3-THIAZOLIDINE-4-CARBOXAMIDE

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREALA A:10 , VAL A:12 , PHE A:109A , PHE A:111 , TYR A:112 , VAL A:120 , ALA A:217 , HOH A:349 , HOH A:351BINDING SITE FOR RESIDUE 006 A 329
2AC2SOFTWAREALA B:10 , VAL B:12 , TRP B:39 , ILE B:80 , PHE B:109A , PHE B:111 , VAL B:120 , ALA B:217 , HOH B:359BINDING SITE FOR RESIDUE 006 B 329
3AC3SOFTWAREVAL C:12 , SER C:35 , TRP C:39 , LEU C:73 , PHE C:109A , PHE C:111 , ALA C:217BINDING SITE FOR RESIDUE 006 C 329
4AC4SOFTWAREVAL D:12 , SER D:35 , TRP D:39 , LEU D:73 , ILE D:80 , MET D:104 , ILE D:107 , PHE D:109A , PHE D:111 , TYR D:112 , ALA D:217BINDING SITE FOR RESIDUE 006 D 329

(-) SS Bonds  (8, 8)

Asymmetric Unit
No.Residues
1A:45 -A:50
2A:249 -A:282
3B:45 -B:50
4B:249 -B:282
5C:45 -C:50
6C:249 -C:282
7D:45 -D:50
8D:249 -D:282

(-) Cis Peptide Bonds  (12, 12)

Asymmetric Unit
No.Residues
1Glu A:109B-Pro A:110
2Leu A:244 -Tyr A:245
3Phe A:279B-Ser A:279C
4Glu B:109B-Pro B:110
5Leu B:244 -Tyr B:245
6Phe B:279B-Ser B:279C
7Glu C:109B-Pro C:110
8Leu C:244 -Tyr C:245
9Phe C:279B-Ser C:279C
10Glu D:109B-Pro D:110
11Leu D:244 -Tyr D:245
12Phe D:279B-Ser D:279C

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3FNU)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3FNU)

(-) Exons   (0, 0)

(no "Exon" information available for 3FNU)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:326
 aligned with Q8IM15_PLAF7 | Q8IM15 from UniProtKB/TrEMBL  Length:451

    Alignment length:326
                                   134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414       424       434       444
        Q8IM15_PLAF7    125 EFDNVELKDLANVLSFGEAKLGDNGQKFNFLFHTASSNVWVPSIKCTSESCESKNHYDSSKSKTYEKDDTPVKLTSKAGTISGIFSKDLVTIGKLSVPYKFIEMTEIVGFEPFYSESDVDGVFGLGWKDLSIGSIDPYIVELKTQNKIEQAVYSIYLPPENKNKGYLTIGGIEERFFDGPLNYEKLNHDLMWQVDLDVHFGNVSSKKANVILDSATSVITVPTEFFNQFVESASVFKVPFLSLYVTTCGNTKLPTLEYRSPNKVYTLEPKQYLEPLENIFSALCMLNIVPIDLEKNTFVLGDPFMRKYFTVYDYDNHTVGFALAKN  450
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 3fnuA01 A:0-172 Acid Proteases                                                                                                                                                3fnuA02 A:173-327 Acid Proteases                                                                                                                         CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeee....eeeeeeee....eeeeeeee......eee.......hhhhh...hhhhh...eeeeeeeeee...eeeeeeeeeeeeee..eeeeeeeeeeeeeee..hhhhhh...eeee..hhhhh.....hhhhhhhhh......eeeee........eeeee...hhh.eeeeeeeeeeee....eeeeeee....eeeeeeeee......eeehhhhhhhhhh.............eee........eeee....eeeehhhhheee.......eeee.eee......eeeehhhhhh.eeeeee....eeeeeee.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                3fnu A    0 EFDNVELKDLANVLSFGEAKLGDNGQKFNFLFHTASSNVWVPSIKCTSESCESKNHYDSSKSKTYEKDDTPVKLTSKAGTISGIFSKDLVTIGKLSVPYKFIEMTEIVGFEPFYSESDVDGVFGLGWKDLSIGSIDPYIVELKTQNKIEQAVYSIYLPPENKNKGYLTIGGIEERFFDGPLNYEKLNHDLMWQVDLDVHFGNVSSKKANVILDSATSVITVPTEFFNQFVESASVFKVPFLSLYVTTCGNTKLPTLEYRSPNKVYTLEPKQYLEPLENIFSALCMLNIVPIDLEKNTFVLGDPFMRKYFTVYDYDNHTVGFALAKN  327
                                     9        19        29        39        49        59        69        79        89      |100      109A|      118       128       138       148       158       168       178       188      |199|||    212       222       232       242 |     251|      262       272      279B|      288   ||  301       311       321
                                                                                                                           96|        109A|                                                                                   195| ||||                                   243A     251|                      278A |||          292|
                                                                                                                            98         109B                                                                                    197 ||||                                             253                        279A||           296
                                                                                                                                                                                                                                 199|||                                                                         279B|
                                                                                                                                                                                                                                  201||                                                                          279C
                                                                                                                                                                                                                                   203|
                                                                                                                                                                                                                                    205


Chain B from PDB  Type:PROTEIN  Length:326
 aligned with Q8IM15_PLAF7 | Q8IM15 from UniProtKB/TrEMBL  Length:451

    Alignment length:326
                                   134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414       424       434       444
        Q8IM15_PLAF7    125 EFDNVELKDLANVLSFGEAKLGDNGQKFNFLFHTASSNVWVPSIKCTSESCESKNHYDSSKSKTYEKDDTPVKLTSKAGTISGIFSKDLVTIGKLSVPYKFIEMTEIVGFEPFYSESDVDGVFGLGWKDLSIGSIDPYIVELKTQNKIEQAVYSIYLPPENKNKGYLTIGGIEERFFDGPLNYEKLNHDLMWQVDLDVHFGNVSSKKANVILDSATSVITVPTEFFNQFVESASVFKVPFLSLYVTTCGNTKLPTLEYRSPNKVYTLEPKQYLEPLENIFSALCMLNIVPIDLEKNTFVLGDPFMRKYFTVYDYDNHTVGFALAKN  450
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 3fnuB01 B:0-172 Acid Proteases                                                                                                                                                3fnuB02 B:173-327 Acid Proteases                                                                                                                         CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeee....eeeeeeee....eeeeeeee......eee.....hhhhhhh...hhhhh...eeeeeeeeee...eeeeeeeeeeeeee..eeeeeeeeeeeeeee..hhhhhh...eeee..hhhhh.....hhhhhhhhh......eeeee........eeeee...hhh.eeeeeeeeeeee....eeeeeee....eeeeeeeee......eeehhhhhhhhhh.............eee........eeee....eeeehhhhheee.......eeee.eee......eeeehhhhhh.eeeeee....eeeeeee.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                3fnu B    0 EFDNVELKDLANVLSFGEAKLGDNGQKFNFLFHTASSNVWVPSIKCTSESCESKNHYDSSKSKTYEKDDTPVKLTSKAGTISGIFSKDLVTIGKLSVPYKFIEMTEIVGFEPFYSESDVDGVFGLGWKDLSIGSIDPYIVELKTQNKIEQAVYSIYLPPENKNKGYLTIGGIEERFFDGPLNYEKLNHDLMWQVDLDVHFGNVSSKKANVILDSATSVITVPTEFFNQFVESASVFKVPFLSLYVTTCGNTKLPTLEYRSPNKVYTLEPKQYLEPLENIFSALCMLNIVPIDLEKNTFVLGDPFMRKYFTVYDYDNHTVGFALAKN  327
                                     9        19        29        39        49        59        69        79        89      |100      109A|      118       128       138       148       158       168       178       188      |199|||    212       222       232       242 |     251|      262       272      279B|      288   ||  301       311       321
                                                                                                                           96|        109A|                                                                                   195| ||||                                   243A     251|                      278A |||          292|
                                                                                                                            98         109B                                                                                    197 ||||                                             253                        279A||           296
                                                                                                                                                                                                                                 199|||                                                                         279B|
                                                                                                                                                                                                                                  201||                                                                          279C
                                                                                                                                                                                                                                   203|
                                                                                                                                                                                                                                    205


Chain C from PDB  Type:PROTEIN  Length:326
 aligned with Q8IM15_PLAF7 | Q8IM15 from UniProtKB/TrEMBL  Length:451

    Alignment length:326
                                   134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414       424       434       444
        Q8IM15_PLAF7    125 EFDNVELKDLANVLSFGEAKLGDNGQKFNFLFHTASSNVWVPSIKCTSESCESKNHYDSSKSKTYEKDDTPVKLTSKAGTISGIFSKDLVTIGKLSVPYKFIEMTEIVGFEPFYSESDVDGVFGLGWKDLSIGSIDPYIVELKTQNKIEQAVYSIYLPPENKNKGYLTIGGIEERFFDGPLNYEKLNHDLMWQVDLDVHFGNVSSKKANVILDSATSVITVPTEFFNQFVESASVFKVPFLSLYVTTCGNTKLPTLEYRSPNKVYTLEPKQYLEPLENIFSALCMLNIVPIDLEKNTFVLGDPFMRKYFTVYDYDNHTVGFALAKN  450
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 3fnuC01 C:0-172 Acid Proteases                                                                                                                                                3fnuC02 C:173-327 Acid Proteases                                                                                                                         CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee........eeeeee....eeeeeeee......eee.....hhhhh.............eeeeeeeeee...eeeeeeeeeeeeee..eeeeeeeeeeeeeee..hhhhhh...eeee..hhhhh.....hhhhhhhhh......eeeee........eeeee...hhh.eeeeeeeeeeee....eeeeeee....eeeeeeeee......eeehhhhhhhhhh.............eee........eeee....eeeehhhh.eee.......eeee.eee......eeeehhhhhh.eeeeee....eeeeeee.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                3fnu C    0 EFDNVELKDLANVLSFGEAKLGDNGQKFNFLFHTASSNVWVPSIKCTSESCESKNHYDSSKSKTYEKDDTPVKLTSKAGTISGIFSKDLVTIGKLSVPYKFIEMTEIVGFEPFYSESDVDGVFGLGWKDLSIGSIDPYIVELKTQNKIEQAVYSIYLPPENKNKGYLTIGGIEERFFDGPLNYEKLNHDLMWQVDLDVHFGNVSSKKANVILDSATSVITVPTEFFNQFVESASVFKVPFLSLYVTTCGNTKLPTLEYRSPNKVYTLEPKQYLEPLENIFSALCMLNIVPIDLEKNTFVLGDPFMRKYFTVYDYDNHTVGFALAKN  327
                                     9        19        29        39        49        59        69        79        89      |100      109A|      118       128       138       148       158       168       178       188      |199|||    212       222       232       242 |     251|      262       272      279B|      288   ||  301       311       321
                                                                                                                           96|        109A|                                                                                   195| ||||                                   243A     251|                      278A |||          292|
                                                                                                                            98         109B                                                                                    197 ||||                                             253                        279A||           296
                                                                                                                                                                                                                                 199|||                                                                         279B|
                                                                                                                                                                                                                                  201||                                                                          279C
                                                                                                                                                                                                                                   203|
                                                                                                                                                                                                                                    205


Chain D from PDB  Type:PROTEIN  Length:326
 aligned with Q8IM15_PLAF7 | Q8IM15 from UniProtKB/TrEMBL  Length:451

    Alignment length:326
                                   134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414       424       434       444
        Q8IM15_PLAF7    125 EFDNVELKDLANVLSFGEAKLGDNGQKFNFLFHTASSNVWVPSIKCTSESCESKNHYDSSKSKTYEKDDTPVKLTSKAGTISGIFSKDLVTIGKLSVPYKFIEMTEIVGFEPFYSESDVDGVFGLGWKDLSIGSIDPYIVELKTQNKIEQAVYSIYLPPENKNKGYLTIGGIEERFFDGPLNYEKLNHDLMWQVDLDVHFGNVSSKKANVILDSATSVITVPTEFFNQFVESASVFKVPFLSLYVTTCGNTKLPTLEYRSPNKVYTLEPKQYLEPLENIFSALCMLNIVPIDLEKNTFVLGDPFMRKYFTVYDYDNHTVGFALAKN  450
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 3fnuD01 D:0-172 Acid Proteases                                                                                                                                                3fnuD02 D:173-327 Acid Proteases                                                                                                                         CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee........eeeeee....eeeeeeee......eee.....hhhhh.............eeeeeeeeee...eeeeeeeeeeeeee..eeeeeeeeeeeeeee..hhhhhh...eeee..hhhhh.....hhhhhhhhh......eeeee........eeeee...hhh.eeeeeeeeeeee....eeeeeee....eeeeeeeee......eeehhhhhhhhhh.............eee........eeee....eeeehhhh.eee.......eeee.eee......eeeehhhhhh.eeeeee....eeeeeee.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                3fnu D    0 EFDNVELKDLANVLSFGEAKLGDNGQKFNFLFHTASSNVWVPSIKCTSESCESKNHYDSSKSKTYEKDDTPVKLTSKAGTISGIFSKDLVTIGKLSVPYKFIEMTEIVGFEPFYSESDVDGVFGLGWKDLSIGSIDPYIVELKTQNKIEQAVYSIYLPPENKNKGYLTIGGIEERFFDGPLNYEKLNHDLMWQVDLDVHFGNVSSKKANVILDSATSVITVPTEFFNQFVESASVFKVPFLSLYVTTCGNTKLPTLEYRSPNKVYTLEPKQYLEPLENIFSALCMLNIVPIDLEKNTFVLGDPFMRKYFTVYDYDNHTVGFALAKN  327
                                     9        19        29        39        49        59        69        79        89      |100      109A|      118       128       138       148       158       168       178       188      |199|||    212       222       232       242 |     251|      262       272      279B|      288   ||  301       311       321
                                                                                                                           96|        109A|                                                                                   195| ||||                                   243A     251|                      278A |||          292|
                                                                                                                            98         109B                                                                                    197 ||||                                             253                        279A||           296
                                                                                                                                                                                                                                 199|||                                                                         279B|
                                                                                                                                                                                                                                  201||                                                                          279C
                                                                                                                                                                                                                                   203|
                                                                                                                                                                                                                                    205
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3FNU)

(-) CATH Domains  (1, 8)

Asymmetric Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3FNU)

(-) Gene Ontology  (7, 7)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (Q8IM15_PLAF7 | Q8IM15)
molecular function
    GO:0004190    aspartic-type endopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a mechanism in which a water molecule bound by the side chains of aspartic residues at the active center acts as a nucleophile.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
biological process
    GO:0030163    protein catabolic process    The chemical reactions and pathways resulting in the breakdown of a protein by the destruction of the native, active configuration, with or without the hydrolysis of peptide bonds.
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
cellular component
    GO:0020020    food vacuole    Vacuole within a parasite used for digestion of the host cell cytoplasm. An example of this component is found in the Apicomplexa.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    006  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Glu A:109B - Pro A:110   [ RasMol ]
    Glu B:109B - Pro B:110   [ RasMol ]
    Glu C:109B - Pro C:110   [ RasMol ]
    Glu D:109B - Pro D:110   [ RasMol ]
    Leu A:244 - Tyr A:245   [ RasMol ]
    Leu B:244 - Tyr B:245   [ RasMol ]
    Leu C:244 - Tyr C:245   [ RasMol ]
    Leu D:244 - Tyr D:245   [ RasMol ]
    Phe A:279B - Ser A:279C  [ RasMol ]
    Phe B:279B - Ser B:279C  [ RasMol ]
    Phe C:279B - Ser C:279C  [ RasMol ]
    Phe D:279B - Ser D:279C  [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3fnu
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q8IM15_PLAF7 | Q8IM15
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q8IM15_PLAF7 | Q8IM15
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q8IM15_PLAF7 | Q8IM15: 3fns 3fnt

(-) Related Entries Specified in the PDB File

3fns CRYSTAL STRUCTURE OF HISTO-ASPARTIC PROTEASE (HAP) FROM PLASMODIUM FALCIPARUM
3fnt CRYSTAL STRUCTURE OF PEPSTATIN A BOUND HISTO-ASPARTIC PROTEASE FROM PLASMODIUM FALCIPARUM
