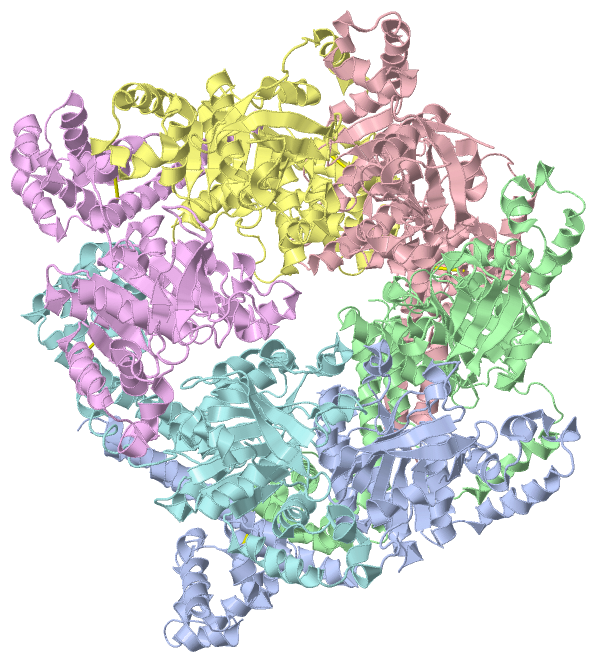

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  THE STRUCTURE OF A DNAB-LIKE REPLICATIVE HELICASE AND ITS INTERACTIONS WITH PRIMASE

Authors :  G. Wang, M. G. Klein, E. Tokonzaba, Y. Zhang, L. G. Holden, X. S. Chen
Date :  27 Nov 07  (Deposition) - 25 Dec 07  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.91
Chains :  Asym. Unit :  A,B,C,D,E,F
Biol. Unit 1:  A,B,C,D,E,F  (1x)
Biol. Unit 2:  D,E,F  (1x)
Biol. Unit 3:  A,B,C  (1x)
Keywords :  Atpase, Replication (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  G. Wang, M. G. Klein, E. Tokonzaba, Y. Zhang, L. G. Holden, X. S. Chen
The Structure Of A Dnab-Family Replicative Helicase And Its Interactions With Primase.
Nat. Struct. Mol. Biol. V. 15 94 2008
PubMed-ID: 18157148  |  Reference-DOI: 10.1038/NSMB1356

(-) Compounds

Molecule 1 - DNAB-LIKE REPLICATIVE HELICASE
    Chains: A, B, C, D, E, F
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Expression System Vector Type: PGEX-KG
    Gene: G40P
    Organism Scientific: BACILLUS PHAGE SPP1
    Organism Taxid: 10724

 Structural Features

(-) Chains, Units

  123456
Asymmetric Unit : ABCDEF
Biological Unit 1 (1x): ABCDEF
Biological Unit 2 (1x):    DEF
Biological Unit 3 (1x): ABC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3BGW)

(-) Sites  (0, 0)

(no "Site" information available for 3BGW)

(-) SS Bonds  (6, 6)

Asymmetric Unit
No.Residues
1A:33 -A:101
2B:33 -B:101
3C:33 -C:101
4D:33 -D:101
5E:33 -E:101
6F:33 -F:101

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3BGW)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3BGW)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3BGW)

(-) Exons   (0, 0)

(no "Exon" information available for 3BGW)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:419
 aligned with Q38152_BPSPP | Q38152 from UniProtKB/TrEMBL  Length:442

    Alignment length:425
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431
         Q38152_BPSPP    12 NEYAEQAVLGSILTEPELIKECPLTPEHFSPGKHFNIYFTMQDLDRKGQSVDFTSIAARVGEKLPQLGGFGYLTELAASVASTTTFKQHCQTVSEYFQKRKAISIAQQIIENVNESDDGPVKPIQEAVSELMEIEASGTDDDDGSIDEALVTVYEEIESADGNITGVPSGFTELDRMTYGYKRRNFVLIAARPSMGKTAFALKQAKNMSDNDDVVNLHSLEMGKKENIKRLIVTAGSINAQKIKAARRDFASEDWGKLSMAIGEISNSNINIFDKAGQSVNYIWSKTRQTKRKNPGKRVIVMIDYLQLLEPAKANDSRTNQISQISRDLKKMARELDVVVIALSQLSRQVEQRQDKRPMLSDLRESGQLEQDADIIEFLYRDDYYDKESESKNIVEVIIAKHRDGPVGTVSLAFIKEYGNFVNLE 436
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhh.hhhhhh..hhhhh..hhhhhhhhhhhhhhhh....hhhhhhhhh...hhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh------..hhhhhhhhhhhhhh.........hhhhhhhhhhhhhh...........hhhhhhhhh......eeeeee....hhhhhhhhhhhhhhhh..eeeee......hhhhhhhhhhhh..hhhhhhhhhhhh...hhhhhhhhhhhhhh..eeee.....hhhhhhhhhhhhhhhh....eeeeee............hhhhhhhhhhhhhhhhhhhhh.eeeeeee.hhhhhhh.....hhhhh...hhhhhhh.eeee..hhhhh........eeeeeeeee.....eeeeeee......ee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3bgw A  12 NEYAEQAVLGSILTEPELIKECPLTPEHFSPGKHFNIYFTMQDLDRKGQSVDFTSIAARVGEKLPQLGGFGYLTELAASVASTTTFKQHCQTVSEYFQKRKAISIAQQIIENVN------VKPIQEAVSELMEIEASGTDDDDGSIDEALVTVYEEIESADGNITGVPSGFTELDRMTYGYKRRNFVLIAARPSMGKTAFALKQAKNMSDNDDVVNLHSLEMGKKENIKRLIVTAGSINAQKIKAARRDFASEDWGKLSMAIGEISNSNINIFDKAGQSVNYIWSKTRQTKRKNPGKRVIVMIDYLQLLEPAKANDSRTNQISQISRDLKKMARELDVVVIALSQLSRQVEQRQDKRPMLSDLRESGQLEQDADIIEFLYRDDYYDKESESKNIVEVIIAKHRDGPVGTVSLAFIKEYGNFVNLE 436
                                    21        31        41        51        61        71        81        91       101       111       121   |     -|      141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431
                                                                                                                                           125    132


Chain B from PDB  Type:PROTEIN  Length:419
 aligned with Q38152_BPSPP | Q38152 from UniProtKB/TrEMBL  Length:442

    Alignment length:425
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431
         Q38152_BPSPP    12 NEYAEQAVLGSILTEPELIKECPLTPEHFSPGKHFNIYFTMQDLDRKGQSVDFTSIAARVGEKLPQLGGFGYLTELAASVASTTTFKQHCQTVSEYFQKRKAISIAQQIIENVNESDDGPVKPIQEAVSELMEIEASGTDDDDGSIDEALVTVYEEIESADGNITGVPSGFTELDRMTYGYKRRNFVLIAARPSMGKTAFALKQAKNMSDNDDVVNLHSLEMGKKENIKRLIVTAGSINAQKIKAARRDFASEDWGKLSMAIGEISNSNINIFDKAGQSVNYIWSKTRQTKRKNPGKRVIVMIDYLQLLEPAKANDSRTNQISQISRDLKKMARELDVVVIALSQLSRQVEQRQDKRPMLSDLRESGQLEQDADIIEFLYRDDYYDKESESKNIVEVIIAKHRDGPVGTVSLAFIKEYGNFVNLE 436
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhh.hhhhhh..hhhhh..hhhhhhhhhhhhhhhh....hhhhhhhhh..hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh------..hhhhhhhhhhhhhh.........hhhhhhhhhhhhhh...........hhhhhhhhh......eeeeee....hhhhhhhhhhhhhhhh..eeeee....hhhhhhhhhhhhhh..hhhhhhhhhhhh...hhhhhhhhhhhhhh..eeee.....hhhhhhhhhhhhhhhh....eeeee.............hhhhhhhhhhhhhhhhhhhhh.eeeeeee.hhhhhhh.....hhhhh...hhhhhhh.eeeeeee.hhh........eeeeee........eeeeeee......ee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3bgw B  12 NEYAEQAVLGSILTEPELIKECPLTPEHFSPGKHFNIYFTMQDLDRKGQSVDFTSIAARVGEKLPQLGGFGYLTELAASVASTTTFKQHCQTVSEYFQKRKAISIAQQIIENVN------VKPIQEAVSELMEIEASGTDDDDGSIDEALVTVYEEIESADGNITGVPSGFTELDRMTYGYKRRNFVLIAARPSMGKTAFALKQAKNMSDNDDVVNLHSLEMGKKENIKRLIVTAGSINAQKIKAARRDFASEDWGKLSMAIGEISNSNINIFDKAGQSVNYIWSKTRQTKRKNPGKRVIVMIDYLQLLEPAKANDSRTNQISQISRDLKKMARELDVVVIALSQLSRQVEQRQDKRPMLSDLRESGQLEQDADIIEFLYRDDYYDKESESKNIVEVIIAKHRDGPVGTVSLAFIKEYGNFVNLE 436
                                    21        31        41        51        61        71        81        91       101       111       121   |     -|      141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431
                                                                                                                                           125    132


Chain C from PDB  Type:PROTEIN  Length:419
 aligned with Q38152_BPSPP | Q38152 from UniProtKB/TrEMBL  Length:442

    Alignment length:425
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431
         Q38152_BPSPP    12 NEYAEQAVLGSILTEPELIKECPLTPEHFSPGKHFNIYFTMQDLDRKGQSVDFTSIAARVGEKLPQLGGFGYLTELAASVASTTTFKQHCQTVSEYFQKRKAISIAQQIIENVNESDDGPVKPIQEAVSELMEIEASGTDDDDGSIDEALVTVYEEIESADGNITGVPSGFTELDRMTYGYKRRNFVLIAARPSMGKTAFALKQAKNMSDNDDVVNLHSLEMGKKENIKRLIVTAGSINAQKIKAARRDFASEDWGKLSMAIGEISNSNINIFDKAGQSVNYIWSKTRQTKRKNPGKRVIVMIDYLQLLEPAKANDSRTNQISQISRDLKKMARELDVVVIALSQLSRQVEQRQDKRPMLSDLRESGQLEQDADIIEFLYRDDYYDKESESKNIVEVIIAKHRDGPVGTVSLAFIKEYGNFVNLE 436
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhh.hhhhhh..hhhhh..hhhhhhhhhhhhhhhh....hhhhhhhhh...hhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh------..hhhhhhhhhhhhhhh..........hhhhhhhhhhhh...........hhhhhhhhh......eeeeee......hhhhhhhhhhhhhh..eeeee....hhhhhhhhhhhhhh..hhhhhhhhhhhh...hhhhhhhhhhhhhh..eeee.....hhhhhhhhhhhhhhhh....eeeeee............hhhhhhhhhhhhhhhhhhhhh.eeeeeee.hhhhhhh.....hhhhh...hhhhhhh.eeee..hhhhh........eeeeee........eeeeeee......ee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3bgw C  12 NEYAEQAVLGSILTEPELIKECPLTPEHFSPGKHFNIYFTMQDLDRKGQSVDFTSIAARVGEKLPQLGGFGYLTELAASVASTTTFKQHCQTVSEYFQKRKAISIAQQIIENVN------VKPIQEAVSELMEIEASGTDDDDGSIDEALVTVYEEIESADGNITGVPSGFTELDRMTYGYKRRNFVLIAARPSMGKTAFALKQAKNMSDNDDVVNLHSLEMGKKENIKRLIVTAGSINAQKIKAARRDFASEDWGKLSMAIGEISNSNINIFDKAGQSVNYIWSKTRQTKRKNPGKRVIVMIDYLQLLEPAKANDSRTNQISQISRDLKKMARELDVVVIALSQLSRQVEQRQDKRPMLSDLRESGQLEQDADIIEFLYRDDYYDKESESKNIVEVIIAKHRDGPVGTVSLAFIKEYGNFVNLE 436
                                    21        31        41        51        61        71        81        91       101       111       121   |     -|      141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431
                                                                                                                                           125    132


Chain D from PDB  Type:PROTEIN  Length:409
 aligned with Q38152_BPSPP | Q38152 from UniProtKB/TrEMBL  Length:442

    Alignment length:425
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431
         Q38152_BPSPP    12 NEYAEQAVLGSILTEPELIKECPLTPEHFSPGKHFNIYFTMQDLDRKGQSVDFTSIAARVGEKLPQLGGFGYLTELAASVASTTTFKQHCQTVSEYFQKRKAISIAQQIIENVNESDDGPVKPIQEAVSELMEIEASGTDDDDGSIDEALVTVYEEIESADGNITGVPSGFTELDRMTYGYKRRNFVLIAARPSMGKTAFALKQAKNMSDNDDVVNLHSLEMGKKENIKRLIVTAGSINAQKIKAARRDFASEDWGKLSMAIGEISNSNINIFDKAGQSVNYIWSKTRQTKRKNPGKRVIVMIDYLQLLEPAKANDSRTNQISQISRDLKKMARELDVVVIALSQLSRQVEQRQDKRPMLSDLRESGQLEQDADIIEFLYRDDYYDKESESKNIVEVIIAKHRDGPVGTVSLAFIKEYGNFVNLE 436
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhh.hhhhhh..hhhhh..hhhhhhhhhhhhhhhh....hhhhhhhhh...hhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh------..hhhhhhhhhhhhh----------.hhhhhhhhhhhhh...........hhhhhhhhh......eeeeee....hhhhhhhhhhhhhhhh..eeeee....hhhhhhhhhhhhhh..hhhhhhhhhhhh...hhhhhhhhhhhhhh..eeee.....hhhhhhhhhhhhhhhh....eeeeee............hhhhhhhhhhhhhhhhhhhhh.eeeeeee.hhhhhhh.....hhhhh...hhhhhhh.eeeee.hhhhh........eeeeee........eeeeeee......ee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3bgw D  12 NEYAEQAVLGSILTEPELIKECPLTPEHFSPGKHFNIYFTMQDLDRKGQSVDFTSIAARVGEKLPQLGGFGYLTELAASVASTTTFKQHCQTVSEYFQKRKAISIAQQIIENVN------VKPIQEAVSELMEIE----------IDEALVTVYEEIESADGNITGVPSGFTELDRMTYGYKRRNFVLIAARPSMGKTAFALKQAKNMSDNDDVVNLHSLEMGKKENIKRLIVTAGSINAQKIKAARRDFASEDWGKLSMAIGEISNSNINIFDKAGQSVNYIWSKTRQTKRKNPGKRVIVMIDYLQLLEPAKANDSRTNQISQISRDLKKMARELDVVVIALSQLSRQVEQRQDKRPMLSDLRESGQLEQDADIIEFLYRDDYYDKESESKNIVEVIIAKHRDGPVGTVSLAFIKEYGNFVNLE 436
                                    21        31        41        51        61        71        81        91       101       111       121   |     -|      141    |    -     | 161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431
                                                                                                                                           125    132           146        157


Chain E from PDB  Type:PROTEIN  Length:419
 aligned with Q38152_BPSPP | Q38152 from UniProtKB/TrEMBL  Length:442

    Alignment length:425
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431
         Q38152_BPSPP    12 NEYAEQAVLGSILTEPELIKECPLTPEHFSPGKHFNIYFTMQDLDRKGQSVDFTSIAARVGEKLPQLGGFGYLTELAASVASTTTFKQHCQTVSEYFQKRKAISIAQQIIENVNESDDGPVKPIQEAVSELMEIEASGTDDDDGSIDEALVTVYEEIESADGNITGVPSGFTELDRMTYGYKRRNFVLIAARPSMGKTAFALKQAKNMSDNDDVVNLHSLEMGKKENIKRLIVTAGSINAQKIKAARRDFASEDWGKLSMAIGEISNSNINIFDKAGQSVNYIWSKTRQTKRKNPGKRVIVMIDYLQLLEPAKANDSRTNQISQISRDLKKMARELDVVVIALSQLSRQVEQRQDKRPMLSDLRESGQLEQDADIIEFLYRDDYYDKESESKNIVEVIIAKHRDGPVGTVSLAFIKEYGNFVNLE 436
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhh.hhhhhh..hhhhh..hhhhhhhhhhhhhhhh....hhhhhhhhh...hhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh------..hhhhhhhhhhhhhhh..........hhhhhhhhhhhhh..........hhhhhhhhh......eeeeee....hhhhhhhhhhhhhhhh..eeeee....hhhhhhhhhhhhhh..hhhhhhhhhhhh...hhhhhhhhhhhhhh..eeee.....hhhhhhhhhhhhhhhh....eeeeee............hhhhhhhhhhhhhhhhhhhhh.eeeeeee.hhhhhhh.....hhhhh...hhhhhhh.eeee..hhhhhh.......eeeeee........eeeeeee......ee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3bgw E  12 NEYAEQAVLGSILTEPELIKECPLTPEHFSPGKHFNIYFTMQDLDRKGQSVDFTSIAARVGEKLPQLGGFGYLTELAASVASTTTFKQHCQTVSEYFQKRKAISIAQQIIENVN------VKPIQEAVSELMEIEASGTDDDDGSIDEALVTVYEEIESADGNITGVPSGFTELDRMTYGYKRRNFVLIAARPSMGKTAFALKQAKNMSDNDDVVNLHSLEMGKKENIKRLIVTAGSINAQKIKAARRDFASEDWGKLSMAIGEISNSNINIFDKAGQSVNYIWSKTRQTKRKNPGKRVIVMIDYLQLLEPAKANDSRTNQISQISRDLKKMARELDVVVIALSQLSRQVEQRQDKRPMLSDLRESGQLEQDADIIEFLYRDDYYDKESESKNIVEVIIAKHRDGPVGTVSLAFIKEYGNFVNLE 436
                                    21        31        41        51        61        71        81        91       101       111       121   |     -|      141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431
                                                                                                                                           125    132


Chain F from PDB  Type:PROTEIN  Length:419
 aligned with Q38152_BPSPP | Q38152 from UniProtKB/TrEMBL  Length:442

    Alignment length:425
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431
         Q38152_BPSPP    12 NEYAEQAVLGSILTEPELIKECPLTPEHFSPGKHFNIYFTMQDLDRKGQSVDFTSIAARVGEKLPQLGGFGYLTELAASVASTTTFKQHCQTVSEYFQKRKAISIAQQIIENVNESDDGPVKPIQEAVSELMEIEASGTDDDDGSIDEALVTVYEEIESADGNITGVPSGFTELDRMTYGYKRRNFVLIAARPSMGKTAFALKQAKNMSDNDDVVNLHSLEMGKKENIKRLIVTAGSINAQKIKAARRDFASEDWGKLSMAIGEISNSNINIFDKAGQSVNYIWSKTRQTKRKNPGKRVIVMIDYLQLLEPAKANDSRTNQISQISRDLKKMARELDVVVIALSQLSRQVEQRQDKRPMLSDLRESGQLEQDADIIEFLYRDDYYDKESESKNIVEVIIAKHRDGPVGTVSLAFIKEYGNFVNLE 436
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhh.hhhhhh..hhhhh..hhhhhhhhhhhhhhhh....hhhhhhhhh...hhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh------..hhhhhhhhhhhhhh............hhhhh.................hhhhhhhhh......eeeeee....hhhhhhhhhhhhhhhh..eeeee....hhhhhhhhhhhhhh..hhhhhhhhhhhh...hhhhhhhhhhhhhh..eeee.....hhhhhhhhhhhhhhhh....eeeeee............hhhhhhhhhhhhhhhhhhhhh.eeeeeee.hhhhhhh.....hhhhh...hhhhhhh.eeee..hhhhh........eeeeee........eeeeeee......ee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3bgw F  12 NEYAEQAVLGSILTEPELIKECPLTPEHFSPGKHFNIYFTMQDLDRKGQSVDFTSIAARVGEKLPQLGGFGYLTELAASVASTTTFKQHCQTVSEYFQKRKAISIAQQIIENVN------VKPIQEAVSELMEIEASGTDDDDGSIDEALVTVYEEIESADGNITGVPSGFTELDRMTYGYKRRNFVLIAARPSMGKTAFALKQAKNMSDNDDVVNLHSLEMGKKENIKRLIVTAGSINAQKIKAARRDFASEDWGKLSMAIGEISNSNINIFDKAGQSVNYIWSKTRQTKRKNPGKRVIVMIDYLQLLEPAKANDSRTNQISQISRDLKKMARELDVVVIALSQLSRQVEQRQDKRPMLSDLRESGQLEQDADIIEFLYRDDYYDKESESKNIVEVIIAKHRDGPVGTVSLAFIKEYGNFVNLE 436
                                    21        31        41        51        61        71        81        91       101       111       121   |     -|      141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431
                                                                                                                                           125    132
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3BGW)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3BGW)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3BGW)

(-) Gene Ontology  (5, 5)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E,F   (Q38152_BPSPP | Q38152)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0003678    DNA helicase activity    Catalysis of the reaction: NTP + H2O = NDP + phosphate, to drive the unwinding of a DNA helix.
biological process
    GO:0032508    DNA duplex unwinding    The process in which interchain hydrogen bonds between two strands of DNA are broken or 'melted', generating a region of unpaired single strands.
    GO:0006260    DNA replication    The cellular metabolic process in which a cell duplicates one or more molecules of DNA. DNA replication begins when specific sequences, known as origins of replication, are recognized and bound by initiation proteins, and ends when the original DNA molecule has been completely duplicated and the copies topologically separated. The unit of replication usually corresponds to the genome of the cell, an organelle, or a virus. The template for replication can either be an existing DNA molecule or RNA.
