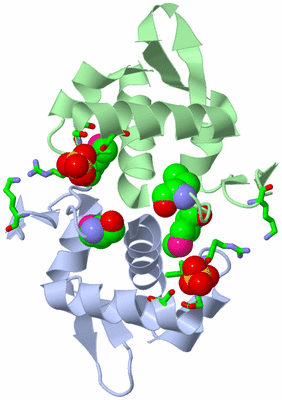

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE PHIH1 REPRESSOR-LIKE PROTEIN FROM HALOARCULA MARISMORTUI

Authors :  Y. Kim, M. Zhou, L. Keigher, A. Joachimiak, Midwest Center For Structural Genomics (Mcsg)
Date :  30 Oct 07  (Deposition) - 13 Nov 07  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.12
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Winged-Helix-Turn-Helix, Structural Genomics, Psi-2, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. Kim, M. Zhou, L. Keigher, A. Joachimiak
Crystal Structure Of The Phih1 Repressor-Like Protein From Haloarcula Marismortui.
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PHIH1 REPRESSOR-LIKE PROTEIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PMCSG7
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: PHRH2, RRNAC2285
    Organism Scientific: HALOARCULA MARISMORTUI ATCC 43049
    Organism Taxid: 272569
    Strain: DSM 3752, JCM 8966

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 6)

Asymmetric/Biological Unit (2, 6)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE
2SO42Ligand/IonSULFATE ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREARG A:37 , ILE B:38 , SER B:39 , SER B:42 , LYS B:82BINDING SITE FOR RESIDUE SO4 B 109
2AC2SOFTWAREARG A:37 , ILE A:38 , SER A:39 , SER A:42 , LYS A:82 , ARG B:37BINDING SITE FOR RESIDUE SO4 A 109

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3B73)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3B73)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3B73)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3B73)

(-) Exons   (0, 0)

(no "Exon" information available for 3B73)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:88
 aligned with Q5V043_HALMA | Q5V043 from UniProtKB/TrEMBL  Length:108

    Alignment length:88
                              1
                              |      8        18        28        38        48        58        68        78
          Q5V043_HALMA    - --MRQSGSWMTIWDDRILEIIHEEGNGSPKELEDRDEIRISKSSVSRRLKKLADHDLLQPLANGVYVITEEGEAYLNGEYDAGKERYI 86
               SCOP domains ---------------------------------------------------------------------------------------- SCOP domains
               CATH domains 3b73A00 A:-1-86 'winged helix' repressor DNA binding domain                              CATH domains
               Pfam domains ---------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........hhhhhhhhhhhhhhh..hhhhhhh......hhhhhhhhhhhhhhh..eee.....eeehhhhhhhhh..ee....ee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------- Transcript
                  3b73 A -1 NAmRQSGSWmTIWDDRILEIIHEEGNGSPKELEDRDEIRISKSSVSRRLKKLADHDLLQPLANGVYVITEEGEAYLNGEYDAGKERYI 86
                              |      8        18        28        38        48        58        68        78
                              |      8-MSE
                              1-MSE


Chain B from PDB  Type:PROTEIN  Length:89
 aligned with Q5V043_HALMA | Q5V043 from UniProtKB/TrEMBL  Length:108

    Alignment length:89
                              1
                              |      8        18        28        38        48        58        68        78
          Q5V043_HALMA    - --MRQSGSWMTIWDDRILEIIHEEGNGSPKELEDRDEIRISKSSVSRRLKKLADHDLLQPLANGVYVITEEGEAYLNGEYDAGKERYIN 87
               SCOP domains ----------------------------------------------------------------------------------------- SCOP domains
               CATH domains 3b73B00 B:-1-87 'winged helix' repressor DNA binding domain                               CATH domains
               Pfam domains ----------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........hhhhhhhhhhhhhhheehhhhhhh......hhhhhhhhhhhhhhh..eeeehhheeeehhhhhhhhh..ee....ee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------- Transcript
                  3b73 B -1 NAmRQSGSWmTIWDDRILEIIHEEGNGSPKELEDRDEIRISKSSVSRRLKKLADHDLLQPLANGVYVITEEGEAYLNGEYDAGKERYIN 87
                              |      8        18        28        38        48        58        68        78
                              1-MSE  8-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3B73)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3B73)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 3B73)
