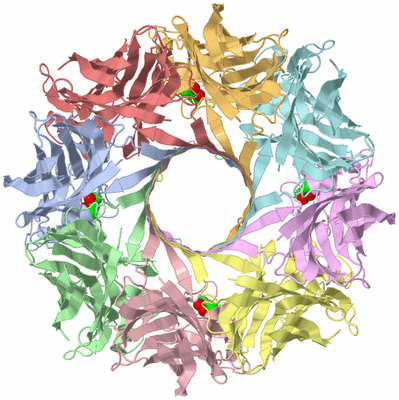

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

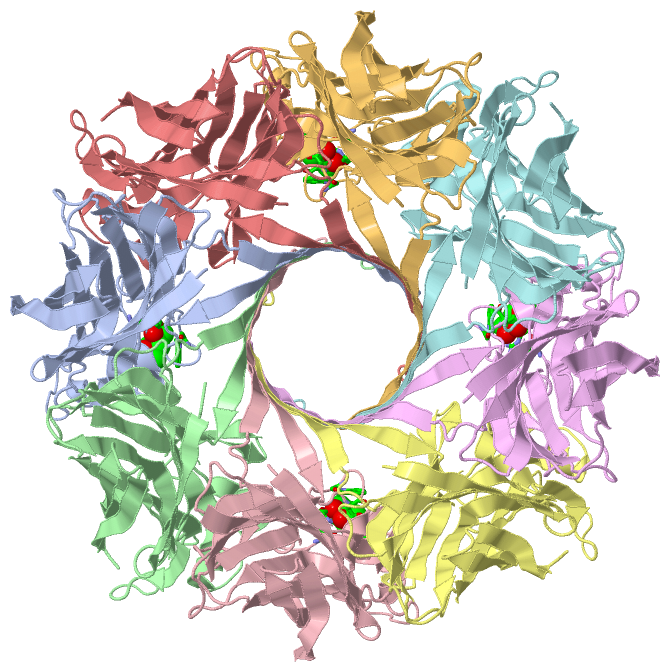

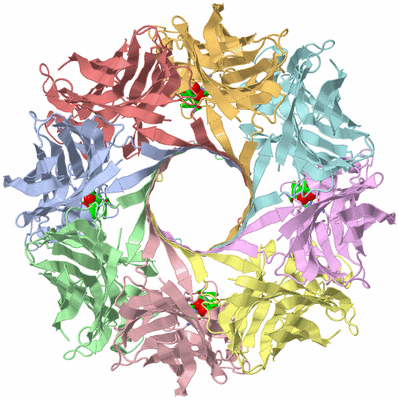

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF OCTAMERIC PORE FORM OF GAMMA-HEMOLYSIN FROM STAPHYLOCOCCUS AUREUS

Authors :  K. Yamashita, Y. Kawai, Y. Tanaka, M. Yao, I. Tanaka
Date :  06 Jun 11  (Deposition) - 12 Oct 11  (Release) - 21 Dec 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym./Biol. Unit :  A,B,C,D,E,F,G,H
Keywords :  Protein Complex, Toxin (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. Yamashita, Y. Kawai, Y. Tanaka, N. Hirano, J. Kaneko, N. Tomita, M. Ohta, Y. Kamio, M. Yao, I. Tanaka
Crystal Structure Of The Octameric Pore Of Staphylococcal Gamma-Hemolysin Reveals The Beta-Barrel Pore Formation Mechanism By Two Components
Proc. Natl. Acad. Sci. Usa V. 108 17314 2011
PubMed-ID: 21969538  |  Reference-DOI: 10.1073/PNAS.1110402108

(-) Compounds

Molecule 1 - GAMMA-HEMOLYSIN COMPONENT B
    Chains: A, C, E, G
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET26
    Expression System Strain: B834(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: SAV2421
    Organism Scientific: STAPHYLOCOCCUS AUREUS
    Organism Taxid: 158878
    Strain: MU50
    Synonym: PROTOMER F, H-GAMMA-1, H-GAMMA-I

Molecule 2 - GAMMA-HEMOLYSIN COMPONENT A
    Chains: B, D, F, H
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET26
    Expression System Strain: B834(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: SAV2419
    Organism Scientific: STAPHYLOCOCCUS AUREUS
    Organism Taxid: 158878
    Strain: MU50
    Synonym: PROTOMER S, H-GAMMA-2, H-GAMMA-II

 Structural Features

(-) Chains, Units

  12345678
Asymmetric/Biological Unit : ABCDEFGH

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 4)

Asymmetric/Biological Unit (1, 4)
No.NameCountTypeFull Name
1MPD4Ligand/Ion(4S)-2-METHYL-2,4-PENTANEDIOL

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWARETRP A:177 , TYR A:180 , GLU A:192 , LEU A:195 , ALA A:196 , ARG A:198BINDING SITE FOR RESIDUE MPD A 301
2AC2SOFTWAREASN C:174 , TRP C:177 , TYR C:180 , GLU C:192 , LEU C:195 , ALA C:196 , GLY C:197 , ARG C:198BINDING SITE FOR RESIDUE MPD C 301
3AC3SOFTWAREASN E:174 , TRP E:177 , GLU E:192 , LEU E:195 , ALA E:196 , GLY E:197 , ARG E:198BINDING SITE FOR RESIDUE MPD E 301
4AC4SOFTWAREASN G:174 , TRP G:177 , TYR G:180 , GLU G:192 , LEU G:195 , ALA G:196 , GLY G:197 , ARG G:198BINDING SITE FOR RESIDUE MPD G 301

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3B07)

(-) Cis Peptide Bonds  (20, 20)

Asymmetric/Biological Unit
No.Residues
1Ala A:101 -Pro A:102
2Gly A:178 -Pro A:179
3Ala C:101 -Pro C:102
4Gly C:178 -Pro C:179
5Ala E:101 -Pro E:102
6Gly E:178 -Pro E:179
7Ala G:101 -Pro G:102
8Gly G:178 -Pro G:179
9Leu B:95 -Pro B:96
10Ala B:120 -Pro B:121
11Thr B:278 -Pro B:279
12Leu D:95 -Pro D:96
13Ala D:120 -Pro D:121
14Thr D:278 -Pro D:279
15Leu F:95 -Pro F:96
16Ala F:120 -Pro F:121
17Thr F:278 -Pro F:279
18Leu H:95 -Pro H:96
19Ala H:120 -Pro H:121
20Thr H:278 -Pro H:279

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3B07)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3B07)

(-) Exons   (0, 0)

(no "Exon" information available for 3B07)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:284
 aligned with A0A0H3JX61_S | A0A0H3JX61 from UniProtKB/TrEMBL  Length:325

    Alignment length:284
                                    51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321
         A0A0H3JX61_S    42 VTLYKTTATADSDKFKISQILTFNFIKDKSYDKDTLVLKATGNINSGFVKPNPNDYDFSKLYWGAKYNVSISSQSNDSVNVVDYAPKNQNEEFQVQNTLGYTFGGDISISNGLSGGLNGNTAFSETINYKQESYRTTLSRNTNYKNVGWGVEAHKIMNNGWGPYGRDSFHPTYGNELFLAGRQSSAYAGQNFIAQHQMPLLSRSNFNPEFLSVLSHRQDGAKKSKITVTYQREMDLYQICWNGFYWAGANYKNFKTRTFKSTYEIDWENHKVKLLDTKETENNK 325
               SCOP domains d3b07a_ A: automated matches                                                                                                                                                                                                                                                                 SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeeeee....eeeeeeeeeee.....eeeeeeeeeeeee............eeeeeeeeeeeeeee......eeeeeee......eeeeeeeeeeeeeeeeee....eeeeeeeeeeeeeeeeeee.eeeee.......eeeeeeee.................................hhhhh..hhhhhhhhhhhee..eeeeeeeee.....eeeeeeeeeeeeeeeeeee....eeeeeeeeeeeeeeeeeeeee....eeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3b07 A  17 VTLYKTTATADSDKFKISQILTFNFIKDKSYDKDTLVLKATGNINSGFVKPNPNDYDFSKLYWGAKYNVSISSQSNDSVNVVDYAPKNQNEEFQVQNTLGYTFGGDISISNGLSGGLNGNTAFSETINYKQESYRTTLSRNTNYKNVGWGVEAHKIMNNGWGPYGRDSFHPTYGNELFLAGRQSSAYAGQNFIAQHQMPLLSRSNFNPEFLSVLSHRQDGAKKSKITVTYQREMDLYQICWNGFYWAGANYKNFKTRTFKSTYEIDWENHKVKLLDTKETENNK 300
                                    26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296


Chain B from PDB  Type:PROTEIN  Length:270
 aligned with HLGA_STAAM | P0A071 from UniProtKB/Swiss-Prot  Length:309

    Alignment length:270
                                    49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309
           HLGA_STAAM    40 AEIIKRTQDITSKRLAITQNIQFDFVKDKKYNKDALVVKMQGFISSRTTYSDLKKYPYIKRMIWPFQYNISLKTKDSNVDLINYLPKNKIDSADVSQKLGYNIGGNFQSAPSIGGSGSFNYSKTISYNQKNYVTEVESQNSKGVKWGVKANSFVTPNGQVSAYDQYLFAQDPTGPAARDYFVPDNQLPPLIQSGFNPSFITTLSHERGKGDKSEFEITYGRNMDATYAYVTRHRLAVDRKHDAFKNRNVTVKYEVNWKTHEVKIKSITPK 309
               SCOP domains d3b07b_ B: automated matches                                                                                                                                                                                                                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeeeeeee....eeeeeeeeee.......eeeeeeeeeeee...eeee.......eeeeeeeeeeeeeee....eeeeeee......eeeeeeeeeeeeeeeee...eeeeeeeeeeeeeeeeeee.eeeeeeeee..eeeeeeee.eeee..eeee..............hhhhhh.hhhhhhhhhhhee..eeeeeeee......eeeeeeeeeeeeeeeeeeee..eeeeeeeeeeeeeeeeeeeeeee....eeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3b07 B  11 AEIIKRTQDITSKRLAITQNIQFDFVKDKKYNKDALVVKMQGFISSRTTYSDLKKYPYIKRMIWPFQYNISLKTKDSNVDLINYLPKNKIDSADVSQKLGYNIGGNFQSAPSIGGSGSFNYSKTISYNQKNYVTEVESQNSKGVKWGVKANSFVTPNGQVSAYDQYLFAQDPTGPAARDYFVPDNQLPPLIQSGFNPSFITTLSHERGKGDKSEFEITYGRNMDATYAYVTRHRLAVDRKHDAFKNRNVTVKYEVNWKTHEVKIKSITPK 280
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280


Chain C from PDB  Type:PROTEIN  Length:284
 aligned with A0A0H3JX61_S | A0A0H3JX61 from UniProtKB/TrEMBL  Length:325

    Alignment length:284
                                    51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321
         A0A0H3JX61_S    42 VTLYKTTATADSDKFKISQILTFNFIKDKSYDKDTLVLKATGNINSGFVKPNPNDYDFSKLYWGAKYNVSISSQSNDSVNVVDYAPKNQNEEFQVQNTLGYTFGGDISISNGLSGGLNGNTAFSETINYKQESYRTTLSRNTNYKNVGWGVEAHKIMNNGWGPYGRDSFHPTYGNELFLAGRQSSAYAGQNFIAQHQMPLLSRSNFNPEFLSVLSHRQDGAKKSKITVTYQREMDLYQICWNGFYWAGANYKNFKTRTFKSTYEIDWENHKVKLLDTKETENNK 325
               SCOP domains d3b07c_ C: automated matches                                                                                                                                                                                                                                                                 SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeeeee....eeeeeeeeeee.....eeeeeeeeeeeee............eeeeeeeeeeeeeee......eeeeeee......eeeeeeeeeeeeeeeeee....eeeeeeeeeeeeeeeeeee.eeeee.......eeeeeeee.................................hhhhh..hhhhhhhhhhhee..eeeeeeeee.....eeeeeeeeeeeeeeeeeee....eeeeeeeeeeeeeeeeeeeee....eeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3b07 C  17 VTLYKTTATADSDKFKISQILTFNFIKDKSYDKDTLVLKATGNINSGFVKPNPNDYDFSKLYWGAKYNVSISSQSNDSVNVVDYAPKNQNEEFQVQNTLGYTFGGDISISNGLSGGLNGNTAFSETINYKQESYRTTLSRNTNYKNVGWGVEAHKIMNNGWGPYGRDSFHPTYGNELFLAGRQSSAYAGQNFIAQHQMPLLSRSNFNPEFLSVLSHRQDGAKKSKITVTYQREMDLYQICWNGFYWAGANYKNFKTRTFKSTYEIDWENHKVKLLDTKETENNK 300
                                    26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296


Chain D from PDB  Type:PROTEIN  Length:270
 aligned with HLGA_STAAM | P0A071 from UniProtKB/Swiss-Prot  Length:309

    Alignment length:270
                                    49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309
           HLGA_STAAM    40 AEIIKRTQDITSKRLAITQNIQFDFVKDKKYNKDALVVKMQGFISSRTTYSDLKKYPYIKRMIWPFQYNISLKTKDSNVDLINYLPKNKIDSADVSQKLGYNIGGNFQSAPSIGGSGSFNYSKTISYNQKNYVTEVESQNSKGVKWGVKANSFVTPNGQVSAYDQYLFAQDPTGPAARDYFVPDNQLPPLIQSGFNPSFITTLSHERGKGDKSEFEITYGRNMDATYAYVTRHRLAVDRKHDAFKNRNVTVKYEVNWKTHEVKIKSITPK 309
               SCOP domains d3b07d_ D: automated matches                                                                                                                                                                                                                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeeeeeeeeee....eeeeeeeeeee......eeeeeeeeeeee...eeee.......eeeeeeeeeeeeeee....eeeeeee......eeeeeeeeeeeeeeeee...eeeeeeeeeeeeeeeeeee.eeeeeeeee..eeeeeeee.eeee..eeee..............hhhhhh.hhhhhhhhhhhee..eeeeeeee......eeeeeeeeeeeeeeeeeeee..eeeeeeeeeeeeeeeeeeeeeee....eeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3b07 D  11 AEIIKRTQDITSKRLAITQNIQFDFVKDKKYNKDALVVKMQGFISSRTTYSDLKKYPYIKRMIWPFQYNISLKTKDSNVDLINYLPKNKIDSADVSQKLGYNIGGNFQSAPSIGGSGSFNYSKTISYNQKNYVTEVESQNSKGVKWGVKANSFVTPNGQVSAYDQYLFAQDPTGPAARDYFVPDNQLPPLIQSGFNPSFITTLSHERGKGDKSEFEITYGRNMDATYAYVTRHRLAVDRKHDAFKNRNVTVKYEVNWKTHEVKIKSITPK 280
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280


Chain E from PDB  Type:PROTEIN  Length:284
 aligned with A0A0H3JX61_S | A0A0H3JX61 from UniProtKB/TrEMBL  Length:325

    Alignment length:284
                                    51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321
         A0A0H3JX61_S    42 VTLYKTTATADSDKFKISQILTFNFIKDKSYDKDTLVLKATGNINSGFVKPNPNDYDFSKLYWGAKYNVSISSQSNDSVNVVDYAPKNQNEEFQVQNTLGYTFGGDISISNGLSGGLNGNTAFSETINYKQESYRTTLSRNTNYKNVGWGVEAHKIMNNGWGPYGRDSFHPTYGNELFLAGRQSSAYAGQNFIAQHQMPLLSRSNFNPEFLSVLSHRQDGAKKSKITVTYQREMDLYQICWNGFYWAGANYKNFKTRTFKSTYEIDWENHKVKLLDTKETENNK 325
               SCOP domains d3b07e_ E: automated matches                                                                                                                                                                                                                                                                 SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeeeee....eeeeeeeeeee.....eeeeeeeeeeeee............eeeeeeeeeeeeeee......eeeeeee......eeeeeeeeeeeeeeeeee....eeeeeeeeeeeeeeeeeee.eeeee.......eeeeeeee.................................hhhhh..hhhhhhhhhhhee..eeeeeeeee.....eeeeeeeeeeeeeeeeeee....eeeeeeeeeeeeeeeeeeeee....eeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3b07 E  17 VTLYKTTATADSDKFKISQILTFNFIKDKSYDKDTLVLKATGNINSGFVKPNPNDYDFSKLYWGAKYNVSISSQSNDSVNVVDYAPKNQNEEFQVQNTLGYTFGGDISISNGLSGGLNGNTAFSETINYKQESYRTTLSRNTNYKNVGWGVEAHKIMNNGWGPYGRDSFHPTYGNELFLAGRQSSAYAGQNFIAQHQMPLLSRSNFNPEFLSVLSHRQDGAKKSKITVTYQREMDLYQICWNGFYWAGANYKNFKTRTFKSTYEIDWENHKVKLLDTKETENNK 300
                                    26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296


Chain F from PDB  Type:PROTEIN  Length:270
 aligned with HLGA_STAAM | P0A071 from UniProtKB/Swiss-Prot  Length:309

    Alignment length:270
                                    49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309
           HLGA_STAAM    40 AEIIKRTQDITSKRLAITQNIQFDFVKDKKYNKDALVVKMQGFISSRTTYSDLKKYPYIKRMIWPFQYNISLKTKDSNVDLINYLPKNKIDSADVSQKLGYNIGGNFQSAPSIGGSGSFNYSKTISYNQKNYVTEVESQNSKGVKWGVKANSFVTPNGQVSAYDQYLFAQDPTGPAARDYFVPDNQLPPLIQSGFNPSFITTLSHERGKGDKSEFEITYGRNMDATYAYVTRHRLAVDRKHDAFKNRNVTVKYEVNWKTHEVKIKSITPK 309
               SCOP domains d3b07f_ F: automated matches                                                                                                                                                                                                                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeeeeeeeeee....eeeeeeeeeee......eeeeeeeeeeee...eeee.......eeeeeeeeeeeeeee....eeeeeee......eeeeeeeeeeeeeeeee...eeeeeeeeeeeeeeeeeee.eeeeeeeee..eeeeeeee.eeee..eeee..............hhhhhh.hhhhhhhhhhhee..eeeeeeee......eeeeeeeeeeeeeeeeeeee..eeeeeeeeeeeeeeeeeeeeeee....eeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3b07 F  11 AEIIKRTQDITSKRLAITQNIQFDFVKDKKYNKDALVVKMQGFISSRTTYSDLKKYPYIKRMIWPFQYNISLKTKDSNVDLINYLPKNKIDSADVSQKLGYNIGGNFQSAPSIGGSGSFNYSKTISYNQKNYVTEVESQNSKGVKWGVKANSFVTPNGQVSAYDQYLFAQDPTGPAARDYFVPDNQLPPLIQSGFNPSFITTLSHERGKGDKSEFEITYGRNMDATYAYVTRHRLAVDRKHDAFKNRNVTVKYEVNWKTHEVKIKSITPK 280
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280


Chain G from PDB  Type:PROTEIN  Length:284
 aligned with A0A0H3JX61_S | A0A0H3JX61 from UniProtKB/TrEMBL  Length:325

    Alignment length:284
                                    51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321
         A0A0H3JX61_S    42 VTLYKTTATADSDKFKISQILTFNFIKDKSYDKDTLVLKATGNINSGFVKPNPNDYDFSKLYWGAKYNVSISSQSNDSVNVVDYAPKNQNEEFQVQNTLGYTFGGDISISNGLSGGLNGNTAFSETINYKQESYRTTLSRNTNYKNVGWGVEAHKIMNNGWGPYGRDSFHPTYGNELFLAGRQSSAYAGQNFIAQHQMPLLSRSNFNPEFLSVLSHRQDGAKKSKITVTYQREMDLYQICWNGFYWAGANYKNFKTRTFKSTYEIDWENHKVKLLDTKETENNK 325
               SCOP domains d3b07g_ G: automated matches                                                                                                                                                                                                                                                                 SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeeeee....eeeeeeeeeee.....eeeeeeeeeeeee............eeeeeeeeeeeeeee......eeeeeee......eeeeeeeeeeeeeeeeee....eeeeeeeeeeeeeeeeeee.eeeee.......eeeeeeee.................................hhhhh..hhhhhhhhhhhee..eeeeeeeee.....eeeeeeeeeeeeeeeeeee....eeeeeeeeeeeeeeeeeeeee....eeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3b07 G  17 VTLYKTTATADSDKFKISQILTFNFIKDKSYDKDTLVLKATGNINSGFVKPNPNDYDFSKLYWGAKYNVSISSQSNDSVNVVDYAPKNQNEEFQVQNTLGYTFGGDISISNGLSGGLNGNTAFSETINYKQESYRTTLSRNTNYKNVGWGVEAHKIMNNGWGPYGRDSFHPTYGNELFLAGRQSSAYAGQNFIAQHQMPLLSRSNFNPEFLSVLSHRQDGAKKSKITVTYQREMDLYQICWNGFYWAGANYKNFKTRTFKSTYEIDWENHKVKLLDTKETENNK 300
                                    26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296


Chain H from PDB  Type:PROTEIN  Length:270
 aligned with HLGA_STAAM | P0A071 from UniProtKB/Swiss-Prot  Length:309

    Alignment length:270
                                    49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309
           HLGA_STAAM    40 AEIIKRTQDITSKRLAITQNIQFDFVKDKKYNKDALVVKMQGFISSRTTYSDLKKYPYIKRMIWPFQYNISLKTKDSNVDLINYLPKNKIDSADVSQKLGYNIGGNFQSAPSIGGSGSFNYSKTISYNQKNYVTEVESQNSKGVKWGVKANSFVTPNGQVSAYDQYLFAQDPTGPAARDYFVPDNQLPPLIQSGFNPSFITTLSHERGKGDKSEFEITYGRNMDATYAYVTRHRLAVDRKHDAFKNRNVTVKYEVNWKTHEVKIKSITPK 309
               SCOP domains d3b07h_ H: automated matches                                                                                                                                                                                                                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeeeeeeeeee....eeeeeeeeeee......eeeeeeeeeeee...eeee.......eeeeeeeeeeeeeee....eeeeeee......eeeeeeeeeeeeeeeee...eeeeeeeeeeeeeeeeeee.eeeeeeeee..eeeeeeee.eeee..eeee..............hhhhhh.hhhhhhhhhhhee..eeeeeeee......eeeeeeeeeeeeeeeeeeee..eeeeeeeeeeeeeeeeeeeeeee....eeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3b07 H  11 AEIIKRTQDITSKRLAITQNIQFDFVKDKKYNKDALVVKMQGFISSRTTYSDLKKYPYIKRMIWPFQYNISLKTKDSNVDLINYLPKNKIDSADVSQKLGYNIGGNFQSAPSIGGSGSFNYSKTISYNQKNYVTEVESQNSKGVKWGVKANSFVTPNGQVSAYDQYLFAQDPTGPAARDYFVPDNQLPPLIQSGFNPSFITTLSHERGKGDKSEFEITYGRNMDATYAYVTRHRLAVDRKHDAFKNRNVTVKYEVNWKTHEVKIKSITPK 280
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 8)

Asymmetric/Biological Unit
(-)
Class: Membrane and cell surface proteins and peptides (2046)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3B07)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3B07)

(-) Gene Ontology  (5, 5)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,C,E,G   (A0A0H3JX61_S | A0A0H3JX61)

Chain B,D,F,H   (HLGA_STAAM | P0A071)
biological process
    GO:0019835    cytolysis    The rupture of cell membranes and the loss of cytoplasm.
    GO:0051715    cytolysis in other organism    The killing by an organism of a cell in another organism by means of the rupture of cell membranes and the loss of cytoplasm.
    GO:0044179    hemolysis in other organism    The cytolytic destruction of red blood cells, with the release of intracellular hemoglobin, in one organism by another.
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MPD  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ala A:101 - Pro A:102   [ RasMol ]
    Ala B:120 - Pro B:121   [ RasMol ]
    Ala C:101 - Pro C:102   [ RasMol ]
    Ala D:120 - Pro D:121   [ RasMol ]
    Ala E:101 - Pro E:102   [ RasMol ]
    Ala F:120 - Pro F:121   [ RasMol ]
    Ala G:101 - Pro G:102   [ RasMol ]
    Ala H:120 - Pro H:121   [ RasMol ]
    Gly A:178 - Pro A:179   [ RasMol ]
    Gly C:178 - Pro C:179   [ RasMol ]
    Gly E:178 - Pro E:179   [ RasMol ]
    Gly G:178 - Pro G:179   [ RasMol ]
    Leu B:95 - Pro B:96   [ RasMol ]
    Leu D:95 - Pro D:96   [ RasMol ]
    Leu F:95 - Pro F:96   [ RasMol ]
    Leu H:95 - Pro H:96   [ RasMol ]
    Thr B:278 - Pro B:279   [ RasMol ]
    Thr D:278 - Pro D:279   [ RasMol ]
    Thr F:278 - Pro F:279   [ RasMol ]
    Thr H:278 - Pro H:279   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3b07
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  A0A0H3JX61_S | A0A0H3JX61
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL
  HLGA_STAAM | P0A071
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  A0A0H3JX61_S | A0A0H3JX61
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  HLGA_STAAM | P0A071
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        HLGA_STAAM | P0A071: 4p1y
UniProtKB/TrEMBL
        A0A0H3JX61_S | A0A0H3JX61: 4p1x 4p1y

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 3B07)
