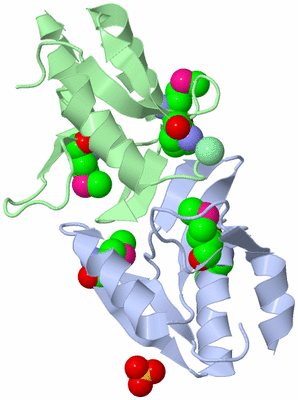

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)
Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)
Image Biological Unit 5
Biological Unit 5  (Jmol Viewer)
Image Biological Unit 6
Biological Unit 6  (Jmol Viewer)
Image Biological Unit 7
Biological Unit 7  (Jmol Viewer)
Image Biological Unit 8
Biological Unit 8  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF HYPOTHETICAL PROTEIN TTHA0547

Authors :  K. Murayama, M. Kato-Murayama, T. Terada, M. Shirouzu, S. Yokoyama, Ri Structural Genomics/Proteomics Initiative (Rsgi)
Date :  07 May 07  (Deposition) - 13 Nov 07  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H,I,J,K,L
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Biol. Unit 3:  E,F  (1x)
Biol. Unit 4:  G,H  (1x)
Biol. Unit 5:  I,J  (1x)
Biol. Unit 6:  K,L  (1x)
Biol. Unit 7:  A,B,C,D,E,F  (1x)
Biol. Unit 8:  G,H,I,J,K,L  (1x)
Keywords :  Alpha/Beta Protein, Structural Genomics, Unknown Function, Nppsfa, National Project On Protein Structural And Functional Analyses, Riken Structural Genomics/Proteomics Initiative, Rsgi (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. Murayama, M. Kato-Murayama, T. Terada, M. Shirouzu, S. Yokoyama
Crystal Structure Of Hypothetical Protein Ttha0547
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - PUTATIVE UNCHARACTERIZED PROTEIN TTHA0547
    Chains: A, B, C, D, E, F, G, H, I, J, K, L
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET11A
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: THERMUS THERMOPHILUS
    Organism Taxid: 300852
    Strain: HB8

 Structural Features

(-) Chains, Units

  123456789101112
Asymmetric Unit : ABCDEFGHIJKL
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD
Biological Unit 3 (1x):     EF
Biological Unit 4 (1x):       GH
Biological Unit 5 (1x):         IJ
Biological Unit 6 (1x):           KL
Biological Unit 7 (1x): ABCDEF
Biological Unit 8 (1x):       GHIJKL

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 55)

Asymmetric Unit (3, 55)
No.NameCountTypeFull Name
1CL11Ligand/IonCHLORIDE ION
2MSE36Mod. Amino AcidSELENOMETHIONINE
3SO48Ligand/IonSULFATE ION
Biological Unit 1 (2, 7)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2MSE6Mod. Amino AcidSELENOMETHIONINE
3SO41Ligand/IonSULFATE ION
Biological Unit 2 (2, 7)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2MSE6Mod. Amino AcidSELENOMETHIONINE
3SO41Ligand/IonSULFATE ION
Biological Unit 3 (2, 8)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2MSE6Mod. Amino AcidSELENOMETHIONINE
3SO42Ligand/IonSULFATE ION
Biological Unit 4 (2, 7)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2MSE6Mod. Amino AcidSELENOMETHIONINE
3SO41Ligand/IonSULFATE ION
Biological Unit 5 (2, 7)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2MSE6Mod. Amino AcidSELENOMETHIONINE
3SO41Ligand/IonSULFATE ION
Biological Unit 6 (2, 8)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2MSE6Mod. Amino AcidSELENOMETHIONINE
3SO42Ligand/IonSULFATE ION
Biological Unit 7 (2, 22)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2MSE18Mod. Amino AcidSELENOMETHIONINE
3SO44Ligand/IonSULFATE ION
Biological Unit 8 (2, 22)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2MSE18Mod. Amino AcidSELENOMETHIONINE
3SO44Ligand/IonSULFATE ION

(-) Sites  (18, 18)

Asymmetric Unit (18, 18)
No.NameEvidenceResiduesDescription
01AC1SOFTWARETYR A:10 , ARG A:36BINDING SITE FOR RESIDUE SO4 A 501
02AC2SOFTWARETYR F:10 , ARG F:36BINDING SITE FOR RESIDUE SO4 F 502
03AC3SOFTWARETYR E:10 , ARG E:36BINDING SITE FOR RESIDUE SO4 E 503
04AC4SOFTWARETYR I:10 , ARG I:36BINDING SITE FOR RESIDUE SO4 I 504
05AC5SOFTWARETYR G:10 , ARG G:36 , HOH G:631BINDING SITE FOR RESIDUE SO4 G 505
06AC6SOFTWARETYR D:10 , ARG D:36BINDING SITE FOR RESIDUE SO4 D 506
07AC7SOFTWARETYR K:10 , ARG K:36BINDING SITE FOR RESIDUE SO4 K 507
08AC8SOFTWARETYR L:10 , ARG L:36 , HOH L:285BINDING SITE FOR RESIDUE SO4 L 508
09AC9SOFTWAREARG F:36 , ALA F:55BINDING SITE FOR RESIDUE CL F 601
10BC1SOFTWAREGLY C:50BINDING SITE FOR RESIDUE CL C 602
11BC2SOFTWAREGLY E:50BINDING SITE FOR RESIDUE CL E 603
12BC3SOFTWAREARG I:36 , ARG I:52 , ALA I:55BINDING SITE FOR RESIDUE CL I 604
13BC4SOFTWAREARG G:59BINDING SITE FOR RESIDUE CL G 606
14BC5SOFTWAREGLY B:50 , HOH B:621BINDING SITE FOR RESIDUE CL B 607
15BC6SOFTWAREARG D:36BINDING SITE FOR RESIDUE CL D 608
16BC7SOFTWAREARG K:36 , ALA K:55BINDING SITE FOR RESIDUE CL K 609
17BC8SOFTWAREARG K:59BINDING SITE FOR RESIDUE CL K 610
18BC9SOFTWAREARG E:52BINDING SITE FOR RESIDUE CL E 611

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2Z0R)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2Z0R)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2Z0R)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2Z0R)

(-) Exons   (0, 0)

(no "Exon" information available for 2Z0R)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:97
 aligned with Q5SKU6_THET8 | Q5SKU6 from UniProtKB/TrEMBL  Length:103

    Alignment length:97
                                    14        24        34        44        54        64        74        84        94
         Q5SKU6_THET8     5 LSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGMRVSALESRALKEAYLRALGMLQVEAVMVDYRPGTHRAQVARVKDLLEEVR 101
               SCOP domains ------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeee.......eeee..eeeeee..hhhhhhhhhhh......eeeee.hhhhhhhhhhhhhhh...eeee.........eeeehhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------- Transcript
                 2z0r A   5 LSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGmRVSALESRALKEAYLRALGmLQVEAVmVDYRPGTHRAQVARVKDLLEEVR 101
                                    14        24        34        44      | 54        64      | 74   |    84        94
                                                                         51-MSE              71-MSE 78-MSE


Chain B from PDB  Type:PROTEIN  Length:100
 aligned with Q5SKU6_THET8 | Q5SKU6 from UniProtKB/TrEMBL  Length:103

    Alignment length:100
                                    13        23        33        43        53        63        73        83        93       103
         Q5SKU6_THET8     4 DLSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGMRVSALESRALKEAYLRALGMLQVEAVMVDYRPGTHRAQVARVKDLLEEVRRA 103
               SCOP domains ---------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeee.......eeee..eeeeee..hhhhhhhhhhh......eeeee.hhhhhhhhhhhhhhh...eeee.........eeeehhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------- Transcript
                 2z0r B   4 DLSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGmRVSALESRALKEAYLRALGmLQVEAVmVDYRPGTHRAQVARVKDLLEEVRRA 103
                                    13        23        33        43       |53        63       |73    |   83        93       103
                                                                          51-MSE              71-MSE 78-MSE


Chain C from PDB  Type:PROTEIN  Length:98
 aligned with Q5SKU6_THET8 | Q5SKU6 from UniProtKB/TrEMBL  Length:103

    Alignment length:98
                                    13        23        33        43        53        63        73        83        93
         Q5SKU6_THET8     4 DLSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGMRVSALESRALKEAYLRALGMLQVEAVMVDYRPGTHRAQVARVKDLLEEVR 101
               SCOP domains -------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeee.......eeee..eeeeee..hhhhhhhhhhhh.....eeeee.hhhhhhhhhhhhhhh...eeee..........eeehhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                 2z0r C   4 DLSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGmRVSALESRALKEAYLRALGmLQVEAVmVDYRPGTHRAQVARVKDLLEEVR 101
                                    13        23        33        43       |53        63       |73    |   83        93
                                                                          51-MSE              71-MSE 78-MSE


Chain D from PDB  Type:PROTEIN  Length:97
 aligned with Q5SKU6_THET8 | Q5SKU6 from UniProtKB/TrEMBL  Length:103

    Alignment length:97
                                    14        24        34        44        54        64        74        84        94
         Q5SKU6_THET8     5 LSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGMRVSALESRALKEAYLRALGMLQVEAVMVDYRPGTHRAQVARVKDLLEEVR 101
               SCOP domains ------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeee.......eeee..eeeeee..hhhhhhhhhhh......eeeee.hhhhhhhhhhhhhhh...eeee.........eeeehhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------- Transcript
                 2z0r D   5 LSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGmRVSALESRALKEAYLRALGmLQVEAVmVDYRPGTHRAQVARVKDLLEEVR 101
                                    14        24        34        44      | 54        64      | 74   |    84        94
                                                                         51-MSE              71-MSE 78-MSE


Chain E from PDB  Type:PROTEIN  Length:98
 aligned with Q5SKU6_THET8 | Q5SKU6 from UniProtKB/TrEMBL  Length:103

    Alignment length:98
                                    13        23        33        43        53        63        73        83        93
         Q5SKU6_THET8     4 DLSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGMRVSALESRALKEAYLRALGMLQVEAVMVDYRPGTHRAQVARVKDLLEEVR 101
               SCOP domains -------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeee.......eeee..eeeeeee.hhhhhhhhhhh......eeeee.hhhhhhhhhhhhhhh...eeee.........eeeehhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                 2z0r E   4 DLSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGmRVSALESRALKEAYLRALGmLQVEAVmVDYRPGTHRAQVARVKDLLEEVR 101
                                    13        23        33        43       |53        63       |73    |   83        93
                                                                          51-MSE              71-MSE 78-MSE


Chain F from PDB  Type:PROTEIN  Length:99
 aligned with Q5SKU6_THET8 | Q5SKU6 from UniProtKB/TrEMBL  Length:103

    Alignment length:99
                                    14        24        34        44        54        64        74        84        94
         Q5SKU6_THET8     5 LSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGMRVSALESRALKEAYLRALGMLQVEAVMVDYRPGTHRAQVARVKDLLEEVRRA 103
               SCOP domains --------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeee......eeeee..eeeeee..hhhhhhhhhhhhhhhh.eeeee.hhhhhhhhhhhhhhh...eeee..........eeehhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                 2z0r F   5 LSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGmRVSALESRALKEAYLRALGmLQVEAVmVDYRPGTHRAQVARVKDLLEEVRRA 103
                                    14        24        34        44      | 54        64      | 74   |    84        94
                                                                         51-MSE              71-MSE 78-MSE


Chain G from PDB  Type:PROTEIN  Length:98
 aligned with Q5SKU6_THET8 | Q5SKU6 from UniProtKB/TrEMBL  Length:103

    Alignment length:98
                                    13        23        33        43        53        63        73        83        93
         Q5SKU6_THET8     4 DLSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGMRVSALESRALKEAYLRALGMLQVEAVMVDYRPGTHRAQVARVKDLLEEVR 101
               SCOP domains -------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeee.......eee....eeeeee.hhhhhhhhhhh......eeeee.hhhhhhhhhhhhhhh...eeee.........eeeehhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                 2z0r G   4 DLSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGmRVSALESRALKEAYLRALGmLQVEAVmVDYRPGTHRAQVARVKDLLEEVR 101
                                    13        23        33        43       |53        63       |73    |   83        93
                                                                          51-MSE              71-MSE 78-MSE


Chain H from PDB  Type:PROTEIN  Length:97
 aligned with Q5SKU6_THET8 | Q5SKU6 from UniProtKB/TrEMBL  Length:103

    Alignment length:97
                                    14        24        34        44        54        64        74        84        94
         Q5SKU6_THET8     5 LSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGMRVSALESRALKEAYLRALGMLQVEAVMVDYRPGTHRAQVARVKDLLEEVR 101
               SCOP domains ------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeee.......eeee..eeeeee..hhhhhhhhhhhh.....eeeee.hhhhhhhhhhhhhhh...eeee..........eeehhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------- Transcript
                 2z0r H   5 LSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGmRVSALESRALKEAYLRALGmLQVEAVmVDYRPGTHRAQVARVKDLLEEVR 101
                                    14        24        34        44      | 54        64      | 74   |    84        94
                                                                         51-MSE              71-MSE 78-MSE


Chain I from PDB  Type:PROTEIN  Length:101
 aligned with Q5SKU6_THET8 | Q5SKU6 from UniProtKB/TrEMBL  Length:103

    Alignment length:101
                                    12        22        32        42        52        62        72        82        92       102
         Q5SKU6_THET8     3 PDLSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGMRVSALESRALKEAYLRALGMLQVEAVMVDYRPGTHRAQVARVKDLLEEVRRA 103
               SCOP domains ----------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeeee......eeeee..eeeeee..hhhhhhhhhhh......eeeee.hhhhhhhhhhhhhhh...eeee.........eeeehhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------- Transcript
                 2z0r I   3 PDLSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGmRVSALESRALKEAYLRALGmLQVEAVmVDYRPGTHRAQVARVKDLLEEVRRA 103
                                    12        22        32        42        52        62        72     |  82        92       102
                                                                           51-MSE              71-MSE 78-MSE


Chain J from PDB  Type:PROTEIN  Length:97
 aligned with Q5SKU6_THET8 | Q5SKU6 from UniProtKB/TrEMBL  Length:103

    Alignment length:97
                                    14        24        34        44        54        64        74        84        94
         Q5SKU6_THET8     5 LSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGMRVSALESRALKEAYLRALGMLQVEAVMVDYRPGTHRAQVARVKDLLEEVR 101
               SCOP domains ------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeee.......eeee..eeeeee..hhhhhhhhhhh......eeeee.hhhhhhhhhhhhhhh...eeee..........eeehhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------- Transcript
                 2z0r J   5 LSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGmRVSALESRALKEAYLRALGmLQVEAVmVDYRPGTHRAQVARVKDLLEEVR 101
                                    14        24        34        44      | 54        64      | 74   |    84        94
                                                                         51-MSE              71-MSE 78-MSE


Chain K from PDB  Type:PROTEIN  Length:99
 aligned with Q5SKU6_THET8 | Q5SKU6 from UniProtKB/TrEMBL  Length:103

    Alignment length:99
                                    12        22        32        42        52        62        72        82        92
         Q5SKU6_THET8     3 PDLSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGMRVSALESRALKEAYLRALGMLQVEAVMVDYRPGTHRAQVARVKDLLEEVR 101
               SCOP domains --------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeeee.......eeee..eeeeee..hhhhhhhhhhh......eeeee.hhhhhhhhhhhhhhh...eeee..........eeehhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                 2z0r K   3 PDLSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGmRVSALESRALKEAYLRALGmLQVEAVmVDYRPGTHRAQVARVKDLLEEVR 101
                                    12        22        32        42        52        62        72     |  82        92
                                                                           51-MSE              71-MSE 78-MSE


Chain L from PDB  Type:PROTEIN  Length:100
 aligned with Q5SKU6_THET8 | Q5SKU6 from UniProtKB/TrEMBL  Length:103

    Alignment length:100
                                    13        23        33        43        53        63        73        83        93       103
         Q5SKU6_THET8     4 DLSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGMRVSALESRALKEAYLRALGMLQVEAVMVDYRPGTHRAQVARVKDLLEEVRRA 103
               SCOP domains ---------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) DUF3234-2z0rL01 L:4-103                                                                              Pfam domains (1)
           Pfam domains (2) DUF3234-2z0rL02 L:4-103                                                                              Pfam domains (2)
           Pfam domains (3) DUF3234-2z0rL03 L:4-103                                                                              Pfam domains (3)
           Pfam domains (4) DUF3234-2z0rL04 L:4-103                                                                              Pfam domains (4)
           Pfam domains (5) DUF3234-2z0rL05 L:4-103                                                                              Pfam domains (5)
           Pfam domains (6) DUF3234-2z0rL06 L:4-103                                                                              Pfam domains (6)
           Pfam domains (7) DUF3234-2z0rL07 L:4-103                                                                              Pfam domains (7)
           Pfam domains (8) DUF3234-2z0rL08 L:4-103                                                                              Pfam domains (8)
           Pfam domains (9) DUF3234-2z0rL09 L:4-103                                                                              Pfam domains (9)
          Pfam domains (10) DUF3234-2z0rL10 L:4-103                                                                              Pfam domains (10)
          Pfam domains (11) DUF3234-2z0rL11 L:4-103                                                                              Pfam domains (11)
          Pfam domains (12) DUF3234-2z0rL12 L:4-103                                                                              Pfam domains (12)
         Sec.struct. author .....eeeee.......eeee..eeeeee..hhhhhhhhhh.......eeeee.hhhhhhhhhhhhhhh...eeee..........eeehhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------- Transcript
                 2z0r L   4 DLSGTWYVLEGDPGEHLVVEALGERLSGIWTSRELAEAFLAHHPHLGmRVSALESRALKEAYLRALGmLQVEAVmVDYRPGTHRAQVARVKDLLEEVRRA 103
                                    13        23        33        43       |53        63       |73    |   83        93       103
                                                                          51-MSE              71-MSE 78-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2Z0R)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2Z0R)

(-) Pfam Domains  (1, 12)

Asymmetric Unit
(-)
Clan: no clan defined [family: DUF3234] (1)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 2Z0R)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]
    BC6  [ RasMol ]  +environment [ RasMol ]
    BC7  [ RasMol ]  +environment [ RasMol ]
    BC8  [ RasMol ]  +environment [ RasMol ]
    BC9  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2z0r)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]
    Biological Unit 5  [ Jena3D ]
    Biological Unit 6  [ Jena3D ]
    Biological Unit 7  [ Jena3D ]
    Biological Unit 8  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format | Biol. Unit 5 PNG format | Biol. Unit 6 PNG format | Biol. Unit 7 PNG format | Biol. Unit 8 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2z0r
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q5SKU6_THET8 | Q5SKU6
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q5SKU6_THET8 | Q5SKU6
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 2Z0R)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2Z0R)
