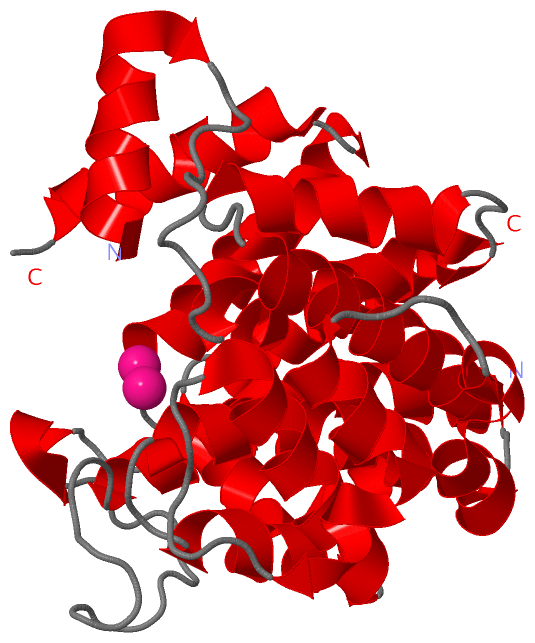

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

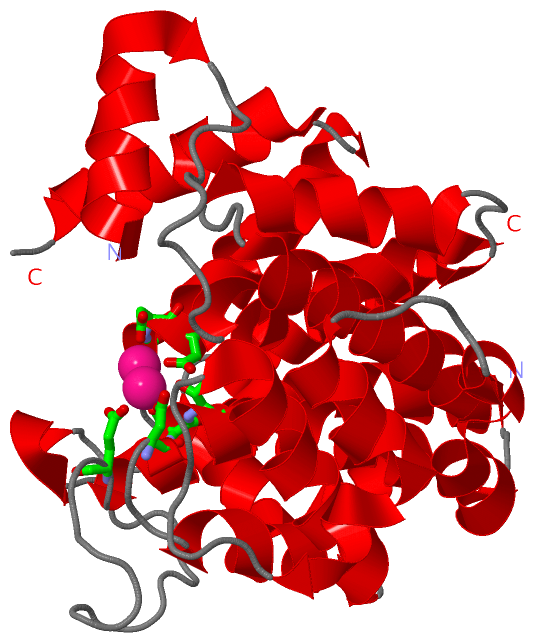

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  ADP-RIBOSYLGLYCOHYDROLASE-RELATED PROTEIN COMPLEX

Authors :  A. Ebihara, M. Manzoku, S. Yokoyama, S. Kuramitsu, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  06 May 07  (Deposition) - 06 Nov 07  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.70
Chains :  Asym./Biol. Unit :  A
Keywords :  All Alpha Protein, Hydrolase, Structural Genomics, Nppsfa, National Project On Protein Structural And Functional Analyses, Riken Structural Genomics/Proteomics Initiative, Rsgi (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Ebihara, M. Manzoku, S. Yokoyama, S. Kuramitsu
Adp-Ribosylglycohydrolase-Related Protein Complex
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - ADP-RIBOSYLGLYCOHYDROLASE
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET-11A
    Expression System Strain: ROSETTA(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: THERMUS THERMOPHILUS
    Organism Taxid: 300852
    Strain: HB8
    Synonym: ADP-RIBOSYLGLYCOHYDROLASE-RELATED PROTEIN

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1GD32Ligand/IonGADOLINIUM ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLU A:29 , ASP A:251 , ASP A:253 , THR A:254 , HOH A:507 , HOH A:535BINDING SITE FOR RESIDUE GD3 A 501
2AC2SOFTWARETHR A:56 , ASP A:57 , ASP A:58 , ASP A:253 , HOH A:505 , HOH A:507BINDING SITE FOR RESIDUE GD3 A 502

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2YZW)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2YZW)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2YZW)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2YZW)

(-) Exons   (0, 0)

(no "Exon" information available for 2YZW)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:283
 aligned with Q5SMG9_THET8 | Q5SMG9 from UniProtKB/TrEMBL  Length:303

    Alignment length:295
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293
         Q5SMG9_THET8     4 LKERQDRRLGAFLGLAVGDALGAQVEGLPKGTFPEVREMKGGGPHRLPPGFWTDDTSQALCLAESLLQRGFDPKDQMDRYLRWYREGYRSATGVCFGLGHATRRALERYAATGDPYAGDEAGAGNGPLMRLAPLVLAYENHPDLLSLARRAARTTHGAREALEATEVLAWLLREALRGAPKEALLALEPFRGADLHPALRRVVEGGFWEAPEEGPGYAPGTLAAALWAFARGRDFEEGMRLAVNLGGDADTVGAVYGQLAGAYYGLGAIPGRWLRALHLREEMEALALALYRMSM 298
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------ADP_ribosyl_GH-2yzwA01 A:13-276                                                                                                                                                                                                                                         ---------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhh.................hhhhh......hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh..------------hhhhhhhhhhhhh...........hhhhhhhhhhhhhhh...hhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhh....hhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhh.hhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2yzw A   4 LKERQDRRLGAFLGLAVGDALGAQVEGLPKGTFPEVREMKGGGPHRLPPGFWTDDTSQALCLAESLLQRGFDPKDQMDRYLRWYREGY------------ATRRALERYAATGDPYAGDEAGAGNGPLMRLAPLVLAYENHPDLLSLARRAARTTHGAREALEATEVLAWLLREALRGAPKEALLALEPFRGADLHPALRRVVEGGFWEAPEEGPGYAPGTLAAALWAFARGRDFEEGMRLAVNLGGDADTVGAVYGQLAGAYYGLGAIPGRWLRALHLREEMEALALALYRMSM 298
                                    13        23        33        43        53        63        73        83       | -         -|      113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293
                                                                                                                  91          104
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2YZW)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2YZW)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: ADP_ribosyl_GH] (7)

(-) Gene Ontology  (2, 2)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (Q5SMG9_THET8 | Q5SMG9)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    GD3  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2yzw)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2yzw
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q5SMG9_THET8 | Q5SMG9
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q5SMG9_THET8 | Q5SMG9
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q5SMG9_THET8 | Q5SMG9: 2cwc 2yzv

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2YZW)
