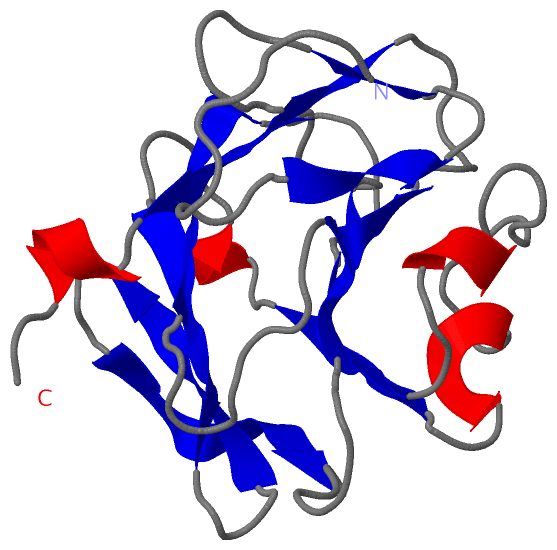

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)
Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE NEUZ (NHR) DOMAIN IN NEURALIZED FROM DROSOPHILA MELANOGASTER

Authors :  F. He, Y. Muto, M. Inoue, T. Kigawa, M. Shirouzu, T. Tarada, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  06 Apr 07  (Deposition) - 09 Oct 07  (Release) - 02 Feb 10  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Structure Genomics, Neuz(Nhr) Domain, Neuralized, Structural Genomics, Nppsfa, National Project On Protein Structural And Functional Analyses, Riken Structural Genomics/Proteomics Initiative, Rsgi, Rna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  F. He, K. Saito, N. Kobayashi, T. Harada, S. Watanabe, T. Kigawa, P. Guntert, O. Ohara, A. Tanaka, S. Unzai, Y. Muto, S. Yokoyama
Structural And Functional Characterization Of The Nhr1 Domain Of The Drosophila Neuralized E3 Ligase In The Notch Signaling Pathway.
J. Mol. Biol. V. 393 478 2009
PubMed-ID: 19683535  |  Reference-DOI: 10.1016/J.JMB.2009.08.020

(-) Compounds

Molecule 1 - PROTEIN NEURALIZED
    ChainsA
    EngineeredYES
    Expression System PlasmidP061002-04
    Expression System Vector TypePLASMID
    FragmentNEUZ(NHR) DOMAIN
    Organism CommonFRUIT FLY
    Organism ScientificDROSOPHILA MELANOGASTER
    Organism Taxid7227
    Other DetailsCELL-FREE PROTEIN SYNTHESIS

 Structural Features

(-) Chains, Units


NMR Structure (20x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2YUE)

(-) Sites  (0, 0)

(no "Site" information available for 2YUE)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2YUE)

(-) Cis Peptide Bonds  (1, 20)

NMR Structure
No.ModelResidues
11, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20Cys A:87 -Pro A:88

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2YUE)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1NHRPS51065 Neuralized homology repeat (NHR) domain profile.NEUR_DROME106-260
368-523
  1A:8-162
-

(-) Exons   (0, 0)

(no "Exon" information available for 2YUE)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:168
 aligned with NEUR_DROME | P29503 from UniProtKB/Swiss-Prot  Length:754

    Alignment length:173
                                   103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263
           NEUR_DROME    94 SPSSCPGPNNLPPLQFHSVHGDNIRISRDGTLARRFESFCRAITFSARPVRINERICVKFAEISNNWNGGIRFGFTSNDPVTLEGTLPKYACPDLTNRPGFWAKALHEQYCEKDNILYYYVNGAGDVIYGINNEEKGVILTGIDTRSLLWTVIDIYGNCTGIEFLDSRIYMYQ 266
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......-----...eeeee...eee......eee.......eeee.........eeeeeee.........eeeee...hhh...........hhhh...eeeee..hhh.....eeeeee....eeeeee...eeeeeee........eeeee......eeeee.hhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------NHR  PDB: A:8-162 UniProt: 106-260                                                                                                                         ------ PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2yue A   1 GSSGSSG-----PLQFHSVHGDNIRISRDGTLARRFESFCRAITFSARPVRINERICVKFAEISNNWNGGIRFGFTSNDPVTLEGTLPKYACPDLTNRPGFWAKALHEQYCEKDNILYYYVNGAGDVIYGINNEEKGVILTGIDTRSLLWTVIDIYGNCTGIEFLDSRIYMYQ 168
                                  |  -  |     15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165
                                  7     8

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2YUE)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2YUE)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2YUE)

(-) Gene Ontology  (42, 42)

NMR Structure(hide GO term definitions)
Chain A   (NEUR_DROME | P29503)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:1901981    phosphatidylinositol phosphate binding    Interacting selectively and non-covalently with phosphatidylinositol phosphate.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0061630    ubiquitin protein ligase activity    Catalysis of the transfer of ubiquitin to a substrate protein via the reaction X-ubiquitin + S -> X + S-ubiquitin, where X is either an E2 or E3 enzyme, the X-ubiquitin linkage is a thioester bond, and the S-ubiquitin linkage is an amide bond: an isopeptide bond between the C-terminal glycine of ubiquitin and the epsilon-amino group of lysine residues in the substrate or, in the linear extension of ubiquitin chains, a peptide bond the between the C-terminal glycine and N-terminal methionine of ubiquitin residues.
    GO:0004842    ubiquitin-protein transferase activity    Catalysis of the transfer of ubiquitin from one protein to another via the reaction X-Ub + Y --> Y-Ub + X, where both X-Ub and Y-Ub are covalent linkages.
    GO:0008270    zinc ion binding    Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
    GO:0007219    Notch signaling pathway    A series of molecular signals initiated by the binding of an extracellular ligand to the receptor Notch on the surface of a target cell, and ending with regulation of a downstream cellular process, e.g. transcription.
    GO:0008356    asymmetric cell division    The asymmetric division of cells to produce two daughter cells with different developmental potentials. It is of fundamental significance for the generation of cell diversity.
    GO:0048854    brain morphogenesis    The process in which the anatomical structures of the brain are generated and organized. The brain is one of the two components of the central nervous system and is the center of thought and emotion. It is responsible for the coordination and control of bodily activities and the interpretation of information from the senses (sight, hearing, smell, etc.).
    GO:0030154    cell differentiation    The process in which relatively unspecialized cells, e.g. embryonic or regenerative cells, acquire specialized structural and/or functional features that characterize the cells, tissues, or organs of the mature organism or some other relatively stable phase of the organism's life history. Differentiation includes the processes involved in commitment of a cell to a specific fate and its subsequent development to the mature state.
    GO:0048749    compound eye development    The process whose specific outcome is the progression of the compound eye over time, from its formation to the mature structure. The compound eye is an organ of sight that contains multiple repeating units, often arranged hexagonally. Each unit has its own lens and photoreceptor cell(s) and can generate either a single pixelated image or multiple images, per eye.
    GO:0007398    ectoderm development    The process whose specific outcome is the progression of the ectoderm over time, from its formation to the mature structure. In animal embryos, the ectoderm is the outer germ layer of the embryo, formed during gastrulation.
    GO:0030718    germ-line stem cell population maintenance    Any process by which an organism or tissue maintains a population of germ-line stem cells.
    GO:0007476    imaginal disc-derived wing morphogenesis    The process in which the anatomical structures of the imaginal disc-derived wing are generated and organized. The wing is an appendage modified for flying.
    GO:0002121    inter-male aggressive behavior    Aggressive behavior based on competition between males of the same species over access to resources such as females, dominance, status, etc. and characterized by noise, threats, and is often less injurious.
    GO:0046331    lateral inhibition    Signaling between cells of equivalent developmental potential that results in these cells adopting different developmental fates. An example is the suppression by cells with a particular fate of the adoption of the same fate by surrounding cells.
    GO:0031987    locomotion involved in locomotory behavior    Self-propelled movement of a cell or organism from one location to another in a behavioral context; the aspect of locomotory behavior having to do with movement.
    GO:0007616    long-term memory    The memory process that deals with the storage, retrieval and modification of information a long time (typically weeks, months or years) after receiving that information. This type of memory is typically dependent on gene transcription regulated by second messenger activation.
    GO:0007498    mesoderm development    The process whose specific outcome is the progression of the mesoderm over time, from its formation to the mature structure. The mesoderm is the middle germ layer that develops into muscle, bone, cartilage, blood and connective tissue.
    GO:0007275    multicellular organism development    The biological process whose specific outcome is the progression of a multicellular organism over time from an initial condition (e.g. a zygote or a young adult) to a later condition (e.g. a multicellular animal or an aged adult).
    GO:0007399    nervous system development    The process whose specific outcome is the progression of nervous tissue over time, from its formation to its mature state.
    GO:0042048    olfactory behavior    The behavior of an organism in response to an odor.
    GO:0030707    ovarian follicle cell development    The process that occurs during oogenesis involving the ovarian follicle cells, somatic cells which surround the germ cells of an ovary. An example of this is found in Drosophila melanogaster.
    GO:0007422    peripheral nervous system development    The process whose specific outcome is the progression of the peripheral nervous system over time, from its formation to the mature structure. The peripheral nervous system is one of the two major divisions of the nervous system. Nerves in the PNS connect the central nervous system (CNS) with sensory organs, other organs, muscles, blood vessels and glands.
    GO:0045747    positive regulation of Notch signaling pathway    Any process that activates or increases the frequency, rate or extent of the Notch signaling pathway.
    GO:0051260    protein homooligomerization    The process of creating protein oligomers, compounds composed of a small number, usually between three and ten, of identical component monomers. Oligomers may be formed by the polymerization of a number of monomers or the depolymerization of a large protein polymer.
    GO:0008104    protein localization    Any process in which a protein is transported to, or maintained in, a specific location.
    GO:0000209    protein polyubiquitination    Addition of multiple ubiquitin groups to a protein, forming a ubiquitin chain.
    GO:0008593    regulation of Notch signaling pathway    Any process that modulates the frequency, rate or extent of the Notch signaling pathway.
    GO:0045314    regulation of compound eye photoreceptor development    Any process that modulates the frequency, rate or extent of compound eye photoreceptor development.
    GO:0046532    regulation of photoreceptor cell differentiation    Any process that modulates the frequency, rate or extent of photoreceptor cell differentiation. An example of this process is found in Drosophila melanogaster.
    GO:0007423    sensory organ development    The process whose specific outcome is the progression of sensory organs over time, from its formation to the mature structure.
    GO:0016360    sensory organ precursor cell fate determination    The process in which a cell becomes capable of differentiating autonomously into a sensory organ precursor cell regardless of its environment; upon determination, the cell fate cannot be reversed.
    GO:0001964    startle response    An action or movement due to the application of a sudden unexpected stimulus.
    GO:0007419    ventral cord development    The process whose specific outcome is the progression of the ventral cord over time, from its formation to the mature structure. The ventral cord is one of the distinguishing traits of the central nervous system of all arthropods (such as insects, crustaceans and arachnids) as well as many other invertebrates, such as the annelid worms.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0005768    endosome    A vacuole to which materials ingested by endocytosis are delivered.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
    GO:0048471    perinuclear region of cytoplasm    Cytoplasm situated near, or occurring around, the nucleus.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2yue)

  Sites
(no "Sites" information available for 2yue)

  Cis Peptide Bonds
    Cys A:87 - Pro A:88   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2yue
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  NEUR_DROME | P29503
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  NEUR_DROME | P29503
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        NEUR_DROME | P295034kg0
