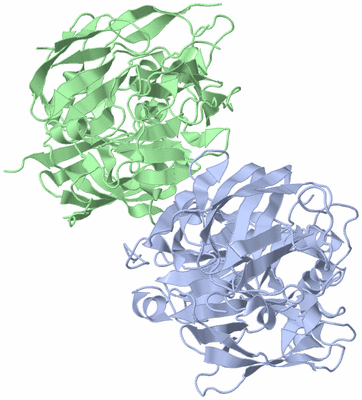

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  SUFI PROTEIN FROM ESCHERICHIA COLI

Authors :  M. J. Tarry, P. Roversi, F. Sargent, B. C. Berks, S. M. Lea
Date :  29 Mar 07  (Deposition) - 13 May 08  (Release) - 01 Apr 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Oxidoreductase, Sufi, Periplasmic, Cupredoxin-Like, Fts Mutant Suppressor (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Tarry, S. J. Arends, P. Roversi, E. Piette, F. Sargent, B. C. Berks, D. S. Weiss, S. M. Lea
The Escherichia Coli Cell Division Protein And Model Tat Substrate Sufi (Ftsp) Localizes To The Septal Ring And Has A Multicopper Oxidase-Like Structure.
J. Mol. Biol. V. 386 504 2009
PubMed-ID: 19135451  |  Reference-DOI: 10.1016/J.JMB.2008.12.043

(-) Compounds

Molecule 1 - PROTEIN SUFI
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: P60-SUFI
    Expression System Strain: M15
    Expression System Taxid: 562
    Expression System Variant: PREP4
    Expression System Vector: PQE60
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Synonym: SUFI

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2UXT)

(-) Sites  (0, 0)

(no "Site" information available for 2UXT)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2UXT)

(-) Cis Peptide Bonds  (9, 9)

Asymmetric Unit
No.Residues
1Pro A:61 -Gly A:62
2Met A:113 -Gly A:114
3Ser A:256 -Gly A:257
4Ser A:312 -Ser A:313
5Ser A:335 -Leu A:336
6Val A:469 -Pro A:470
7Asn B:71 -Gly B:72
8Met B:113 -Gly B:114
9Ser B:256 -Gly B:257

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2UXT)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2UXT)

(-) Exons   (0, 0)

(no "Exon" information available for 2UXT)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:422
 aligned with FTSP_ECOLI | P26648 from UniProtKB/Swiss-Prot  Length:470

    Alignment length:442
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  470
                                    39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339       349       359       369       379       389       399       409       419       429       439       449       459       469|
           FTSP_ECOLI    30 QQQPLPVPPLLESRRGQPLFMTVQRAHWSFTPGTRASVWGINGRYLGPTIRVWKGDDVKLIYSNRLTENVSMTVAGLQVPGPLMGGPARMMSPNADWAPVLPIRQNAATLWYHANTPNRTAQQVYNGLAGMWLVEDEVSKSLPIPNHYGVDDFPVIIQDKRLDNFGTPEYNEPGSGGFVGDTLLVNGVQSPYVEVSRGWVRLRLLNASNSRRYQLQMNDGRPLHVISGDQGFLPAPVSVKQLSLAPGERREILVDMSNGDEVSITCGEAASIVDRIRGFFEPSSILVSTLVLTLRPTGLLPLVTDSLPMRLLPTEIMAGSPIRSRDISLGDDPGINGQLWDVNRIDVTAQQGTWERWTVRADEPQAFHIEGVMFQIRNVNGAMPFPEDRGWKDTVWVDGQVELLVYFGQPSWAHFPFYFNSQTLEMADRGSIGQLLVNPVP-   -
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........ee.......eeeeeee.hhhhh.......eee.......eeeee...eeeeeeee.......eeee....hhhhh.hhhhh.....ee..eee.....eeeeeee....hhhhhhhh..eeeeeeehhhhhhh.........eeeeeeeeeee.....ee............eeee..ee..eeee...eeeeeeee......eeeee.....eeeee....eeeeeeee..eee....eeeeeee......eeee.----------------.......eeeeeee.....----.................eeeeeee.................eeee...eeeeeeeeeeeeeeee...eeeeeee.....hhhhh....eeeeeeeeeeeee..........eeeee.hhhhhhh..eeeeeee.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2uxt A  30 QQQPLPVPPLLESRRGQPLFMTVQRAHWSFTPGTRASVWGINGRYLGPTIRVWKGDDVKLIYSNRLTENVSMTVAGLQVPGPLMGGPARMMSPNADWAPVLPIRQNAATLWYHANTPNRTAQQVYNGLAGMWLVEDEVSKSLPIPNHYGVDDFPVIIQDKRLDNFGTPEYNEPGSGGFVGDTLLVNGVQSPYVEVSRGWVRLRLLNASNSRRYQLQMNDGRPLHVISGDQGFLPAPVSVKQLSLAPGERREILVDMSNGDEVSITC----------------SSILVSTLVLTLRPTGLLP----SLPMRLLPTEIMAGSPIRSRDISLGDDPGINGQLWDVNRIDVTAQQGTWERWTVRADEPQAFHIEGVMFQIRNVNGAMPFPEDRGWKDTVWVDGQVELLVYFGQPSWAHFPFYFNSQTLEMADRGSIGQLLVNPVPR 471
                                    39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289     |   -         -  |    319       329|    | 339       349       359       369       379       389       399       409       419       429       439       449       459       469
                                                                                                                                                                                                                                                                                                   295              312               330  335


Chain B from PDB  Type:PROTEIN  Length:420
 aligned with FTSP_ECOLI | P26648 from UniProtKB/Swiss-Prot  Length:470

    Alignment length:440
                                    40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470
           FTSP_ECOLI    31 QQPLPVPPLLESRRGQPLFMTVQRAHWSFTPGTRASVWGINGRYLGPTIRVWKGDDVKLIYSNRLTENVSMTVAGLQVPGPLMGGPARMMSPNADWAPVLPIRQNAATLWYHANTPNRTAQQVYNGLAGMWLVEDEVSKSLPIPNHYGVDDFPVIIQDKRLDNFGTPEYNEPGSGGFVGDTLLVNGVQSPYVEVSRGWVRLRLLNASNSRRYQLQMNDGRPLHVISGDQGFLPAPVSVKQLSLAPGERREILVDMSNGDEVSITCGEAASIVDRIRGFFEPSSILVSTLVLTLRPTGLLPLVTDSLPMRLLPTEIMAGSPIRSRDISLGDDPGINGQLWDVNRIDVTAQQGTWERWTVRADEPQAFHIEGVMFQIRNVNGAMPFPEDRGWKDTVWVDGQVELLVYFGQPSWAHFPFYFNSQTLEMADRGSIGQLLVNPVP 470
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........eee..--..eeeeeeeeee...-...eeeeee.......eeeee...eeeeeeee.......eeee....hhhhh.hhhhh.....ee..eee.....eeeeeee....hhhhhhhh..eeeeeeehhhhhhh.........eeeeeeeee.....................eeee..ee..eeeee..eeeeeeee......eeeee.....eeeeee..eeeeeeeee..eee....eeeeeee......eeee.-----------------......eeeeeeeee........................eeeeee..................eeee...eeeeeeeeeeeeeeee...eeeeeee.....hhhhh....eeeeeeeeeeeee..........eeeee.hhhhhhh..eeeeeee... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2uxt B  31 QQPLPVPPLLESR--QPLFMTVQRAHWSFT-GTRASVWGINGRYLGPTIRVWKGDDVKLIYSNRLTENVSMTVAGLQVPGPLMGGPARMMSPNADWAPVLPIRQNAATLWYHANTPNRTAQQVYNGLAGMWLVEDEVSKSLPIPNHYGVDDFPVIIQDKRLDNFGTPEYNEPGSGGFVGDTLLVNGVQSPYVEVSRGWVRLRLLNASNSRRYQLQMNDGRPLHVISGDQGFLPAPVSVKQLSLAPGERREILVDMSNGDEVSITC-----------------SILVSTLVLTLRPTGLLPLVTDSLPMRLLPTEIMAGSPIRSRDISLGDDPGINGQLWDVNRIDVTAQQGTWERWTVRADEPQAFHIEGVMFQIRNVNGAMPFPEDRGWKDTVWVDGQVELLVYFGQPSWAHFPFYFNSQTLEMADRGSIGQLLVNPVP 470
                                    40  |  |  50        60 |      70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290    |    -         -  |    320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470
                                       43 46            60 |                                                                                                                                                                                                                                      295               313
                                                          62
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2UXT)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2UXT)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2UXT)

(-) Gene Ontology  (11, 11)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (FTSP_ECOLI | P26648)
molecular function
    GO:0005507    copper ion binding    Interacting selectively and non-covalently with copper (Cu) ions.
    GO:0052716    hydroquinone:oxygen oxidoreductase activity    Catalysis of the reaction: 4 hydroquinone + O2 = 4 benzosemiquinone + 4 H2O.
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
    GO:0016722    oxidoreductase activity, oxidizing metal ions    Catalysis of an oxidation-reduction in which the oxidation state of metal ion is altered.
biological process
    GO:0043093    FtsZ-dependent cytokinesis    A cytokinesis process that involves a set of conserved proteins including FtsZ, and results in the formation of two similarly sized and shaped cells.
    GO:0007049    cell cycle    The progression of biochemical and morphological phases and events that occur in a cell during successive cell replication or nuclear replication events. Canonically, the cell cycle comprises the replication and segregation of genetic material followed by the division of the cell, but in endocycles or syncytial cells nuclear replication or nuclear division may not be followed by cell division.
    GO:0051301    cell division    The process resulting in division and partitioning of components of a cell to form more cells; may or may not be accompanied by the physical separation of a cell into distinct, individually membrane-bounded daughter cells.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
cellular component
    GO:0032153    cell division site    The eventual plane of cell division (also known as cell cleavage or cytokinesis) in a dividing cell. In Eukaryotes, the cleavage apparatus, composed of septin structures and the actomyosin contractile ring, forms along this plane, and the mitotic, or meiotic, spindle is aligned perpendicular to the division plane. In bacteria, the cell division site is generally located at mid-cell and is the site at which the cytoskeletal structure, the Z-ring, assembles.
    GO:0030288    outer membrane-bounded periplasmic space    The region between the inner (cytoplasmic or plasma) membrane and outer membrane of organisms with two membranes such as Gram negative bacteria. These periplasmic spaces are relatively thick and contain a thin peptidoglycan layer (PGL), also referred to as a thin cell wall.
    GO:0042597    periplasmic space    The region between the inner (cytoplasmic) and outer membrane (Gram-negative Bacteria) or cytoplasmic membrane and cell wall (Fungi and Gram-positive Bacteria).

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2uxt)

  Sites
(no "Sites" information available for 2uxt)

  Cis Peptide Bonds
    Asn B:71 - Gly B:72   [ RasMol ]
    Met A:113 - Gly A:114   [ RasMol ]
    Met B:113 - Gly B:114   [ RasMol ]
    Pro A:61 - Gly A:62   [ RasMol ]
    Ser A:256 - Gly A:257   [ RasMol ]
    Ser A:312 - Ser A:313   [ RasMol ]
    Ser A:335 - Leu A:336   [ RasMol ]
    Ser B:256 - Gly B:257   [ RasMol ]
    Val A:469 - Pro A:470   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2uxt
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  FTSP_ECOLI | P26648
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  FTSP_ECOLI | P26648
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        FTSP_ECOLI | P26648: 2uxv

(-) Related Entries Specified in the PDB File

2uxv SUFI PROTEIN FROM ESCHERICHIA COLI
