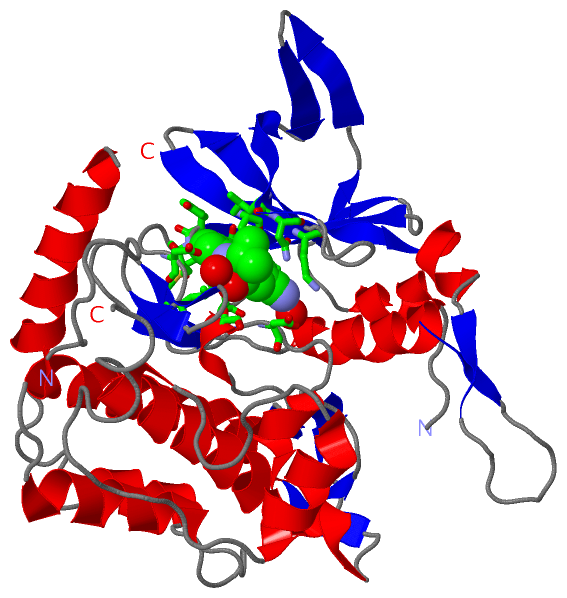

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF PFPK7 IN COMPLEX WITH AN ATP-SITE INHIBITOR

Authors :  A. Merckx, A. Echalier, M. Noble, J. Endicott
Date :  23 Apr 07  (Deposition) - 22 Jan 08  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.80
Chains :  Asym./Biol. Unit :  X
Keywords :  Ser/Thr Protein Kinase; Plasmodium Falciparum; Transferase; Phosphorylation, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Merckx, A. Echalier, K. Langford, A. Sicard, G. Langsley, J. Joore, C. Doerig, M. Noble, J. Endicott
Structures Of P. Falciparum Protein Kinase 7 Identify An Activation Motif And Leads For Inhibitor Design.
Structure V. 16 228 2008
PubMed-ID: 18275814  |  Reference-DOI: 10.1016/J.STR.2007.11.014

(-) Compounds

Molecule 1 - SER/THR PROTEIN KINASE, PUTATIVE
    Chains: X
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21
    Expression System Plasmid: PGEX
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Gene: PFB0605W
    Organism Common: MALARIA PARASITE P. FALCIPARUM
    Organism Scientific: PLASMODIUM FALCIPARUM
    Organism Taxid: 5833

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : X

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1K511Ligand/Ion4-(6-{[(1S)-1-(HYDROXYMETHYL)-2-METHYLPROPYL]AMINO}IMIDAZO[1,2-B]PYRIDAZIN-3-YL)BENZONITRILE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWARELEU X:34 , ASN X:35 , ALA X:53 , LYS X:55 , LEU X:101 , TYR X:117 , GLU X:118 , TYR X:119 , MET X:120 , ASP X:123 , SER X:176 , LEU X:179 , ASP X:190 , HOH X:354 , HOH X:387BINDING SITE FOR RESIDUE K51 X 344

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2PMN)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Asn X:183 -Gly X:184

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2PMN)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2PMN)

(-) Exons   (0, 0)

(no "Exon" information available for 2PMN)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain X from PDB  Type:PROTEIN  Length:340
 aligned with Q7YTF7_PLAF7 | Q7YTF7 from UniProtKB/TrEMBL  Length:343

    Alignment length:348
                                 1
                                 |   5        15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335
         Q7YTF7_PLAF7     - -----MKDILSNYSNLIYLNKYVKEKDKYINDYRIIRTLNQGKFNKIILCEKDNKFYALKKYEKSLLEKKRDFTKSNNDKISIKSKYDDFKNELQIITDIKNEYCLTCEGIITNYDEVYIIYEYMENDSILKFDEYFFVLDKNYTCFIPIQVIKCIIKSVLNSFSYIHNEKNICHRDVKPSNILMDKNGRVKLSDFGESEYMVDKKIKGSRGTYEFMPPEFFSNESSYNGAKVDIWSLGICLYVMFYNVVPFSLKISLVELFNNIRTKNIEYPLDRNHFLYPLTNKKSTCSNNFLSNEDIDFLKLFLRKNPAERITSEDALKHEWLADTNIEDLREFSKELYKKRKKL 343
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ....hhhhhhh....eee..eeee..eeee..eeeeeeee......eeeeee..eeeeeeeeehhhhh..eee.........eeehhhhhhhhhhhhh...........eeee...eeeeeee........ee...ee..........hhhhhhhhhhhhhhhhhhhhhh..ee....hhh.eee.....eee......ee....eee....hhhhhhhhhhh...eeehhhhhhhhhhhhhhhhhhh........hhhhhhhhhh..................--------...hhhhhhhhhhhh........hhhhhhh.......hhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2pmn X  -4 GPLGSMKDILSNYSNLIYLNKYVKEKDKYINDYRIIRTLNQGKFNKIILCEKDNKFYALKKYEKSLLEKKRDFTKSNNDKISIKSKYDDFKNELQIITDIKNEYCLTCEGIITNYDEVYIIYEYMENDSILKFDEYFFVLDKNYTCFIPIQVIKCIIKSVLNSFSYIHNEKNICHRDVKPSNILMDKNGRVKLSDFGESEYMVDKKIKGSRGTYEFMPPEFFSNESSYNGAKVDIWSLGICLYVMFYNVVPFSLKISLVELFNNIRTKNIEYPLDRNHFLYPLT--------NFLSNEDIDFLKLFLRKNPAERITSEDALKHEWLADTNIEDLREFSKELYKKRKKL 343
                                     5        15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275   |     -  |    295       305       315       325       335
                                                                                                                                                                                                                                                                                                                     279      288
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2PMN)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2PMN)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2PMN)

(-) Gene Ontology  (12, 12)

Asymmetric/Biological Unit(hide GO term definitions)
Chain X   (Q7YTF7_PLAF7 | Q7YTF7)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0004708    MAP kinase kinase activity    Catalysis of the concomitant phosphorylation of threonine (T) and tyrosine (Y) residues in a Thr-Glu-Tyr (TEY) thiolester sequence in a MAP kinase (MAPK) substrate.
    GO:0016301    kinase activity    Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0004672    protein kinase activity    Catalysis of the phosphorylation of an amino acid residue in a protein, usually according to the reaction: a protein + ATP = a phosphoprotein + ADP.
    GO:0004674    protein serine/threonine kinase activity    Catalysis of the reactions: ATP + protein serine = ADP + protein serine phosphate, and ATP + protein threonine = ADP + protein threonine phosphate.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0000165    MAPK cascade    An intracellular protein kinase cascade containing at least a MAPK, a MAPKK and a MAP3K. The cascade can also contain two additional tiers: the upstream MAP4K and the downstream MAP Kinase-activated kinase (MAPKAPK). The kinases in each tier phosphorylate and activate the kinases in the downstream tier to transmit a signal within a cell.
    GO:0000187    activation of MAPK activity    The initiation of the activity of the inactive enzyme MAP kinase (MAPK).
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
    GO:0006468    protein phosphorylation    The process of introducing a phosphate group on to a protein.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
