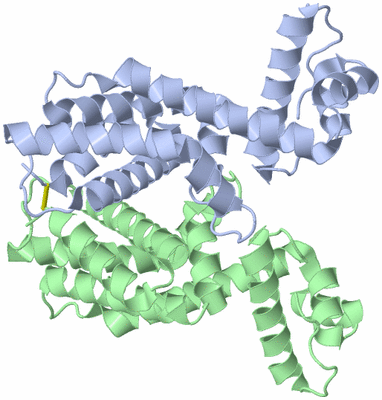

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  VIBRIO CHOLERAE HAPR

Authors :  F. J. Kull, R. S. Desilva, G. Kovacikova, W. Lin, R. K. Taylor, K. Skorups
Date :  29 Mar 07  (Deposition) - 02 Oct 07  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Quorum Sensing, Vibrio Cholerae, Transcription Factor, Tetr Family, Dna-Binding, Protease, Transcription Regulation, Transcription (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. S. Desilva, G. Kovacikova, W. Lin, R. K. Taylor, K. Skorupski, F. J. Kull
Crystal Structure Of The Vibrio Cholerae Quorum-Sensing Regulatory Protein Hapr
J. Bacteriol. V. 189 5683 2007
PubMed-ID: 17526705  |  Reference-DOI: 10.1128/JB.01807-06

(-) Compounds

Molecule 1 - HEMAGGLUTININ/PROTEASE REGULATORY PROTEIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Expression System Vector: PTXB1
    Expression System Vector Type: PLASMID
    Organism Scientific: VIBRIO CHOLERAE
    Organism Taxid: 412614
    Strain: 2740-80

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2PBX)

(-) Sites  (0, 0)

(no "Site" information available for 2PBX)

(-) SS Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1A:199 -B:199

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2PBX)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2PBX)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2PBX)

(-) Exons   (0, 0)

(no "Exon" information available for 2PBX)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:197

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........hhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.hhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhh.hhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2pbx A   5 IEKRPRTRLSPQKRKLQLMEIALEVFAKRGIGRGGHADIAEIAQVSVATVFNYFPTREDLVDDVLNFVVRQYSNFLTDHIDLDLDVKTNLQTLCKEMVKLAMTDCHWLKVWFEWSASTRDEVWPLFVSTNRTNQLLIRNMFMKAMERGELCEKHDVDNMASLFHGIFYSIFLQVNRLGEQEAVYKLADSYLNMLCIY 201
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194


Chain B from PDB  Type:PROTEIN  Length:197

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........hhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.hhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2pbx B   5 IEKRPRTRLSPQKRKLQLMEIALEVFAKRGIGRGGHADIAEIAQVSVATVFNYFPTREDLVDDVLNFVVRQYSNFLTDHIDLDLDVKTNLQTLCKEMVKLAMTDCHWLKVWFEWSASTRDEVWPLFVSTNRTNQLLIRNMFMKAMERGELCEKHDVDNMASLFHGIFYSIFLQVNRLGEQEAVYKLADSYLNMLCIY 201
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2PBX)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2PBX)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2PBX)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 2PBX)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2pbx)

  Sites
(no "Sites" information available for 2pbx)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2pbx)

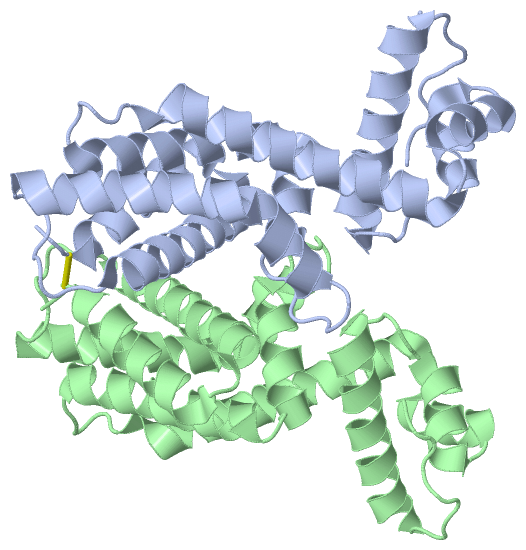

(-) Still Images
