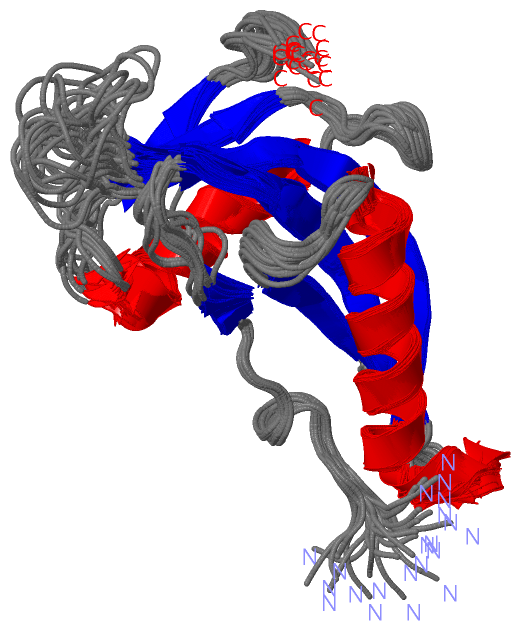

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF HUMAN PHOSPHOHISTIDINE PHOSPHATASE 1 IN PHOSPHATE FREE FORM

Authors :  W. Gong, G. Cui, C. Jin, B. Xia
Date :  27 Feb 07  (Deposition) - 25 Mar 08  (Release) - 10 Mar 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (21x)
Keywords :  Alpha/Beta Architecture, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  W. Gong, Y. Li, G. Cui, J. Hu, H. Fang, C. Jin, B. Xia
Solution Structure And Catalytic Mechanism Of Human Protein Histidine Phosphatase 1.
Biochem. J. V. 418 337 2009
PubMed-ID: 18991813  |  Reference-DOI: 10.1042/BJ20081571
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - 14 KDA PHOSPHOHISTIDINE PHOSPHATASE
    ChainsA
    EC Number3.1.3.-
    EngineeredYES
    Expression SystemESCHERICHIA COLI BL21(DE3)
    Expression System PlasmidPET28A
    Expression System StrainBL21(DE3)
    Expression System Taxid469008
    Expression System Vector TypePLASMID
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    SynonymPHOSPHOHISTIDINE PHOSPHATASE 1, PROTEIN JANUS-A HOMOLOG

 Structural Features

(-) Chains, Units


NMR Structure (21x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2OZX)

(-) Sites  (0, 0)

(no "Site" information available for 2OZX)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2OZX)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2OZX)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2OZX)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2OZX)

(-) Exons   (3, 3)

NMR Structure (3, 3)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.2bENST000002476652bENSE00001888328chr9:139743546-139744042497PHP14_HUMAN1-54541A:1-5454
1.3bENST000002476653bENSE00001651934chr9:139744465-139744589125PHP14_HUMAN54-95421A:54-9542
1.4aENST000002476654aENSE00001885726chr9:139745207-139745474268PHP14_HUMAN96-125301A:96-12530

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:125
 aligned with PHP14_HUMAN | Q9NRX4 from UniProtKB/Swiss-Prot  Length:125

    Alignment length:125
                                    10        20        30        40        50        60        70        80        90       100       110       120
          PHP14_HUMAN     1 MAVADLALIPDVDIDSDGVFKYVLIRVHSAPRSGAPAAESKEIVRGYKWAEYHADIYDKVSGDMQKQGCDCECLGGGRISHQSQDKKIHVYGYSMAYGPAQHAISTEKIKAKYPDYEVTWANDGY 125
               SCOP domains d2ozxa_ A: Phosphohistidine phosphatase 1, PHP14                                                                              SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -----Ocnus-2ozxA01 A:6-118                                                                                            ------- Pfam domains
         Sec.struct. author ...........eee....eeeeeeeeeee.hhhh.....eeeeeee.....hhhhhhhhhhhhhhhhheeeeeeeeeeee.......eeee.........hhhhhhhhhhhhh....eee..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.2b  PDB: A:1-54 UniProt: 1-54                  -----------------------------------------Exon 1.4a  PDB: A:96-125       Transcript 1 (1)
           Transcript 1 (2) -----------------------------------------------------Exon 1.3b  PDB: A:54-95 UniProt: 54-95    ------------------------------ Transcript 1 (2)
                 2ozx A   1 MAVADLALIPDVDIDSDGVFKYVLIRVHSAPRSGAPAAESKEIVRGYKWAEYHADIYDKVSGDMQKQGCDCECLGGGRISHQSQDKKIHVYGYSMAYGPAQHAISTEKIKAKYPDYEVTWANDGY 125
                                    10        20        30        40        50        60        70        80        90       100       110       120

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2OZX)

(-) Pfam Domains  (1, 1)

NMR Structure

(-) Gene Ontology  (16, 16)

NMR Structure(hide GO term definitions)
Chain A   (PHP14_HUMAN | Q9NRX4)
molecular function
    GO:0019855    calcium channel inhibitor activity    Stops, prevents, or reduces the activity of a calcium channel.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0044325    ion channel binding    Interacting selectively and non-covalently with one or more specific sites on an ion channel, a protein complex that spans a membrane and forms a water-filled channel across the phospholipid bilayer allowing selective ion transport down its electrochemical gradient.
    GO:0008969    phosphohistidine phosphatase activity    Catalysis of the reaction: phosphohistidine + H2O = histidine + phosphate.
    GO:0004721    phosphoprotein phosphatase activity    Catalysis of the reaction: a phosphoprotein + H2O = a protein + phosphate. Together with protein kinases, these enzymes control the state of phosphorylation of cell proteins and thereby provide an important mechanism for regulating cellular activity.
biological process
    GO:2000984    negative regulation of ATP citrate synthase activity    Any process that stops, prevents or reduces the frequency, rate or extent of ATP citrate synthase activity.
    GO:0050860    negative regulation of T cell receptor signaling pathway    Any process that stops, prevents, or reduces the frequency, rate or extent of signaling pathways initiated by the cross-linking of an antigen receptor on a T cell.
    GO:0051350    negative regulation of lyase activity    Any process that stops or reduces the rate of lyase activity, the catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond.
    GO:0035971    peptidyl-histidine dephosphorylation    The removal of phosphoric residues from peptidyl-O-phospho-L-histidine to form peptidyl-histidine.
    GO:2000147    positive regulation of cell motility    Any process that activates or increases the frequency, rate or extent of cell motility.
    GO:0035774    positive regulation of insulin secretion involved in cellular response to glucose stimulus    Any process that increases the frequency, rate or extent of the regulated release of insulin that contributes to the response of a cell to glucose.
    GO:0006470    protein dephosphorylation    The process of removing one or more phosphoric residues from a protein.
    GO:2000249    regulation of actin cytoskeleton reorganization    Any process that modulates the frequency, rate or extent of actin cytoskeleton reorganization.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0070062    extracellular exosome    A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2ozx)

  Sites
(no "Sites" information available for 2ozx)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2ozx)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2ozx
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  PHP14_HUMAN | Q9NRX4
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.1.3.-
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  PHP14_HUMAN | Q9NRX4
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        PHP14_HUMAN | Q9NRX42ai6 2hw4 2nmm 2ozw

(-) Related Entries Specified in the PDB File

2ai6 SOLUTION STRUCTURE OF PHPT1 IN PBS BUFFER
2ozw STRUCTURE IN PBS BUFFER WITH PHOSPHATE LIGAND
