(-) Description

Title :  CRYSTAL STRUCTURE OF ZNUA FROM E. COLI

Authors :  H. Li, G. Jogl
Date :  06 Feb 07  (Deposition) - 17 Apr 07  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.75
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Protein-Zinc Complex, Metal Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. Li, G. Jogl
Crystal Structure Of The Zinc-Binding Transport Protein Znu From Escherichia Coli Reveals An Unexpected Variation In Metal Coordination.
J. Mol. Biol. V. 368 1358 2007
PubMed-ID: 17399739  |  Reference-DOI: 10.1016/J.JMB.2007.02.107

(-) Compounds

Molecule 1 - HIGH-AFFINITY ZINC UPTAKE SYSTEM PROTEIN ZNUA
    Chains: A, B
    Fragment: ACTIVE FORM (N-TERMINAL SIGNAL PEPTIDE CLEAVED)
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Strain: BL21 STAR

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric Unit (1, 2)
No.NameCountTypeFull Name
1ZN2Ligand/IonZINC ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1ZN-1Ligand/IonZINC ION
Biological Unit 2 (0, 0)
No.NameCountTypeFull Name
1ZN-1Ligand/IonZINC ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLU A:77 , HIS A:78 , HIS A:161 , HIS A:225BINDING SITE FOR RESIDUE ZN A 601
2AC2SOFTWAREGLU B:77 , HIS B:78 , HIS B:161 , HIS B:225BINDING SITE FOR RESIDUE ZN B 602

(-) SS Bonds  (2, 2)

Asymmetric Unit
No.Residues
1A:270 -A:324
2B:270 -B:324

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2OSV)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2OSV)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2OSV)

(-) Exons   (0, 0)

(no "Exon" information available for 2OSV)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:262
 aligned with ZNUA_ECOLI | P39172 from UniProtKB/Swiss-Prot  Length:310

    Alignment length:283
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306
           ZNUA_ECOLI    27 AVVASLKPVGFIASAIADGVTETEVLLPDGASEHDYSLRPSDVKRLQNADLVVWVGPEMEAFMQKPVSKLPGAKQVTIAQLEDVKPLLMKSIHGDDDDHDHAEKSDEDHHHGDFNMHLWLSPEIARATAVAIHGKLVELMPQSRAKLDANLKDFEAQLASTETQVGNELAPLKGKGYFVFHDAYGYFEKQFGLTPLGHFTVNPEIQPGAQRLHEIRTQLVEQKATCVFAEPQFRPAVVESVARGTSVRMGTLDPLGTNIKLGKTSYSEFLSQLANQYASCLKG 309
               SCOP domains d2osva_ A: automated matches                                                                                                                                                                                                                                                                SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eee.hhhhhhhhhhhhh....eee.............hhhhhhhhhh..eeee.....hhhhhhhhhhhhhh.eee.hhh..hhhhh...---------------------....hhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeeee..hhhhhhhhh....eeee.......hhhhhhhhhhhhhhh...eeee.....hhhhhhhhh....eeee............hhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2osv A  45 AVVASLKPVGFIASAIADGVTETEVLLPDGASEHDYSLRPSDVKRLQNADLVVWVGPEMEAFMQKPVSKLPGAKQVTIAQLEDVKPLLMKS---------------------DFNMHLWLSPEIARATAVAIHGKLVELMPQSRAKLDANLKDFEAQLASTETQVGNELAPLKGKGYFVFHDAYGYFEKQFGLTPLGHFTVNPEIQPGAQRLHEIRTQLVEQKATCVFAEPQFRPAVVESVARGTSVRMGTLDPLGTNIKLGKTSYSEFLSQLANQYASCLKG 327
                                    54        64        74        84        94       104       114       124       134|        -         -  |    164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324
                                                                                                                    135                   157


Chain B from PDB  Type:PROTEIN  Length:263
 aligned with ZNUA_ECOLI | P39172 from UniProtKB/Swiss-Prot  Length:310

    Alignment length:283
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306
           ZNUA_ECOLI    27 AVVASLKPVGFIASAIADGVTETEVLLPDGASEHDYSLRPSDVKRLQNADLVVWVGPEMEAFMQKPVSKLPGAKQVTIAQLEDVKPLLMKSIHGDDDDHDHAEKSDEDHHHGDFNMHLWLSPEIARATAVAIHGKLVELMPQSRAKLDANLKDFEAQLASTETQVGNELAPLKGKGYFVFHDAYGYFEKQFGLTPLGHFTVNPEIQPGAQRLHEIRTQLVEQKATCVFAEPQFRPAVVESVARGTSVRMGTLDPLGTNIKLGKTSYSEFLSQLANQYASCLKG 309
               SCOP domains d2osvb_ B: automated matches                                                                                                                                                                                                                                                                SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) -SBP_bac_9-2osvB01 B:46-325                                                                                                                                                                                                                                                              -- Pfam domains (1)
           Pfam domains (2) -SBP_bac_9-2osvB02 B:46-325                                                                                                                                                                                                                                                              -- Pfam domains (2)
         Sec.struct. author .eee.hhhhhhhhhhhhh....eee.............hhhhhhhhhhh.eeee.....hhhhhhhhhhhhhh.eee.hhh..hhhhh....--------------------....hhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeeee..hhhhhhhhh....eeee.......hhhhhhhhhhhhhhh...eeee.....hhhhhhhhh....eeee............hhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2osv B  45 AVVASLKPVGFIASAIADGVTETEVLLPDGASEHDYSLRPSDVKRLQNADLVVWVGPEMEAFMQKPVSKLPGAKQVTIAQLEDVKPLLMKSI--------------------DFNMHLWLSPEIARATAVAIHGKLVELMPQSRAKLDANLKDFEAQLASTETQVGNELAPLKGKGYFVFHDAYGYFEKQFGLTPLGHFTVNPEIQPGAQRLHEIRTQLVEQKATCVFAEPQFRPAVVESVARGTSVRMGTLDPLGTNIKLGKTSYSEFLSQLANQYASCLKG 327
                                    54        64        74        84        94       104       114       124       134 |       -         -  |    164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324
                                                                                                                     136                  157
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2OSV)

(-) Pfam Domains  (1, 2)

Asymmetric Unit
(-)
Clan: no clan defined [family: SBP_bac_9] (16)

(-) Gene Ontology  (9, 9)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (ZNUA_ECOLI | P39172)
molecular function
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
biological process
    GO:0007155    cell adhesion    The attachment of a cell, either to another cell or to an underlying substrate such as the extracellular matrix, via cell adhesion molecules.
    GO:0006811    ion transport    The directed movement of charged atoms or small charged molecules into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0030001    metal ion transport    The directed movement of metal ions, any metal ion with an electric charge, into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0010043    response to zinc ion    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a zinc ion stimulus.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
    GO:0006829    zinc II ion transport    The directed movement of zinc (Zn II) ions into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
cellular component
    GO:0042597    periplasmic space    The region between the inner (cytoplasmic) and outer membrane (Gram-negative Bacteria) or cytoplasmic membrane and cell wall (Fungi and Gram-positive Bacteria).
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ZN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2osv)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2osv
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  ZNUA_ECOLI | P39172
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP

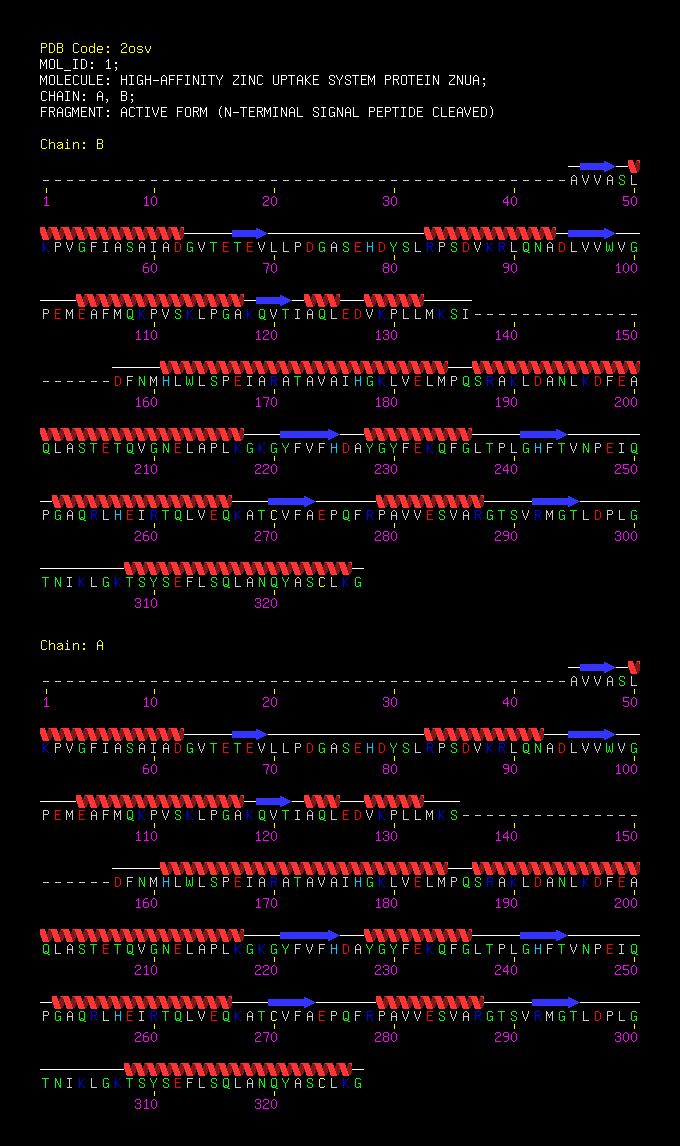

    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  ZNUA_ECOLI | P39172
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        ZNUA_ECOLI | P39172: 2ogw 2prs 2ps0 2ps3 2ps9

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2OSV)
