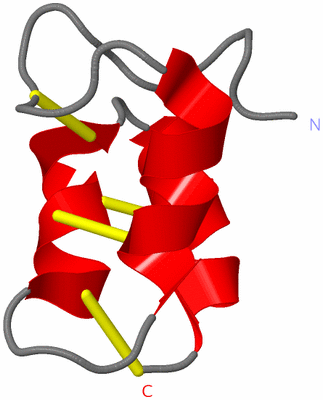

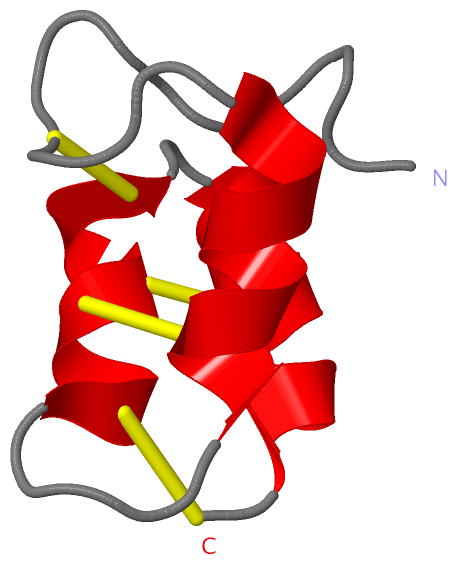

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

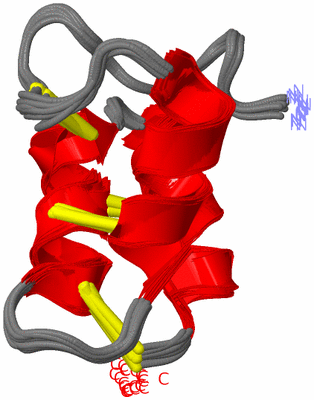

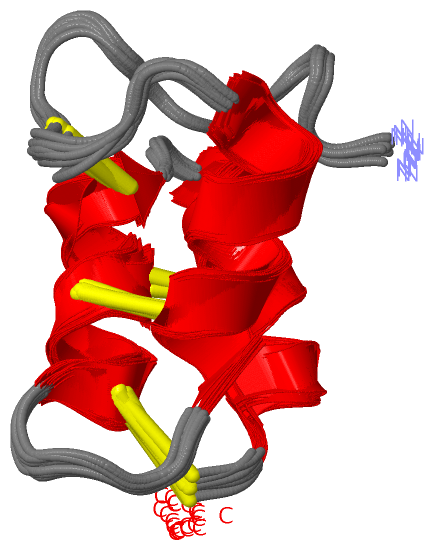

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR SOLUTION STRUCTURE OF THE PHEROMONE EN-1

Authors :  W. J. Placzek, T. Etezady-Esfarjani, T. Herrmann, W. Peti, K. Wuthrich
Date :  06 Nov 06  (Deposition) - 21 Aug 07  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Euplotes Nobilii Pheromone, Disulfide-Rich, Nmr Structure, All Alpha Helical, Signaling Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  W. J. Placzek, T. Etezady-Esfarjani, T. Herrmann, C. Alimenti, P. Luporini, W. Peti, K. Wuthrich
Nmr Solution Structures Of The Pheromones En-1 And En-2 From The Antarctic Ciliated Protozoan Euplotes Nobilii
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - MATING PHEROMONE EN-1
    Chains: A
    Organism Scientific: EUPLOTES NOBILII
    Organism Taxid: 184062

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2NSV)

(-) Sites  (0, 0)

(no "Site" information available for 2NSV)

(-) SS Bonds  (4, 4)

NMR Structure
No.Residues
1A:11 -A:37
2A:23 -A:33
3A:30 -A:52
4A:34 -A:46

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2NSV)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2NSV)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2NSV)

(-) Exons   (0, 0)

(no "Exon" information available for 2NSV)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:52
 aligned with MEN1_EUPNO | P83441 from UniProtKB/Swiss-Prot  Length:52

    Alignment length:52
                                    10        20        30        40        50
            MEN1_EUPNO    1 NPEDWFTPDTCAYGDSNTAWTTCTTPGQTCYTCCSSCFDVVGEQACQMSAQC 52
               SCOP domains ---------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------- Pfam domains
         Sec.struct. author ..............hhhhhhhhhh....hhhhhhhhh..hhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------- Transcript
                  2nsv A  1 NPEDWFTPDTCAYGDSNTAWTTCTTPGQTCYTCCSSCFDVVGEQACQMSAQC 52
                                    10        20        30        40        50
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2NSV)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2NSV)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2NSV)

(-) Gene Ontology  (2, 2)

NMR Structure(hide GO term definitions)
Chain A   (MEN1_EUPNO | P83441)
molecular function
    GO:0005186    pheromone activity    The activity of binding to and activating specific cell surface receptors, thereby inducing behavioral, developmental, or physiological response(s) from a responding organism or cell. The substance may be released or retained on the cell surface. Pheromones may serve as a specific attractant, social communicator, or sexual stimulant.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
