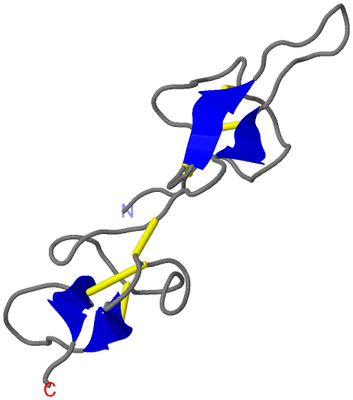

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

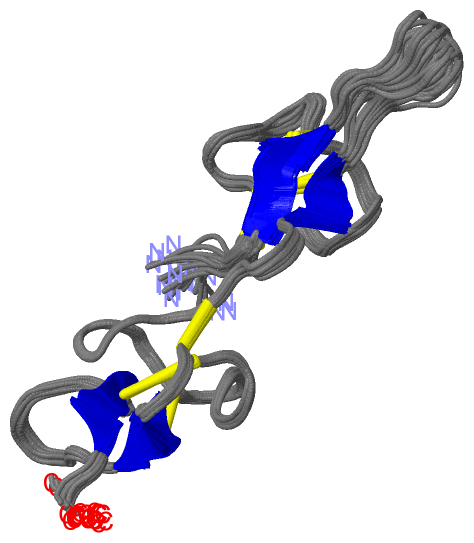

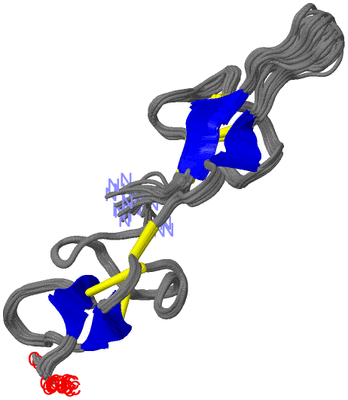

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  CHEMICAL SHIFT ASSIGNMENTS AND STRUCTURE CALCULATION OF SPIDER TOXIN PI-HEXATOXIN-HI1A

Authors :  Y. K. -Y. Chin, S. S. Pineda, M. Mobli, G. F. King
Date :  13 Oct 15  (Deposition) - 19 Oct 16  (Release) - 19 Oct 16  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
NMR Structure *:  A  (1x)
Keywords :  Spider Toxin, Inhibitor Cystine Knot, Double Knot Toxin, Asic1A Antagonist, Ion Channel Modulator, Toxin (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. S. Pineda, Y. K. -Y. Chin, S. Senff, M. Mobli, P. Escoubas, G. Nicholson, Q. Kass, B. G. Fry, J. S. Mattick, G. F. King
Single-Gene Recruitment Underlies Venom Complexity In The Australian Funnel-Web Spider Hadronyche Infensa
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - SPIDER TOXIN PI-HEXATOXIN-HI1A
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PLICC VECTOR
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Organism Scientific: HADRONYCHE INFENSA
    Organism Taxid: 153481

 Structural Features

(-) Chains, Units

  1
NMR Structure (20x): A
NMR Structure * (1x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2N8F)

(-) Sites  (0, 0)

(no "Site" information available for 2N8F)

(-) SS Bonds  (6, 6)

NMR Structure
No.Residues
1A:4 -A:19
2A:11 -A:24
3A:18 -A:34
4A:41 -A:56
5A:48 -A:61
6A:55 -A:72

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2N8F)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2N8F)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2N8F)

(-) Exons   (0, 0)

(no "Exon" information available for 2N8F)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:76

               SCOP domains ---------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....................eee.........eee......................eeee........eeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------- Transcript
                  2n8f A  1 SNECIRKWLSCVDRKNDCCEGLECYKRRHSFEVCVPIPGFCLVKWKQCDGRERDCCAGLECWKRSGNKSSVCAPIT 76
                                    10        20        30        40        50        60        70
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'
