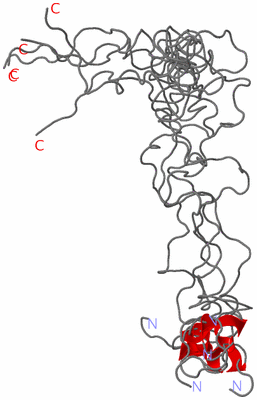

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  STRUCTURAL AND BIOCHEMICAL CHARACTERIZATION OF JABURETOX

Authors :  O. Dobrovolska, F. Lopez, S. Ciurli, B. Zambelli, C. Carlini
Date :  12 Mar 14  (Deposition) - 28 Jan 15  (Release) - 28 Jan 15  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (5x)
NMR Structure *:  A  (1x)
Keywords :  Disordered Protein, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  O. Dobrovolska, F. Lopez, B. Zambelli, C. Carlini, S. Ciurli
1H, 13C, 15N Resonance Assignments Of Reduced Jaburetox
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - UREASE
    Chains: A
    EC Number: 3.5.1.5
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21 (DE3)
    Expression System Taxid: 562
    Expression System Vector: PET-23A
    Expression System Vector Type: VECTOR
    Fragment: UNP RESIDUES 230-321
    Gene: JBURE-II
    Organism Common: HORSE BEAN
    Organism Scientific: CANAVALIA ENSIFORMIS
    Organism Taxid: 3823
    Synonym: UREA AMIDOHYDROLASE

 Structural Features

(-) Chains, Units

  1
NMR Structure (5x): A
NMR Structure * (1x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2MM8)

(-) Sites  (0, 0)

(no "Site" information available for 2MM8)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2MM8)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2MM8)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2MM8)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2MM8)

(-) Exons   (0, 0)

(no "Exon" information available for 2MM8)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:90

               SCOP domains ------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhh.............................................................................. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------ Transcript
                  2mm8 A  4 VNEANCKAAMEIVCRREFGHKEEEDASEGVTTGDPDCPFTKAIPREEYANKYGPTIGDKIRLGDTDLIAEIEKDFALYGDESVFGGGKVI 93
                                    13        23        33        43        53        63        73        83        93
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2MM8)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2MM8)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2MM8)

(-) Gene Ontology  (7, 7)

NMR Structure(hide GO term definitions)
