2MC6 - JenaLib

Title :   A BACTERIOPHAGE TRANSCRIPTION REGULATOR INHIBITS BACTERIAL TRANSCRIPTION INITIATION BY SIGMA-FACTOR DISPLACEMENT

Authors :   B. Liu, A. Shadrin, C. Sheppard, Y. Xu, K. Severinov, S. Matthews, S. Wigneshweraraj

Date :   15 Aug 13 (Deposition) - 02 Apr 14 (Release) - 07 May 14 (Revision)

Method :   SOLUTION NMR

Resolution :   NOT APPLICABLE

Chains :   NMR Structure  : A,B
NMR Structure *: A,B  (1x)

Keywords :   P7, Rnap, Sigma Factor, Beta Prime Subunit, Ntd, Transferase, Transcription (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   B. Liu, A. Shadrin, C. Sheppard, V. Mekler, Y. Xu, K. Severinov, S. Matthews, S. Wigneshweraraj
A Bacteriophage Transcription Regulator Inhibits Bacterial Transcription Initiation By Sigma-Factor Displacement.
Nucleic Acids Res. V. 42 4294 2014
PubMed-ID: 24482445 | Reference-DOI: 10.1093/NAR/GKU080

Compounds

Molecule 1 - RNA POLYMERASE INHIBITOR P7
	Chains	:	A
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Expression System Vector	:	PET46
	Organism Scientific	:	XANTHOMONAS PHAGE XP10
	Organism Taxid	:	232237
	Synonym	:	45L

Molecule 2 - DNA-DIRECTED RNA POLYMERASE SUBUNIT BETA'
	Chains	:	B
	EC Number	:	2.7.7.6
	Engineered	:	YES
	Fragment	:	UNP RESIDUES 1-10
	Organism Scientific	:	XANTHOMONAS ORYZAE PV. ORYZAE
	Organism Taxid	:	291331
	Synonym	:	RNAP SUBUNIT BETA', RNA POLYMERASE SUBUNIT BETA', TRANSCRIPTASE SUBUNIT BETA'
	Synthetic	:	YES

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

NMR Structure

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:73
 aligned with Q8LTJ5_9CAUD | Q8LTJ5 from UniProtKB/TrEMBL  Length:73

    Alignment length:73
                                    10        20        30        40        50        60        70
          Q8LTJ5_9CAUD    1 MNEFTQISGYVNAFGSQRGSVLTVKVENDEGWTLVEEDFDRADYGSDPEFVAEVSSYLKRNGGIKDLTKVLTR 73
               SCOP domains ------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ............eeee....eeeeeee.....eeeeeeeehhhhhhhhhhhhhhhhhhhhhh........... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------- Transcript
                  2mc6 A  1 MNEFTQISGYVNAFGSQRGSVLTVKVENDEGWTLVEEDFDRADYGSDPEFVAEVSSYLKRNGGIKDLTKVLTR 73
                                    10        20        30        40        50        60        70

Chain B from PDB  Type:PROTEIN  Length:10
 aligned with RPOC_XANOR | Q8KTH8 from UniProtKB/Swiss-Prot  Length:1405

    Alignment length:10
                                    10
            RPOC_XANOR    1 MKDLLNLFNQ 10
               SCOP domains ---------- SCOP domains
               CATH domains ---------- CATH domains
               Pfam domains ---------- Pfam domains
         Sec.struct. author ...hhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------- SAPs(SNPs)
                    PROSITE ---------- PROSITE
                 Transcript ---------- Transcript
                  2mc6 B  1 MKDLLNLFNQ 10
                                    10

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (0, 0)

CATH Domains (0, 0)

Pfam Domains (0, 0)

Gene Ontology (5, 5)

NMR Structure(hide GO term definitions)

Chain A (Q8LTJ5_9CAUD | Q8LTJ5)

Chain B (RPOC_XANOR | Q8KTH8)

molecular function
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
	GO:0003899	DNA-directed 5'-3' RNA polymerase activity	Catalysis of the reaction: nucleoside triphosphate + RNA(n) = diphosphate + RNA(n+1). Utilizes a DNA template, i.e. the catalysis of DNA-template-directed extension of the 3'-end of an RNA strand by one nucleotide at a time. Can initiate a chain 'de novo'.
	GO:0016779	nucleotidyltransferase activity	Catalysis of the transfer of a nucleotidyl group to a reactant.
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
	GO:0006351	transcription, DNA-templated	The cellular synthesis of RNA on a template of DNA.

Visualization

Interactive Views

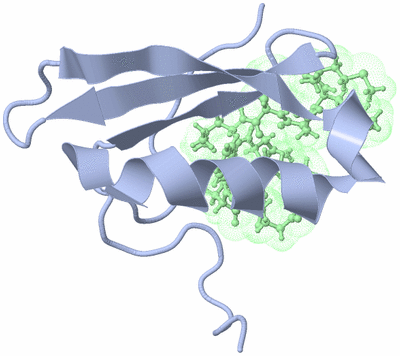

NMR Structure
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2mc6)

	Sites
(no "Sites" information available for 2mc6)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2mc6)

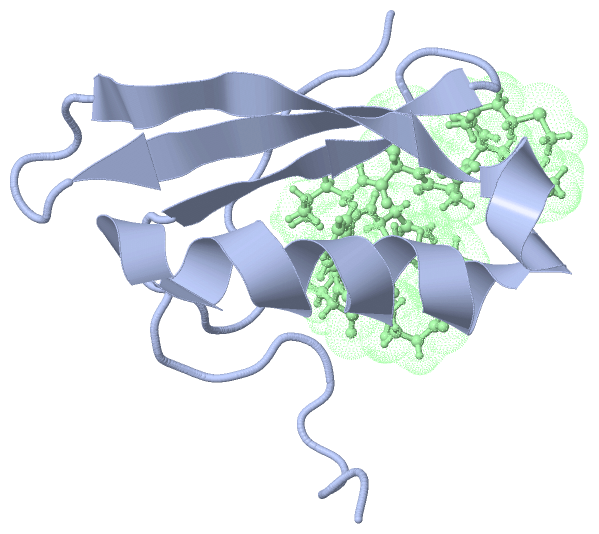

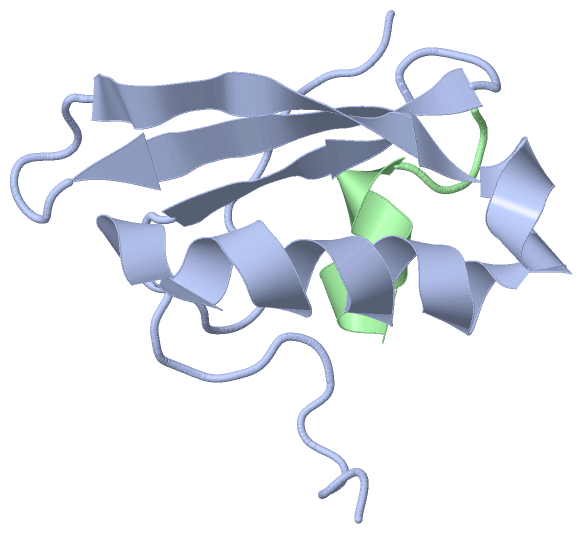

Still Images
