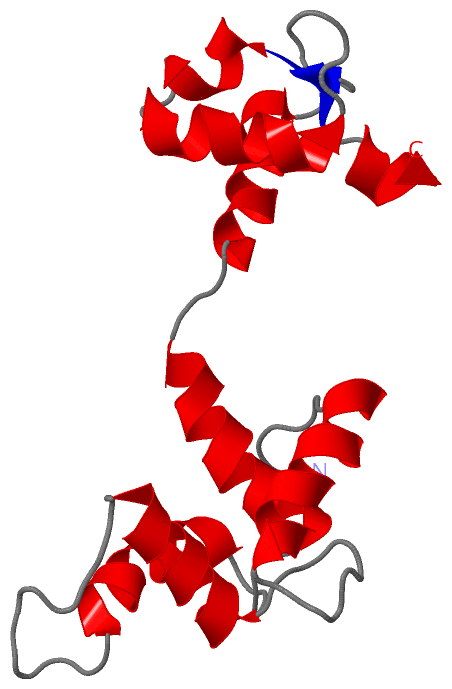

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

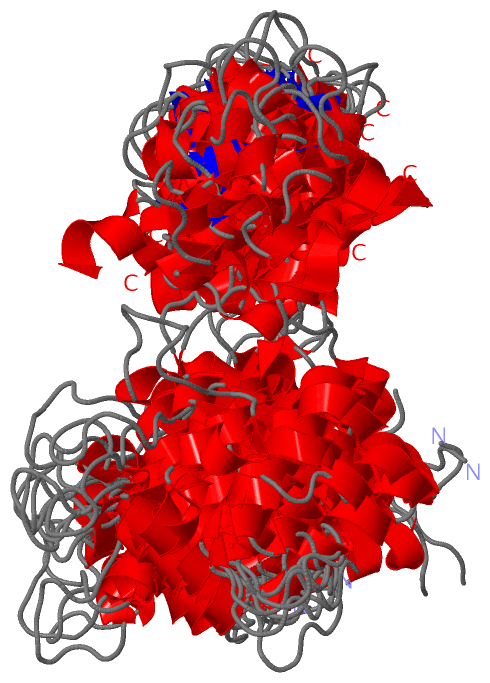

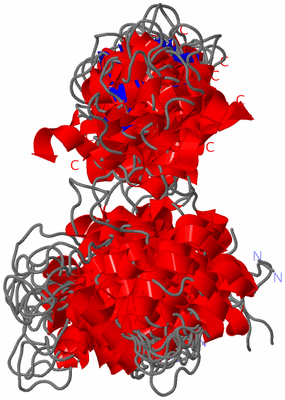

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  ALFA-ACTININ FROM PARASITE ENTAMOEBA HISTOLYTICA

Authors :  C. K. Persson, M. L. Mayzel, B. G. Karlsson, L. Backman
Date :  26 Apr 13  (Deposition) - 05 Jun 13  (Release) - 19 Jun 13  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (12x)
NMR Structure *:  A  (1x)
Keywords :  Structural Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. K. Persson, M. L. Mayzel, B. G. Karlsson, L. Backman
Alfa-Actinin From Parasite Entamoeba Histolytica
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - CALPONIN HOMOLOGY DOMAIN PROTEIN, PUTATIVE
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: EHI_199000
    Organism Scientific: ENTAMOEBA HISTOLYTICA
    Organism Taxid: 5759

 Structural Features

(-) Chains, Units

  1
NMR Structure (12x): A
NMR Structure * (1x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2M7L)

(-) Sites  (0, 0)

(no "Site" information available for 2M7L)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2M7L)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2M7L)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2M7L)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2M7L)

(-) Exons   (0, 0)

(no "Exon" information available for 2M7L)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:144
 aligned with C4LWU6_ENTHI | C4LWU6 from UniProtKB/TrEMBL  Length:619

    Alignment length:144
                                   485       495       505       515       525       535       545       555       565       575       585       595       605       615
         C4LWU6_ENTHI   476 EASSGVTAEQMQEFKQSFDAFDGNHDGILDKLEFRSCLSSMGLIDIDFTGGEDAQYDAIYNNVTKGENGVSFDNYVQYMKEKNDENPSPEQLNEIFSTIAAGKDSITETDMQKAGMSAEQIEYVKANLPQKGDGYDYAAWVKTN 619
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ......hhhhhhhhhhhhhh.........hhhhhhhhhhhh...........hhhhhhhhhhhh......hhhhhhhhhhhhhhh...hhhhhhhhhhhh....eehhhhhh....hhhhhhhhhhhh......ee.hhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2m7l A   1 GSSSGVTAEQMQEFKQSFDAFDGNHDGILDKLEFRSCLSSMGLIDIDFTGGEDAQYDAIYNNVTKGENGVSFDNYVQYMKEKNDENPSPEQLNEIFSTIAAGKDSITETDMQKAGMSAEQIEYVKANLPQKGDGYDYAAWVKTN 144
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2M7L)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2M7L)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2M7L)

(-) Gene Ontology  (2, 2)

NMR Structure(hide GO term definitions)
Chain A   (C4LWU6_ENTHI | C4LWU6)
molecular function
    GO:0003779    actin binding    Interacting selectively and non-covalently with monomeric or multimeric forms of actin, including actin filaments.
    GO:0005509    calcium ion binding    Interacting selectively and non-covalently with calcium ions (Ca2+).
