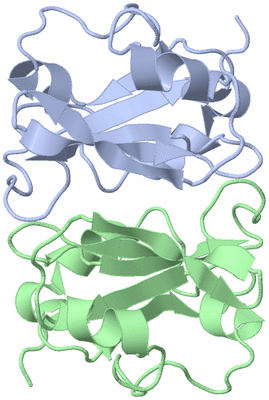

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)
Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  HADDOCK STRUCTURE OF GTYYBT PAS HOMODIMER

Authors :  Z. X. Liang, K. Pervushin, E. Tan, F. Rao, S. Pasunooti, I. Soehano, J. Le
Date :  25 Nov 12  (Deposition) - 27 Mar 13  (Release) - 22 May 13  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A,B  (4x)
NMR Structure *:  A,B  (1x)
Keywords :  Pas Domain, Yybt, Ligand Binding, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  E. Tan, F. Rao, S. Pasunooti, T. H. Pham, I. Soehano, M. S. Turner, C. W. Liew, J. Lescar, K. Pervushin, Z. X. Liang
Solution Structure Of The Pas Domain Of A Thermophilic Yybt Protein Homolog Reveals A Potential Ligand-Binding Site.
J. Biol. Chem. V. 288 11949 2013
PubMed-ID: 23504327  |  Reference-DOI: 10.1074/JBC.M112.437764

(-) Compounds

Molecule 1 - DHH SUBFAMILY 1 PROTEIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector: PET26
    Gene: DHH SUBFAMILY 1, GTNG_3419
    Organism Scientific: GEOBACILLUS THERMODENITRIFICANS
    Organism Taxid: 420246
    Strain: NG80-2

 Structural Features

(-) Chains, Units

  12
NMR Structure (4x): AB
NMR Structure * (1x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2M1C)

(-) Sites  (0, 0)

(no "Site" information available for 2M1C)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2M1C)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2M1C)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2M1C)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2M1C)

(-) Exons   (0, 0)

(no "Exon" information available for 2M1C)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:113
 aligned with GDPP_GEOTN | A4ITV2 from UniProtKB/Swiss-Prot  Length:658

    Alignment length:156
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156
           GDPP_GEOTN     7 RKTYRYPSYALAALAVLMAVSLFYFQWMLGLVGLLGVGFLLYYVIWSQRSLHKELQQYISNLSYRVKKVSEEALMQMPIGILLLDEEDKIEWSNRFLAACFKEQTLIGRSLAELSEPLAAFVKKGKTDEEIIELNGKQLKVIVHRHERLLYFFDVT 162
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...h-------------------------------------------hhhhhhhhhhhh.....................eeee.....eeee.hhhhhh...............hhhhhhh......eeeeee..eeeeee........eeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2m1c A  49 RGSH-------------------------------------------MRSLHKELQQYISNLSYRVKKVSEEALMQMPIGILLLDEEDKIEWSNRFLAACFKEQTLIGRSLAELSEPLAAFVKKGKTDEEIIELNGKQLKVIVHRHERLLYFFDVT 161
                               |     -         -         -         -       |55        65        75        85        95       105       115       125       135       145       155
                              52                                          53


Chain B from PDB  Type:PROTEIN  Length:113
 aligned with GDPP_GEOTN | A4ITV2 from UniProtKB/Swiss-Prot  Length:658

    Alignment length:156
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156
           GDPP_GEOTN     7 RKTYRYPSYALAALAVLMAVSLFYFQWMLGLVGLLGVGFLLYYVIWSQRSLHKELQQYISNLSYRVKKVSEEALMQMPIGILLLDEEDKIEWSNRFLAACFKEQTLIGRSLAELSEPLAAFVKKGKTDEEIIELNGKQLKVIVHRHERLLYFFDVT 162
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...h-------------------------------------------hhhhhhhhhhhh.....................eeee.....eeeeehhhhhh...............hhhhhhh......eeeeee..eeeeee........eeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2m1c B  49 RGSH-------------------------------------------MRSLHKELQQYISNLSYRVKKVSEEALMQMPIGILLLDEEDKIEWSNRFLAACFKEQTLIGRSLAELSEPLAAFVKKGKTDEEIIELNGKQLKVIVHRHERLLYFFDVT 161
                               |     -         -         -         -       |55        65        75        85        95       105       115       125       135       145       155
                              52                                          53
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2M1C)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2M1C)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2M1C)

(-) Gene Ontology  (6, 6)

NMR Structure(hide GO term definitions)
Chain A,B   (GDPP_GEOTN | A4ITV2)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0003676    nucleic acid binding    Interacting selectively and non-covalently with any nucleic acid.
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
