Title :   SOLUTION NMR STUDIES OF THE DIMERIC REGULATORY SUBUNIT ILVN OF THE E.COLI ACETOHYDROXYACID SYNTHASE I (AHAS I)

Authors :   M. N. Karanth, S. P. Sarma

Date :   12 Jul 12 (Deposition) - 29 May 13 (Release) - 29 May 13 (Revision)

Method :   SOLUTION NMR

Resolution :   NOT APPLICABLE

Chains :   NMR Structure  : A,B  (20x)
NMR Structure *: A,B  (1x)

Keywords :   Ahas, Regulatory Subunit, Act Domain, Ilvn, Valine, Branched Chain Amino Acid Biosynthesis, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   N. M. Karanth, S. P. Sarma
The Coil-To-Helix Transition In Ilvn Regulates The Allosteric Control Of Escherichia Coli Acetohydroxyacid Synthase I
Biochemistry V. 52 70 2013
PubMed-ID: 23205845 | Reference-DOI: 10.1021/BI301415M

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 2)

Exons (0, 0)

Sequences/Alignments

NMR Structure

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:98
 aligned with ILVN_ECOLI | P0ADF8 from UniProtKB/Swiss-Prot  Length:96

    Alignment length:98
                              1
                              |      8        18        28        38        48        58        68        78        88
            ILVN_ECOLI    - --MQNTTHDNVILELTVRNHPGVMTHVCGLFARRAFNVEGILCLPIQDSDKSHIWLLVNDDQRLEQMISQIDKLEDVVKVQRNQSDPTMFNKIAVFFQ 96
               SCOP domains -------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........eeeeeeeee....hhhhhhhhhhhhh....eeeeeee....eeeeeeeee...hhhhhhhhhhh...eeeeeee...hhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------ACT  PDB: A:12-85 UniProt: 10-83                                          ------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                  2lvw A  1 GSMQNTTHDNVILELTVRNHPGVMTHVCGLFARRAFNVEGILCLPIQDSDKSHIWLLVNDDQRLEQMISQIDKLEDVVKVQRNQSDPTMFNKIAVFFQ 98
                                    10        20        30        40        50        60        70        80        90

Chain B from PDB  Type:PROTEIN  Length:98
 aligned with ILVN_ECOLI | P0ADF8 from UniProtKB/Swiss-Prot  Length:96

    Alignment length:98
                              1
                              |      8        18        28        38        48        58        68        78        88
            ILVN_ECOLI    - --MQNTTHDNVILELTVRNHPGVMTHVCGLFARRAFNVEGILCLPIQDSDKSHIWLLVNDDQRLEQMISQIDKLEDVVKVQRNQSDPTMFNKIAVFFQ 96
               SCOP domains -------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhh.eeeeeeeee....hhhhhhhhhhhhh....eeeeeee....eeeeeeeee...hhhhhhhhhhh...eeeeeee...hhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------ACT  PDB: B:12-85 UniProt: 10-83                                          ------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                  2lvw B  1 GSMQNTTHDNVILELTVRNHPGVMTHVCGLFARRAFNVEGILCLPIQDSDKSHIWLLVNDDQRLEQMISQIDKLEDVVKVQRNQSDPTMFNKIAVFFQ 98
                                    10        20        30        40        50        60        70        80        90

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (0, 0)

CATH Domains (0, 0)

Pfam Domains (0, 0)

Gene Ontology (10, 10)

NMR Structure(hide GO term definitions)

Chain A,B (ILVN_ECOLI | P0ADF8)

molecular function
	GO:0003984	acetolactate synthase activity	Catalysis of the reaction: 2 pyruvate = 2-acetolactate + CO2.
	GO:0016597	amino acid binding	Interacting selectively and non-covalently with an amino acid, organic acids containing one or more amino substituents.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
	GO:0009082	branched-chain amino acid biosynthetic process	The chemical reactions and pathways resulting in the formation of amino acids containing a branched carbon skeleton, comprising isoleucine, leucine and valine.
	GO:0008652	cellular amino acid biosynthetic process	The chemical reactions and pathways resulting in the formation of amino acids, organic acids containing one or more amino substituents.
	GO:0009097	isoleucine biosynthetic process	The chemical reactions and pathways resulting in the formation of isoleucine, (2R,3R)-2-amino-3-methylpentanoic acid.
	GO:0008152	metabolic process	The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
	GO:0009099	valine biosynthetic process	The chemical reactions and pathways resulting in the formation of valine, 2-amino-3-methylbutanoic acid.
cellular component
	GO:0005948	acetolactate synthase complex	A dimeric (a large and a small chain) or tetrameric (two large and two small chains) enzyme complex. Catalyzes the formation of acetolactate from pyruvate.

Visualization

Interactive Views

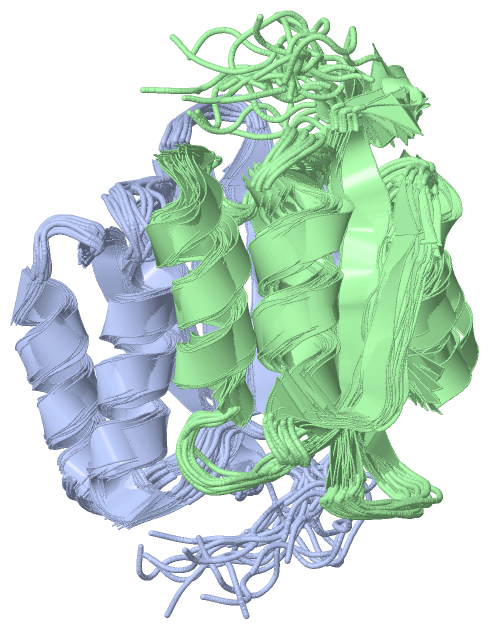

NMR Structure
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2lvw)

	Sites
(no "Sites" information available for 2lvw)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2lvw)
