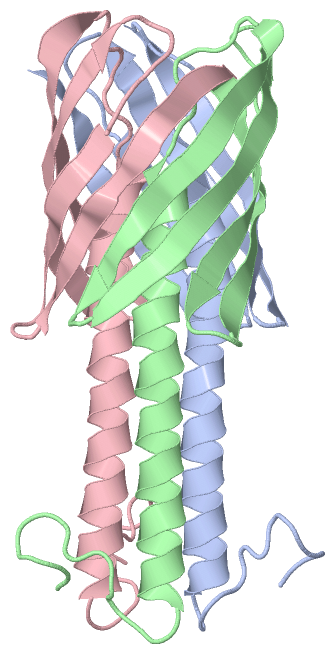

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  SOLID-STATE NMR STRUCTURE OF THE MEMBRANE ANCHOR DOMAIN OF THE TRIMERIC AUTOTRANSPORTER YADA

Authors :  S. A. Shahid, B. Bardiaux, W. T. Franks, M. Habeck, D. Linke, B. Van Ross
Date :  30 Nov 11  (Deposition) - 07 Nov 12  (Release) - 26 Dec 12  (Revision)
Method :  SOLID-STATE NMR
Resolution :  NOT APPLICABLE
Chains :  Asym. Unit :  A,B,C  (20x)
Biol. Unit 1:  A,B,C  (1x)
Keywords :  Trimeric Autotransporter, Membrane Protein, Cell Adhesion (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. A. Shahid, B. Bardiaux, W. T. Franks, L. Krabben, M. Habeck, B. J. Van Rossum, D. Linke
Membrane-Protein Structure Determination By Solid-State Nmr Spectroscopy Of Microcrystals.
Nat. Methods V. 9 1212 2012
PubMed-ID: 23142870  |  Reference-DOI: 10.1038/NMETH.2248

(-) Compounds

Molecule 1 - ADHESIN YADA
    Chains: A, B, C
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21 OMP8
    Expression System Taxid: 511693
    Expression System Vector: PUC-A-1
    Fragment: OUTER MEMBRANE REGION, RESIDUES 333-422
    Gene: YADA, YEP0066
    Organism Scientific: YERSINIA ENTEROCOLITICA SUBSP. ENTEROCOLITICA
    Organism Taxid: 393305
    Strain: 8081

 Structural Features

(-) Chains, Units

  123
Asymmetric Unit (20x): ABC
Biological Unit 1 (1x): ABC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2LME)

(-) Sites  (0, 0)

(no "Site" information available for 2LME)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2LME)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2LME)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2LME)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2LME)

(-) Exons   (0, 0)

(no "Exon" information available for 2LME)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:105
 aligned with YADA_YERE8 | A1JUB7 from UniProtKB/Swiss-Prot  Length:422

    Alignment length:126
                                   306       316       326       336       346       356       366       376       386       396       406       416
           YADA_YERE8   297 ADSKSSHTLQTANSYTDVTVSNSTKKAIRESNQYTDHKFRQLDNRLDKLDTRVDKGLASSAALNSLFQPYGVGKVNFTAGVGGYRSSQALAIGSGYRVNESVALKAGVAYAGSSDVMYNASFNIEW 422
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..-------..........hh--------------hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......eeeeeeeeeeee..eeeeeeeeeeee......eeeeeee...eeeeeeeeeeee Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2lme A   1 GD-------QASWSHPQFEKG--------------AHKFRQLDNRLDKLDTRVDKGLASSAALNSLFQPYGVGKVNFTAGVGGYRSSQALAIGSGYRVNESVALKAGVAYAGSSDVMYNASFNIEW 105
                             |       3        13|        -     |  19        29        39        49        59        69        79        89        99
                             2       3         14             15


Chain B from PDB  Type:PROTEIN  Length:105
 aligned with YADA_YERE8 | A1JUB7 from UniProtKB/Swiss-Prot  Length:422

    Alignment length:126
                                   306       316       326       336       346       356       366       376       386       396       406       416
           YADA_YERE8   297 ADSKSSHTLQTANSYTDVTVSNSTKKAIRESNQYTDHKFRQLDNRLDKLDTRVDKGLASSAALNSLFQPYGVGKVNFTAGVGGYRSSQALAIGSGYRVNESVALKAGVAYAGSSDVMYNASFNIEW 422
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..-------..........hh--------------hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......eeeeeeeeeeee..eeeeeeeeeeee......eeeeeee...eeeeeeeeeeee Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2lme B   1 GD-------QASWSHPQFEKG--------------AHKFRQLDNRLDKLDTRVDKGLASSAALNSLFQPYGVGKVNFTAGVGGYRSSQALAIGSGYRVNESVALKAGVAYAGSSDVMYNASFNIEW 105
                             |       3        13|        -     |  19        29        39        49        59        69        79        89        99
                             2       3         14             15


Chain C from PDB  Type:PROTEIN  Length:105
 aligned with YADA_YERE8 | A1JUB7 from UniProtKB/Swiss-Prot  Length:422

    Alignment length:126
                                   306       316       326       336       346       356       366       376       386       396       406       416
           YADA_YERE8   297 ADSKSSHTLQTANSYTDVTVSNSTKKAIRESNQYTDHKFRQLDNRLDKLDTRVDKGLASSAALNSLFQPYGVGKVNFTAGVGGYRSSQALAIGSGYRVNESVALKAGVAYAGSSDVMYNASFNIEW 422
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..-------..........hh--------------hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......eeeeeeeeeeee..eeeeeeeeeeee......eeeeeee...eeeeeeeeeeee Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2lme C   1 GD-------QASWSHPQFEKG--------------AHKFRQLDNRLDKLDTRVDKGLASSAALNSLFQPYGVGKVNFTAGVGGYRSSQALAIGSGYRVNESVALKAGVAYAGSSDVMYNASFNIEW 105
                             |       3        13|        -     |  19        29        39        49        59        69        79        89        99
                             2       3         14             15
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2LME)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2LME)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2LME)

(-) Gene Ontology  (7, 7)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C   (YADA_YERE8 | A1JUB7)
molecular function
    GO:0005518    collagen binding    Interacting selectively and non-covalently with collagen, a group of fibrous proteins of very high tensile strength that form the main component of connective tissue in animals. Collagen is highly enriched in glycine (some regions are 33% glycine) and proline, occurring predominantly as 3-hydroxyproline (about 20%).
biological process
    GO:0007155    cell adhesion    The attachment of a cell, either to another cell or to an underlying substrate such as the extracellular matrix, via cell adhesion molecules.
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
    GO:0009279    cell outer membrane    A lipid bilayer that forms the outermost membrane of the cell envelope; enriched in polysaccharide and protein; the outer leaflet of the membrane contains specific lipopolysaccharide structures.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0019867    outer membrane    The external membrane of Gram-negative bacteria or certain organelles such as mitochondria and chloroplasts; freely permeable to most ions and metabolites.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2lme)

  Sites
(no "Sites" information available for 2lme)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2lme)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
