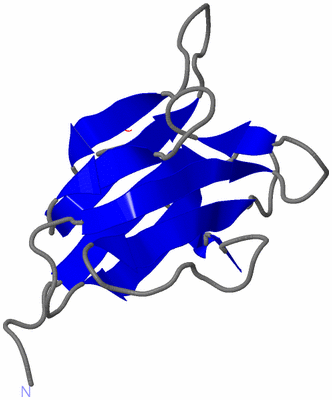

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)
Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCUTURE OF THE CBM25-1 OF BETA/ALPHA-AMYLASE FROM PAENIBACILLUS POLYMYXA

Authors :  I. Horibe, S. Nishimura, R. Takahashi, T. Ohkubo, T. Yoshida
Date :  09 Mar 11  (Deposition) - 04 Apr 12  (Release) - 04 Apr 12  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
NMR Structure *:  A  (1x)
Keywords :  Sbd, Cbm25, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  R. Takahashi, I. Horibe, H. Fukada, T. Yoshida, T. Ohkubo, T. Inui, S. Nishimura, J. Sumitani
A Functional And Structural Analysis Of Tundem Family 25 Carbohydrate-Binding Modules From Paenibacillus Polymyxa Beta/Alpha-Amylase
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - BETA/ALPHA-AMYLASE
    ChainsA
    EC Number3.2.1.2, 3.2.1.1
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    Expression System VectorPET16B
    Expression System Vector TypeVECTOR
    FragmentUNP RESIDUES 455-558
    Organism ScientificPAENIBACILLUS POLYMYXA
    Organism Taxid1406
    SynonymBETA-AMYLASE, ALPHA-AMYLASE

 Structural Features

(-) Chains, Units

  1
NMR Structure (20x)A
NMR Structure * (1x)A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2LAA)

(-) Sites  (0, 0)

(no "Site" information available for 2LAA)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2LAA)

(-) Cis Peptide Bonds  (1, 20)

NMR Structure
No.ModelResidues
11, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20Ala A:451 -Pro A:452

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2LAA)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2LAA)

(-) Exons   (0, 0)

(no "Exon" information available for 2LAA)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:104
 aligned with AMYB_PAEPO | P21543 from UniProtKB/Swiss-Prot  Length:1196

    Alignment length:104
                                   464       474       484       494       504       514       524       534       544       554
           AMYB_PAEPO   455 GGTGNKVTIYYKKGFNSPYIHYRPAGGSWTAAPGVKMQDAEISGYAKITVDIGSASQLEAAFNDGNNNWDSNNTKNYSFSTGTSTYTPGNSGNAGTITSGAPAG 558
               SCOP domains -------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeeeee......eeeeee..........ee.eee....eeeeeee......eeeeee.....ee......eee..eeeeee........eeee..... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 2laa A 420 GGTGNKVTIYYKKGFNSPYIHYRPAGGSWTAAPGVKMQDAEISGYAKITVDIGSASQLEAAFNDGNNNWDSNNTKNYSFSTGTSTYTPGNSGNAGTITSGAPAG 523
                                   429       439       449       459       469       479       489       499       509       519

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2LAA)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2LAA)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2LAA)

(-) Gene Ontology  (12, 12)

NMR Structure(hide GO term definitions)
Chain A   (AMYB_PAEPO | P21543)
molecular function
    GO:0004556    alpha-amylase activity    Catalysis of the endohydrolysis of (1->4)-alpha-D-glucosidic linkages in polysaccharides containing three or more alpha-(1->4)-linked D-glucose units.
    GO:0016161    beta-amylase activity    Catalysis of the reaction: (1,4-alpha-D-glucosyl)(n+1) + H2O = (1,4-alpha-D-glucosyl)(n-1) + alpha-maltose. This reaction is the hydrolysis of 1,4-alpha-glucosidic linkages in polysaccharides so as to remove successive maltose units from the non-reducing ends of the chains.
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016798    hydrolase activity, acting on glycosyl bonds    Catalysis of the hydrolysis of any glycosyl bond.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:2001070    starch binding    Interacting selectively and non-covalently with starch.
biological process
    GO:0005975    carbohydrate metabolic process    The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0000272    polysaccharide catabolic process    The chemical reactions and pathways resulting in the breakdown of a polysaccharide, a polymer of many (typically more than 10) monosaccharide residues linked glycosidically.
    GO:0005976    polysaccharide metabolic process    The chemical reactions and pathways involving a polysaccharide, a polymer of many (typically more than 10) monosaccharide residues linked glycosidically.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2laa)

  Sites
(no "Sites" information available for 2laa)

  Cis Peptide Bonds
    Ala A:451 - Pro A:452   [ RasMol ]
