2L9Q - JenaLib

Title :   STRUCTURAL CHARACTERIZATION OF SMALL HEAT SHOCK PROTEIN (HSP12)

Authors :   K. K. Singarapu, M. Tonelli, W. M. Westler, J. L. Markley, Center For E Structural Genomics (Cesg)

Date :   22 Feb 11 (Deposition) - 15 Jun 11 (Release) - 15 Jun 11 (Revision)

Method :   SOLUTION NMR

Resolution :   NOT APPLICABLE

Chains :   NMR Structure  : A  (20x)
NMR Structure *: A  (1x)

Keywords :   Structural Genomics, Psi-2, Protein Structure Initiative, Center For Eukaryotic Structural Genomics, Cesg, Chaperone (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   K. K. Singarapu, M. Tonelli, W. M. Westler, J. L. Markley
Structural Characterization Of Small Heat Shock Protein (Hsp12)
To Be Published
PubMed: search

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (1, 1)

NMR Structure (1, 1)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_HSP12_YEAST_001 *	P	46	T	HSP12_YEAST	---	---	A	P	46	T
	* ID not provided by source

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

NMR Structure * (1, 1)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_HSP12_YEAST_001 *	P	46	T	HSP12_YEAST	---	---	A	P	46	T
	* ID not provided by source

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

NMR Structure

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:109
 aligned with HSP12_YEAST | P22943 from UniProtKB/Swiss-Prot  Length:109

    Alignment length:109
                                    10        20        30        40        50        60        70        80        90       100
          HSP12_YEAST     1 MSDAGRKGFGEKASEALKPDSQKSYAEQGKEYITDKADKVAGKVQPEDNKGVFQGVHDSAEKGKDNAEGQGESLADQARDYMGAAKSKLNDAVEYVSGRVHGEEDPTKK 109
               SCOP domains ------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains HSP9_HSP12-2l9qA01 A:1-59                                  -------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhh..........hhhhhhhhhhhhhhhhhhhhhhhhhhhhh........ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------T--------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------- Transcript
                 2l9q A   1 MSDAGRKGFGEKASEALKPDSQKSYAEQGKEYITDKADKVAGKVQPEDNKGVFQGVHDSAEKGKDNAEGQGESLADQARDYMGAAKSKLNDAVEYVSGRVHGEEDPTKK 109
                                    10        20        30        40        50        60        70        80        90       100

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (0, 0)

CATH Domains (0, 0)

Pfam Domains (1, 1)

Gene Ontology (10, 10)

NMR Structure(hide GO term definitions)

Chain A (HSP12_YEAST | P22943)

molecular function
	GO:0008289	lipid binding	Interacting selectively and non-covalently with a lipid.
biological process
	GO:0007155	cell adhesion	The attachment of a cell, either to another cell or to an underlying substrate such as the extracellular matrix, via cell adhesion molecules.
	GO:0034605	cellular response to heat	Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a heat stimulus, a temperature stimulus above the optimal temperature for that organism.
	GO:0071470	cellular response to osmotic stress	Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a stimulus indicating an increase or decrease in the concentration of solutes outside the organism or cell.
	GO:0034599	cellular response to oxidative stress	Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of oxidative stress, a state often resulting from exposure to high levels of reactive oxygen species, e.g. superoxide anions, hydrogen peroxide (H2O2), and hydroxyl radicals.
	GO:0007009	plasma membrane organization	A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of the plasma membrane.
	GO:0006950	response to stress	Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a disturbance in organismal or cellular homeostasis, usually, but not necessarily, exogenous (e.g. temperature, humidity, ionizing radiation).
cellular component
	GO:0005829	cytosol	The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
	GO:0005768	endosome	A vacuole to which materials ingested by endocytosis are delivered.
	GO:0005886	plasma membrane	The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

Visualization

Interactive Views

NMR Structure
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2l9q)

	Sites
(no "Sites" information available for 2l9q)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2l9q)

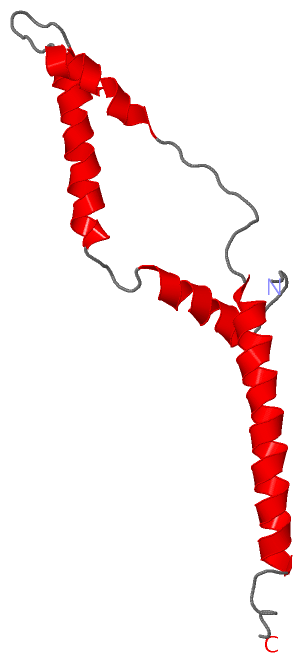

Still Images
