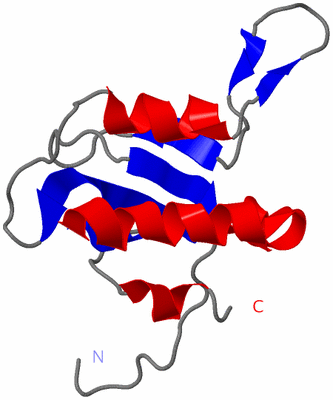

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)
Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE PROTEIN YP_546394.1, THE FIRST STRUCTURAL REPRESENTATIVE OF THE PFAM FAMILY PF12112

Authors :  B. Mohanty, P. Serrano, M. Geralt, R. Horst, K. Wuthrich, Joint Center Structural Genomics (Jcsg)
Date :  08 Feb 11  (Deposition) - 16 Mar 11  (Release) - 03 Aug 11  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
NMR Structure *:  A  (1x)
Keywords :  Pg9854E, Structural Genomics, Psi-Biology, Protein Structure Initiative, Unknown Function, Joint Center For Structural Genomics, Jcsg (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  B. Mohanty, P. Serrano, M. Geralt, R. Horst, K. Wuthrich
Solution Structure Of The Protein Yp_546394. 1, The First Structural Representative Of The Pfam Family Pf12112
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - UNCHARACTERIZED PROTEIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Expression System Vector: PSPEEDET
    Gene: MFLA_2286
    Organism Scientific: METHYLOBACILLUS FLAGELLATUS
    Organism Taxid: 265072
    Strain: KT / ATCC 51484 / DSM 6875

 Structural Features

(-) Chains, Units

  1
NMR Structure (20x): A
NMR Structure * (1x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2L9D)

(-) Sites  (0, 0)

(no "Site" information available for 2L9D)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2L9D)

(-) Cis Peptide Bonds  (1, 20)

NMR Structure
No.ModelResidues
11, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20Arg A:26 -Pro A:27

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2L9D)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2L9D)

(-) Exons   (0, 0)

(no "Exon" information available for 2L9D)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:108
 aligned with Q1GYY4_METFK | Q1GYY4 from UniProtKB/TrEMBL  Length:107

    Alignment length:108
                             1
                             |       9        19        29        39        49        59        69        79        89        99
         Q1GYY4_METFK     - -MGTTEKSGIKEIIIQGLTRAGKPFRPSDWVDRMCSTYASFGADRKLRYSPYLKPRVIEGVRCLAVDLKLKDTNPEGFNQLMHFATENQLNILDAEGNSIDAAQVTEI 107
               SCOP domains ------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains -----DUF3579-2l9dA01 A:6-98                                                                       ---------- Pfam domains
         Sec.struct. author ...........eeeeeeee.........hhhhhhhhh..ee.....ee....eee........eeeehhhhhhhhhhhhhhhhhhhhhheeeee......hhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------ Transcript
                 2l9d A   1 GMGTTEKSGIKEIIIQGLTRAGKPFRPSDWVDRMCSTYASFGADRKLRYSPYLKPRVIEGVRCLAVDLKLKDTNPEGFNQLMHFATENQLNILDAEGNSIDAAQVTEI 108
                                    10        20        30        40        50        60        70        80        90       100
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2L9D)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2L9D)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: no clan defined [family: DUF3579] (1)

(-) Gene Ontology  (0, 0)

NMR Structure(hide GO term definitions)
    (no "Gene Ontology" information available for 2L9D)

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2l9d)

  Sites
(no "Sites" information available for 2l9d)

  Cis Peptide Bonds
    Arg A:26 - Pro A:27   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2l9d
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q1GYY4_METFK | Q1GYY4
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q1GYY4_METFK | Q1GYY4
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
