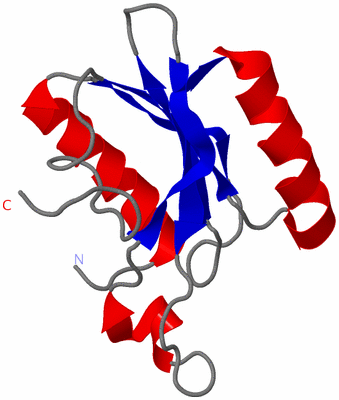

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

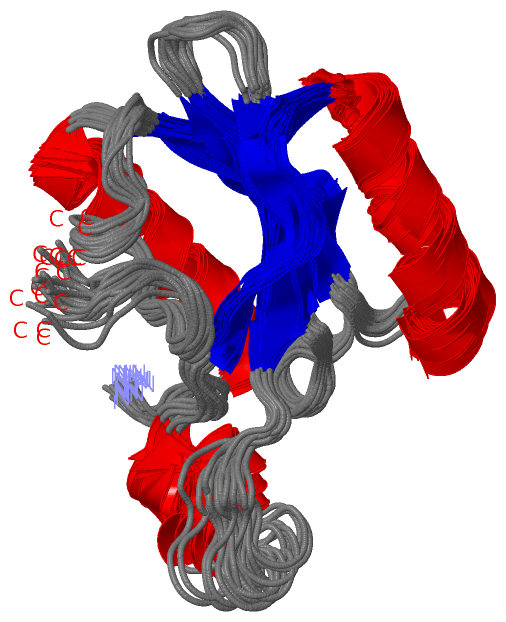

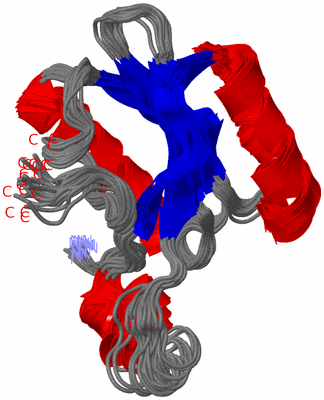

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF PROTEIN ATU0922 FROM A. TUMEFACIENS. NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET ATT13. ONTARIO CENTER FOR STRUCTURAL PROTEOMICS TARGET ATC0905

Authors :  A. Gutmanas, S. Yee, A. Lemak, A. Fares, A. Semesi, G. T. Montelione, C. H. Arrowsmith, Northeast Structural Genomics Consortium, Ont Centre For Structural Proteomics, Northeast Structural Genom Consortium (Nesg), Ontario Centre For Structural Proteomics
Date :  02 Sep 09  (Deposition) - 03 Nov 09  (Release) - 18 Jan 12  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
NMR Structure *:  A  (1x)
Keywords :  Methods Development, Structural Genomics, Protein Nmr, Northeast Structural Genomics Consortium (Nesg), Target Att13, Psi-2, Protein Structure Initiative, Non-Uniform Sampling, Muldidimensional Decomposition, Abacus, Fragment Monte-Carlo, Ontario Centre For Structural Proteomics, Ocsp, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Gutmanas, S. Lemak, A. Yee, A. Semesi, E. Fares, G. T. Montelione, C. H. Arrowsmith
Solution Nmr Structure Of Protein Atc0905 From A. Tumefaciens
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - UNCHARACTERIZED PROTEIN ATC0905
    Atcc: 33970
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: RIL
    Expression System Taxid: 562
    Expression System Vector: P15TV LIC
    Gene: AGR_C_1681, ATU0922
    Organism Scientific: AGROBACTERIUM TUMEFACIENS STR. C58
    Organism Taxid: 176299
    Strain: C58

 Structural Features

(-) Chains, Units

  1
NMR Structure (20x): A
NMR Structure * (1x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2KNR)

(-) Sites  (0, 0)

(no "Site" information available for 2KNR)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2KNR)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2KNR)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2KNR)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2KNR)

(-) Exons   (0, 0)

(no "Exon" information available for 2KNR)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:118
 aligned with Q7D0C7_AGRFC | Q7D0C7 from UniProtKB/TrEMBL  Length:118

    Alignment length:118
                                    10        20        30        40        50        60        70        80        90       100       110
         Q7D0C7_AGRFC     1 MRLKSEMFVSALIRRVFAAGGFAAVEKKGAEAAGAIFVRQRLRDGRENLYGPAPQSFADDEDIMRAERRFETRLAGVEGEEIAALLERERRFDSDLWVVEIETDEIGTLLTLVDQPQA 118
               SCOP domains ---------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhh..eeeeee........eeeeee.....eeeeee........hhhhhh...eeeeeeeehhhhhhhhhhhhhhhh...eeeeee................ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------- Transcript
                 2knr A   1 MRLKSEMFVSALIRRVFAAGGFAAVEKKGAEAAGAIFVRQRLRDGRENLYGPAPQSFADDEDIMRAERRFETRLAGVEGEEIAALLERERRFDSDLWVVEIETDEIGTLLTLVDQPQA 118
                                    10        20        30        40        50        60        70        80        90       100       110
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2KNR)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2KNR)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2KNR)

(-) Gene Ontology  (0, 0)

NMR Structure(hide GO term definitions)
    (no "Gene Ontology" information available for 2KNR)
