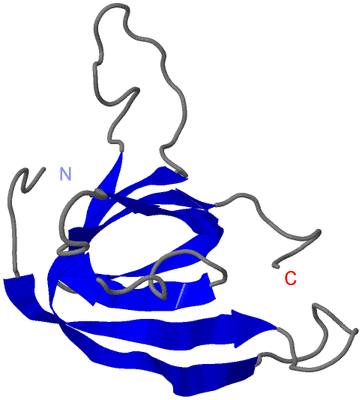

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)
Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  GP16

Authors :  M. Gallopin, B. Gilquin, S. Zinn-Justin
Date :  18 Dec 08  (Deposition) - 02 Jun 09  (Release) - 17 Aug 16  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
NMR Structure *:  A  (1x)
Keywords :  Beta-Barrel, Viral Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. Lhuillier, M. Gallopin, B. Gilquin, S. Brasiles, N. Lancelot, G. Letellier, M. Gilles, G. Dethan, E. V. Orlova, J. Couprie, P. Tavares, S. Zinn-Justin
Structure Of Bacteriophage Spp1 Head-To-Tail Connection Reveals Mechanism For Viral Dna Gating.
Proc. Natl. Acad. Sci. Usa V. 106 8507 2009
PubMed-ID: 19433794  |  Reference-DOI: 10.1073/PNAS.0812407106

(-) Compounds

Molecule 1 - BACTERIOPHAGE SPP1 COMPLETE NUCLEOTIDE SEQUENCE
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21
    Expression System Taxid: 562
    Expression System Variant: DE3
    Expression System Vector: PLYSS
    Mutation: YES
    Organism Common: BACTERIOPHAGE SPP1
    Organism Scientific: BACILLUS PHAGE SPP1
    Organism Taxid: 10724

 Structural Features

(-) Chains, Units

  1
NMR Structure (20x): A
NMR Structure * (1x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2KCA)

(-) Sites  (0, 0)

(no "Site" information available for 2KCA)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2KCA)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2KCA)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2KCA)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2KCA)

(-) Exons   (0, 0)

(no "Exon" information available for 2KCA)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:109
 aligned with HCP16_BPSPP | O48446 from UniProtKB/Swiss-Prot  Length:109

    Alignment length:109
                                    10        20        30        40        50        60        70        80        90       100
          HCP16_BPSPP     1 MYEEFPDVITFQSYVEQSNGEGGKTYKWVDEFTAAAHVQPISQEEYYKAQQLQTPIGYNIYTPYDDRIDKKMRVIYRGKIVTFIGDPVDLSGLQEITRIKGKEDGAYVG 109
               SCOP domains ------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeeeeeeee...........eeeeeeeeeeeeee................eeeeeee........eeeee..eeeeeeeeeee......eeeeeee....... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------- Transcript
                 2kca A  35 MYEEFRDVITFQSYVEQSNGEGGKTYKWVDEFTAAAHVQPISQEEYYKAQQLQTPIGYNIYTPYDDRIDKKMRVIYRGKIVTFIGDPVDLSGLQEITRIKGKEDGAYVG 143
                                    44        54        64        74        84        94       104       114       124       134
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2KCA)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2KCA)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2KCA)

(-) Gene Ontology  (0, 0)

NMR Structure(hide GO term definitions)
    (no "Gene Ontology" information available for 2KCA)

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2kca)

  Sites
(no "Sites" information available for 2kca)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2kca)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2kca
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  HCP16_BPSPP | O48446
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  HCP16_BPSPP | O48446
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        HCP16_BPSPP | O48446: 5a20 5a21
