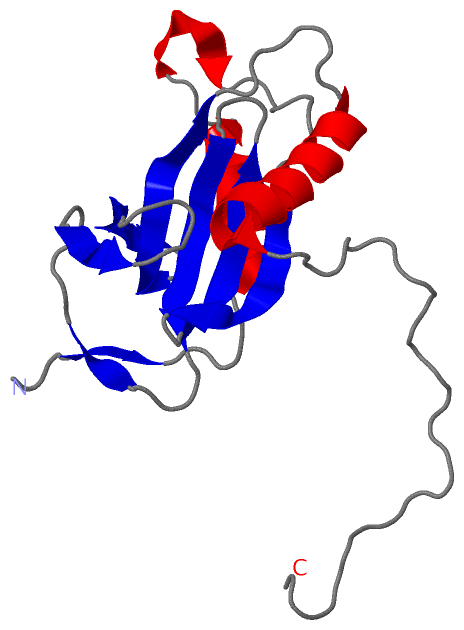

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

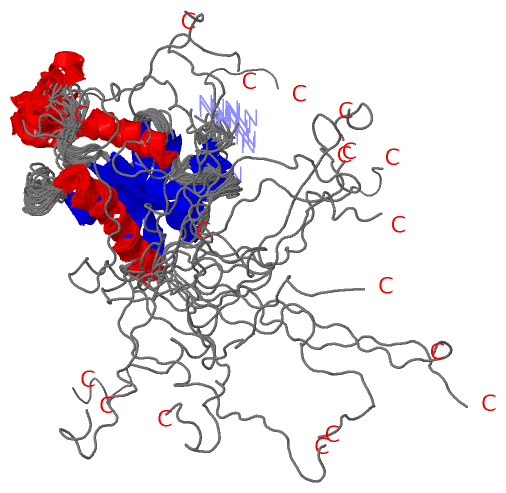

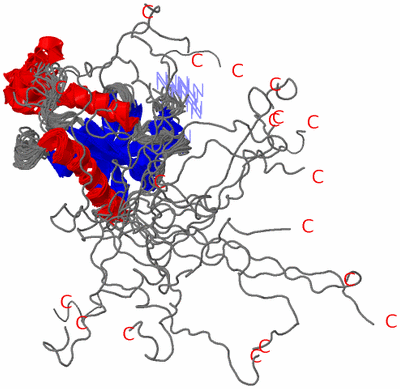

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF HYBE FROM ESCHERICHIA COLI

Authors :  C. Jin, X. Shao, J. Lu, Y. Li
Date :  17 Dec 08  (Deposition) - 20 Oct 09  (Release) - 13 Jul 11  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
NMR Structure *:  A  (1x)
Keywords :  Chaperone (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. Shao, J. Lu, Y. Hu, B. Xia, C. Jin
Solution Structure Of The Escherichia Coli Hybe Reveals A Novel Fold
Proteins V. 75 1051 2009
PubMed-ID: 19291739  |  Reference-DOI: 10.1002/PROT.22391

(-) Compounds

Molecule 1 - HYDROGENASE-2 OPERON PROTEIN HYBE
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector: PET21A
    Expression System Vector Type: VECTOR
    Gene: HYBE
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 83333
    Strain: K-12

 Structural Features

(-) Chains, Units

  1
NMR Structure (20x): A
NMR Structure * (1x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2KC5)

(-) Sites  (0, 0)

(no "Site" information available for 2KC5)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2KC5)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2KC5)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2KC5)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2KC5)

(-) Exons   (0, 0)

(no "Exon" information available for 2KC5)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:162
 aligned with HYBE_ECOLI | P0AAN1 from UniProtKB/Swiss-Prot  Length:162

    Alignment length:162
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160
           HYBE_ECOLI     1 MTEEIAGFQTSPKAQVQAAFEEIARRSMHDLSFLHPSMPVYVSDFTLFEGQWTGCVITPWMLSAVIFPGPDQLWPLRKVSEKIGLQLPYGTMTFTVGELDGVSQYLSCSLMSPLSHSMSIEEGQRLTDDCARMILSLPVTNPDVPHAGRRALLFGRRSGENA 162
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...eee.....hhhhhhhhhhhhh...hhhhh........eeeeeeee..eeeeeee....eeeeeee....eee......eeee......eeeeeeee...eeeeeeeee.......hhhhhhhhhhhhhhhhhh.......................... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2kc5 A   1 MTEEIAGFQTSPKAQVQAAFEEIARRSMHDLSFLHPSMPVYVSDFTLFEGQWTGCVITPWMLSAVIFPGPDQLWPLRKVSEKIGLQLPYGTMTFTVGELDGVSQYLSCSLMSPLSHSMSIEEGQRLTDDCARMILSLPVTNPDVPHAGRRALLFGRRSGENA 162
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2KC5)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2KC5)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2KC5)

(-) Gene Ontology  (3, 3)

NMR Structure(hide GO term definitions)
Chain A   (HYBE_ECOLI | P0AAN1)
molecular function
    GO:0070678    preprotein binding    Interacting selectively and non-covalently with a preprotein, the unprocessed form of a protein destined to undergo co- or post-translational processing.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0051604    protein maturation    Any process leading to the attainment of the full functional capacity of a protein.
