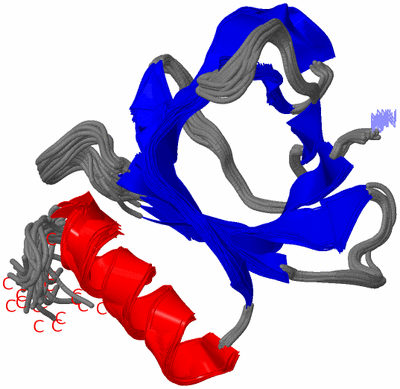

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  ANTIMICROBIAL RESISTANCE PROTEIN

Authors :  C. Jin, W. Fu
Date :  10 Jul 07  (Deposition) - 04 Sep 07  (Release) - 13 Jul 11  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (21x)
NMR Structure *:  A  (1x)
Keywords :  Protein, Antibiotic Resistance, Transcription, Signaling Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  W. Fu, F. Yang, X. Kang, X. Zhang, Y. Li, B. Xia, C. Jin
First Structure Of The Polymyxin Resistance Proteins.
Biochem. Biophys. Res. Commun. V. 361 1033 2007
PubMed-ID: 17686460  |  Reference-DOI: 10.1016/J.BBRC.2007.07.144

(-) Compounds

Molecule 1 - POLYMYXIN RESISTANCE PROTEIN PMRD
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI K12
    Expression System StrainK12
    Expression System Taxid83333
    Expression System VectorPET21A(+)
    GenePMRD
    Organism ScientificESCHERICHIA COLI
    Organism Taxid83333
    StrainK12
    SynonymBASR/PMRA POSTTRANSCRIPTIONAL ACTIVATOR, SIGNAL TRANSDUCTION PROTEIN PMRD

 Structural Features

(-) Chains, Units

  1
NMR Structure (21x)A
NMR Structure * (1x)A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2JSO)

(-) Sites  (0, 0)

(no "Site" information available for 2JSO)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2JSO)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2JSO)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (10, 10)

NMR Structure (10, 10)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
01UniProtVAR_PMRD_ECOLI_001 *N11DPMRD_ECOLI  ---  ---AN11D
02UniProtVAR_PMRD_ECOLI_002 *D14NPMRD_ECOLI  ---  ---AD14N
03UniProtVAR_PMRD_ECOLI_003 *L19IPMRD_ECOLI  ---  ---AL19I
04UniProtVAR_PMRD_ECOLI_004 *M20KPMRD_ECOLI  ---  ---AM20K
05UniProtVAR_PMRD_ECOLI_005 *A27TPMRD_ECOLI  ---  ---AA27T
06UniProtVAR_PMRD_ECOLI_006 *S71CPMRD_ECOLI  ---  ---AS71C
07UniProtVAR_PMRD_ECOLI_007 *C81SPMRD_ECOLI  ---  ---AC81S
08UniProtVAR_PMRD_ECOLI_008 *K82TPMRD_ECOLI  ---  ---AK82T
09UniProtVAR_PMRD_ECOLI_009 *V83APMRD_ECOLI  ---  ---AV83A
10UniProtVAR_PMRD_ECOLI_010 *A84EPMRD_ECOLI  ---  ---AA84E
   * ID not provided by source

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
NMR Structure * (10, 10)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
01UniProtVAR_PMRD_ECOLI_001 *N11DPMRD_ECOLI  ---  ---AN11D
02UniProtVAR_PMRD_ECOLI_002 *D14NPMRD_ECOLI  ---  ---AD14N
03UniProtVAR_PMRD_ECOLI_003 *L19IPMRD_ECOLI  ---  ---AL19I
04UniProtVAR_PMRD_ECOLI_004 *M20KPMRD_ECOLI  ---  ---AM20K
05UniProtVAR_PMRD_ECOLI_005 *A27TPMRD_ECOLI  ---  ---AA27T
06UniProtVAR_PMRD_ECOLI_006 *S71CPMRD_ECOLI  ---  ---AS71C
07UniProtVAR_PMRD_ECOLI_007 *C81SPMRD_ECOLI  ---  ---AC81S
08UniProtVAR_PMRD_ECOLI_008 *K82TPMRD_ECOLI  ---  ---AK82T
09UniProtVAR_PMRD_ECOLI_009 *V83APMRD_ECOLI  ---  ---AV83A
10UniProtVAR_PMRD_ECOLI_010 *A84EPMRD_ECOLI  ---  ---AA84E
   * ID not provided by source

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2JSO)

(-) Exons   (0, 0)

(no "Exon" information available for 2JSO)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:88
 aligned with PMRD_ECOLI | P37590 from UniProtKB/Swiss-Prot  Length:88

    Alignment length:88
                                    10        20        30        40        50        60        70        80
            PMRD_ECOLI    1 MEWLVKKSCCNKQDNRHVLMLCDAGGAIKMIAEVKSDFAVKVGDLLSPLQNALYCINREKLHTVKVLSASSYSPDEWERQCKVAGKTQ 88
               SCOP domains ---------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------- CATH domains
               Pfam domains PmrD-2jsoA01 A:1-82                                                               ------ Pfam domains
         Sec.struct. author ..eeeeeee.......eeeeeee......eeeeeee........ee......eeee..eeeeeeeeeeeee.hhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ----------D--N----IK------T-------------------------------------------C---------STAE---- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------- Transcript
                  2jso A  1 MEWLVKKSCCNKQDNRHVLMLCDAGGAIKMIAEVKSDFAVKVGDLLSPLQNALYCINREKLHTVKVLSASSYSPDEWERQCKVAGKTQ 88
                                    10        20        30        40        50        60        70        80

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2JSO)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2JSO)

(-) Pfam Domains  (1, 1)

NMR Structure

(-) Gene Ontology  (1, 1)

NMR Structure(hide GO term definitions)
Chain A   (PMRD_ECOLI | P37590)
biological process
    GO:0046677    response to antibiotic    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an antibiotic stimulus. An antibiotic is a chemical substance produced by a microorganism which has the capacity to inhibit the growth of or to kill other microorganisms.
