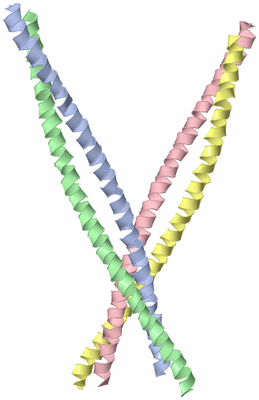

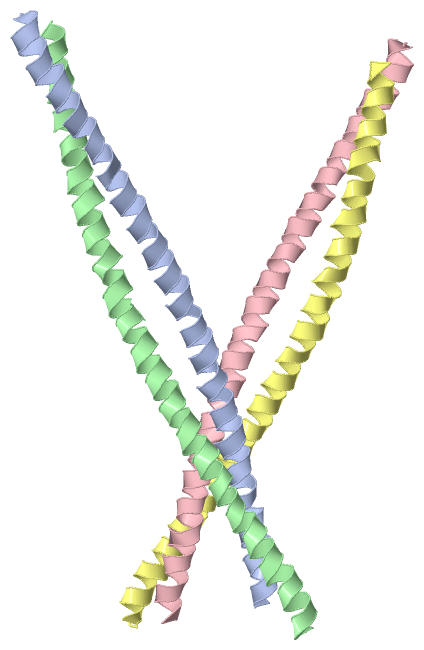

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

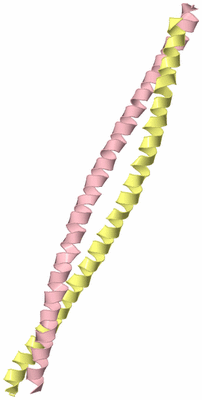

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  XRAY STRUCTURE OF E. COLI YIIU

Authors :  J. Moller-Jensen, K. Gerdes, J. Lowe
Date :  16 Jan 07  (Deposition) - 05 Feb 08  (Release) - 05 Feb 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.80
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Keywords :  Ftsz, Septum, Coiled-Coil, Cell Division, Cell Cycle, Hypothetical Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  G. Ebersbach, E. Galli, J. Moller-Jensen, J. Lowe, K. Gerdes
Novel Coiled-Coil Cell Division Factor Zapb Stimulates Z Ring Assembly And Cell Division.
Mol. Microbiol. V. 68 720 2008
PubMed-ID: 18394147  |  Reference-DOI: 10.1111/J.1365-2958.2008.06190.X

(-) Compounds

Molecule 1 - CELL DIVISION PROTEIN ZAPB
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Synonym: YIIU

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2JEE)

(-) Sites  (0, 0)

(no "Site" information available for 2JEE)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2JEE)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2JEE)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2JEE)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2JEE)

(-) Exons   (0, 0)

(no "Exon" information available for 2JEE)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:79
 aligned with ZAPB_ECOLI | P0AF36 from UniProtKB/Swiss-Prot  Length:81

    Alignment length:79
                                    12        22        32        42        52        62        72
            ZAPB_ECOLI    3 MSLEVFEKLEAKVQQAIDTITLLQMEIEELKEKNNSLSQEVQNAQHQREELERENNHLKEQQNGWQERLQALLGRMEEV 81
               SCOP domains ------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                  2jee A  3 MSLEVFEKLEAKVQQAIDTITLLQMEIEELKEKNNSLSQEVQNAQHQREELERENNHLKEQQNGWQERLQALLGRMEEV 81
                                    12        22        32        42        52        62        72


Chain B from PDB  Type:PROTEIN  Length:79
 aligned with ZAPB_ECOLI | P0AF36 from UniProtKB/Swiss-Prot  Length:81

    Alignment length:79
                                    12        22        32        42        52        62        72
            ZAPB_ECOLI    3 MSLEVFEKLEAKVQQAIDTITLLQMEIEELKEKNNSLSQEVQNAQHQREELERENNHLKEQQNGWQERLQALLGRMEEV 81
               SCOP domains ------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                  2jee B  3 MSLEVFEKLEAKVQQAIDTITLLQMEIEELKEKNNSLSQEVQNAQHQREELERENNHLKEQQNGWQERLQALLGRMEEV 81
                                    12        22        32        42        52        62        72


Chain C from PDB  Type:PROTEIN  Length:79
 aligned with ZAPB_ECOLI | P0AF36 from UniProtKB/Swiss-Prot  Length:81

    Alignment length:79
                                    12        22        32        42        52        62        72
            ZAPB_ECOLI    3 MSLEVFEKLEAKVQQAIDTITLLQMEIEELKEKNNSLSQEVQNAQHQREELERENNHLKEQQNGWQERLQALLGRMEEV 81
               SCOP domains ------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                  2jee C  3 MSLEVFEKLEAKVQQAIDTITLLQMEIEELKEKNNSLSQEVQNAQHQREELERENNHLKEQQNGWQERLQALLGRMEEV 81
                                    12        22        32        42        52        62        72


Chain D from PDB  Type:PROTEIN  Length:79
 aligned with ZAPB_ECOLI | P0AF36 from UniProtKB/Swiss-Prot  Length:81

    Alignment length:79
                                    12        22        32        42        52        62        72
            ZAPB_ECOLI    3 MSLEVFEKLEAKVQQAIDTITLLQMEIEELKEKNNSLSQEVQNAQHQREELERENNHLKEQQNGWQERLQALLGRMEEV 81
               SCOP domains ------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) DUF904-2jeeD01 D:3-81                                                           Pfam domains (1)
           Pfam domains (2) DUF904-2jeeD02 D:3-81                                                           Pfam domains (2)
           Pfam domains (3) DUF904-2jeeD03 D:3-81                                                           Pfam domains (3)
           Pfam domains (4) DUF904-2jeeD04 D:3-81                                                           Pfam domains (4)
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                  2jee D  3 MSLEVFEKLEAKVQQAIDTITLLQMEIEELKEKNNSLSQEVQNAQHQREELERENNHLKEQQNGWQERLQALLGRMEEV 81
                                    12        22        32        42        52        62        72
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2JEE)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2JEE)

(-) Pfam Domains  (1, 4)

Asymmetric Unit
(-)
Clan: no clan defined [family: DUF904] (1)

(-) Gene Ontology  (8, 8)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (ZAPB_ECOLI | P0AF36)
molecular function
    GO:0042802    identical protein binding    Interacting selectively and non-covalently with an identical protein or proteins.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0043093    FtsZ-dependent cytokinesis    A cytokinesis process that involves a set of conserved proteins including FtsZ, and results in the formation of two similarly sized and shaped cells.
    GO:0007049    cell cycle    The progression of biochemical and morphological phases and events that occur in a cell during successive cell replication or nuclear replication events. Canonically, the cell cycle comprises the replication and segregation of genetic material followed by the division of the cell, but in endocycles or syncytial cells nuclear replication or nuclear division may not be followed by cell division.
    GO:0051301    cell division    The process resulting in division and partitioning of components of a cell to form more cells; may or may not be accompanied by the physical separation of a cell into distinct, individually membrane-bounded daughter cells.
cellular component
    GO:0032153    cell division site    The eventual plane of cell division (also known as cell cleavage or cytokinesis) in a dividing cell. In Eukaryotes, the cleavage apparatus, composed of septin structures and the actomyosin contractile ring, forms along this plane, and the mitotic, or meiotic, spindle is aligned perpendicular to the division plane. In bacteria, the cell division site is generally located at mid-cell and is the site at which the cytoskeletal structure, the Z-ring, assembles.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2jee)

  Sites
(no "Sites" information available for 2jee)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2jee)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2jee
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  ZAPB_ECOLI | P0AF36
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  ZAPB_ECOLI | P0AF36
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
