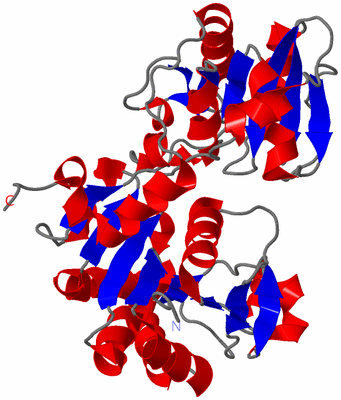

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF GUMK, A BETA-GLUCURONOSYLTRANSFERASE FROM XANTHOMONAS CAMPESTRIS

Authors :  M. Barreras
Date :  04 Aug 06  (Deposition) - 22 Apr 08  (Release) - 21 Jul 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A
Keywords :  Glucuronosyltransferase, Glycosyltransferases, Xanthan, Membrane-Associated Proteins, Xanthomonas Campestris (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Barreras, S. R. Salinas, P. L. Abdian, M. A. Kampel, L. Ielpi
Structure And Mechanism Of Gumk, A Membrane-Associated Glucuronosyltransferase.
J. Biol. Chem. V. 283 25027 2008
PubMed-ID: 18596046  |  Reference-DOI: 10.1074/JBC.M801227200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - GLUCURONOSYLTRANSFERASE GUMK
    Chains: A
    EC Number: 2.4.1.17
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET22(B)
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: GUMK
    Organism Scientific: XANTHOMONAS CAMPESTRIS
    Organism Taxid: 339

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2HY7)

(-) Sites  (0, 0)

(no "Site" information available for 2HY7)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2HY7)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Asp A:215 -Pro A:216

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2HY7)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2HY7)

(-) Exons   (0, 0)

(no "Exon" information available for 2HY7)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:373
 aligned with GUMK_XANCE | Q8GCH2 from UniProtKB/Swiss-Prot  Length:400

    Alignment length:373
                                    22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382
           GUMK_XANCE    13 RRPCYLVLSAHDFRTPRRANIHFITDQLALRGTTRFFSLRYSRLSRMKGDMRLPLDDTANTVVSHNGVDCYLWRTTVHPFNTRRSWLRPVEDAMFRWYAAHPPKQLLDWMRESDVIVFESGIAVAFIELAKRVNPAAKLVYRASDGLSTINVASYIEREFDRVAPTLDVIALVSPAMAAEVASRDNVFHVGHGVDHNLDQLGDPSPYAEGIHAVAVGSMLFDPEFFVVASKAFPQVTFHVIGSGMGRHPGYGDNVIVYGEMKHAQTIGYIKHARFGIAPYASEQVPVYLADSSMKLLQYDFFGLPAVCPNAVVGPYKSRFGYTPGNADSVIAAITQALEAPRVRYRQCLNWSDTTDRVLDPRAYPETRLYPHP 385
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeee.........hhhhhhhhhhhhhh.eeeee.....hhhhhh..hhhhhhhh..eeee..eeeee...........hhhhhhhhhhhhhhhhhh.hhhhhhhhhhh.eeeee.hhhhhhhhhhhhhh...eeeeee..hhhhhh.hhhhhhhhhhhhhhh.eeee.hhhhhhhh.....eee.......hhhhhhh.......eeeeee.....hhhhhhhhhhhh..eeeeee.............eeee...hhhhhhhhhhh..eee..........hhhhhhhhhhhhhhh...eeee.hhh.....eeee...hhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2hy7 A  13 RRPCYLVLSSHDFRTPRRANIHFITDQLALRGTTRFFSLRYSRLSRMKGDMRLPLDDTANTVVSHNGVDCYLWRTTVHPFNTRRSWLRPVEDAMFRWYAAHPPKQLLDWMRESDVIVFESGIAVAFIELAKRVNPAAKLVYRASDGLSTINVASYIEREFDRVAPTLDVIALVSPAMAAEVVSRDNVFHVGHGVDHNLDQLGDPSPYAEGIHAVAVGSMLFDPEFFVVASKAFPQVTFHVIGSGMGRHPGYGDNVIVYGEMKHAQTIGYIKHARFGIAPYASEQVPVYLADSSMKLLQYDFFGLPAVCPNAVVGPYKSRFGYTPGNADSVIAAITQALEAPRVRYRQCLNWSDTTDRVLDPRAYPETRLYPHP 385
                                    22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2HY7)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2HY7)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2HY7)

(-) Gene Ontology  (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (GUMK_XANCE | Q8GCH2)
molecular function
    GO:0015020    glucuronosyltransferase activity    Catalysis of the reaction: UDP-glucuronate + acceptor = UDP + acceptor beta-D-glucuronoside.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0016757    transferase activity, transferring glycosyl groups    Catalysis of the transfer of a glycosyl group from one compound (donor) to another (acceptor).
biological process
    GO:0005975    carbohydrate metabolic process    The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
    GO:0000271    polysaccharide biosynthetic process    The chemical reactions and pathways resulting in the formation of a polysaccharide, a polymer of many (typically more than 10) monosaccharide residues linked glycosidically.
cellular component
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2hy7)

  Sites
(no "Sites" information available for 2hy7)

  Cis Peptide Bonds
    Asp A:215 - Pro A:216   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2hy7
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  GUMK_XANCE | Q8GCH2
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.4.1.17
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  GUMK_XANCE | Q8GCH2
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        GUMK_XANCE | Q8GCH2: 2q6v 3cuy 3cv3

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2HY7)
