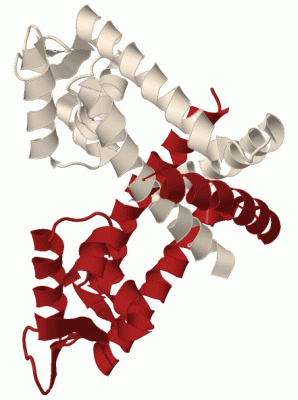

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

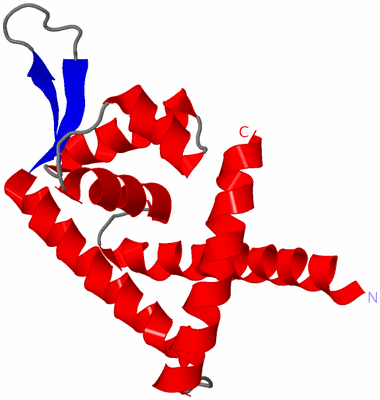

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

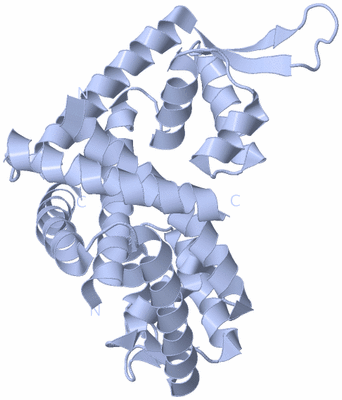

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF EMRR HOMOLOG FROM HYPERTHERMOPHILIC ARCHAEA SULFOLOBUS TOKODAII STRAIN7

Authors :  K. Miyazono, M. Tsujimura, Y. Kawarabayasi, M. Tanokura
Date :  08 May 06  (Deposition) - 20 Mar 07  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.45
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Winged Helix, Transcription (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. Miyazono, M. Tsujimura, Y. Kawarabayasi, M. Tanokura
Crystal Structure Of Archaeal Homolog Of Multi Drug Resistance Repressor Protein, Emrr, From Hyperthermophilic Archaea Sulfolobus Tokodaii Strain7
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - 146AA LONG HYPOTHETICAL TRANSCRIPTIONAL REGULATOR
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: SULFOLOBUS TOKODAII
    Organism Taxid: 111955
    Strain: STRAIN7
    Synonym: TRANSCRIPTIONAL REPRESSOR PROTEIN

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2GXG)

(-) Sites  (0, 0)

(no "Site" information available for 2GXG)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2GXG)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2GXG)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2GXG)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2GXG)

(-) Exons   (0, 0)

(no "Exon" information available for 2GXG)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:140
 aligned with Q96ZY1_SULTO | Q96ZY1 from UniProtKB/TrEMBL  Length:146

    Alignment length:140
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145
         Q96ZY1_SULTO     6 ENRIQIMSTIAKIYRAMSRELNRRLGELNLSYLDFLVLRATSDGPKTMAYLANRYFVTQSAITASVDKLEEMGLVVRVRDREDRRKILIEITEKGLETFNKGIEIYKKLANEVTGDLSEDEVILVLDKISKILKRIEEIS 145
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhh....hhhhhhhhh..hhhhhhhhhhhhhhh..eeeee.......eeeeehhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2gxg A   6 ENRIQIMSTIAKIYRAMSRELNRRLGELNLSYLDFLVLRATSDGPKTMAYLANRYFVTQSAITASVDKLEEMGLVVRVRDREDRRKILIEITEKGLETFNKGIEIYKKLANEVTGDLSEDEVILVLDKISKILKRIEEIS 145
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2GXG)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2GXG)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2GXG)

(-) Gene Ontology  (5, 5)

Asymmetric Unit(hide GO term definitions)
Chain A   (Q96ZY1_SULTO | Q96ZY1)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0003700    transcription factor activity, sequence-specific DNA binding    Interacting selectively and non-covalently with a specific DNA sequence in order to modulate transcription. The transcription factor may or may not also interact selectively with a protein or macromolecular complex.
biological process
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2gxg)

  Sites
(no "Sites" information available for 2gxg)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2gxg)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

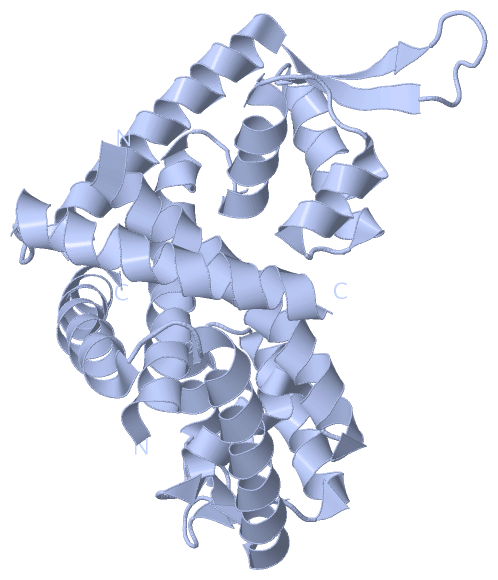

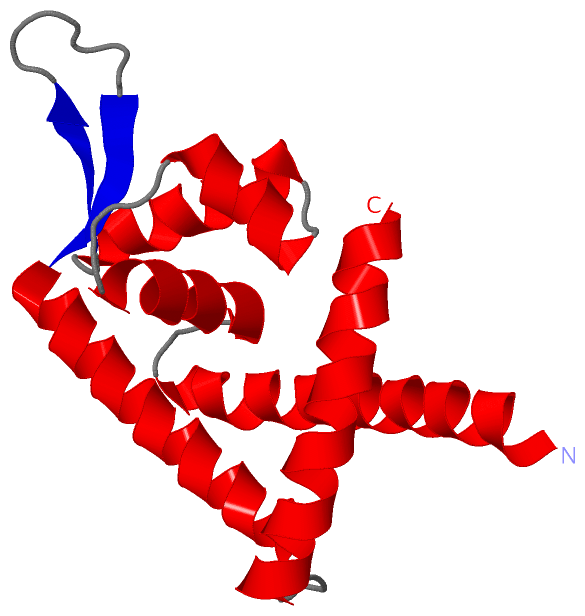

[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2gxg
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q96ZY1_SULTO | Q96ZY1
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q96ZY1_SULTO | Q96ZY1
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q96ZY1_SULTO | Q96ZY1: 2eb7 2yr2 3gez 3gf2 3gfi 3gfj 3gfl 3gfm
