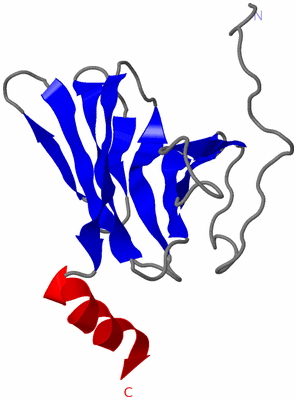

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)
Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR STRUCTURE OF SMP-1 (SMALL MYRISTOYLATED PROTEIN) FROM LEISHMANIA MAJOR

Authors :  P. R. Gooley, H. D. T. Mertens, D. Tull, M. J. Mcconville
Date :  14 Dec 05  (Deposition) - 05 Dec 06  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (24x)
Keywords :  Beta Sheet, Protein Transport, Membrane Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Tull, H. D. T. Mertens, P. R. Gooley, M. J. Mcconville
Function, Membrane Targetting And Structure Of Smp-1
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - SMALL MYRISTOYLATED PROTEIN 1
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PGEX-6P-3
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Scientific: LEISHMANIA MAJOR
    Organism Taxid: 5664
    Synonym: SMP-1

 Structural Features

(-) Chains, Units


NMR Structure (24x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2FE0)

(-) Sites  (0, 0)

(no "Site" information available for 2FE0)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2FE0)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2FE0)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2FE0)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2FE0)

(-) Exons   (0, 0)

(no "Exon" information available for 2FE0)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:131
 aligned with Q5SDH5_LEIMA | Q5SDH5 from UniProtKB/TrEMBL  Length:131

    Alignment length:131
                                    10        20        30        40        50        60        70        80        90       100       110       120       130
         Q5SDH5_LEIMA     1 MGCGASSENSSVTYVNGRPTFVGEEVTKGFEKDNGLLFRIVNKKKKQWAYYNDTTQYEMHVLVTFNEDCDIKALGKTKLEQQENGEWVASVVVYPCETEMFIEGRVNGFKSKMDALPLSEEYRQHQAEKDK 131
               SCOP domains d2fe0a1 A:1-131 Small myristoylated protein 1, Smp-1                                                                                SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........................eeee........eeeeee....eeeeee....eeeeeeeeee....eee....eeee....eeeeeeee....eeeeeee....eeeeeeeee.hhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2fe0 A   1 MGCGASSENSSVTYVNGRPTFVGEEVTKGFEKDNGLLFRIVNKKKKQWAYYNDTTQYEMHVLVTFNEDCDIKALGKTKLEQQENGEWVASVVVYPCETEMFIEGRVNGFKSKMDALPLSEEYRQHQAEKDK 131
                                    10        20        30        40        50        60        70        80        90       100       110       120       130
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2FE0)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2FE0)

(-) Gene Ontology  (1, 1)

NMR Structure(hide GO term definitions)
Chain A   (Q5SDH5_LEIMA | Q5SDH5)
cellular component
    GO:0060170    ciliary membrane    The portion of the plasma membrane surrounding a cilium.
