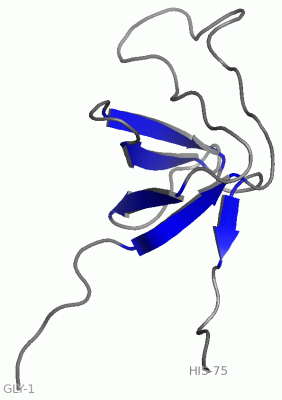

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

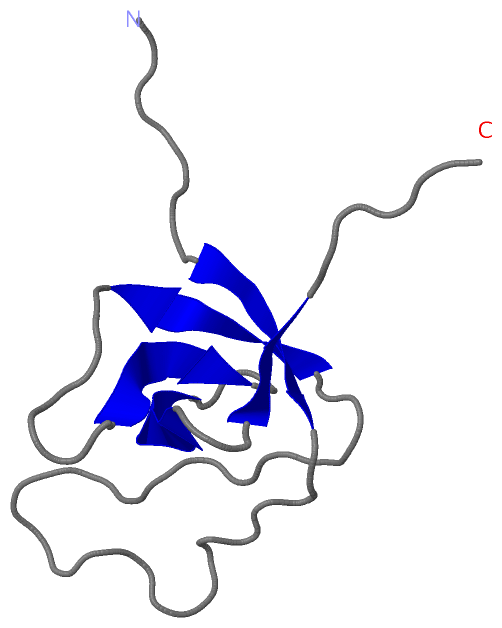

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

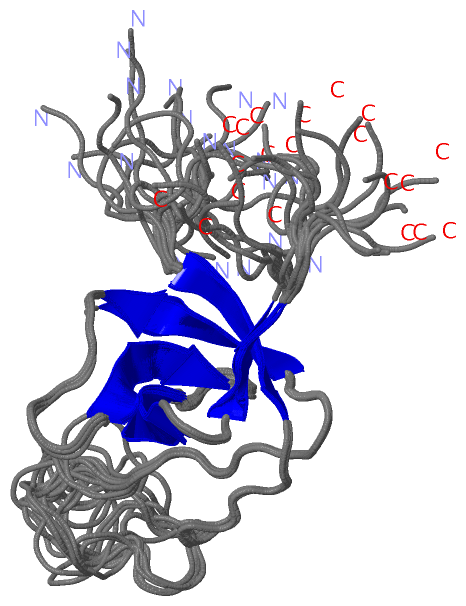

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE THIRD SH3 DOMAIN FROM HUMAN KIAA1666 PROTEIN

Authors :  K. Inoue, T. Nagashima, F. Hayashi, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  28 Feb 07  (Deposition) - 28 Aug 07  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Sh3 Domain, Kiaa1666 Protein, Nppsfa, National Project On Protein Structural And Functional Analyses, Riken Structural Genomics/Proteomics Initiative, Rsgi, Structural Genomics, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. Inoue, T. Nagashima, F. Hayashi, S. Yokoyama
Solution Structure Of The Third Sh3 Domain From Human Kiaa1666 Protein
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - UNCHARACTERIZED PROTEIN KIAA1666
    Chains: A
    Engineered: YES
    Expression System Plasmid: P060227-11
    Expression System Vector Type: PLASMID
    Fragment: SH3 DOMAIN
    Gene: KIAA1666
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Other Details: CELL-FREE PROTEIN SYNTHESIS

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2EGE)

(-) Sites  (0, 0)

(no "Site" information available for 2EGE)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2EGE)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2EGE)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2EGE)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1SH3PS50002 Src homology 3 (SH3) domain profile.RIM3A_HUMAN832-899
1569-1636		  1-
A:8-72

(-) Exons   (0, 0)

(no "Exon" information available for 2EGE)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:75
 aligned with RIM3A_HUMAN | Q9UFD9 from UniProtKB/Swiss-Prot  Length:1639

    Alignment length:86
                                  1563      1573      1583      1593      1603      1613      1623      1633
         RIM3A_HUMAN   1554 GSSLVLQGNSKRLPLWTPKIMIAALDYDPGDGQMGGQGKGRLALRAGDVVMVYGPMDDQGFYYGELGGHRGLVPAHLLDHMSLHGH 1639
               SCOP domains -------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...----....-------eeeee.........................eeeee.......eeeee....eeeee...eee...... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------SH3  PDB: A:8-72 UniProt: 1569-1636                                 --- PROSITE
                 Transcript -------------------------------------------------------------------------------------- Transcript
                2ege A    1 GSS----GSSG-------KIMIAALDYDPGDGQMGGQGKGRLALRAGDVVMVYGPMDDQGFYYGELGGHRGLVPAHLLDHMSLHGH   75
                              |    | 6|       |9        19        29        39        49        59        69
                              3    4  7       8
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2EGE)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2EGE)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2EGE)

(-) Gene Ontology  (1, 1)

NMR Structure(hide GO term definitions)
Chain A   (RIM3A_HUMAN | Q9UFD9)
molecular function
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
