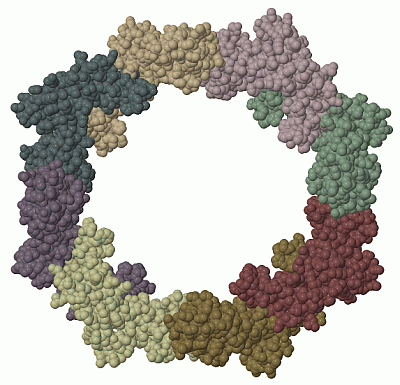

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

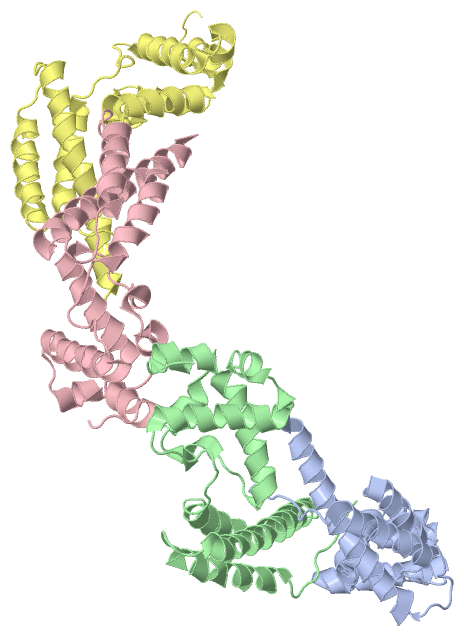

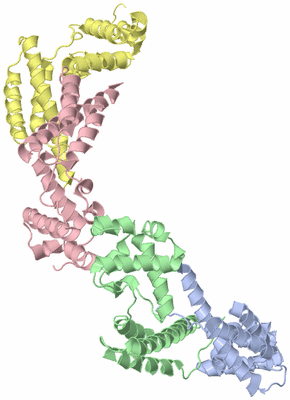

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

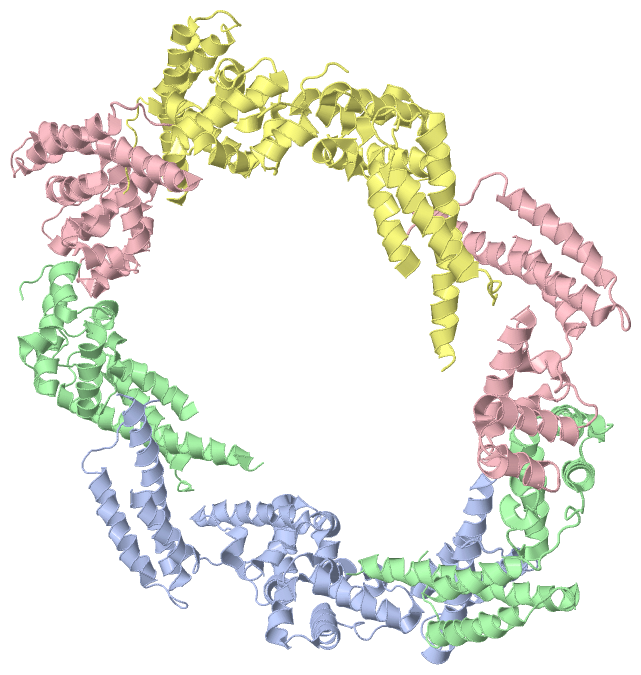

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF RNA SILENCING SUPPRESSOR P21 FROM BEET YELLOWS VIRUS

Authors :  K. Ye, D. J. Patel
Date :  22 Jun 05  (Deposition) - 11 Oct 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.30
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,B,C,D  (2x)
Keywords :  Octamer, Ring, Head-To-Head, Tail-To-Tail, All Alpha Helical, Rna- Binding Protein, Rna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. Ye, D. J. Patel
Rna Silencing Suppressor P21 Of Beet Yellows Virus Forms An Rna Binding Octameric Ring Structure
Structure V. 13 1375 2005
PubMed-ID: 16154094  |  Reference-DOI: 10.1016/J.STR.2005.06.017

(-) Compounds

Molecule 1 - RNA SILENCING SUPPRESSOR
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET28A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: P21
    Organism Scientific: BEET YELLOWS VIRUS
    Organism Taxid: 12161
    Synonym: P21

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (2x): ABCD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2CWO)

(-) Sites  (0, 0)

(no "Site" information available for 2CWO)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2CWO)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2CWO)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2CWO)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2CWO)

(-) Exons   (0, 0)

(no "Exon" information available for 2CWO)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:165
 aligned with P21_BYVU | Q08545 from UniProtKB/Swiss-Prot  Length:177

    Alignment length:177
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170
             P21_BYVU     1 MKFFLKDGETSRALSRSESLLRRVKELGTNSQQSEISECVDEFNELASFNHLLVTVEHREWMEQHPNQSSKLRVPSRIGEMLKEIRAFLKVRVVTPMHKETASDTLNAFLEEYCRITGLAREDALREKMRKVKSVVLFHHSELLKFEVTENMFSYTELLKLNLSLRVISSQILGMAI 177
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..------------hhhhhhhhhhhhhh..........hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhh.hhhhhhh..hhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2cwo A   1 MKFFLKDGETSRALSRSESLLRRVKELGTNSQQSEISECVDEFNELASFNHLLVTVEHREWMEQ------------RIGEMLKEIRAFLKVRVVTPMHKETASDTLNAFLEEYCRITGLAREDALREKMRKVKSVVLFHHSELLKFEVTENMFSYTELLKLNLSLRVISSQILGMAI 177
                                    10        20        30        40        50        60   |     -      | 80        90       100       110       120       130       140       150       160       170
                                                                                          64           77


Chain B from PDB  Type:PROTEIN  Length:165
 aligned with P21_BYVU | Q08545 from UniProtKB/Swiss-Prot  Length:177

    Alignment length:177
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170
             P21_BYVU     1 MKFFLKDGETSRALSRSESLLRRVKELGTNSQQSEISECVDEFNELASFNHLLVTVEHREWMEQHPNQSSKLRVPSRIGEMLKEIRAFLKVRVVTPMHKETASDTLNAFLEEYCRITGLAREDALREKMRKVKSVVLFHHSELLKFEVTENMFSYTELLKLNLSLRVISSQILGMAI 177
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..------------hhhhhhhhhhhhhh..........hhhhhhhhhhhhhhhhhh.hhhhhh..hhhhhhhhhhhhhhhhhh...hhhhh.hhhhhhh..hhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2cwo B   1 MKFFLKDGETSRALSRSESLLRRVKELGTNSQQSEISECVDEFNELASFNHLLVTVEHREWMEQ------------RIGEMLKEIRAFLKVRVVTPMHKETASDTLNAFLEEYCRITGLAREDALREKMRKVKSVVLFHHSELLKFEVTENMFSYTELLKLNLSLRVISSQILGMAI 177
                                    10        20        30        40        50        60   |     -      | 80        90       100       110       120       130       140       150       160       170
                                                                                          64           77


Chain C from PDB  Type:PROTEIN  Length:165
 aligned with P21_BYVU | Q08545 from UniProtKB/Swiss-Prot  Length:177

    Alignment length:177
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170
             P21_BYVU     1 MKFFLKDGETSRALSRSESLLRRVKELGTNSQQSEISECVDEFNELASFNHLLVTVEHREWMEQHPNQSSKLRVPSRIGEMLKEIRAFLKVRVVTPMHKETASDTLNAFLEEYCRITGLAREDALREKMRKVKSVVLFHHSELLKFEVTENMFSYTELLKLNLSLRVISSQILGMAI 177
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.------------hhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhh.hhhhhh..hhhhhhhhhhhhhhhhhh...hhhhh.hhhhhhh..hhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2cwo C   1 MKFFLKDGETSRALSRSESLLRRVKELGTNSQQSEISECVDEFNELASFNHLLVTVEHREWMEQ------------RIGEMLKEIRAFLKVRVVTPMHKETASDTLNAFLEEYCRITGLAREDALREKMRKVKSVVLFHHSELLKFEVTENMFSYTELLKLNLSLRVISSQILGMAI 177
                                    10        20        30        40        50        60   |     -      | 80        90       100       110       120       130       140       150       160       170
                                                                                          64           77


Chain D from PDB  Type:PROTEIN  Length:165
 aligned with P21_BYVU | Q08545 from UniProtKB/Swiss-Prot  Length:177

    Alignment length:177
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170
             P21_BYVU     1 MKFFLKDGETSRALSRSESLLRRVKELGTNSQQSEISECVDEFNELASFNHLLVTVEHREWMEQHPNQSSKLRVPSRIGEMLKEIRAFLKVRVVTPMHKETASDTLNAFLEEYCRITGLAREDALREKMRKVKSVVLFHHSELLKFEVTENMFSYTELLKLNLSLRVISSQILGMAI 177
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..------------hhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhh.hhhhhhh..hhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2cwo D   1 MKFFLKDGETSRALSRSESLLRRVKELGTNSQQSEISECVDEFNELASFNHLLVTVEHREWMEQ------------RIGEMLKEIRAFLKVRVVTPMHKETASDTLNAFLEEYCRITGLAREDALREKMRKVKSVVLFHHSELLKFEVTENMFSYTELLKLNLSLRVISSQILGMAI 177
                                    10        20        30        40        50        60   |     -      | 80        90       100       110       120       130       140       150       160       170
                                                                                          64           77
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2CWO)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2CWO)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2CWO)

(-) Gene Ontology  (2, 2)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (P21_BYVU | Q08545)
molecular function
    GO:0003723    RNA binding    Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
cellular component
    GO:0030430    host cell cytoplasm    The cytoplasm of a host cell.
