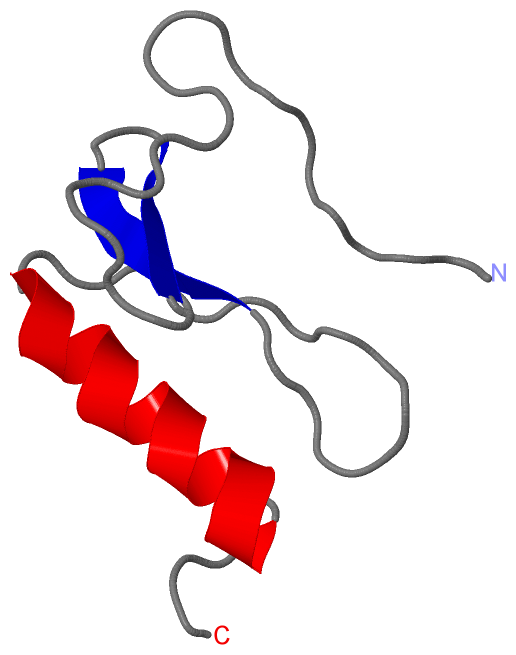

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)
Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE AND INTERACTIONS OF THE E .COLI CELL DIVISION ACTIVATOR PROTEIN CEDA

Authors :  H. A. Chen, P. Simpson, T. Huyton, D. Roper, S. Matthews
Date :  22 Mar 05  (Deposition) - 21 Dec 06  (Release) - 19 Apr 17  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A
NMR Structure *:  A  (1x)
Keywords :  Ceda, Cell Division Activator Protein, Cell Cycle Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. A. Chen, P. Simpson, T. Huyton, D. Roper, S. Matthews
Solution Structure And Interactions Of The Escherichia Coli Cell Division Activator Protein Ceda.
Biochemistry V. 44 6738 2005
PubMed-ID: 15865419  |  Reference-DOI: 10.1021/BI0500269

(-) Compounds

Molecule 1 - CELL DIVISION ACTIVATOR CEDA
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Synonym: CEDA

 Structural Features

(-) Chains, Units

  1
NMR Structure : A
NMR Structure * (1x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2BN8)

(-) Sites  (0, 0)

(no "Site" information available for 2BN8)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2BN8)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2BN8)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2BN8)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2BN8)

(-) Exons   (0, 0)

(no "Exon" information available for 2BN8)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:67
 aligned with CEDA_ECO57 | P0AE61 from UniProtKB/Swiss-Prot  Length:80

    Alignment length:67
                                    23        33        43        53        63        73
            CEDA_ECO57   14 SYVPRTEPAPPEHAIKMDSFRDVWMLRGKYVAFVLMGESFLRSPAFTVPESAQRWANQIRQEGEVTE 80
               SCOP domains ------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......................eeee..eeee...............hhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------- Transcript
                  2bn8 A 21 SYVPRTEPAPPEHAIKMDSFRDVWMLRGKYVAFVLMGESFLRSPAFTVPESAQRWANQIRQEGEVTE 87
                                    30        40        50        60        70        80


Chain A from PDB  Type:PROTEIN  Length:67
 aligned with CEDA_ECOLI | P0AE60 from UniProtKB/Swiss-Prot  Length:80

    Alignment length:67
                                    23        33        43        53        63        73
            CEDA_ECOLI   14 SYVPRTEPAPPEHAIKMDSFRDVWMLRGKYVAFVLMGESFLRSPAFTVPESAQRWANQIRQEGEVTE 80
               SCOP domains ------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......................eeee..eeee...............hhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------- Transcript
                  2bn8 A 21 SYVPRTEPAPPEHAIKMDSFRDVWMLRGKYVAFVLMGESFLRSPAFTVPESAQRWANQIRQEGEVTE 87
                                    30        40        50        60        70        80


Chain A from PDB  Type:PROTEIN  Length:67
 aligned with CEDA_SHIFL | P0AE62 from UniProtKB/Swiss-Prot  Length:80

    Alignment length:67
                                    23        33        43        53        63        73
            CEDA_SHIFL   14 SYVPRTEPAPPEHAIKMDSFRDVWMLRGKYVAFVLMGESFLRSPAFTVPESAQRWANQIRQEGEVTE 80
               SCOP domains ------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......................eeee..eeee...............hhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------- Transcript
                  2bn8 A 21 SYVPRTEPAPPEHAIKMDSFRDVWMLRGKYVAFVLMGESFLRSPAFTVPESAQRWANQIRQEGEVTE 87
                                    30        40        50        60        70        80
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2BN8)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2BN8)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2BN8)

(-) Gene Ontology  (5, 11)

NMR Structure(hide GO term definitions)
Chain A   (CEDA_SHIFL | P0AE62)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
    GO:0007049    cell cycle    The progression of biochemical and morphological phases and events that occur in a cell during successive cell replication or nuclear replication events. Canonically, the cell cycle comprises the replication and segregation of genetic material followed by the division of the cell, but in endocycles or syncytial cells nuclear replication or nuclear division may not be followed by cell division.
    GO:0051301    cell division    The process resulting in division and partitioning of components of a cell to form more cells; may or may not be accompanied by the physical separation of a cell into distinct, individually membrane-bounded daughter cells.

Chain A   (CEDA_ECO57 | P0AE61)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
    GO:0007049    cell cycle    The progression of biochemical and morphological phases and events that occur in a cell during successive cell replication or nuclear replication events. Canonically, the cell cycle comprises the replication and segregation of genetic material followed by the division of the cell, but in endocycles or syncytial cells nuclear replication or nuclear division may not be followed by cell division.
    GO:0051301    cell division    The process resulting in division and partitioning of components of a cell to form more cells; may or may not be accompanied by the physical separation of a cell into distinct, individually membrane-bounded daughter cells.

Chain A   (CEDA_ECOLI | P0AE60)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0007049    cell cycle    The progression of biochemical and morphological phases and events that occur in a cell during successive cell replication or nuclear replication events. Canonically, the cell cycle comprises the replication and segregation of genetic material followed by the division of the cell, but in endocycles or syncytial cells nuclear replication or nuclear division may not be followed by cell division.
    GO:0051301    cell division    The process resulting in division and partitioning of components of a cell to form more cells; may or may not be accompanied by the physical separation of a cell into distinct, individually membrane-bounded daughter cells.
    GO:0051302    regulation of cell division    Any process that modulates the frequency, rate or extent of the physical partitioning and separation of a cell into daughter cells.
