(-) Description

Title :  X-RAY CRYSTAL STRUCTURE OF PROTEIN ATU4242 FROM AGROBACTERIUM TUMEFACIENS. NORTHEAST STRUCUTRAL GENOMICS CONSORTIUM TARGET ATR43.

Authors :  J. Benach, A. P. Kuzin, F. Forouhar, M. Abashidze, S. M. Vorobiev, X. Ron T. B. Acton, G. T. Montelione, J. F. Hunt, Northeast Structural Geno Consortium (Nesg)
Date :  15 Aug 05  (Deposition) - 01 Nov 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym./Biol. Unit :  A,B,C,D,E,F,G,H
Keywords :  Structural Genomics, Psi, Protein Structure Initiative, Northeast Structural Genomics Consortium, Nesg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. Benach, A. P. Kuzin, F. Forouhar, M. Abashidze, S. M. Vorobiev, X. Rong, T. B. Acton, G. T. Montelione, J. F. Hunt
Crystal Structure Of A Hypothetical Protein Atu4242 From Agrobacterium Tumefaciens (Strain C58 / Atcc 3 Nesg Target Atr43.
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN ATU4242
    Atcc: 33970
    Chains: A, B, C, D, E, F, G, H
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: ATU4242
    Organism Scientific: AGROBACTERIUM TUMEFACIENS STR.
    Organism Taxid: 176299
    Strain: C58
    Synonym: AGR_L_1239P

 Structural Features

(-) Chains, Units

  12345678
Asymmetric/Biological Unit : ABCDEFGH

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 32)

Asymmetric/Biological Unit (1, 32)
No.NameCountTypeFull Name
1MSE32Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 2AP6)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2AP6)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2AP6)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2AP6)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2AP6)

(-) Exons   (0, 0)

(no "Exon" information available for 2AP6)

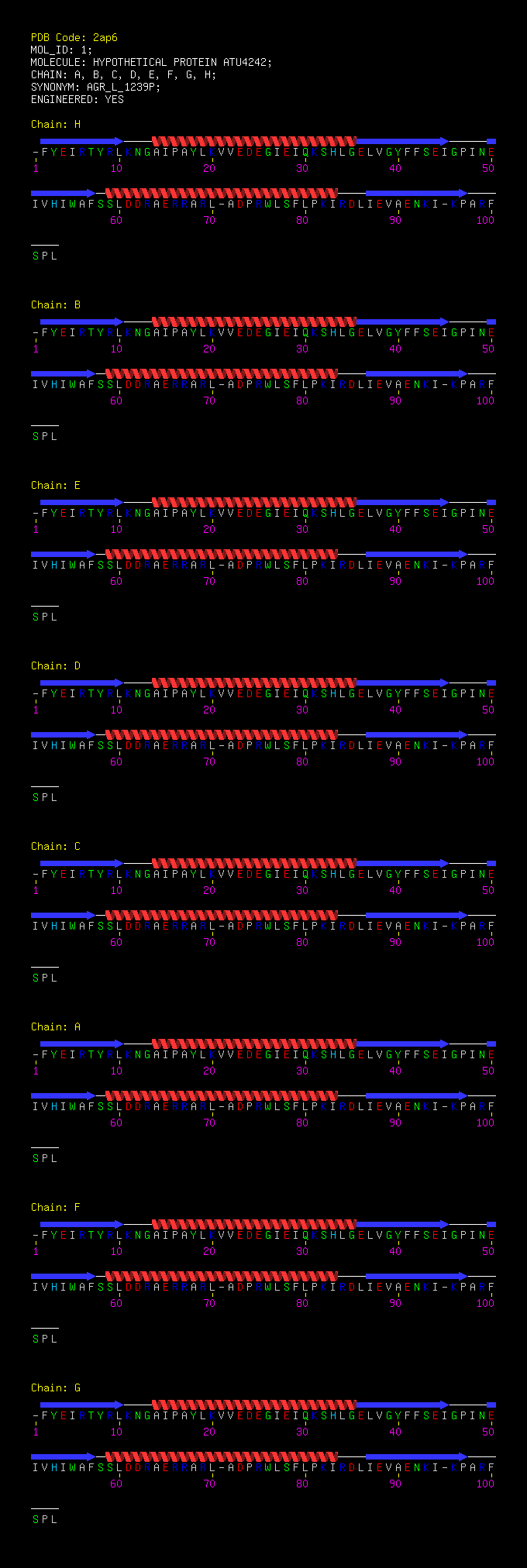

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:104
 aligned with A9CGA4_AGRFC | A9CGA4 from UniProtKB/TrEMBL  Length:104

    Alignment length:104
                                    10        20        30        40        50        60        70        80        90       100
         A9CGA4_AGRFC     1 MFYEIRTYRLKNGAIPAYLKVVEDEGIEIQKSHLGELVGYFFSEIGPINEIVHIWAFSSLDDRAERRARLMADPRWLSFLPKIRDLIEVAENKIMKPARFSPLM 104
               SCOP domains d2ap6a1 A:1-104 Hypothetical protein Atu4242                                                             SCOP domains
               CATH domains -2ap6A00 A:2-103  [code=3.30.70.900, no name defined]                                                  - CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeee...hhhhhhhhhhhhhhhhhhhhhheeeeeeeeee....eeeeeeee.hhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeeeeeee....... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 2ap6 A   1 mFYEIRTYRLKNGAIPAYLKVVEDEGIEIQKSHLGELVGYFFSEIGPINEIVHIWAFSSLDDRAERRARLmADPRWLSFLPKIRDLIEVAENKImKPARFSPLm 104
                            |       10        20        30        40        50        60        70|       80        90    |  100   |
                            |                                                                    71-MSE                  95-MSE  104-MSE
                            1-MSE


Chain B from PDB  Type:PROTEIN  Length:104
 aligned with A9CGA4_AGRFC | A9CGA4 from UniProtKB/TrEMBL  Length:104

    Alignment length:104
                                    10        20        30        40        50        60        70        80        90       100
         A9CGA4_AGRFC     1 MFYEIRTYRLKNGAIPAYLKVVEDEGIEIQKSHLGELVGYFFSEIGPINEIVHIWAFSSLDDRAERRARLMADPRWLSFLPKIRDLIEVAENKIMKPARFSPLM 104
               SCOP domains d2ap6b_ B: Hypothetical protein Atu4242                                                                  SCOP domains
               CATH domains -2ap6B00 B:2-103  [code=3.30.70.900, no name defined]                                                  - CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeee...hhhhhhhhhhhhhhhhhhhhhheeeeeeeeee....eeeeeeee.hhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeeeeeee....... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 2ap6 B   1 mFYEIRTYRLKNGAIPAYLKVVEDEGIEIQKSHLGELVGYFFSEIGPINEIVHIWAFSSLDDRAERRARLmADPRWLSFLPKIRDLIEVAENKImKPARFSPLm 104
                            |       10        20        30        40        50        60        70|       80        90    |  100   |
                            |                                                                    71-MSE                  95-MSE  104-MSE
                            1-MSE


Chain C from PDB  Type:PROTEIN  Length:104
 aligned with A9CGA4_AGRFC | A9CGA4 from UniProtKB/TrEMBL  Length:104

    Alignment length:104
                                    10        20        30        40        50        60        70        80        90       100
         A9CGA4_AGRFC     1 MFYEIRTYRLKNGAIPAYLKVVEDEGIEIQKSHLGELVGYFFSEIGPINEIVHIWAFSSLDDRAERRARLMADPRWLSFLPKIRDLIEVAENKIMKPARFSPLM 104
               SCOP domains d2ap6c_ C: Hypothetical protein Atu4242                                                                  SCOP domains
               CATH domains -2ap6C00 C:2-103  [code=3.30.70.900, no name defined]                                                  - CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeee...hhhhhhhhhhhhhhhhhhhhhheeeeeeeeee....eeeeeeee.hhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeeeeeee....... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 2ap6 C   1 mFYEIRTYRLKNGAIPAYLKVVEDEGIEIQKSHLGELVGYFFSEIGPINEIVHIWAFSSLDDRAERRARLmADPRWLSFLPKIRDLIEVAENKImKPARFSPLm 104
                            |       10        20        30        40        50        60        70|       80        90    |  100   |
                            |                                                                    71-MSE                  95-MSE  104-MSE
                            1-MSE


Chain D from PDB  Type:PROTEIN  Length:104
 aligned with A9CGA4_AGRFC | A9CGA4 from UniProtKB/TrEMBL  Length:104

    Alignment length:104
                                    10        20        30        40        50        60        70        80        90       100
         A9CGA4_AGRFC     1 MFYEIRTYRLKNGAIPAYLKVVEDEGIEIQKSHLGELVGYFFSEIGPINEIVHIWAFSSLDDRAERRARLMADPRWLSFLPKIRDLIEVAENKIMKPARFSPLM 104
               SCOP domains d2ap6d_ D: Hypothetical protein Atu4242                                                                  SCOP domains
               CATH domains -2ap6D00 D:2-103  [code=3.30.70.900, no name defined]                                                  - CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeee...hhhhhhhhhhhhhhhhhhhhhheeeeeeeeee....eeeeeeee.hhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeeeeeee....... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 2ap6 D   1 mFYEIRTYRLKNGAIPAYLKVVEDEGIEIQKSHLGELVGYFFSEIGPINEIVHIWAFSSLDDRAERRARLmADPRWLSFLPKIRDLIEVAENKImKPARFSPLm 104
                            |       10        20        30        40        50        60        70|       80        90    |  100   |
                            |                                                                    71-MSE                  95-MSE  104-MSE
                            1-MSE


Chain E from PDB  Type:PROTEIN  Length:104
 aligned with A9CGA4_AGRFC | A9CGA4 from UniProtKB/TrEMBL  Length:104

    Alignment length:104
                                    10        20        30        40        50        60        70        80        90       100
         A9CGA4_AGRFC     1 MFYEIRTYRLKNGAIPAYLKVVEDEGIEIQKSHLGELVGYFFSEIGPINEIVHIWAFSSLDDRAERRARLMADPRWLSFLPKIRDLIEVAENKIMKPARFSPLM 104
               SCOP domains d2ap6e_ E: Hypothetical protein Atu4242                                                                  SCOP domains
               CATH domains -2ap6E00 E:2-103  [code=3.30.70.900, no name defined]                                                  - CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeee...hhhhhhhhhhhhhhhhhhhhhheeeeeeeeee....eeeeeeee.hhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeeeeeee....... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 2ap6 E   1 mFYEIRTYRLKNGAIPAYLKVVEDEGIEIQKSHLGELVGYFFSEIGPINEIVHIWAFSSLDDRAERRARLmADPRWLSFLPKIRDLIEVAENKImKPARFSPLm 104
                            |       10        20        30        40        50        60        70|       80        90    |  100   |
                            |                                                                    71-MSE                  95-MSE  104-MSE
                            1-MSE


Chain F from PDB  Type:PROTEIN  Length:104
 aligned with A9CGA4_AGRFC | A9CGA4 from UniProtKB/TrEMBL  Length:104

    Alignment length:104
                                    10        20        30        40        50        60        70        80        90       100
         A9CGA4_AGRFC     1 MFYEIRTYRLKNGAIPAYLKVVEDEGIEIQKSHLGELVGYFFSEIGPINEIVHIWAFSSLDDRAERRARLMADPRWLSFLPKIRDLIEVAENKIMKPARFSPLM 104
               SCOP domains d2ap6f_ F: Hypothetical protein Atu4242                                                                  SCOP domains
               CATH domains -2ap6F00 F:2-103  [code=3.30.70.900, no name defined]                                                  - CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeee...hhhhhhhhhhhhhhhhhhhhhheeeeeeeeee....eeeeeeee.hhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeeeeeee....... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 2ap6 F   1 mFYEIRTYRLKNGAIPAYLKVVEDEGIEIQKSHLGELVGYFFSEIGPINEIVHIWAFSSLDDRAERRARLmADPRWLSFLPKIRDLIEVAENKImKPARFSPLm 104
                            |       10        20        30        40        50        60        70|       80        90    |  100   |
                            |                                                                    71-MSE                  95-MSE  104-MSE
                            1-MSE


Chain G from PDB  Type:PROTEIN  Length:104
 aligned with A9CGA4_AGRFC | A9CGA4 from UniProtKB/TrEMBL  Length:104

    Alignment length:104
                                    10        20        30        40        50        60        70        80        90       100
         A9CGA4_AGRFC     1 MFYEIRTYRLKNGAIPAYLKVVEDEGIEIQKSHLGELVGYFFSEIGPINEIVHIWAFSSLDDRAERRARLMADPRWLSFLPKIRDLIEVAENKIMKPARFSPLM 104
               SCOP domains d2ap6g_ G: Hypothetical protein Atu4242                                                                  SCOP domains
               CATH domains -2ap6G00 G:2-103  [code=3.30.70.900, no name defined]                                                  - CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeee...hhhhhhhhhhhhhhhhhhhhhheeeeeeeeee....eeeeeeee.hhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeeeeeee....... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 2ap6 G   1 mFYEIRTYRLKNGAIPAYLKVVEDEGIEIQKSHLGELVGYFFSEIGPINEIVHIWAFSSLDDRAERRARLmADPRWLSFLPKIRDLIEVAENKImKPARFSPLm 104
                            |       10        20        30        40        50        60        70|       80        90    |  100   |
                            |                                                                    71-MSE                  95-MSE  104-MSE
                            1-MSE


Chain H from PDB  Type:PROTEIN  Length:104
 aligned with A9CGA4_AGRFC | A9CGA4 from UniProtKB/TrEMBL  Length:104

    Alignment length:104
                                    10        20        30        40        50        60        70        80        90       100
         A9CGA4_AGRFC     1 MFYEIRTYRLKNGAIPAYLKVVEDEGIEIQKSHLGELVGYFFSEIGPINEIVHIWAFSSLDDRAERRARLMADPRWLSFLPKIRDLIEVAENKIMKPARFSPLM 104
               SCOP domains d2ap6h_ H: Hypothetical protein Atu4242                                                                  SCOP domains
               CATH domains -2ap6H00 H:2-103  [code=3.30.70.900, no name defined]                                                  - CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeee...hhhhhhhhhhhhhhhhhhhhhheeeeeeeeee....eeeeeeee.hhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeeeeeee....... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 2ap6 H   1 mFYEIRTYRLKNGAIPAYLKVVEDEGIEIQKSHLGELVGYFFSEIGPINEIVHIWAFSSLDDRAERRARLmADPRWLSFLPKIRDLIEVAENKImKPARFSPLm 104
                            |       10        20        30        40        50        60        70|       80        90    |  100   |
                            |                                                                    71-MSE                  95-MSE  104-MSE
                            1-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 8)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 8)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2AP6)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 2AP6)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 2ap6)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2ap6)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2ap6
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  A9CGA4_AGRFC | A9CGA4
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  A9CGA4_AGRFC | A9CGA4
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 2AP6)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2AP6)
