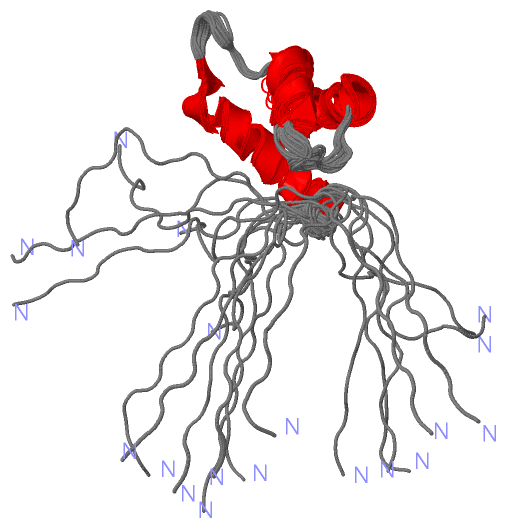

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE C-TERMINAL RPON DOMAIN OF SIGMA-54 FROM AQUIFEX AEOLICUS

Authors :  M. Doucleff, L. T. Malak, J. G. Pelton, D. E. Wemmer
Date :  28 Jul 05  (Deposition) - 11 Oct 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Sigma-54, Sigma Factors, Solution Structure, Transcription, Rna Polymerase, (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  M. Doucleff, L. T. Malak, J. G. Pelton, D. E. Wemmer
The C-Terminal Rpon Domain Of Sigma54 Forms An Unpredicted Helix-Turn-Helix Motif Similar To Domains Of Sigma70.
J. Biol. Chem. V. 280 41530 2005
PubMed-ID: 16210314  |  Reference-DOI: 10.1074/JBC.M509010200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - RNA POLYMERASE SIGMA FACTOR RPON
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPET21A
    Expression System StrainROSETTA (BL21 (DE3) WITH PLYSS)
    Expression System Taxid562
    Expression System Vector TypePLASMID
    FragmentC-TERMINAL DOMAIN
    GeneRPON
    Organism ScientificAQUIFEX AEOLICUS
    Organism Taxid63363
    SynonymSIGMA-54

 Structural Features

(-) Chains, Units


NMR Structure (20x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2AHQ)

(-) Sites  (0, 0)

(no "Site" information available for 2AHQ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2AHQ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2AHQ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2AHQ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2AHQ)

(-) Exons   (0, 0)

(no "Exon" information available for 2AHQ)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:67
 aligned with O66858_AQUAE | O66858 from UniProtKB/TrEMBL  Length:398

    Alignment length:67
                                   332       342       352       362       372       382
         O66858_AQUAE   323 TYSLRTFFVRESAEGLTQGELMKLIKEIVENEDKRKPYSDQEIANILKEKGFKVARRTVAKYREMLG 389
               SCOP domains ------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------- Pfam domains
         Sec.struct. author ................hhhhhhhhhhhhhhhh......hhhhhhhhhh......hhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------- Transcript
                 2ahq A   1 TYSLRTFFVRESAEGLTQGELMKLIKEIVENEDKRKPYSDQEIANILKEKGFKVARRTVAKYREMLG  67
                                    10        20        30        40        50        60

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2AHQ)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2AHQ)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2AHQ)

(-) Gene Ontology  (6, 6)

NMR Structure(hide GO term definitions)
Chain A   (O66858_AQUAE | O66858)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0003899    DNA-directed 5'-3' RNA polymerase activity    Catalysis of the reaction: nucleoside triphosphate + RNA(n) = diphosphate + RNA(n+1). Utilizes a DNA template, i.e. the catalysis of DNA-template-directed extension of the 3'-end of an RNA strand by one nucleotide at a time. Can initiate a chain 'de novo'.
    GO:0016987    sigma factor activity    A sigma factor is the promoter specificity subunit of eubacterial-type multisubunit RNA polymerases, those whose core subunit composition is often described as alpha(2)-beta-beta-prime. (This type of multisubunit RNA polymerase complex is known to be found in eubacteria and plant plastids). Although sigma does not bind DNA on its own, when combined with the core to form the holoenzyme, this binds specifically to promoter sequences, with the sigma factor making sequence specific contacts with the promoter elements. The sigma subunit is released from the elongating form of the polymerase and is thus free to act catalytically for multiple RNA polymerase core enzymes.
    GO:0003700    transcription factor activity, sequence-specific DNA binding    Interacting selectively and non-covalently with a specific DNA sequence in order to modulate transcription. The transcription factor may or may not also interact selectively with a protein or macromolecular complex.
biological process
    GO:0006352    DNA-templated transcription, initiation    Any process involved in the assembly of the RNA polymerase preinitiation complex (PIC) at the core promoter region of a DNA template, resulting in the subsequent synthesis of RNA from that promoter. The initiation phase includes PIC assembly and the formation of the first few bonds in the RNA chain, including abortive initiation, which occurs when the first few nucleotides are repeatedly synthesized and then released. The initiation phase ends just before and does not include promoter clearance, or release, which is the transition between the initiation and elongation phases of transcription.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
