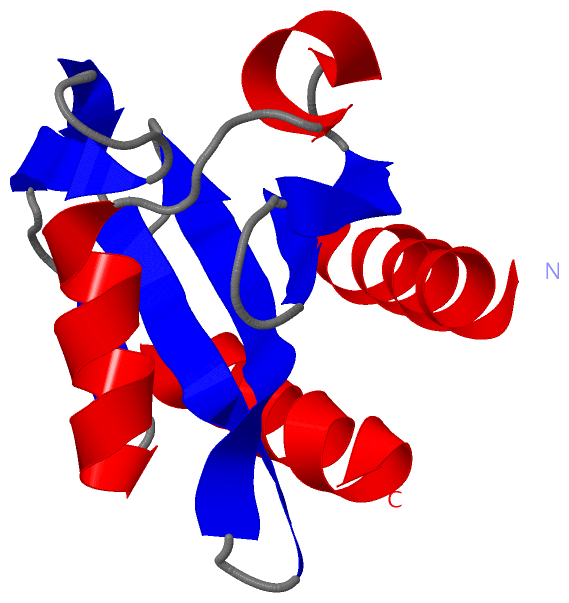

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

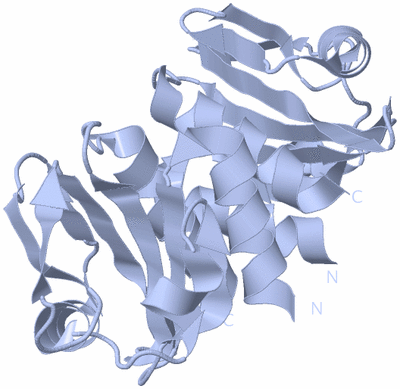

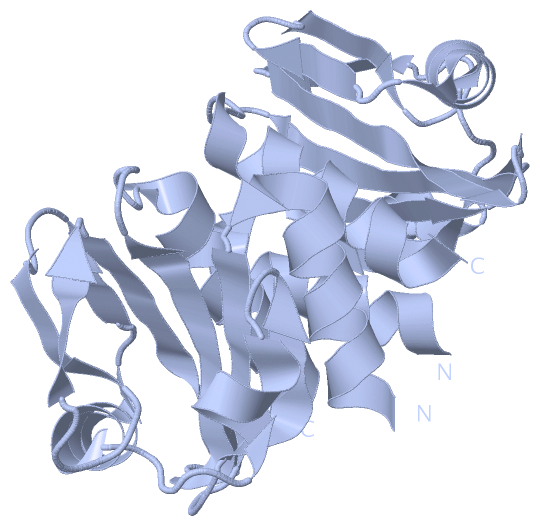

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE C-TERMINAL DOMAIN OF B. SUBTILIS SPOVT

Authors :  I. Asen, S. Djuranovic, A. N. Lupas, K. Zeth
Date :  20 Oct 08  (Deposition) - 18 Nov 08  (Release) - 03 Mar 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.50
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Regulatory Gaf Domain Of Spovt, Transcription, Transcription Regulation, Repressor, Activator, Sporulation, Dna-Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  I. Asen, S. Djuranovic, A. N. Lupas, K. Zeth
Crystal Structure Of Spovt, The Final Modulator Of Gene Expression During Spore Development In Bacillus Subtilis
J. Mol. Biol. V. 386 962 2009
PubMed-ID: 18996130  |  Reference-DOI: 10.1016/J.JMB.2008.10.061

(-) Compounds

Molecule 1 - STAGE V SPORULATION PROTEIN T
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET30B
    Expression System Strain: C41 (DE3)
    Expression System Taxid: 562
    Expression System Vector: PET
    Fragment: C-TERMINAL DOMAIN GAF DOMAIN, RESIDUES 56-178
    Organism Scientific: BACILLUS SUBTILIS
    Organism Taxid: 1423
    Strain: PY79
    Synonym: SPOVT

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2W1R)

(-) Sites  (0, 0)

(no "Site" information available for 2W1R)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2W1R)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2W1R)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2W1R)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2W1R)

(-) Exons   (0, 0)

(no "Exon" information available for 2W1R)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:117
 aligned with SP5T_BACSU | P37554 from UniProtKB/Swiss-Prot  Length:178

    Alignment length:117
                                    66        76        86        96       106       116       126       136       146       156       166
           SP5T_BACSU    57 DFAKEYADALYDSLGHSVLICDRDVYIAVSGSSKKDYLNKSISEMLERTMDQRSSVLESDAKSVQLVNGIDEDMNSYTVGPIVANGDPIGAVVIFSKDQTMGEVEHKAVETAAGFLA 173
               SCOP domains --------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhh.eeeee....eeeee..hhhhhh....hhhhhhhhhhh..eee...eeee.....eeee.eeeeeeeee..eeeeeeeeee.....hhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------- Transcript
                 2w1r A  57 DFAKEYADALYDSLGHSVLICDRDVYIAVSGSSKKDYLNKSISEMLERTMDQRSSVLESDAKSVQLVNGIDEDMNSYTVGPIVANGDPIGAVVIFSKDQTMGEVEHKAVETAAGFLA 173
                                    66        76        86        96       106       116       126       136       146       156       166
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2W1R)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2W1R)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2W1R)

(-) Gene Ontology  (4, 4)

Asymmetric Unit(hide GO term definitions)
Chain A   (SP5T_BACSU | P37554)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0030435    sporulation resulting in formation of a cellular spore    The process in which a relatively unspecialized cell acquires the specialized features of a cellular spore, a cell form that can be used for dissemination, for survival of adverse conditions because of its heat and dessication resistance, and/or for reproduction.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2w1r)

  Sites
(no "Sites" information available for 2w1r)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2w1r)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2w1r
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  SP5T_BACSU | P37554
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  SP5T_BACSU | P37554
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        SP5T_BACSU | P37554: 2ro5 2w1t

(-) Related Entries Specified in the PDB File

2w1t CRYSTAL STRUCTURE OF B. SUBTILIS SPOVT
