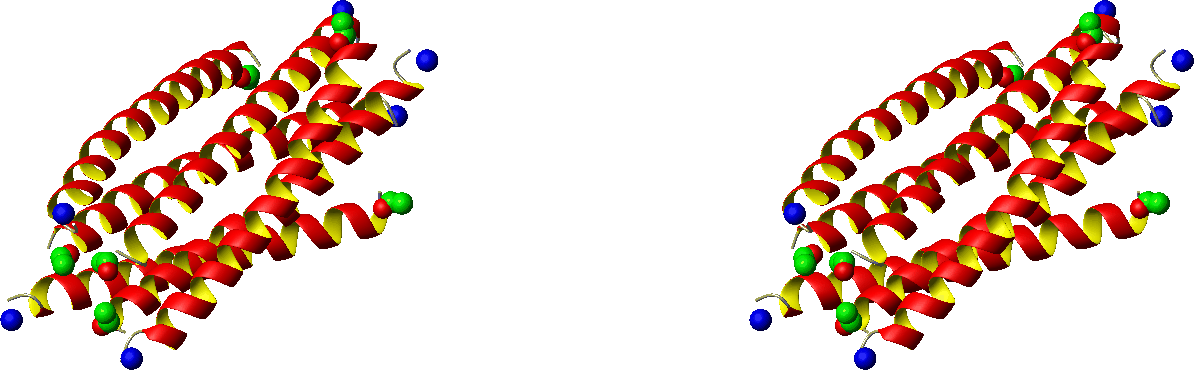

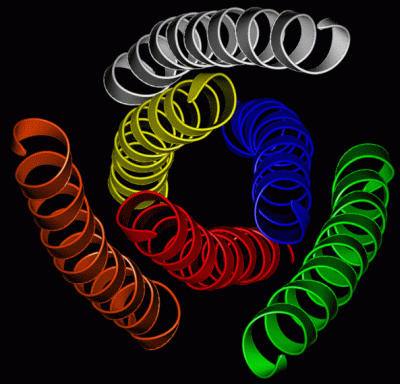

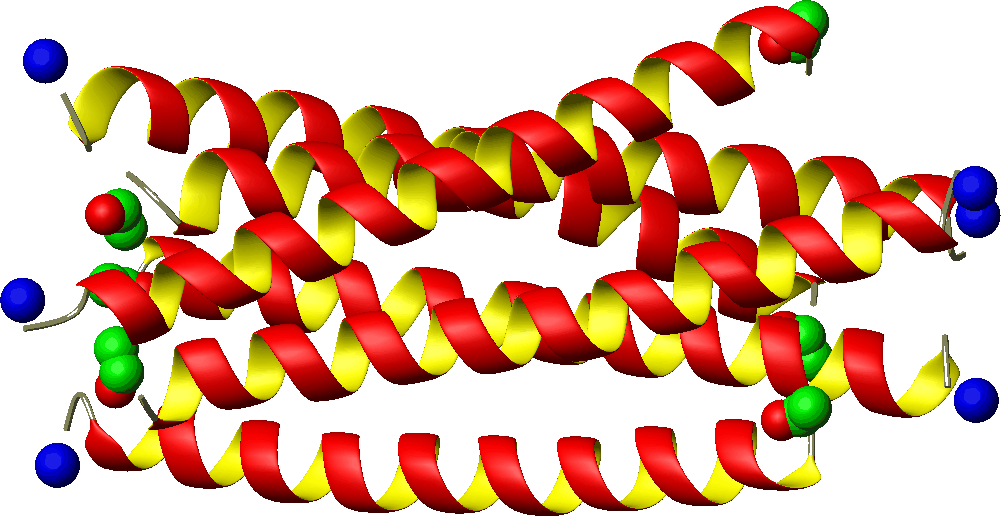

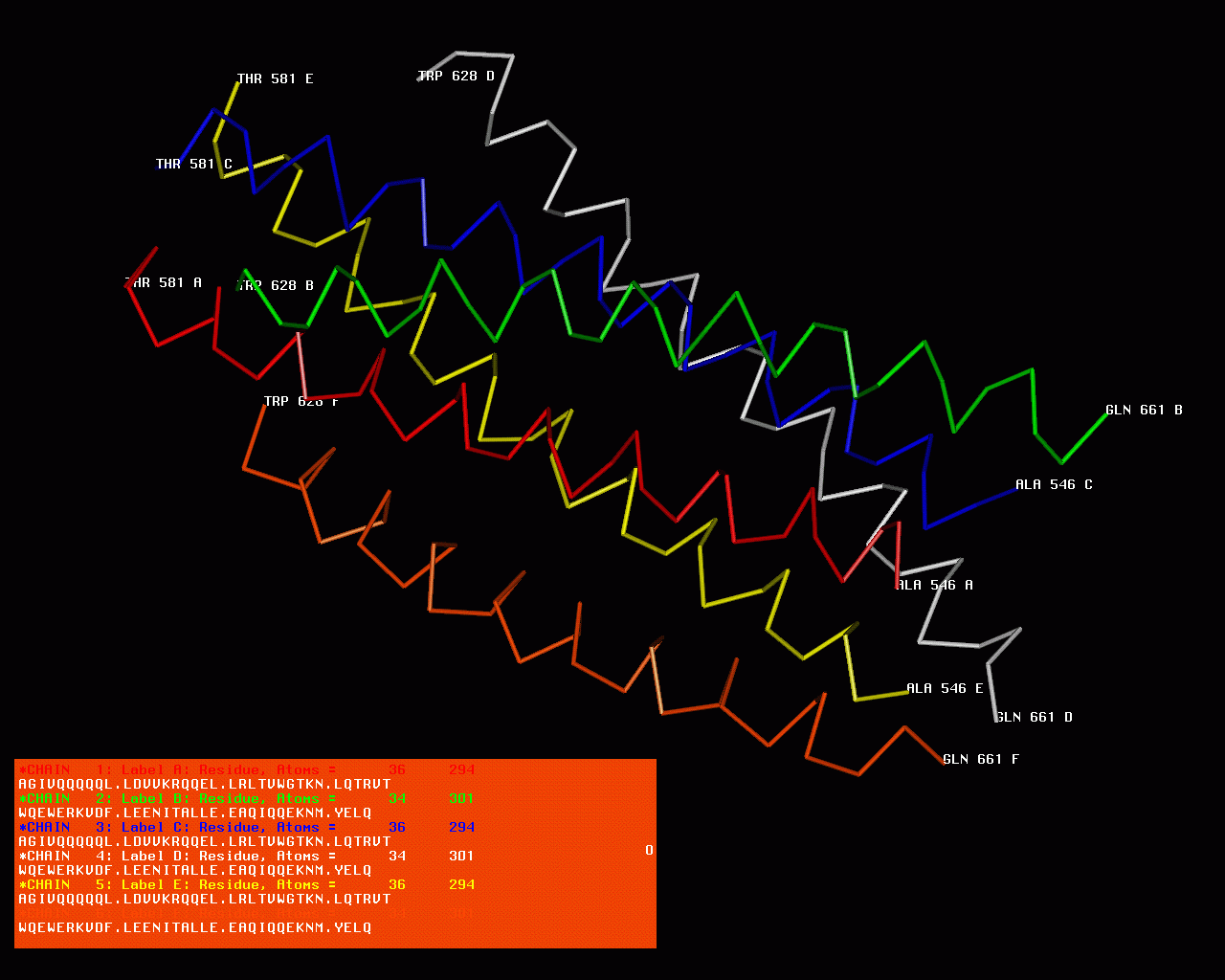

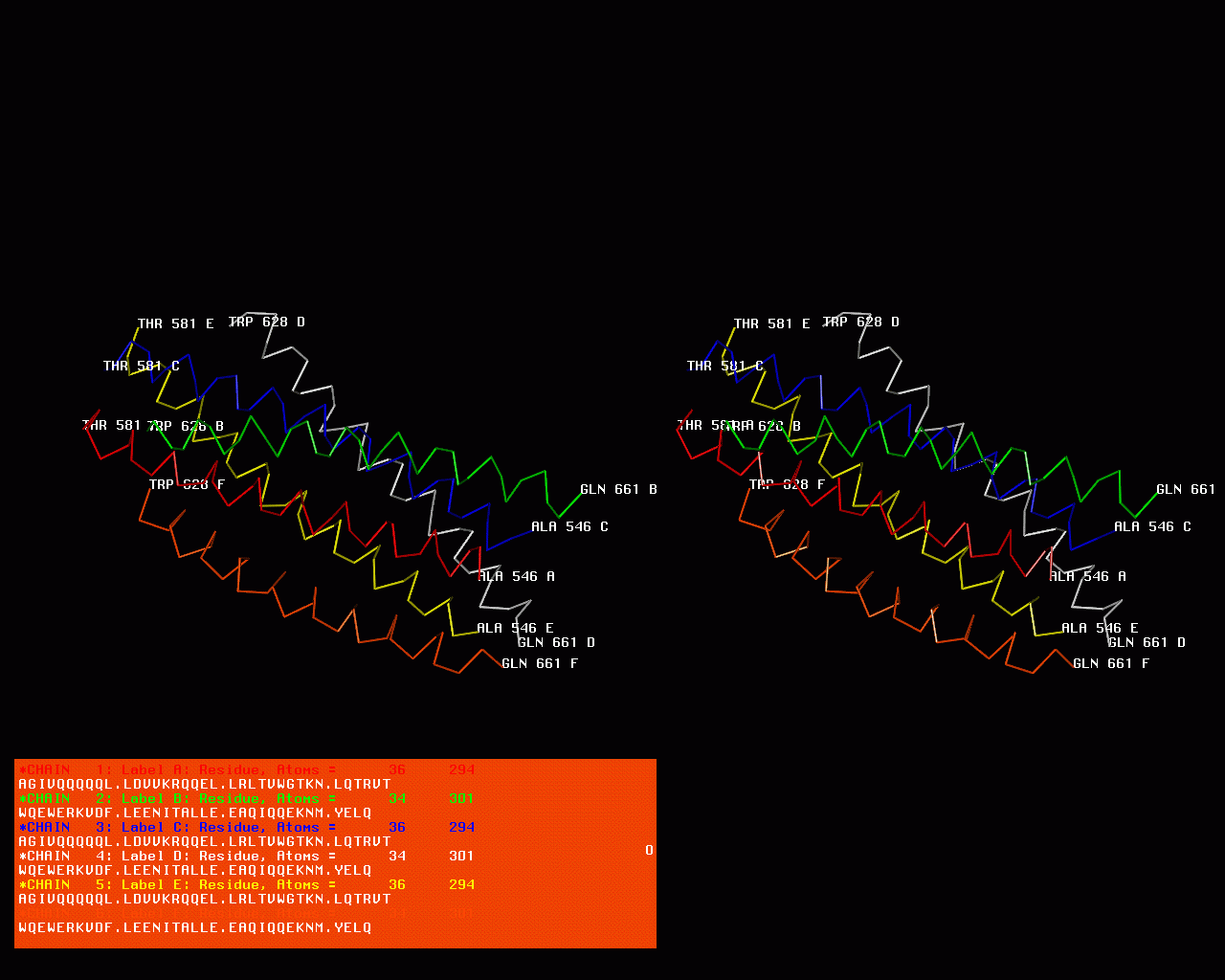

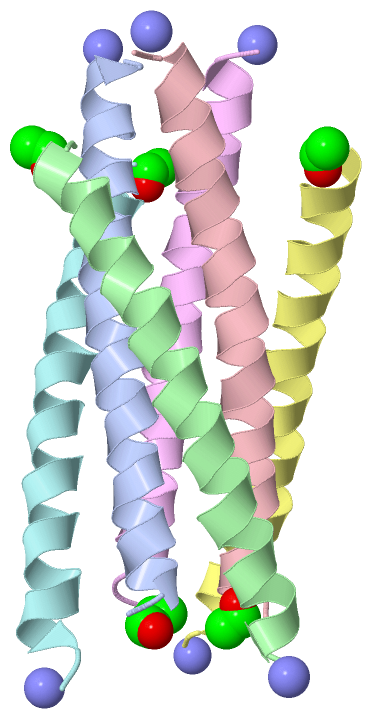

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

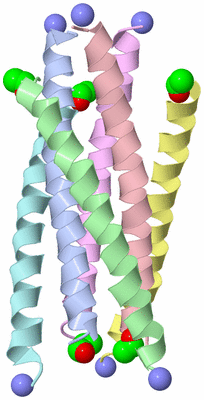

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

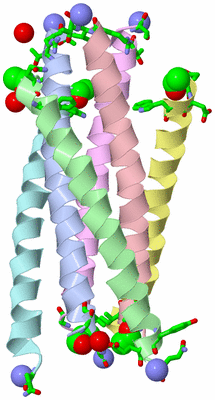

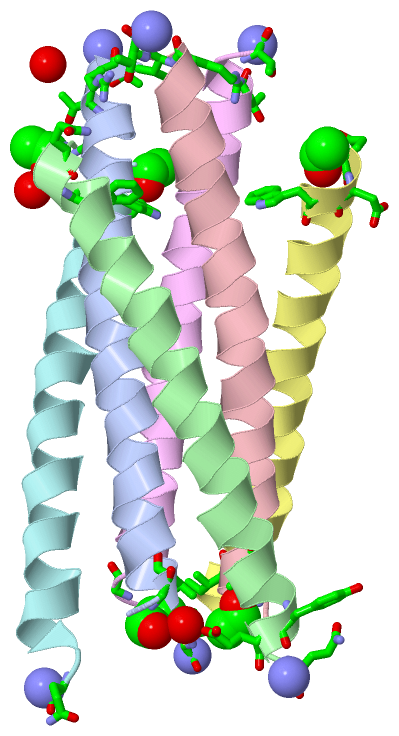

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  SIV GP41 CORE STRUCTURE

Authors :  V. N. Malashkevich, D. C. Chan, C. T. Chutkowski, P. S. Kim
Date :  17 Jun 98  (Deposition) - 19 Aug 98  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym./Biol. Unit :  A,B,C,D,E,F
Keywords :  Envelope Glycoprotein, Retrovirus, Hiv, Siv, Gp41, Coat Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  V. N. Malashkevich, D. C. Chan, C. T. Chutkowski, P. S. Kim
Crystal Structure Of The Simian Immunodeficiency Virus (Siv) Gp41 Core: Conserved Helical Interactions Underlie The Broad Inhibitory Activity Of Gp41 Peptides.
Proc. Natl. Acad. Sci. Usa V. 95 9134 1998
PubMed-ID: 9689046  |  Reference-DOI: 10.1073/PNAS.95.16.9134
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - SIV GP41 GLYCOPROTEIN
    Chains: A, C, E
    Engineered: YES
    Fragment: PROTEASE-RESISTANT CORE
    Gene: GP41
    Organism Scientific: SIMIAN IMMUNODEFICIENCY VIRUS
    Organism Taxid: 11723
    Other Details: N36 AND C34 ARE SYNTHETIC PEPTIDES
    Synonym: N36/C34 CORE

Molecule 2 - SIV GP41 GLYCOPROTEIN
    Cellular Location: VIRAL MEMBRANE
    Chains: B, D, F
    Engineered: YES
    Fragment: PROTEASE-RESISTANT CORE
    Gene: GP41
    Organism Scientific: SIMIAN IMMUNODEFICIENCY VIRUS
    Organism Taxid: 11723
    Other Details: N36 AND C34 ARE SYNTHETIC PEPTIDES
    Strain: MAC239
    Synonym: N36/C34 CORE

 Structural Features

(-) Chains, Units

  123456
Asymmetric/Biological Unit : ABCDEF

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 12)

Asymmetric/Biological Unit (2, 12)
No.NameCountTypeFull Name
1ACE6Mod. Amino AcidACETYL GROUP
2NH26Mod. Amino AcidAMINO GROUP

(-) Sites  (12, 12)

Asymmetric Unit (12, 12)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREGLY A:547 , ILE A:548 , HOH A:149BINDING SITE FOR RESIDUE ACE A 545
02AC2SOFTWAREGLN B:629 , TRP B:631 , HOH B:54BINDING SITE FOR RESIDUE ACE B 627
03AC3SOFTWAREGLN D:629 , GLU D:630 , TRP D:631BINDING SITE FOR RESIDUE ACE D 627
04AC4SOFTWAREGLN F:629 , TRP F:631BINDING SITE FOR RESIDUE ACE F 627
05AC5SOFTWARELEU D:660 , GLY E:547BINDING SITE FOR RESIDUE ACE E 545
06AC6SOFTWAREGLY C:547 , ILE C:548 , VAL C:549BINDING SITE FOR RESIDUE ACE C 545
07AC7SOFTWARETHR A:578 , ARG A:579 , THR A:581BINDING SITE FOR RESIDUE NH2 A 582
08AC8SOFTWARETYR B:658 , GLU B:659 , GLN B:661BINDING SITE FOR RESIDUE NH2 B 662
09AC9SOFTWAREGLN D:661BINDING SITE FOR RESIDUE NH2 D 662
10AD1SOFTWAREGLN F:661 , HOH A:105BINDING SITE FOR RESIDUE NH2 F 662
11AD2SOFTWARETHR E:578 , THR E:581BINDING SITE FOR RESIDUE NH2 E 582
12AD3SOFTWAREARG C:579 , VAL C:580 , THR C:581BINDING SITE FOR RESIDUE NH2 C 582

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2SIV)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2SIV)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2SIV)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2SIV)

(-) Exons   (0, 0)

(no "Exon" information available for 2SIV)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:38
 aligned with ENV_SIVS4 | P12492 from UniProtKB/Swiss-Prot  Length:885

    Alignment length:38
                                   573       583       593
            ENV_SIVS4   564 LAGIVQQQQQLLDVVKRQQELLRLTVWGTKNLQTRVTA 601
               SCOP domains d2siv.1 A:,B:                          SCOP domains
               CATH domains -------------------------------------- CATH domains
               Pfam domains -------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------- PROSITE
                 Transcript -------------------------------------- Transcript
                 2siv A 545 xAGIVQQQQQLLDVVKRQQELLRLTVWGTKNLQTRVTx 582
                            |      554       564       574       |
                            |                                  582-NH2
                          545-ACE


Chain A from PDB  Type:PROTEIN  Length:38
 aligned with Q87973_SIV | Q87973 from UniProtKB/TrEMBL  Length:366

    Alignment length:38
                                    54        64        74
           Q87973_SIV    45 LAGIVQQQQQLLDVVKRQQELLRLTVWGTKNLQTRVTA  82
               SCOP domains d2siv.1 A:,B:                          SCOP domains
               CATH domains -------------------------------------- CATH domains
               Pfam domains -------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------- PROSITE
                 Transcript -------------------------------------- Transcript
                 2siv A 545 xAGIVQQQQQLLDVVKRQQELLRLTVWGTKNLQTRVTx 582
                            |      554       564       574       |
                            |                                  582-NH2
                          545-ACE


Chain A from PDB  Type:PROTEIN  Length:38
 aligned with Q8AKX0_SIV | Q8AKX0 from UniProtKB/TrEMBL  Length:219

    Alignment length:38
                                   170       180       190
           Q8AKX0_SIV   161 LAGIVQQQQQLLDVVKRQQELLRLTVWGTKNLQTRVTA 198
               SCOP domains d2siv.1 A:,B:                          SCOP domains
               CATH domains -------------------------------------- CATH domains
               Pfam domains -------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------- PROSITE
                 Transcript -------------------------------------- Transcript
                 2siv A 545 xAGIVQQQQQLLDVVKRQQELLRLTVWGTKNLQTRVTx 582
                            |      554       564       574       |
                            |                                  582-NH2
                          545-ACE


Chain B from PDB  Type:PROTEIN  Length:36
 aligned with ENV_SIVS4 | P12492 from UniProtKB/Swiss-Prot  Length:885

    Alignment length:36
                                   651       661       671
            ENV_SIVS4   642 TWQEWERQVDFLEANITQLLEEAQIQQEKNMYELQK 677
               SCOP domains d2siv.1 A:,B:                        SCOP domains
               CATH domains ------------------------------------ CATH domains
               Pfam domains ------------------------------------ Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------ PROSITE
                 Transcript ------------------------------------ Transcript
                 2siv B 627 xWQEWERKVDFLEENITALLEEAQIQQEKNMYELQx 662
                            |      636       646       656     |
                            |                                662-NH2
                          627-ACE


Chain B from PDB  Type:PROTEIN  Length:36
 aligned with Q52SW3_SIV | Q52SW3 from UniProtKB/TrEMBL  Length:160

    Alignment length:36
                                    75        85        95
           Q52SW3_SIV    66 TWQEWERKVDFLEENITALLEEAQIQQEKNMYELQK 101
               SCOP domains d2siv.1 A:,B:                        SCOP domains
               CATH domains ------------------------------------ CATH domains
               Pfam domains ------------------------------------ Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------ PROSITE
                 Transcript ------------------------------------ Transcript
                 2siv B 627 xWQEWERKVDFLEENITALLEEAQIQQEKNMYELQx 662
                            |      636       646       656     |
                            |                                662-NH2
                          627-ACE


Chain B from PDB  Type:PROTEIN  Length:36
 aligned with Q87973_SIV | Q87973 from UniProtKB/TrEMBL  Length:366

    Alignment length:36
                                   132       142       152
           Q87973_SIV   123 TWQEWERKVDFLEENITALLEEAQIQQEKNMYELQK 158
               SCOP domains d2siv.1 A:,B:                        SCOP domains
               CATH domains ------------------------------------ CATH domains
               Pfam domains ------------------------------------ Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------ PROSITE
                 Transcript ------------------------------------ Transcript
                 2siv B 627 xWQEWERKVDFLEENITALLEEAQIQQEKNMYELQx 662
                            |      636       646       656     |
                            |                                662-NH2
                          627-ACE


Chain C from PDB  Type:PROTEIN  Length:38
 aligned with ENV_SIVS4 | P12492 from UniProtKB/Swiss-Prot  Length:885

    Alignment length:38
                                   573       583       593
            ENV_SIVS4   564 LAGIVQQQQQLLDVVKRQQELLRLTVWGTKNLQTRVTA 601
               SCOP domains d2siv.2 C:,D:                          SCOP domains
               CATH domains -------------------------------------- CATH domains
               Pfam domains -------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------- PROSITE
                 Transcript -------------------------------------- Transcript
                 2siv C 545 xAGIVQQQQQLLDVVKRQQELLRLTVWGTKNLQTRVTx 582
                            |      554       564       574       |
                            |                                  582-NH2
                          545-ACE


Chain C from PDB  Type:PROTEIN  Length:38
 aligned with Q87973_SIV | Q87973 from UniProtKB/TrEMBL  Length:366

    Alignment length:38
                                    54        64        74
           Q87973_SIV    45 LAGIVQQQQQLLDVVKRQQELLRLTVWGTKNLQTRVTA  82
               SCOP domains d2siv.2 C:,D:                          SCOP domains
               CATH domains -------------------------------------- CATH domains
               Pfam domains -------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------- PROSITE
                 Transcript -------------------------------------- Transcript
                 2siv C 545 xAGIVQQQQQLLDVVKRQQELLRLTVWGTKNLQTRVTx 582
                            |      554       564       574       |
                            |                                  582-NH2
                          545-ACE


Chain C from PDB  Type:PROTEIN  Length:38
 aligned with Q8AKX0_SIV | Q8AKX0 from UniProtKB/TrEMBL  Length:219

    Alignment length:38
                                   170       180       190
           Q8AKX0_SIV   161 LAGIVQQQQQLLDVVKRQQELLRLTVWGTKNLQTRVTA 198
               SCOP domains d2siv.2 C:,D:                          SCOP domains
               CATH domains -------------------------------------- CATH domains
               Pfam domains -------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------- PROSITE
                 Transcript -------------------------------------- Transcript
                 2siv C 545 xAGIVQQQQQLLDVVKRQQELLRLTVWGTKNLQTRVTx 582
                            |      554       564       574       |
                            |                                  582-NH2
                          545-ACE


Chain D from PDB  Type:PROTEIN  Length:36
 aligned with ENV_SIVS4 | P12492 from UniProtKB/Swiss-Prot  Length:885

    Alignment length:36
                                   651       661       671
            ENV_SIVS4   642 TWQEWERQVDFLEANITQLLEEAQIQQEKNMYELQK 677
               SCOP domains d2siv.2 C:,D:                        SCOP domains
               CATH domains ------------------------------------ CATH domains
               Pfam domains ------------------------------------ Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------ PROSITE
                 Transcript ------------------------------------ Transcript
                 2siv D 627 xWQEWERKVDFLEENITALLEEAQIQQEKNMYELQx 662
                            |      636       646       656     |
                            |                                662-NH2
                          627-ACE


Chain D from PDB  Type:PROTEIN  Length:36
 aligned with Q52SW3_SIV | Q52SW3 from UniProtKB/TrEMBL  Length:160

    Alignment length:36
                                    75        85        95
           Q52SW3_SIV    66 TWQEWERKVDFLEENITALLEEAQIQQEKNMYELQK 101
               SCOP domains d2siv.2 C:,D:                        SCOP domains
               CATH domains ------------------------------------ CATH domains
               Pfam domains ------------------------------------ Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------ PROSITE
                 Transcript ------------------------------------ Transcript
                 2siv D 627 xWQEWERKVDFLEENITALLEEAQIQQEKNMYELQx 662
                            |      636       646       656     |
                            |                                662-NH2
                          627-ACE


Chain D from PDB  Type:PROTEIN  Length:36
 aligned with Q87973_SIV | Q87973 from UniProtKB/TrEMBL  Length:366

    Alignment length:36
                                   132       142       152
           Q87973_SIV   123 TWQEWERKVDFLEENITALLEEAQIQQEKNMYELQK 158
               SCOP domains d2siv.2 C:,D:                        SCOP domains
               CATH domains ------------------------------------ CATH domains
               Pfam domains ------------------------------------ Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------ PROSITE
                 Transcript ------------------------------------ Transcript
                 2siv D 627 xWQEWERKVDFLEENITALLEEAQIQQEKNMYELQx 662
                            |      636       646       656     |
                            |                                662-NH2
                          627-ACE


Chain E from PDB  Type:PROTEIN  Length:38
 aligned with ENV_SIVS4 | P12492 from UniProtKB/Swiss-Prot  Length:885

    Alignment length:38
                                   573       583       593
            ENV_SIVS4   564 LAGIVQQQQQLLDVVKRQQELLRLTVWGTKNLQTRVTA 601
               SCOP domains d2siv.3 E:,F:                          SCOP domains
               CATH domains -------------------------------------- CATH domains
               Pfam domains -------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------- PROSITE
                 Transcript -------------------------------------- Transcript
                 2siv E 545 xAGIVQQQQQLLDVVKRQQELLRLTVWGTKNLQTRVTx 582
                            |      554       564       574       |
                            |                                  582-NH2
                          545-ACE


Chain E from PDB  Type:PROTEIN  Length:38
 aligned with Q87973_SIV | Q87973 from UniProtKB/TrEMBL  Length:366

    Alignment length:38
                                    54        64        74
           Q87973_SIV    45 LAGIVQQQQQLLDVVKRQQELLRLTVWGTKNLQTRVTA  82
               SCOP domains d2siv.3 E:,F:                          SCOP domains
               CATH domains -------------------------------------- CATH domains
               Pfam domains -------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------- PROSITE
                 Transcript -------------------------------------- Transcript
                 2siv E 545 xAGIVQQQQQLLDVVKRQQELLRLTVWGTKNLQTRVTx 582
                            |      554       564       574       |
                            |                                  582-NH2
                          545-ACE


Chain E from PDB  Type:PROTEIN  Length:38
 aligned with Q8AKX0_SIV | Q8AKX0 from UniProtKB/TrEMBL  Length:219

    Alignment length:38
                                   170       180       190
           Q8AKX0_SIV   161 LAGIVQQQQQLLDVVKRQQELLRLTVWGTKNLQTRVTA 198
               SCOP domains d2siv.3 E:,F:                          SCOP domains
               CATH domains -------------------------------------- CATH domains
               Pfam domains -------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------- PROSITE
                 Transcript -------------------------------------- Transcript
                 2siv E 545 xAGIVQQQQQLLDVVKRQQELLRLTVWGTKNLQTRVTx 582
                            |      554       564       574       |
                            |                                  582-NH2
                          545-ACE


Chain F from PDB  Type:PROTEIN  Length:36
 aligned with ENV_SIVS4 | P12492 from UniProtKB/Swiss-Prot  Length:885

    Alignment length:36
                                   651       661       671
            ENV_SIVS4   642 TWQEWERQVDFLEANITQLLEEAQIQQEKNMYELQK 677
               SCOP domains d2siv.3 E:,F:                        SCOP domains
               CATH domains ------------------------------------ CATH domains
               Pfam domains ------------------------------------ Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------ PROSITE
                 Transcript ------------------------------------ Transcript
                 2siv F 627 xWQEWERKVDFLEENITALLEEAQIQQEKNMYELQx 662
                            |      636       646       656     |
                            |                                662-NH2
                          627-ACE


Chain F from PDB  Type:PROTEIN  Length:36
 aligned with Q52SW3_SIV | Q52SW3 from UniProtKB/TrEMBL  Length:160

    Alignment length:36
                                    75        85        95
           Q52SW3_SIV    66 TWQEWERKVDFLEENITALLEEAQIQQEKNMYELQK 101
               SCOP domains d2siv.3 E:,F:                        SCOP domains
               CATH domains ------------------------------------ CATH domains
               Pfam domains ------------------------------------ Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------ PROSITE
                 Transcript ------------------------------------ Transcript
                 2siv F 627 xWQEWERKVDFLEENITALLEEAQIQQEKNMYELQx 662
                            |      636       646       656     |
                            |                                662-NH2
                          627-ACE


Chain F from PDB  Type:PROTEIN  Length:36
 aligned with Q87973_SIV | Q87973 from UniProtKB/TrEMBL  Length:366

    Alignment length:36
                                   132       142       152
           Q87973_SIV   123 TWQEWERKVDFLEENITALLEEAQIQQEKNMYELQK 158
               SCOP domains d2siv.3 E:,F:                        SCOP domains
               CATH domains ------------------------------------ CATH domains
               Pfam domains ------------------------------------ Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------ PROSITE
                 Transcript ------------------------------------ Transcript
                 2siv F 627 xWQEWERKVDFLEENITALLEEAQIQQEKNMYELQx 662
                            |      636       646       656     |
                            |                                662-NH2
                          627-ACE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 3)

Asymmetric/Biological Unit
(-)
Class: Coiled coil proteins (689)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2SIV)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2SIV)

(-) Gene Ontology  (14, 34)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C,D,E,F   (Q87973_SIV | Q87973)
molecular function
    GO:0005198    structural molecule activity    The action of a molecule that contributes to the structural integrity of a complex or its assembly within or outside a cell.
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0019031    viral envelope    The lipid bilayer of a virion that surrounds the protein capsid. May also contain glycoproteins.

Chain A,B,C,D,E,F   (ENV_SIVS4 | P12492)
molecular function
    GO:0005198    structural molecule activity    The action of a molecule that contributes to the structural integrity of a complex or its assembly within or outside a cell.
biological process
    GO:0039663    membrane fusion involved in viral entry into host cell    Merging of the virion membrane and a host membrane (host plasma membrane or host organelle membrane) that is involved in the uptake of a virus into a host cell.
    GO:0046718    viral entry into host cell    The process that occurs after viral attachment by which a virus, or viral nucleic acid, breaches the plasma membrane or cell envelope and enters the host cell. The process ends when the viral nucleic acid is released into the host cell cytoplasm.
    GO:0016032    viral process    A multi-organism process in which a virus is a participant. The other participant is the host. Includes infection of a host cell, replication of the viral genome, and assembly of progeny virus particles. In some cases the viral genetic material may integrate into the host genome and only subsequently, under particular circumstances, 'complete' its life cycle.
    GO:0019062    virion attachment to host cell    The process by which a virion protein binds to molecules on the host cellular surface or host cell surface projection.
cellular component
    GO:0044174    host cell endosome    A membrane-bounded organelle that carries materials newly ingested by endocytosis. It passes many of the materials to host cell lysosomes for degradation.
    GO:0044175    host cell endosome membrane    The lipid bilayer surrounding a host cell endosome.
    GO:0033644    host cell membrane    Double layer of lipid molecules as it encloses host cells, and, in eukaryotes, many organelles; may be a single or double lipid bilayer; also includes associated proteins. The host is defined as the larger of the organisms involved in a symbiotic interaction.
    GO:0020002    host cell plasma membrane    The plasma membrane surrounding a host cell.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0019031    viral envelope    The lipid bilayer of a virion that surrounds the protein capsid. May also contain glycoproteins.
    GO:0019012    virion    The complete fully infectious extracellular virus particle.
    GO:0055036    virion membrane    The lipid bilayer surrounding a virion.

Chain A,C,E   (Q8AKX0_SIV | Q8AKX0)
molecular function
    GO:0005198    structural molecule activity    The action of a molecule that contributes to the structural integrity of a complex or its assembly within or outside a cell.
biological process
    GO:0039663    membrane fusion involved in viral entry into host cell    Merging of the virion membrane and a host membrane (host plasma membrane or host organelle membrane) that is involved in the uptake of a virus into a host cell.
    GO:0046718    viral entry into host cell    The process that occurs after viral attachment by which a virus, or viral nucleic acid, breaches the plasma membrane or cell envelope and enters the host cell. The process ends when the viral nucleic acid is released into the host cell cytoplasm.
    GO:0016032    viral process    A multi-organism process in which a virus is a participant. The other participant is the host. Includes infection of a host cell, replication of the viral genome, and assembly of progeny virus particles. In some cases the viral genetic material may integrate into the host genome and only subsequently, under particular circumstances, 'complete' its life cycle.
    GO:0019062    virion attachment to host cell    The process by which a virion protein binds to molecules on the host cellular surface or host cell surface projection.
cellular component
    GO:0044174    host cell endosome    A membrane-bounded organelle that carries materials newly ingested by endocytosis. It passes many of the materials to host cell lysosomes for degradation.
    GO:0044175    host cell endosome membrane    The lipid bilayer surrounding a host cell endosome.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0019031    viral envelope    The lipid bilayer of a virion that surrounds the protein capsid. May also contain glycoproteins.
    GO:0019012    virion    The complete fully infectious extracellular virus particle.
    GO:0055036    virion membrane    The lipid bilayer surrounding a virion.

Chain B,D,F   (Q52SW3_SIV | Q52SW3)
molecular function
    GO:0005198    structural molecule activity    The action of a molecule that contributes to the structural integrity of a complex or its assembly within or outside a cell.
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0019031    viral envelope    The lipid bilayer of a virion that surrounds the protein capsid. May also contain glycoproteins.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ACE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NH2  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    AD1  [ RasMol ]  +environment [ RasMol ]
    AD2  [ RasMol ]  +environment [ RasMol ]
    AD3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2siv)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
Molmol
  protein, nucleic acid: cartoon; ligands: spacefill; active site: sticks
[ mono GIF format | stereo GIF format ] (automatic, in case of more than 1 NMR structures only model 1 is shown)
Prepi
  C alpha wire, labeling, chain-specific coloring
[ mono GIF format | stereo GIF format ]

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2siv
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  ENV_SIVS4 | P12492
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  Q52SW3_SIV | Q52SW3
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL
  Q87973_SIV | Q87973
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  Q8AKX0_SIV | Q8AKX0
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  ENV_SIVS4 | P12492
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  Q52SW3_SIV | Q52SW3
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  Q87973_SIV | Q87973
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  Q8AKX0_SIV | Q8AKX0
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 2SIV)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2SIV)
