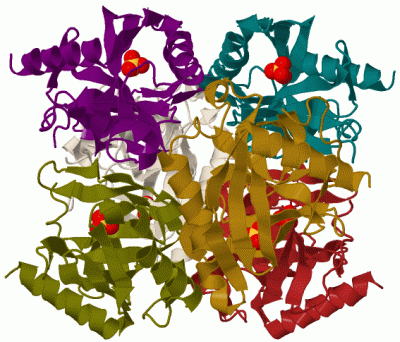

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

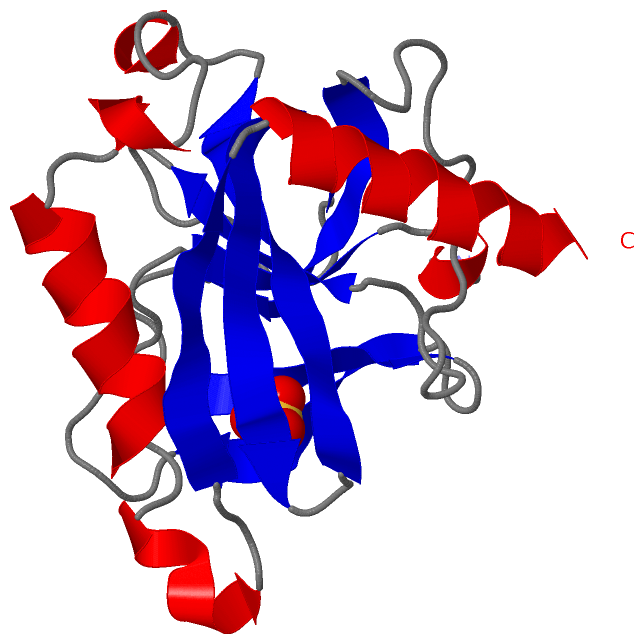

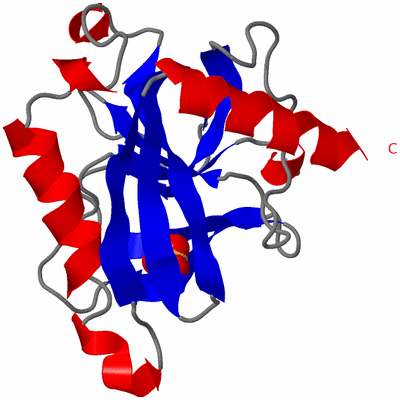

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

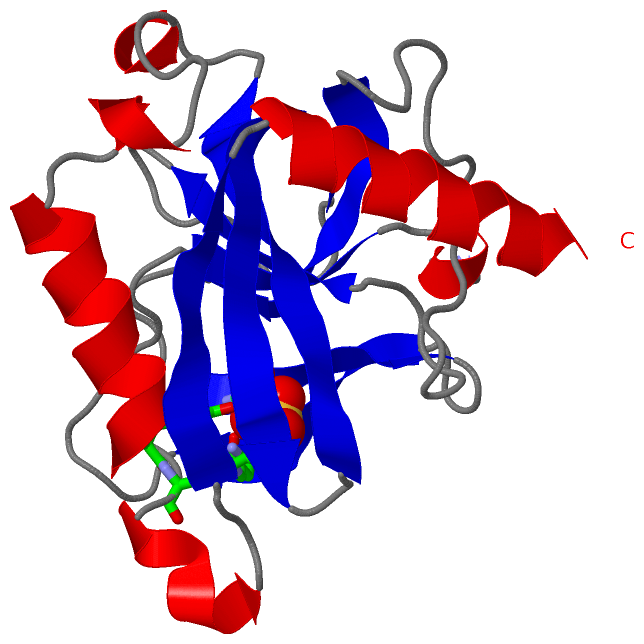

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

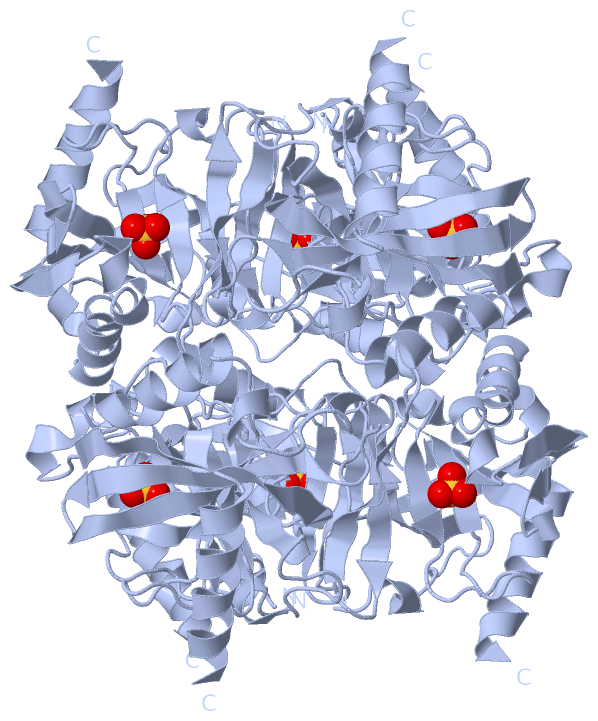

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

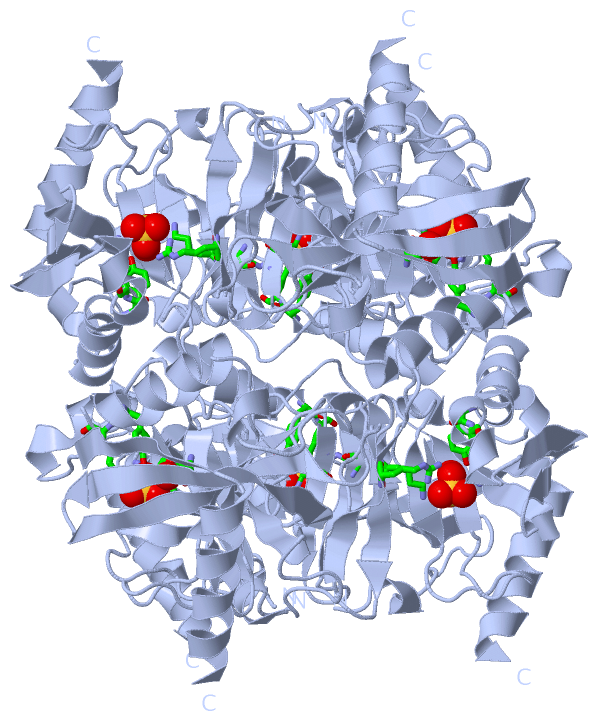

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF INORGANIC PYROPHOSPHATASE FROM THERMUS THERMOPHILUS

Authors :  A. Teplyakov
Date :  21 Dec 93  (Deposition) - 28 Oct 95  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (6x)
Keywords :  Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Teplyakov, G. Obmolova, K. S. Wilson, K. Ishii, H. Kaji, T. Samejima I. Kuranova
Crystal Structure Of Inorganic Pyrophosphatase From Thermus Thermophilus.
Protein Sci. V. 3 1098 1994
PubMed-ID: 7920256
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PYROPHOSPHATE PHOSPHOHYDROLASE
    Chains: A
    EC Number: 3.6.1.1
    Organism Scientific: THERMUS THERMOPHILUS
    Organism Taxid: 300852
    Strain: HB8

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (6x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric Unit (1, 1)
No.NameCountTypeFull Name
1SO41Ligand/IonSULFATE ION
Biological Unit 1 (1, 6)
No.NameCountTypeFull Name
1SO46Ligand/IonSULFATE ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWARELYS A:29 , ARG A:43 , TYR A:139 , LYS A:140 , HOH A:192BINDING SITE FOR RESIDUE SO4 A 175

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2PRD)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Ala A:12 -Pro A:13

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2PRD)

(-) PROSITE Motifs  (1, 1)

Asymmetric Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PPASEPS00387 Inorganic pyrophosphatase signature.IPYR_THET866-72  1A:65-71
Biological Unit 1 (1, 6)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PPASEPS00387 Inorganic pyrophosphatase signature.IPYR_THET866-72  6A:65-71

(-) Exons   (0, 0)

(no "Exon" information available for 2PRD)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:174
 aligned with IPYR_THET8 | P38576 from UniProtKB/Swiss-Prot  Length:175

    Alignment length:174
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171
           IPYR_THET8     2 ANLKSLPVGDKAPEVVHMVIEVPRGSGNKYEYDPDLGAIKLDRVLPGAQFYPGDYGFIPSTLAEDGDPLDGLVLSTYPLLPGVVVEVRVVGLLLMEDEKGGDAKVIGVVAEDQRLDHIQDIGDVPEGVKQEIQHFFETYKALEAKKGKWVKVTGWRDRKAALEEVRACIARYKG 175
               SCOP domains d2prda_ A: Inorganic pyrophosphatase                                                                                                                                           SCOP domains
               CATH domains 2prdA00 A:1-174 Inorganic Pyrophosphatase                                                                                                                                      CATH domains
               Pfam domains ----------------Pyrophosphatase-2prdA01 A:17-174                                                                                                                               Pfam domains
         Sec.struct. author ..hhh.........eeeeeeee.....eeeeee....eeeeeee.........eeee............eeeee.........eeeeeeeeeeeeee..eeeeeeeeee...hhh.....hhh..hhhhhhhhhhhhh..hhhhhh...eeeeeee.hhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------PPASE  ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2prd A   1 ANLKSLPVGDKAPEVVHMVIEVPRGSGNKYEYDPDLGAIKLDRVLPGAQFYPGDYGFIPSTLAEDGDPLDGLVLSTYPLLPGVVVEVRVVGLLLMEDEKGGDAKVIGVVAEDQRLDHIQDIGDVPEGVKQEIQHFFETYKALEAKKGKWVKVTGWRDRKAALEEVRACIARYKG 174
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: no clan defined [family: Pyrophosphatase] (19)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)
Chain A   (IPYR_THET8 | P38576)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0004427    inorganic diphosphatase activity    Catalysis of the reaction: diphosphate + H(2)O = H(+) + 2 phosphate.
    GO:0000287    magnesium ion binding    Interacting selectively and non-covalently with magnesium (Mg) ions.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
biological process
    GO:0006796    phosphate-containing compound metabolic process    The chemical reactions and pathways involving the phosphate group, the anion or salt of any phosphoric acid.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
