2PLH - JenaLib

Title :   STRUCTURE OF ALPHA-1-PUROTHIONIN AT ROOM TEMPERATURE AND 2.8 ANGSTROMS RESOLUTION

Authors :   M. M. Teeter, B. Stec, U. Rao

Date :   09 Jul 93 (Deposition) - 03 Apr 96 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.50

Chains :   Asym. Unit : A
Biol. Unit 1: A  (4x)

Keywords :   Membrane Active, Disulfide Rich, Toxin (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   U. Rao, B. Stec, M. M. Teeter
Refinement Of Purothionins Reveals Solute Particles Important For Lattice Formation And Toxicity. Part 1: Alpha1-Purothionin Revisited.
Acta Crystallogr. , Sect. D V. 51 904 1995
PubMed-ID: 15299760 | Reference-DOI: 10.1107/S0907444995002964
(for further references see the PDB file header)

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (4, 8)

Asymmetric Unit (4, 8)

No.	Name	Count	Type	Full Name
1	ACT	3	Ligand/Ion	ACETATE ION
2	GOL	2	Ligand/Ion	GLYCEROL
3	PO4	1	Ligand/Ion	PHOSPHATE ION
4	SBT	2	Ligand/Ion	2-BUTANOL

Biological Unit 1 (4, 32)

No.	Name	Count	Type	Full Name
1	ACT	12	Ligand/Ion	ACETATE ION
2	GOL	8	Ligand/Ion	GLYCEROL
3	PO4	4	Ligand/Ion	PHOSPHATE ION
4	SBT	8	Ligand/Ion	2-BUTANOL

Sites (10, 10)

Asymmetric Unit (10, 10)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	ARG A:30 , HOH A:115	BINDING SITE FOR RESIDUE ACT A 85
02	AC2	SOFTWARE	ARG A:19 , SER A:34 , SER A:35 , GLY A:36 , HOH A:158	BINDING SITE FOR RESIDUE ACT A 88
03	AC3	SOFTWARE	LYS A:1 , PRO A:44	BINDING SITE FOR RESIDUE PO4 A 116
04	AC4	SOFTWARE	ASN A:11 , LEU A:15	BINDING SITE FOR RESIDUE ACT A 123
05	AC5	SOFTWARE	THR A:7 , LEU A:8 , ASN A:11 , ASN A:14 , LEU A:15 , HOH A:184	BINDING SITE FOR RESIDUE SBT A 86
06	AC6	SOFTWARE	SER A:6 , ARG A:19 , CYS A:29 , ARG A:30 , HOH A:80 , HOH A:126	BINDING SITE FOR RESIDUE SBT A 179
07	AC7	SOFTWARE	LYS A:1 , SER A:2 , TYR A:13 , ARG A:17 , HOH A:52 , HOH A:55 , GOL A:181 , HOH A:183	BINDING SITE FOR RESIDUE GOL A 180
08	AC8	SOFTWARE	LYS A:1 , HOH A:54 , HOH A:55 , HOH A:164 , GOL A:180 , HOH A:182	BINDING SITE FOR RESIDUE GOL A 181
09	GBS	AUTHOR	TYR A:13 , ARG A:10 , GLN A:22	GLYCEROL BINDING SITE
10	PBS	AUTHOR	LYS A:1 , ARG A:10 , LYS A:45	PHOSPHATE BINDING SITE

SS Bonds (4, 4)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 1)

Asymmetric Unit (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	THIONIN	PS00271	Plant thionins signature.	THN1_WHEAT	19-32	1	A:3-16

Biological Unit 1 (1, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	THIONIN	PS00271	Plant thionins signature.	THN1_WHEAT	19-32	4	A:3-16

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:45
 aligned with THN1_WHEAT | P01544 from UniProtKB/Swiss-Prot  Length:126

    Alignment length:45
                                    26        36        46        56
            THN1_WHEAT   17 KSCCRSTLGRNCYNLCRARGAQKLCAGVCRCKISSGLSCPKGFPK 61
               SCOP domains d2plha_ A: alpha-1-Purothionin                SCOP domains
               CATH domains 2plhA00 A:1-45                                CATH domains
               Pfam domains --------------------------------------------- Pfam domains
         Sec.struct. author eeee..hhhhhhhhhhhhh..hhhhhhhh.eeee...eee....e Sec.struct. author
                 SAPs(SNPs) --------------------------------------------- SAPs(SNPs)
                    PROSITE --THIONIN       ----------------------------- PROSITE
                 Transcript --------------------------------------------- Transcript
                  2plh A  1 KSCCRSTLGRNCYNLCRARGAQKLCAGVCRCKISSGLSCPKGFPK 45
                                    10        20        30        40

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (0, 0)

Gene Ontology (2, 2)

Asymmetric Unit(hide GO term definitions)

Chain A (THN1_WHEAT | P01544)

biological process
	GO:0006952	defense response	Reactions, triggered in response to the presence of a foreign body or the occurrence of an injury, which result in restriction of damage to the organism attacked or prevention/recovery from the infection caused by the attack.
cellular component
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

Visualization

Interactive Views

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		ACT	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		GOL	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		PO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SBT	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		GBS	[ RasMol ]	+environment [ RasMol ]
		PBS	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2plh)

Biological Unit
	Complete Structure
		Biological Unit 1	[ Jena3D ]

Still Images

Jmol

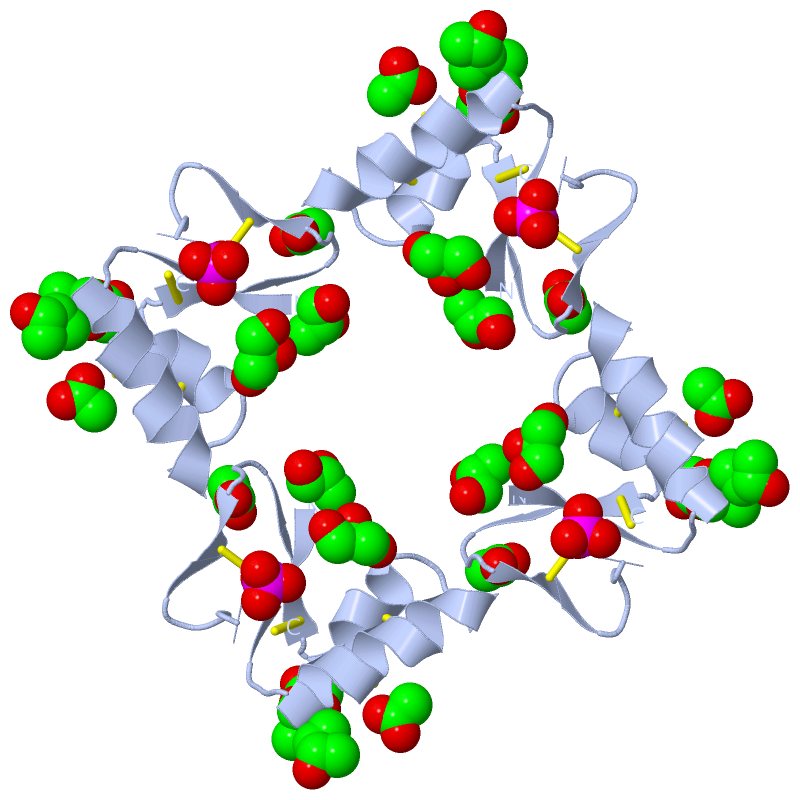

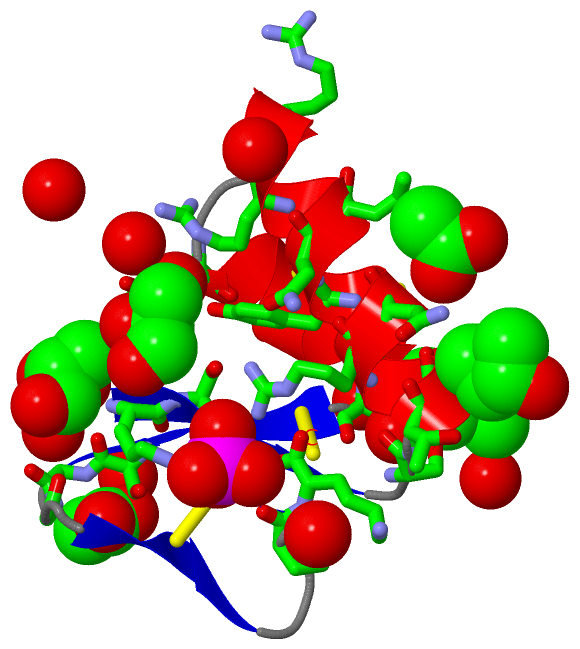

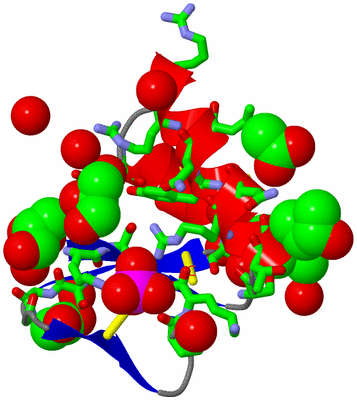

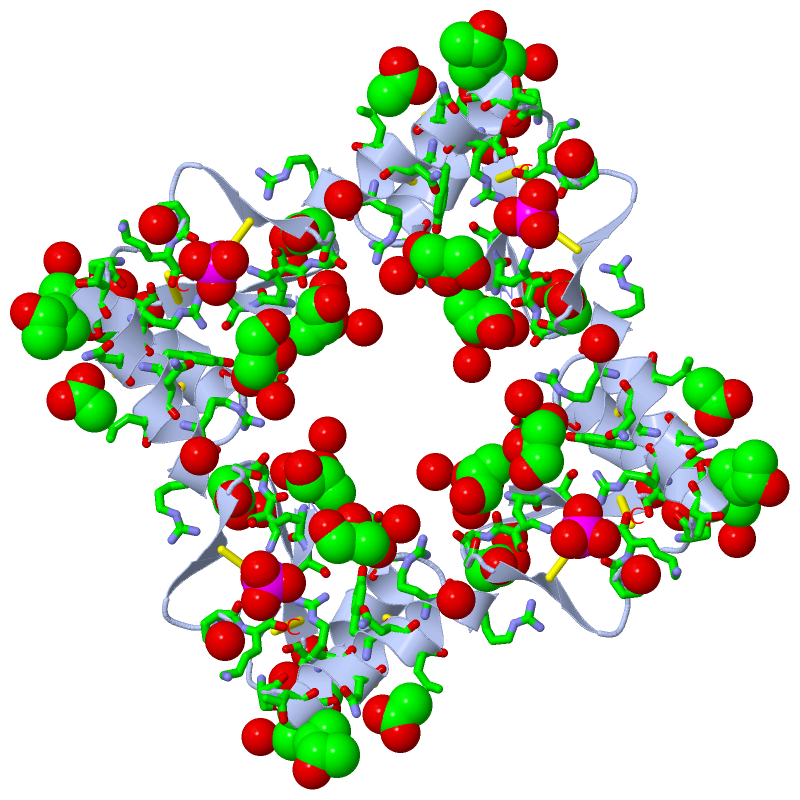

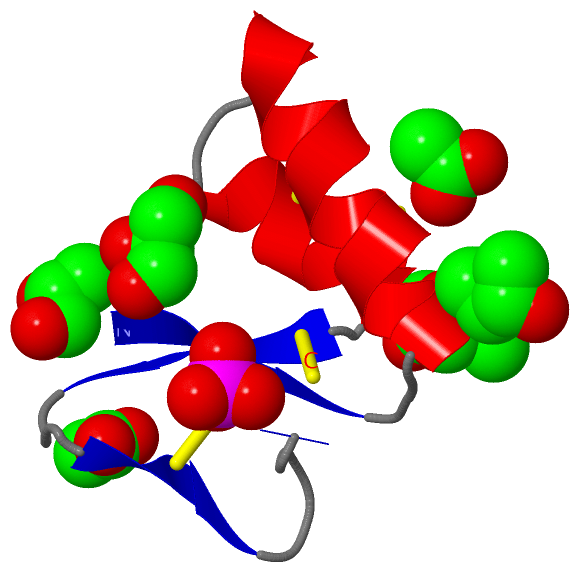

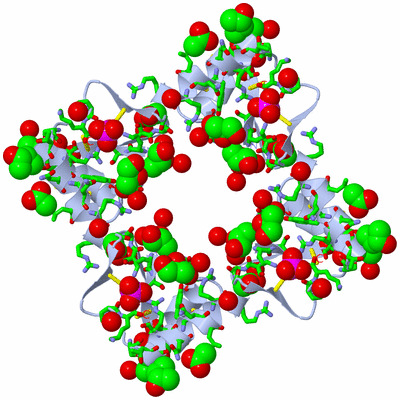

	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

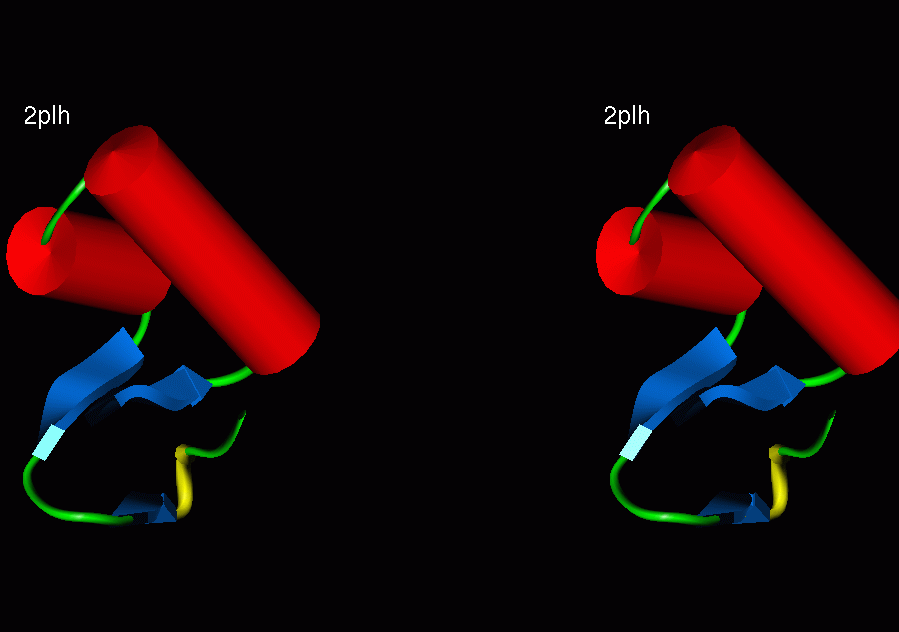

Insightii

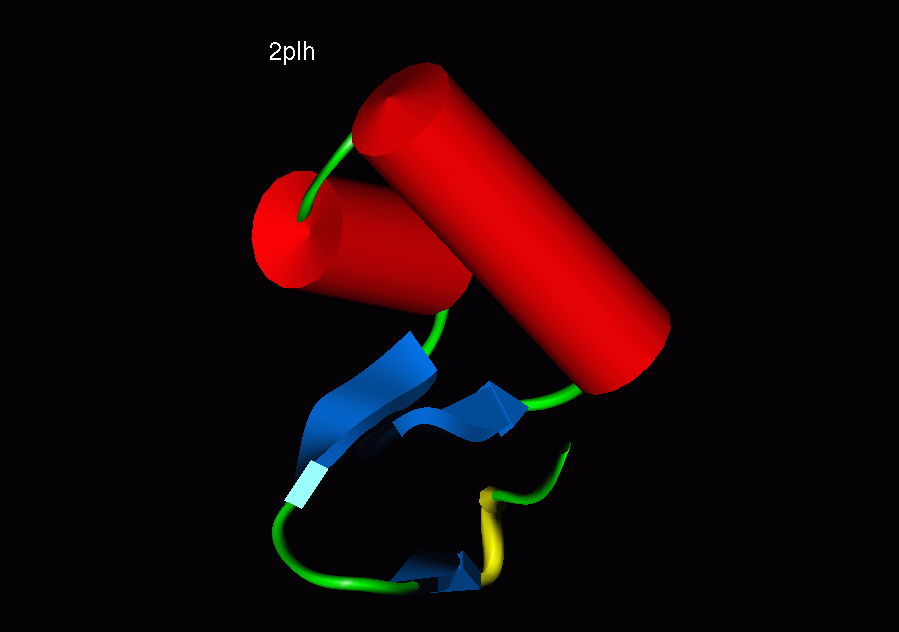

	ribbon, secondary structure [ mono GIF format \| mono GIF format \| stereo GIF format ]

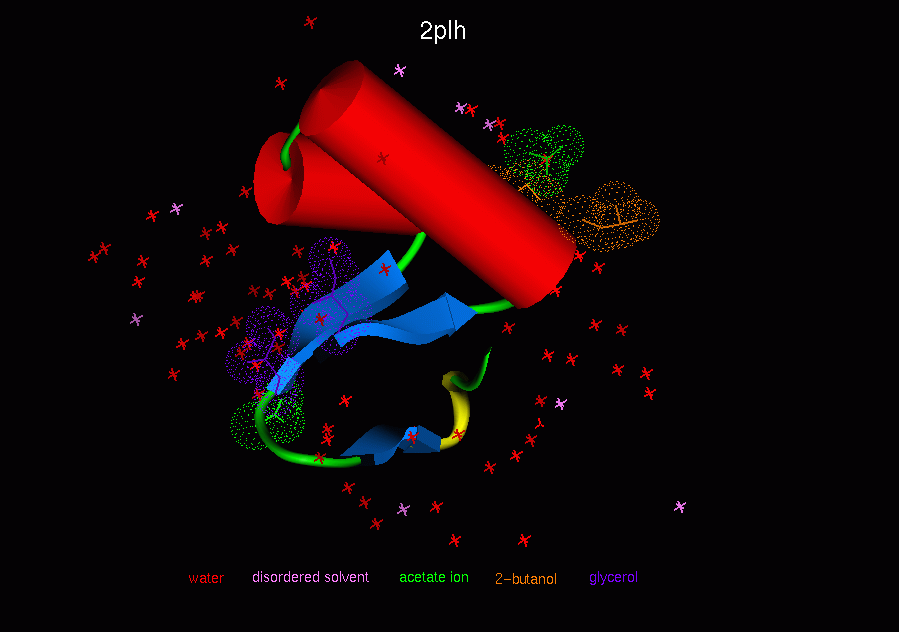

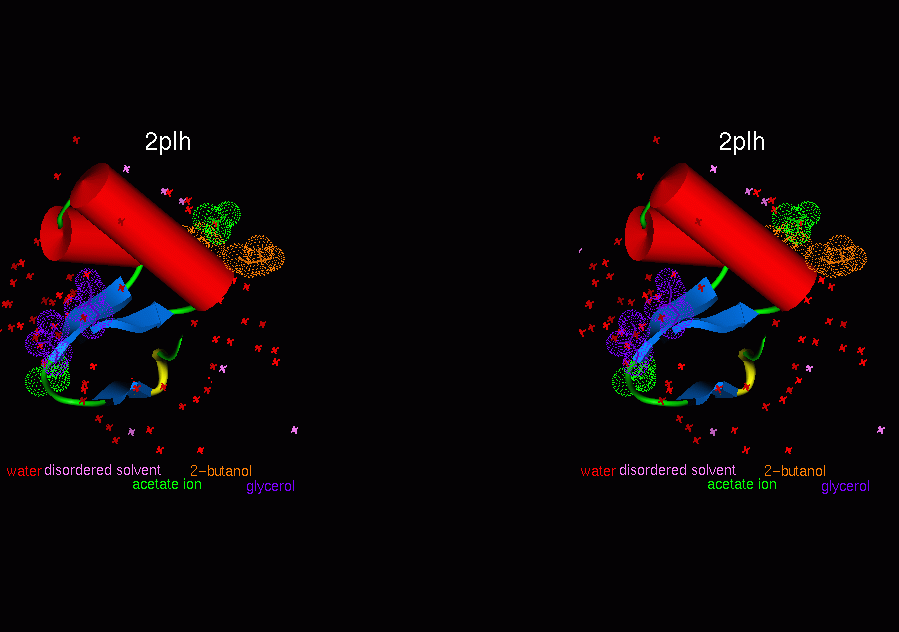

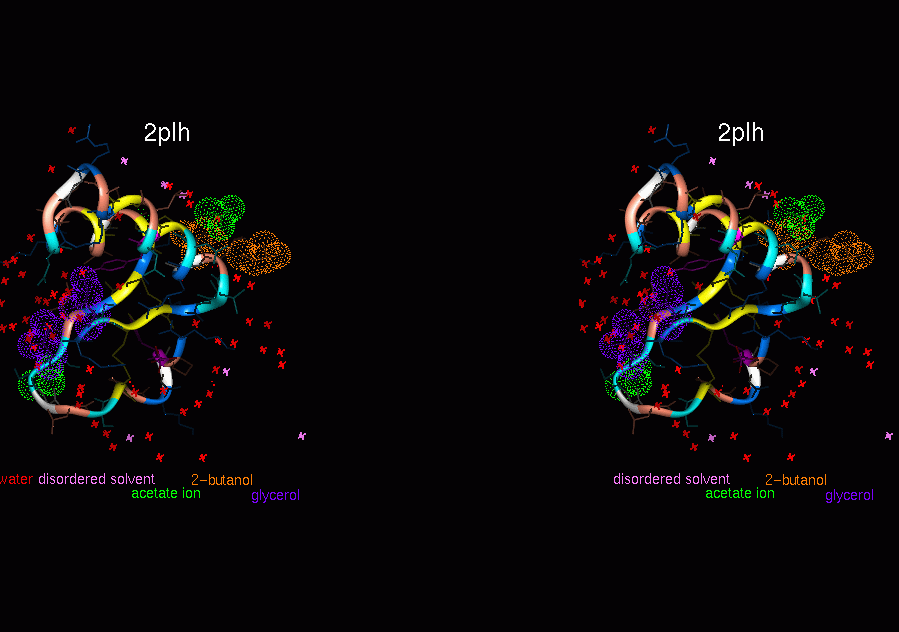

	ribbon, secondary structure; solvent [ mono GIF format \| stereo GIF format ]

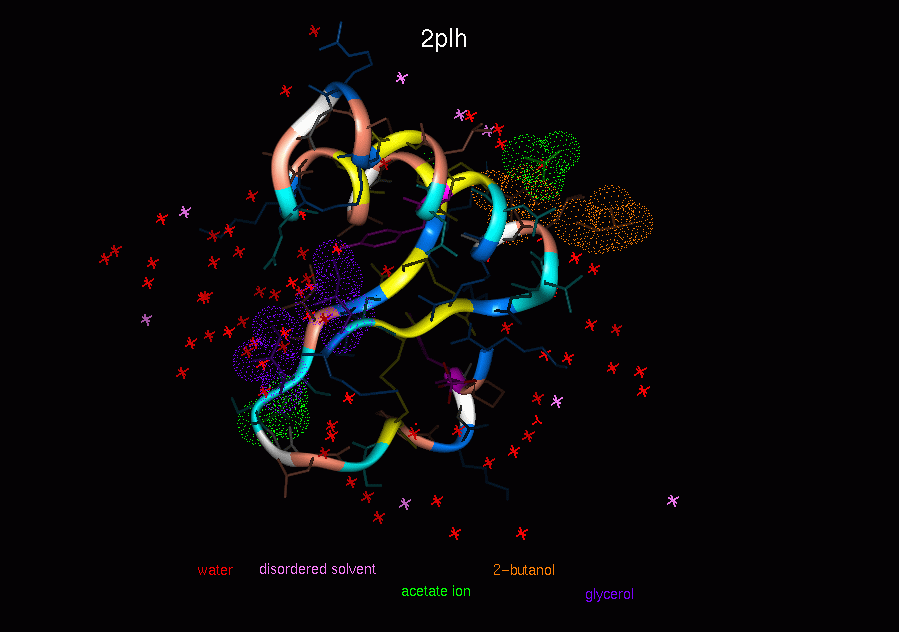

	ribbon, sticks, solvent [ mono GIF format \| stereo GIF format ]

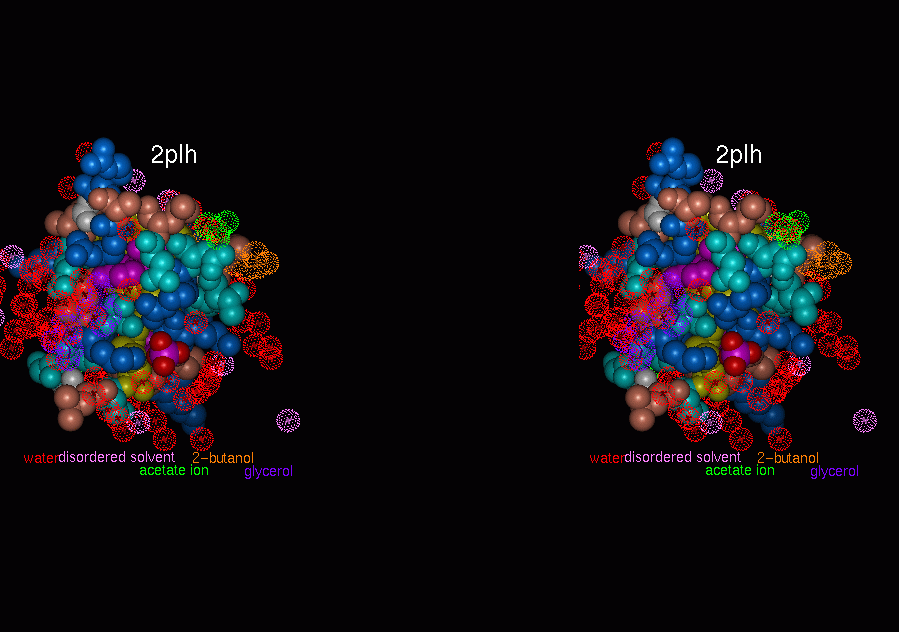

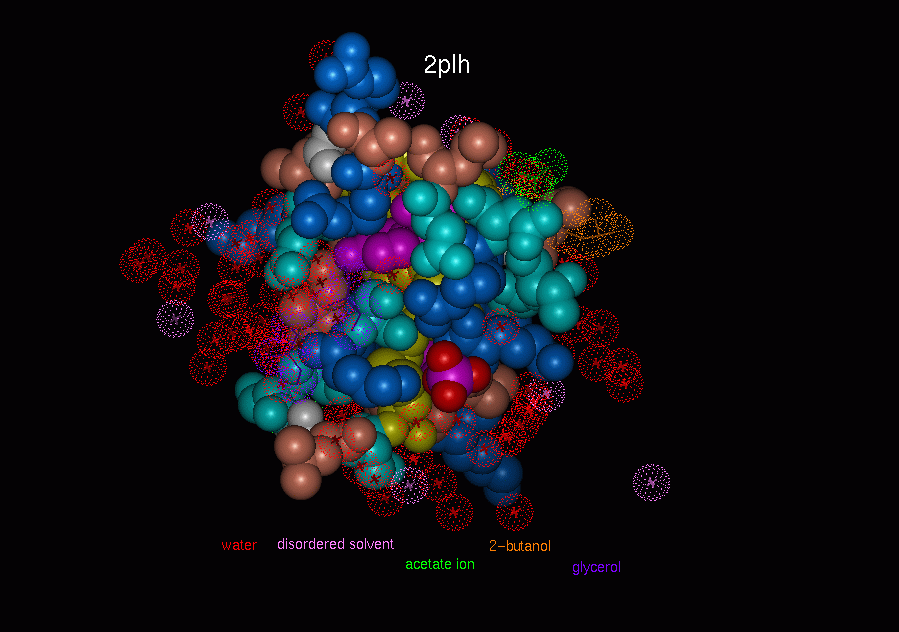

	spacefill, solvent [ mono GIF format \| stereo GIF format ]

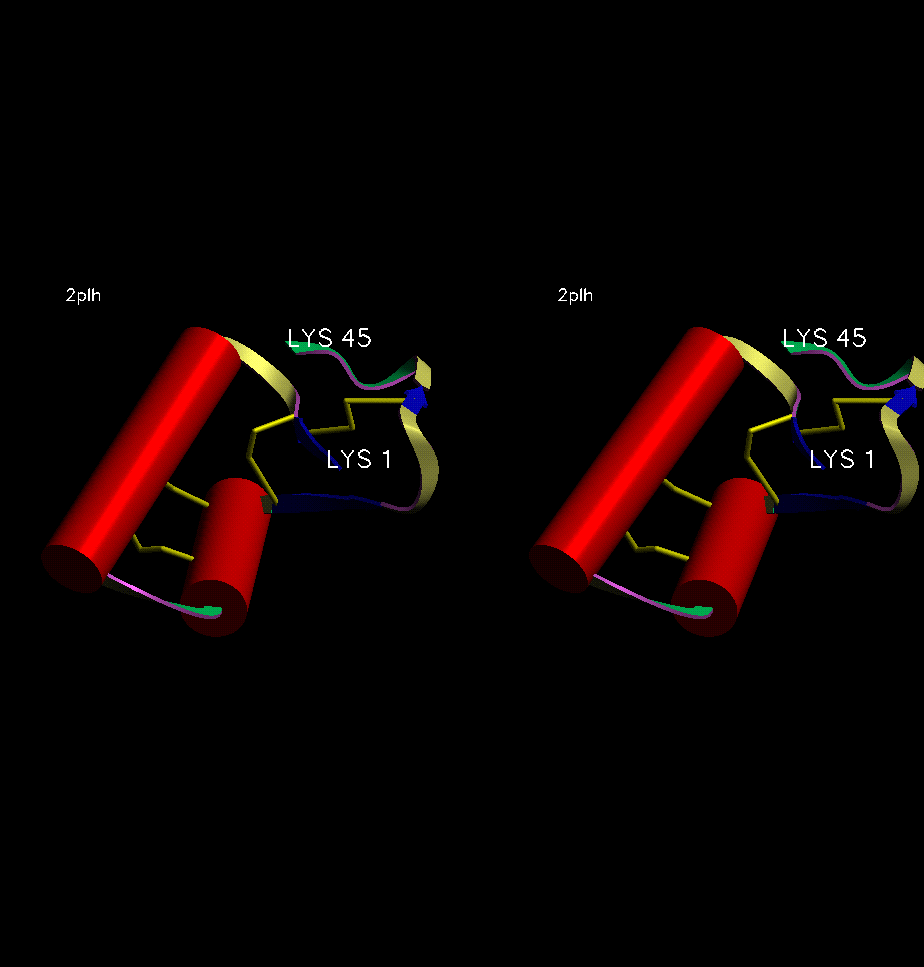

Setor

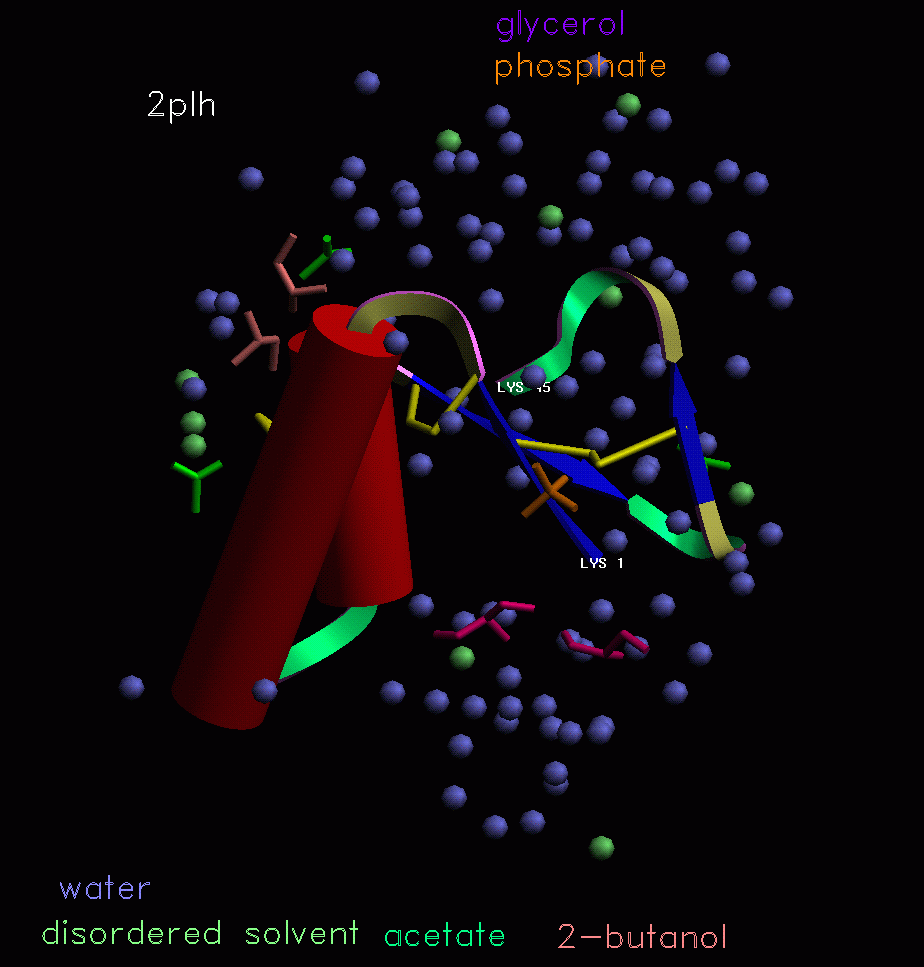

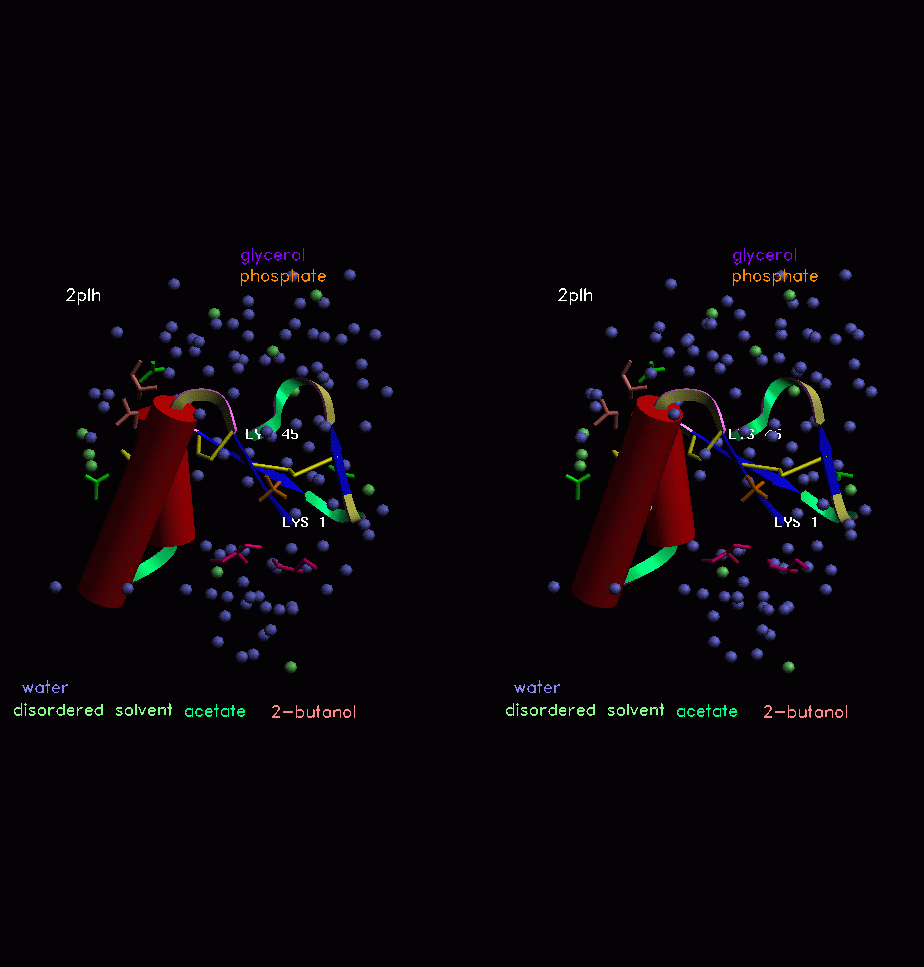

	ribbon ,secondary structure, solvent [ mono GIF format \| stereo GIF format ]

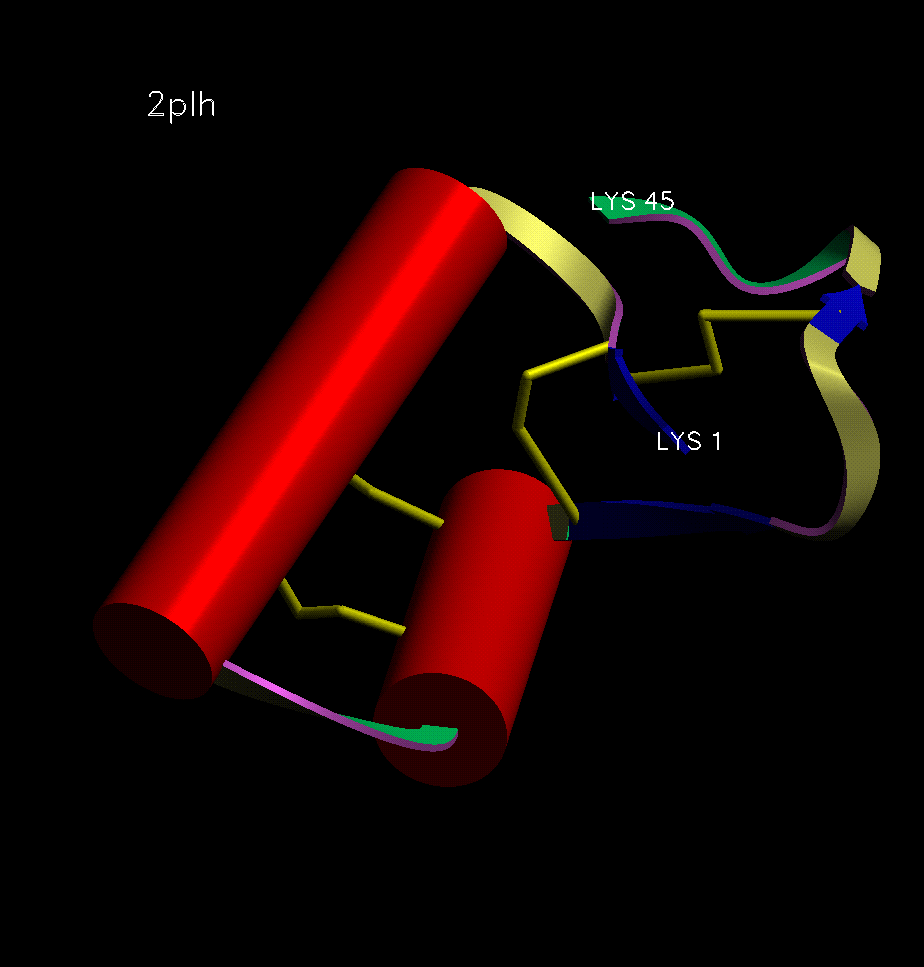

	ribbon, secondary struture [ mono GIF format \| stereo GIF format ]

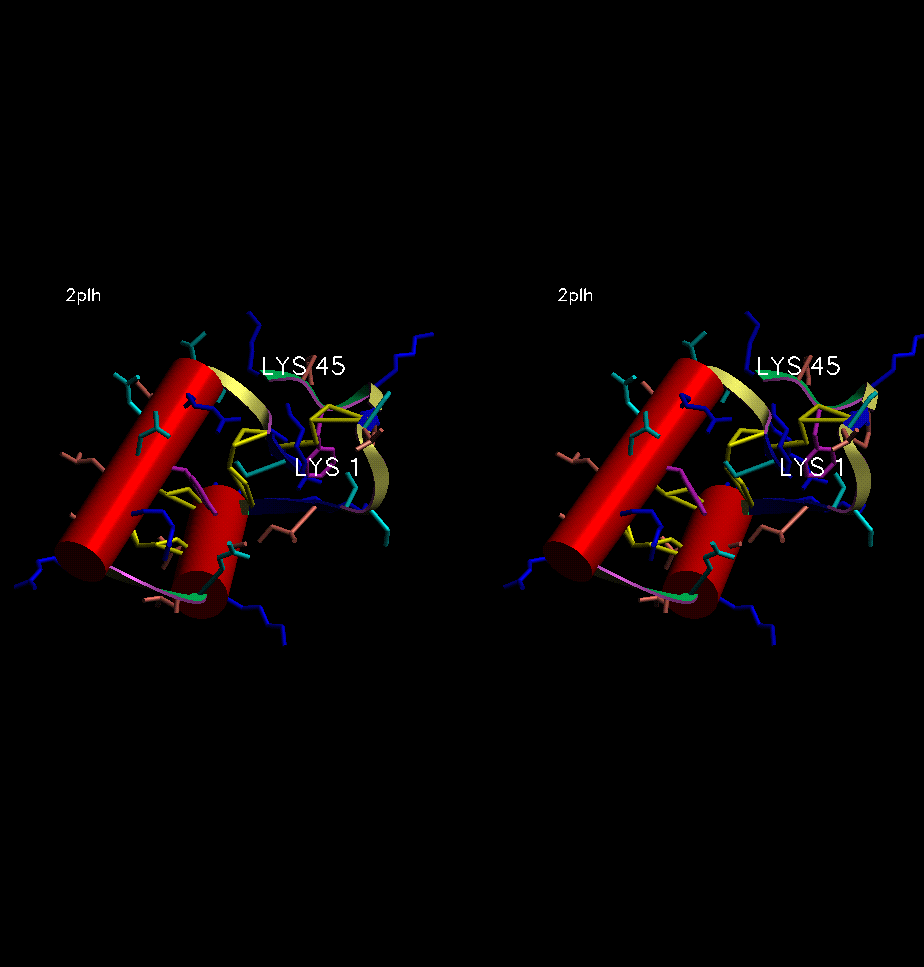

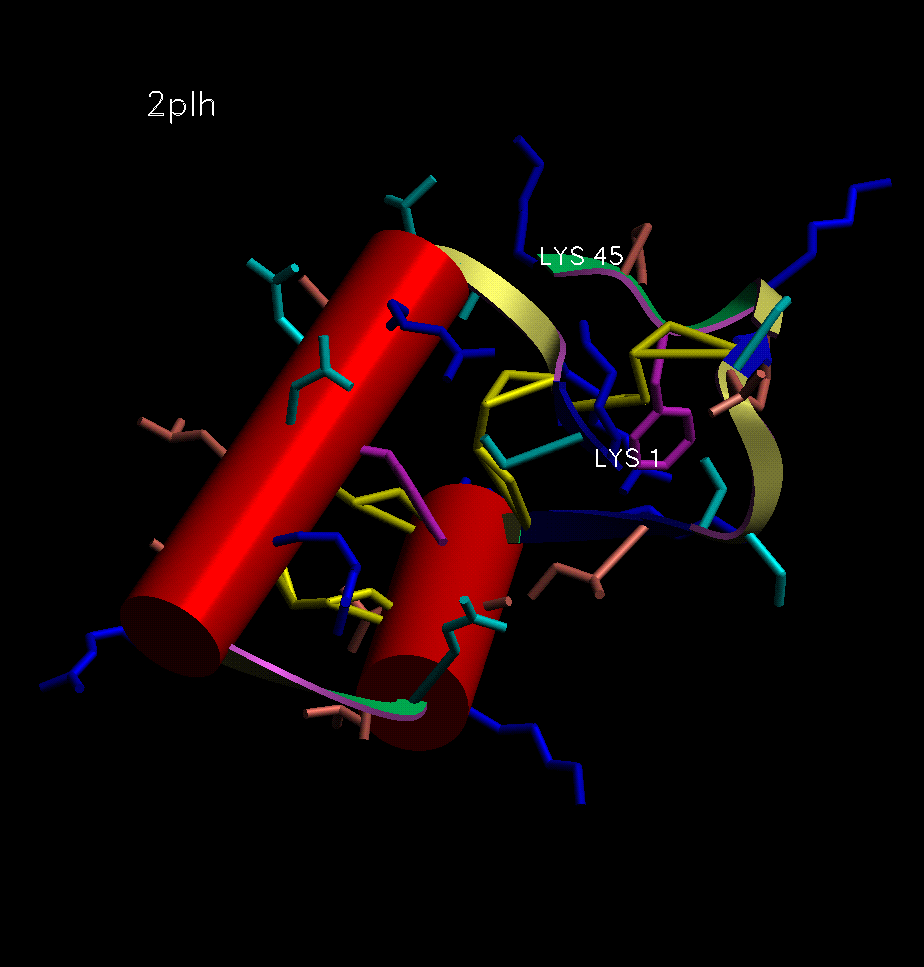

	ribbon, secondary structure, sticks [ mono GIF format \| stereo GIF format ]

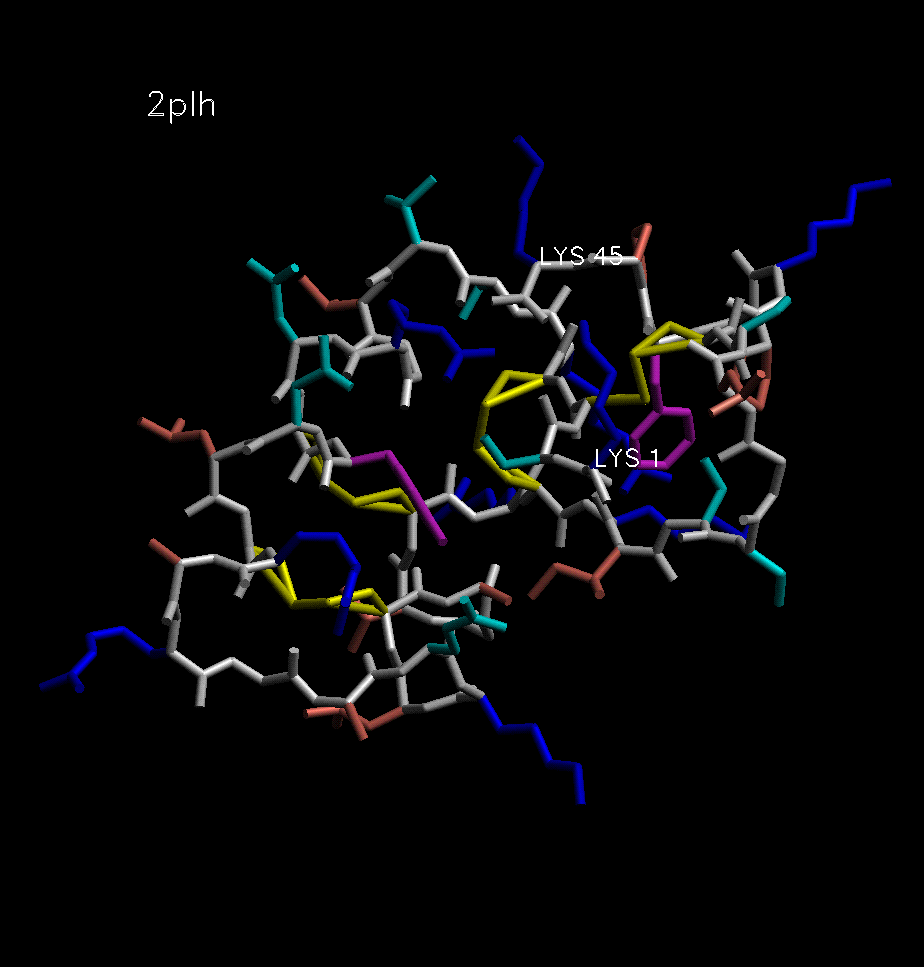

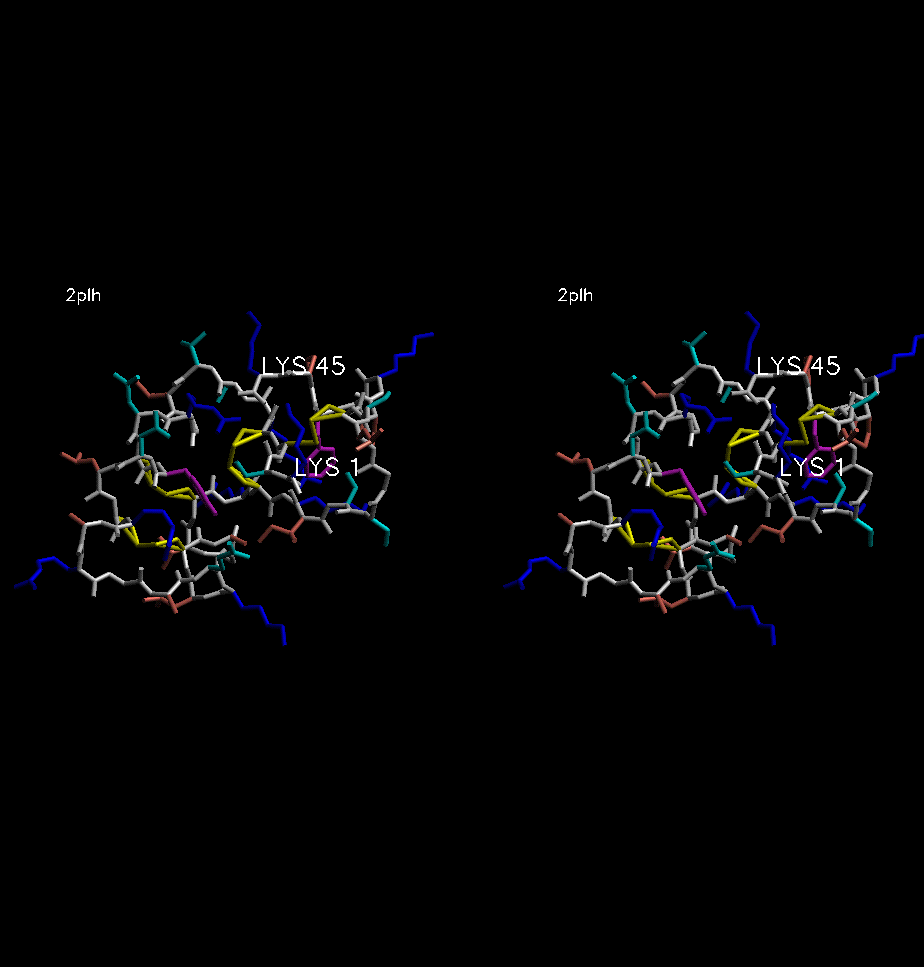

	sticks [ mono GIF format \| stereo GIF format ]

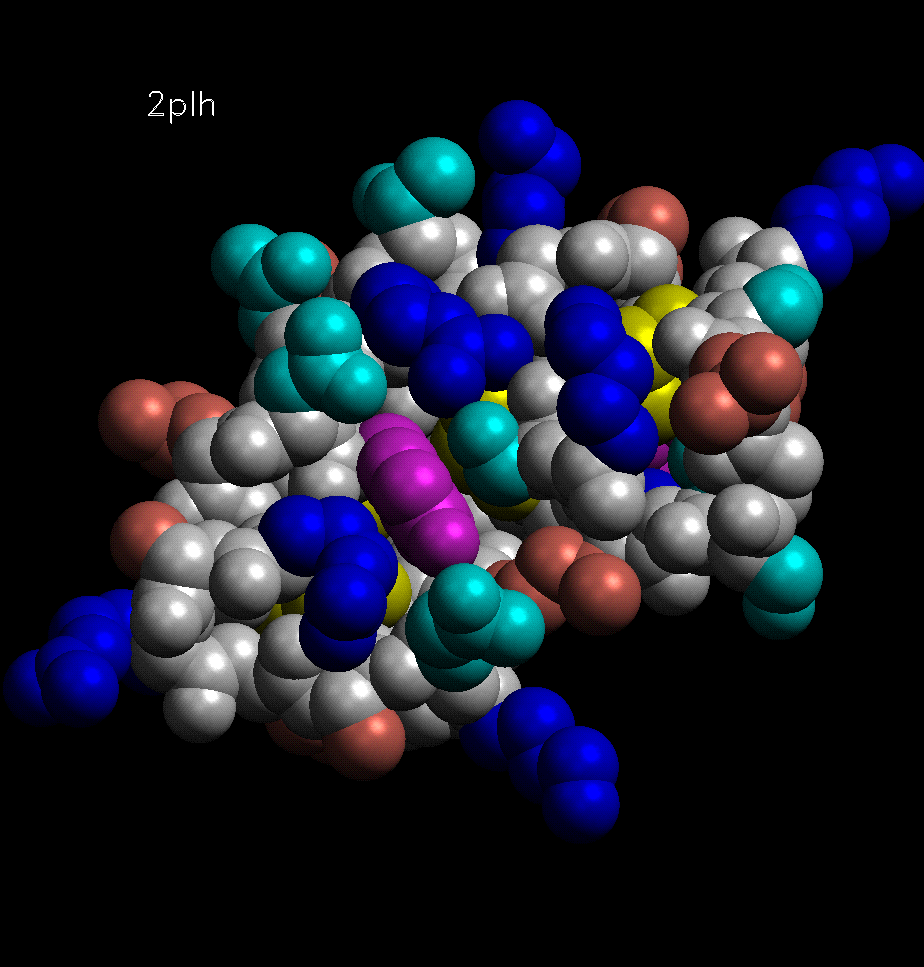

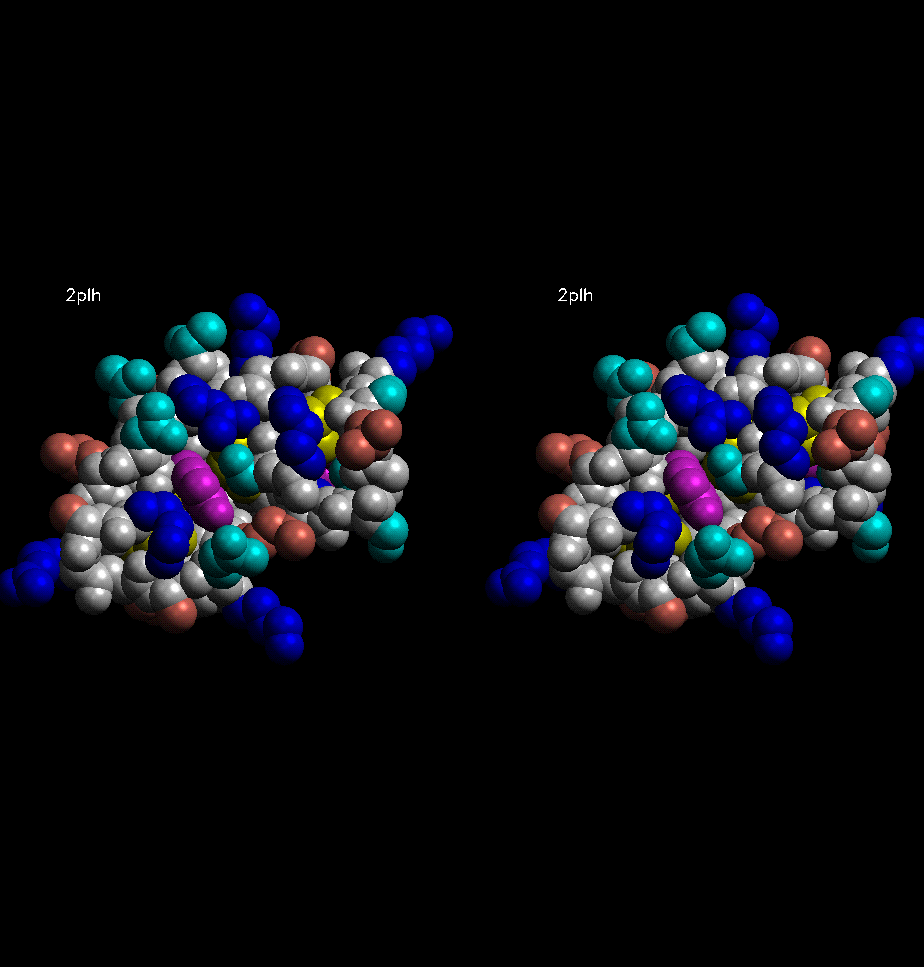

	spacefill [ mono GIF format \| stereo GIF format ]

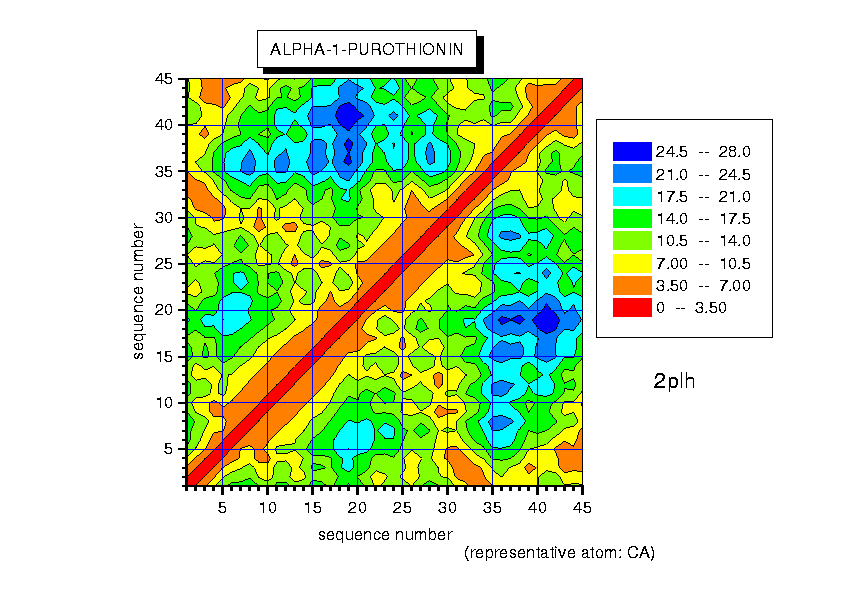

Distance Plot
	representative atom: CA [ mono GIF format \| mono PDF format ]
