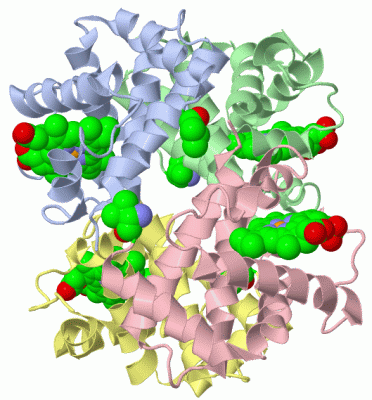

Asym./Biol. Unit - manually (Jmol Viewer)

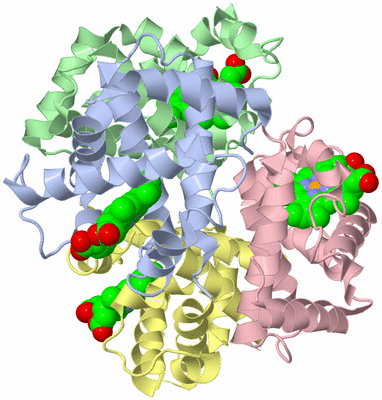

Asym./Biol. Unit (Jmol Viewer)

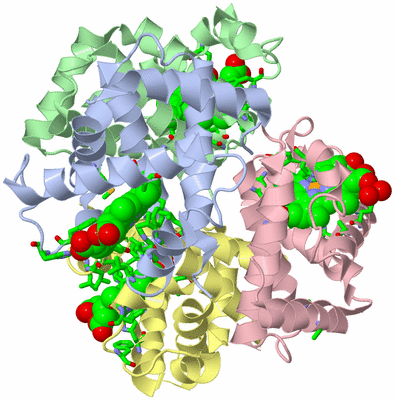

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   STRUCTURE DETERMINATION OF AQUOMET PORCINE HEMOGLOBIN AT 2.8 ANGSTROM RESOLUTION

Authors :   D. S. Katz, S. P. White, W. Huang, R. Kumar, D. W. Christianson

Date :   16 Sep 94 (Deposition) - 30 Nov 94 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.80

Chains :   Asym./Biol. Unit : A,B,C,D

Keywords :   Oxygen Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   D. S. Katz, S. P. White, W. Huang, R. Kumar, D. W. Christianson
Structure Determination Of Aquomet Porcine Hemoglobin At 2. 8 A Resolution.
J. Mol. Biol. V. 244 541 1994
PubMed-ID: 7990139 | Reference-DOI: 10.1006/JMBI.1994.1751
(for further references see the PDB file header)

Molecule 1 - HEMOGLOBIN (AQUO MET) (ALPHA CHAIN)
	Chains	:	A, C
	Engineered	:	YES
	Organ	:	BLOOD
	Organism Common	:	PIG
	Organism Scientific	:	SUS SCROFA
	Organism Taxid	:	9823
	Tissue	:	BLOOD

Molecule 2 - HEMOGLOBIN (AQUO MET) (BETA CHAIN)
	Chains	:	B, D
	Engineered	:	YES
	Organ	:	BLOOD
	Organism Common	:	PIG
	Organism Scientific	:	SUS SCROFA
	Organism Taxid	:	9823
	Tissue	:	BLOOD

		1	2	3	4
Asymmetric/Biological Unit	:	A	B	C	D

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (1, 4)

No.	Name	Count	Type	Full Name
1	HEM	4	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE

Asymmetric Unit (4, 4)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	MET A:32 , TYR A:42 , PHE A:43 , HIS A:45 , ALA A:65 , LEU A:83 , HIS A:87 , LEU A:91 , VAL A:93 , ASN A:97 , PHE A:98 , LEU A:101 , LEU A:136 , HOH A:149 , ALA C:12	BINDING SITE FOR RESIDUE HEM A 142
2	AC2	SOFTWARE	THR B:38 , PHE B:41 , PHE B:42 , HIS B:63 , SER B:70 , LEU B:91 , HIS B:92 , LEU B:96 , ASN B:102 , PHE B:103 , LEU B:106 , LEU B:141 , HIS C:50 , HIS D:120	BINDING SITE FOR RESIDUE HEM B 147
3	AC3	SOFTWARE	TYR C:42 , PHE C:43 , HIS C:58 , LYS C:61 , ALA C:65 , HIS C:87 , ASN C:97 , LEU C:101 , HOH C:148 , HOH C:152 , HOH C:159 , HOH C:177	BINDING SITE FOR RESIDUE HEM C 142
4	AC4	SOFTWARE	PHE D:41 , PHE D:42 , PHE D:45 , HIS D:63 , SER D:70 , LEU D:91 , HIS D:92 , LEU D:96 , ASN D:102 , PHE D:103 , LEU D:106 , LEU D:141 , HOH D:153 , HOH D:155 , HOH D:173	BINDING SITE FOR RESIDUE HEM D 147

(no "SS Bond" information available for 2PGH)

(no "Cis Peptide Bond" information available for 2PGH)

(no "SAP(SNP)/Variant" information available for 2PGH)

Asymmetric/Biological Unit (1, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GLOBIN	PS01033	Globin family profile.	HBB_PIG	2-147	2	B:1-146 D:1-146
1	GLOBIN	PS01033	Globin family profile.	HBA_PIG	2-141	2	A:2-141 C:2-141

(no "Exon" information available for 2PGH)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:141
 aligned with HBA_PIG | P01965 from UniProtKB/Swiss-Prot  Length:141

    Alignment length:141
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
              HBA_PIG     1 VLSAADKANVKAAWGKVGGQAGAHGAEALERMFLGFPTTKTYFPHFNLSHGSDQVKAHGQKVADALTKAVGHLDDLPGALSALSDLHAHKLRVDPVNFKLLSHCLLVTLAAHHPDDFNPSVHASLDKFLANVSTVLTSKYR 141
               SCOP domains d2pgha_ A: Hemoglobin, alpha-chain                                                                                                            SCOP domains
               CATH domains 2pghA00 A:1-141 Globins                                                                                                                       CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhh........hhhhhhhhh.....hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -GLOBIN  PDB: A:2-141 UniProt: 2-141                                                                                                          PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2pgh A   1 VLSAADKANVKAAWGKVGGQAGAHGAEALERMFLGFPTTKTYFPHFNLSHGSDQVKAHGQKVADALTKAVGHLDDLPGALSALSDLHAHKLRVDPVNFKLLSHCLLVTLAAHHPDDFNPSVHASLDKFLANVSTVLTSKYR 141
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Chain B from PDB  Type:PROTEIN  Length:146
 aligned with HBB_PIG | P02067 from UniProtKB/Swiss-Prot  Length:147

    Alignment length:146
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
              HBB_PIG     2 VHLSAEEKEAVLGLWGKVNVDEVGGEALGRLLVVYPWTQRFFESFGDLSNADAVMGNPKVKAHGKKVLQSFSDGLKHLDNLKGTFAKLSELHCDQLHVDPENFRLLGNVIVVVLARRLGHDFNPNVQAAFQKVVAGVANALAHKYH 147
               SCOP domains d2pghb_ B: Hemoglobin, beta-chain                                                                                                                  SCOP domains
               CATH domains 2pghB00 B:1-146 Globins                                                                                                                            CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhh.....hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) GLOBIN  PDB: B:1-146 UniProt: 2-147                                                                                                                PROSITE (2)
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2pgh B   1 VHLSAEEKEAVLGLWGKVNVDEVGGEALGRLLVVYPWTQRFFESFGDLSNADAVMGNPKVKAHGKKVLQSFSDGLKHLDNLKGTFAKLSELHCDQLHVDPENFRLLGNVIVVVLARRLGHDFNPDVQAAFQKVVAGVANALAHKYH 146
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Chain C from PDB  Type:PROTEIN  Length:141
 aligned with HBA_PIG | P01965 from UniProtKB/Swiss-Prot  Length:141

    Alignment length:141
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
              HBA_PIG     1 VLSAADKANVKAAWGKVGGQAGAHGAEALERMFLGFPTTKTYFPHFNLSHGSDQVKAHGQKVADALTKAVGHLDDLPGALSALSDLHAHKLRVDPVNFKLLSHCLLVTLAAHHPDDFNPSVHASLDKFLANVSTVLTSKYR 141
               SCOP domains d2pghc_ C: Hemoglobin, alpha-chain                                                                                                            SCOP domains
               CATH domains 2pghC00 C:1-141 Globins                                                                                                                       CATH domains
           Pfam domains (1) -----Globin-2pghC01 C:6-106                                                                               ----------------------------------- Pfam domains (1)
           Pfam domains (2) -----Globin-2pghC02 C:6-106                                                                               ----------------------------------- Pfam domains (2)
         Sec.struct. author ..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhh........hhhhhhhhh.....hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -GLOBIN  PDB: C:2-141 UniProt: 2-141                                                                                                          PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2pgh C   1 VLSAADKANVKAAWGKVGGQAGAHGAEALERMFLGFPTTKTYFPHFNLSHGSDQVKAHGQKVADALTKAVGHLDDLPGALSALSDLHAHKLRVDPVNFKLLSHCLLVTLAAHHPDDFNPSVHASLDKFLANVSTVLTSKYR 141
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Chain D from PDB  Type:PROTEIN  Length:146
 aligned with HBB_PIG | P02067 from UniProtKB/Swiss-Prot  Length:147

    Alignment length:146
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
              HBB_PIG     2 VHLSAEEKEAVLGLWGKVNVDEVGGEALGRLLVVYPWTQRFFESFGDLSNADAVMGNPKVKAHGKKVLQSFSDGLKHLDNLKGTFAKLSELHCDQLHVDPENFRLLGNVIVVVLARRLGHDFNPNVQAAFQKVVAGVANALAHKYH 147
               SCOP domains d2pghd_ D: Hemoglobin, beta-chain                                                                                                                  SCOP domains
               CATH domains 2pghD00 D:1-146 Globins                                                                                                                            CATH domains
           Pfam domains (1) ------Globin-2pghD01 D:7-111                                                                                   ----------------------------------- Pfam domains (1)
           Pfam domains (2) ------Globin-2pghD02 D:7-111                                                                                   ----------------------------------- Pfam domains (2)
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhh.....hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) GLOBIN  PDB: D:1-146 UniProt: 2-147                                                                                                                PROSITE (2)
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2pgh D   1 VHLSAEEKEAVLGLWGKVNVDEVGGEALGRLLVVYPWTQRFFESFGDLSNADAVMGNPKVKAHGKKVLQSFSDGLKHLDNLKGTFAKLSELHCDQLHVDPENFRLLGNVIVVVLARRLGHDFNPDVQAAFQKVVAGVANALAHKYH 146
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All alpha proteins (14657)

Fold: Globin-like (1351)

Superfamily: Globin-like (1308)

Family: Globins (1157)

Protein domain: Hemoglobin, alpha-chain (292)

Pig (Sus scrofa) [TaxId: 9823] (3)

1a	d2pgha_	A:
1b	d2pghc_	C:

Protein domain: Hemoglobin, beta-chain (292)

Pig (Sus scrofa) [TaxId: 9823] (3)

2a	d2pghb_	B:
2b	d2pghd_	D:

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Alpha (13335)

Architecture: Orthogonal Bundle (10391)

Topology: Globin-like (786)

Homologous Superfamily: Globins (743)

Pig (Sus scrofa) (19)

1a	2pghB00	B:1-146
1b	2pghD00	D:1-146
1c	2pghA00	A:1-141
1d	2pghC00	C:1-141

Asymmetric/Biological Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: Globin (291)

Family: Globin (264)

Sus scrofa (Pig) (19)

1a	Globin-2pghC01	C:6-106
1b	Globin-2pghC02	C:6-106
1c	Globin-2pghD01	D:7-111
1d	Globin-2pghD02	D:7-111

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,C (HBA_PIG | P01965)

molecular function
	GO:0020037	heme binding	Interacting selectively and non-covalently with heme, any compound of iron complexed in a porphyrin (tetrapyrrole) ring.
	GO:0005506	iron ion binding	Interacting selectively and non-covalently with iron (Fe) ions.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0019825	oxygen binding	Interacting selectively and non-covalently with oxygen (O2).
	GO:0005344	oxygen transporter activity	Enables the directed movement of oxygen into, out of or within a cell, or between cells.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
	GO:0015671	oxygen transport	The directed movement of oxygen (O2) into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
	GO:0005833	hemoglobin complex	An iron-containing, oxygen carrying complex. In vertebrates it is made up of two pairs of associated globin polypeptide chains, each chain carrying a noncovalently bound heme prosthetic group.

Chain B,D (HBB_PIG | P02067)

molecular function
	GO:0020037	heme binding	Interacting selectively and non-covalently with heme, any compound of iron complexed in a porphyrin (tetrapyrrole) ring.
	GO:0005506	iron ion binding	Interacting selectively and non-covalently with iron (Fe) ions.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0019825	oxygen binding	Interacting selectively and non-covalently with oxygen (O2).
	GO:0005344	oxygen transporter activity	Enables the directed movement of oxygen into, out of or within a cell, or between cells.
biological process
	GO:0015671	oxygen transport	The directed movement of oxygen (O2) into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
	GO:0005833	hemoglobin complex	An iron-containing, oxygen carrying complex. In vertebrates it is made up of two pairs of associated globin polypeptide chains, each chain carrying a noncovalently bound heme prosthetic group.
