2PAS - JenaLib

Title :   COMPARISON BETWEEN THE CRYSTAL AND THE SOLUTION STRUCTURES OF THE EF HAND PARVALBUMIN

Authors :   A. Padilla, A. Cave, J. Parello, G. Etienne, C. Baldellon

Date :   22 Mar 94 (Deposition) - 22 Jun 94 (Release) - 24 Feb 09 (Revision)

Method :   SOLUTION NMR

Resolution :   NOT APPLICABLE

Chains :   NMR Structure  : A  (9x)

Keywords :   Binding Protein(Calcium) (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   A. Padilla, A. Cave, J. Parello, G. Etienne, C. Baldellon
Comparison Between The Crystal And The Solution Structures Of The Ef Hand Parvalbumin
To Be Published
PubMed: search
(for further references see the PDB file header)

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 3)

Sites (4, 4)

NMR Structure (4, 4)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ASP A:51 , ASP A:53 , SER A:55 , PHE A:57 , GLU A:59 , GLU A:62	BINDING SITE FOR RESIDUE CA A 110
2	AC2	SOFTWARE	ASP A:90 , ASP A:92 , ASP A:94 , LYS A:96 , ILE A:97 , GLU A:101	BINDING SITE FOR RESIDUE CA A 111
3	CD	UNKNOWN	ASP A:51 , ALA A:52 , ASP A:53 , ALA A:54 , SER A:55 , GLY A:56 , PHE A:57 , ILE A:58 , GLU A:59 , GLU A:60 , GLU A:61 , GLU A:62	NULL
4	EF	UNKNOWN	ASP A:90 , LYS A:91 , ASP A:92 , GLY A:93 , ASP A:94 , GLY A:95 , LYS A:96 , ILE A:97 , GLY A:98 , ILE A:99 , ASP A:100 , GLU A:101	NULL

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (2, 2)

PROSITE Motifs (2, 4)

Exons (0, 0)

Sequences/Alignments

NMR Structure

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:110
 aligned with PRVA_ESOLU | P02628 from UniProtKB/Swiss-Prot  Length:108

    Alignment length:110
                              1
                              |      8        18        28        38        48        58        68        78        88        98       108
           PRVA_ESOLU     - --AKDLLKADDIKKALDAVKAEGSFNHKKFFALVGLKAMSANDVKKVFKAIDADASGFIEEEELKFVLKSFAADGRDLTDAETKAFLKAADKDGDGKIGIDEFETLVHEA 108
               SCOP domains d2pasa_ A: Parvalbumin                                                                                         SCOP domains
               CATH domains -2pasA00 A:1-109 EF-hand                                                                                       CATH domains
               Pfam domains ------------------------------------------efhand-2pasA01 A:42-70       --------------------------------------- Pfam domains
         Sec.struct. author .........hhhhhhhhhh.......hhhhhhhh......hhhhhhhhhhh.........hhhhhhhhhhhh.......hhhhhhhhhhh.........hhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------A---K----------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --------------------------------------EF_HAND_2  PDB: A:38-73             ---EF_HAND_2  PDB: A:77-109          PROSITE (1)
                PROSITE (2) ---------------------------------------------------EF_HAND_1    --------------------------EF_HAND_1    ------- PROSITE (2)
                 Transcript -------------------------------------------------------------------------------------------------------------- Transcript
                 2pas A   0 xAAKDLLKADDIKKALDAVKAEGSFNHKKFFALVGLKAMSANDVKKVFKAIDADASGFIEEEELKFVLKSFAADGRDLTDAETKAFLKAADKDGDGKIGIDEFETLVHEA 109
                            |        9        19        29        39        49        59        69        79        89        99       109
                            |
                            0-ACE

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (1, 1)

Gene Ontology (2, 2)

Visualization

Interactive Views

NMR Structure
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		ACE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		CA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		CD	[ RasMol ]	+environment [ RasMol ]
		EF	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2pas)

Still Images

Jmol

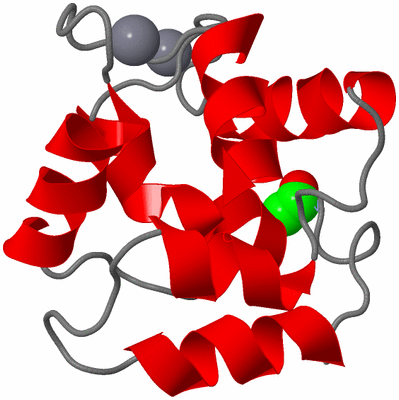

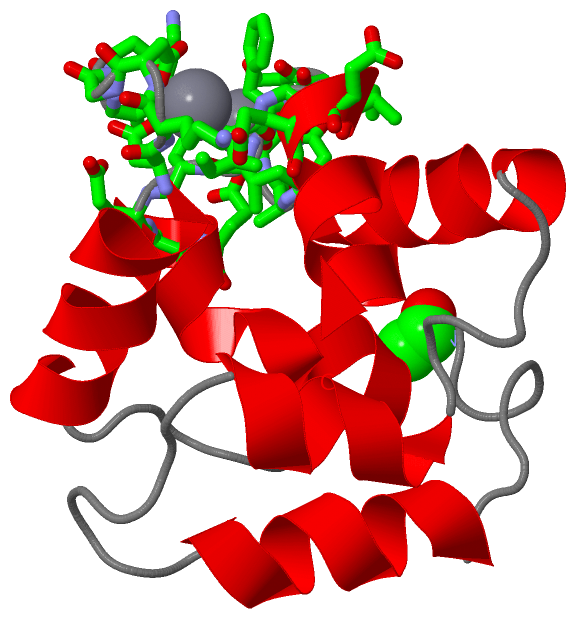

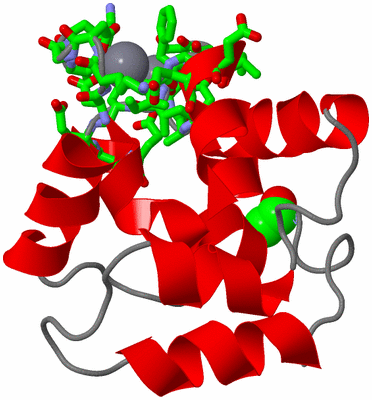

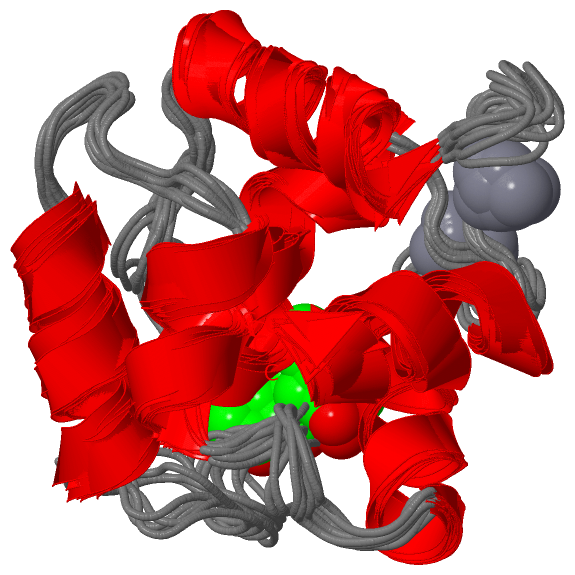

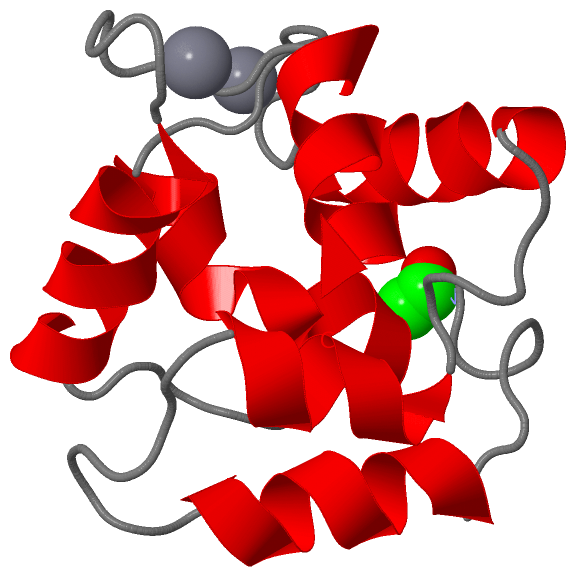

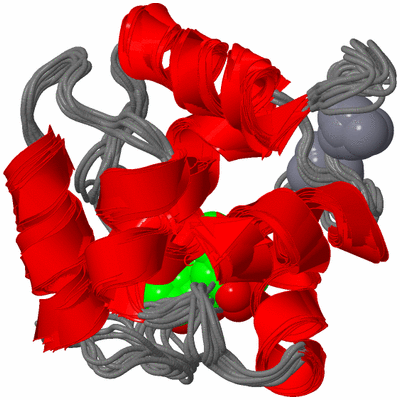

	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ NMR Structure - model 1 PNG format \| NMR Structure - model 1, sites PNG format \| NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)
