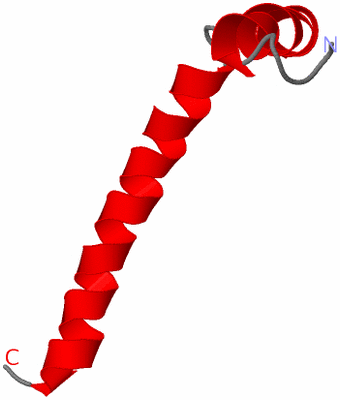

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

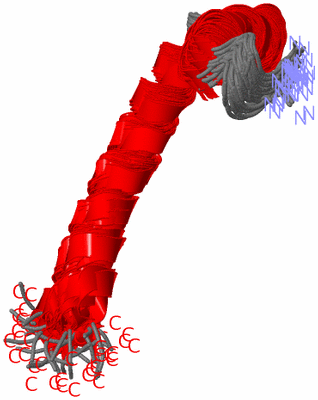

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF BACILLUS SUBTILITS TATAD PROTEIN IN DPC MICELLES

Authors :  Y. Hu, C. Jin
Date :  23 Jul 10  (Deposition) - 08 Sep 10  (Release) - 23 Feb 11  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (40x)
NMR Structure *:  A  (1x)
Keywords :  Membrane Protein, Protein Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. Hu, E. Zhao, H. Li, B. Xia, C. Jin
Solution Nmr Structure Of The Tata Component Of The Twin-Arginine Protein Transport System From Gram-Positive Bacterium Bacillus Subtilis
J. Am. Chem. Soc. V. 132 15942 2010
PubMed-ID: 20726548  |  Reference-DOI: 10.1021/JA1053785

(-) Compounds

Molecule 1 - SEC-INDEPENDENT PROTEIN TRANSLOCASE PROTEIN TATAD
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 562
    Expression System Vector: PET21A(+)
    Expression System Vector Type: VECTOR
    Gene: TATAD, YCZB, BSU02630
    Organism Scientific: BACILLUS SUBTILIS
    Organism Taxid: 1423

 Structural Features

(-) Chains, Units

  1
NMR Structure (40x): A
NMR Structure * (1x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2L16)

(-) Sites  (0, 0)

(no "Site" information available for 2L16)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2L16)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2L16)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2L16)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2L16)

(-) Exons   (0, 0)

(no "Exon" information available for 2L16)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:52
 aligned with TATAD_BACSU | O31467 from UniProtKB/Swiss-Prot  Length:70

    Alignment length:52
                                    10        20        30        40        50
           TATAD_BACSU    1 MFSNIGIPGLILIFVIALIIFGPSKLPEIGRAAGRTLLEFKSATKSLVSGDE 52
               SCOP domains ---------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------- CATH domains
               Pfam domains ----MttA_Hcf106-2l16A01 A:5-52                       Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------- Transcript
                  2l16 A  1 MFSNIGIPGLILIFVIALIIFGPSKLPEIGRAAGRTLLEFKSATKSLVSGDE 52
                                    10        20        30        40        50
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2L16)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2L16)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: no clan defined [family: MttA_Hcf106] (1)

(-) Gene Ontology  (13, 13)

NMR Structure(hide GO term definitions)
Chain A   (TATAD_BACSU | O31467)
molecular function
    GO:0008320    protein transmembrane transporter activity    Enables the transfer of a protein from one side of a membrane to the other.
    GO:0008565    protein transporter activity    Enables the directed movement of proteins into, out of or within a cell, or between cells.
biological process
    GO:0009306    protein secretion    The controlled release of proteins from a cell.
    GO:0015031    protein transport    The directed movement of proteins into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0043953    protein transport by the Tat complex    The process in which folded proteins are transported across cytoplasmic membranes of bacteria and membranes of organelles derived from bacteria (chloroplasts and mitochondria) by the TAT complex.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0033281    TAT protein transport complex    A complex of three proteins integral to the cytoplasmic membrane of bacteria and membranes of organelles derived from bacteria (chloroplasts and mitochondria) involved in membrane transport of folded proteins.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0005887    integral component of plasma membrane    The component of the plasma membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2l16)

  Sites
(no "Sites" information available for 2l16)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2l16)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

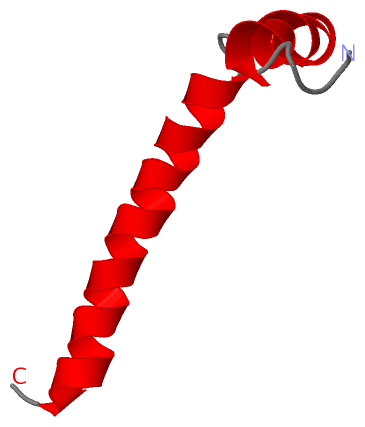

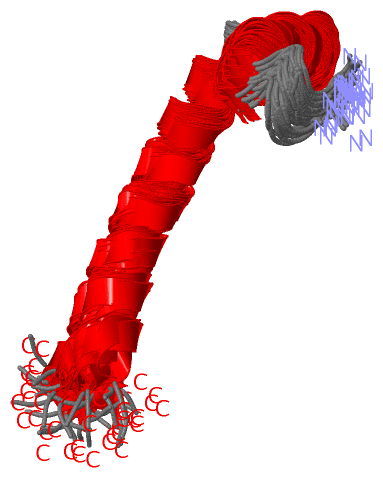

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
