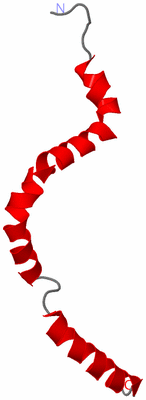

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

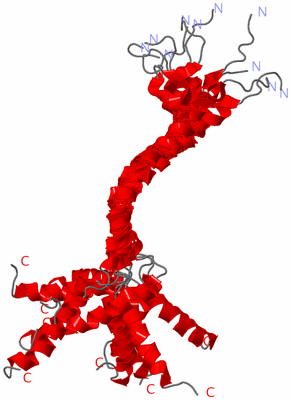

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR STRUCTURE OF THE C-TERMINAL DOMAIN OF PUL89

Authors :  A. Couvreux, S. Hantz, R. Marquant, G. Champier, S. Alain, N. Morellet,
Date :  18 Aug 09  (Deposition) - 09 Jun 10  (Release) - 09 Jun 10  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (10x)
Keywords :  Nhcmv, Pul89, Terminase, Protein Binding, Dna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Couvreux, S. Hantz, R. Marquant, G. Champier, S. Alain, N. Morellet, S. Bouaziz
Insight Into The Structure Of The Pul89 C-Terminal Domain Of The Human Cytomegalovirus Terminase Complex.
Proteins V. 78 1520 2010
PubMed-ID: 20099308  |  Reference-DOI: 10.1002/PROT.22669

(-) Compounds

Molecule 1 - DNA CLEAVAGE AND PACKAGING PROTEIN LARGE SUBUNIT, UL89
    Chains: A
    Engineered: YES
    Fragment: SEQUENCE DATABASE RESIDUES 568-635
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: DNA PACKAGING TERMINASE SUBUNIT 1
    Synthetic: YES

 Structural Features

(-) Chains, Units


NMR Structure (10x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2KN8)

(-) Sites  (0, 0)

(no "Site" information available for 2KN8)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2KN8)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2KN8)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2KN8)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2KN8)

(-) Exons   (0, 0)

(no "Exon" information available for 2KN8)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:68
 aligned with Q6RXE9_HCMV | Q6RXE9 from UniProtKB/TrEMBL  Length:674

    Alignment length:68
                                   577       587       597       607       617       627
          Q6RXE9_HCMV   568 DQNHIEQPFYLMGRDKALAVEQFISRFNSGYIKASQELVSYTIKLSHDPIEYLLEQIQNLHRVTLAEG 635
               SCOP domains -------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------- CATH domains
               Pfam domains DNA_pack_C-2kn8A01 A:1-68                                            Pfam domains
         Sec.struct. author ......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------- Transcript
                 2kn8 A   1 DQNHIEQPFYLMGRDKALAVEQFISRFNSGYIKASQELVSYTIKLSHDPIEYLLEQIQNLHRVTLAEG  68
                                    10        20        30        40        50        60
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2KN8)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2KN8)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: P-loop_NTPase (1112)

(-) Gene Ontology  (3, 3)

NMR Structure(hide GO term definitions)
Chain A   (Q6RXE9_HCMV | Q6RXE9)
biological process
    GO:0006323    DNA packaging    Any process in which DNA and associated proteins are formed into a compact, orderly structure.
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2kn8)

  Sites
(no "Sites" information available for 2kn8)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2kn8)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

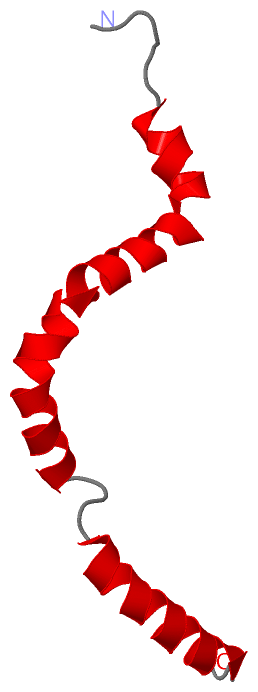

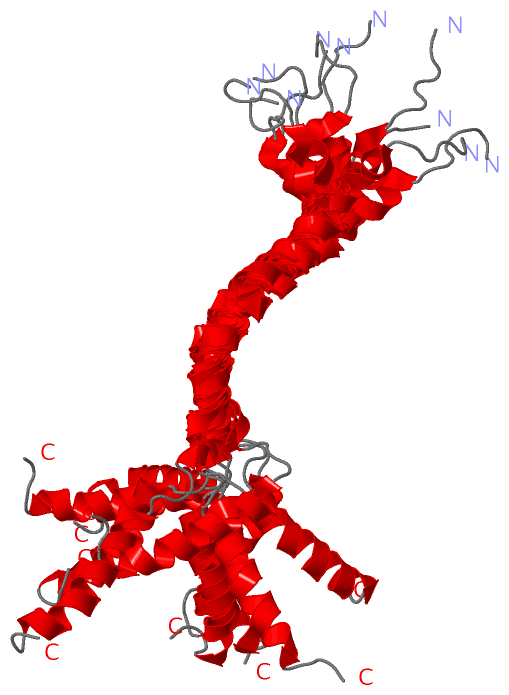

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
